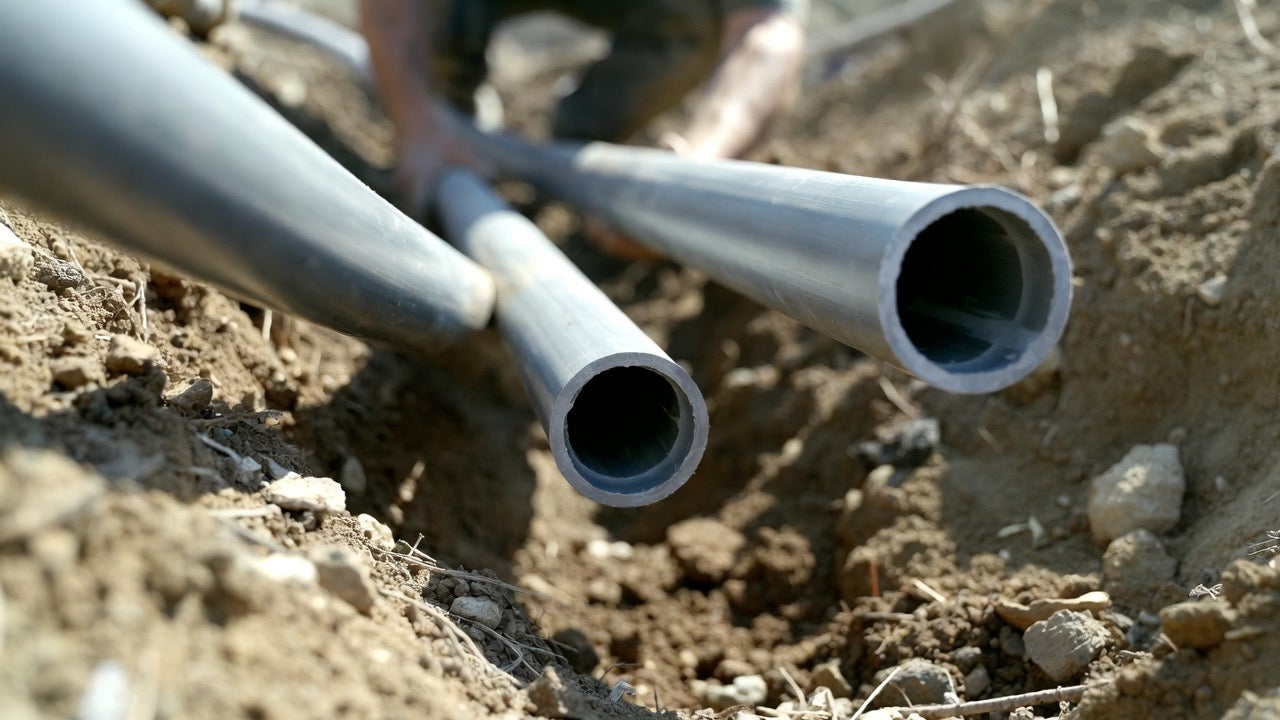

Underground Conduit Installation Best Practices: Tools, Fittings, and Techniques

A single conduit installation shortcut can lead to months of rework, failed inspections, and damaged cables buried beneath feet of soil. Whether the project involves power distribution for a commercial development or fiber optic routing for a municipal network, the quality of the underground conduit system determines how that infrastructure performs for decades. Proper conduit installation starts well before a trench is opened and continues through backfill compaction and final testing.

This guide breaks down every phase of the process, from planning and material selection to cable pulling and post-installation inspection. Contractors and project managers will find practical guidance on NEC compliance, tool selection, fitting choices, and the field-tested techniques that separate reliable systems from those that require early intervention.

Planning and Site Preparation

Every successful conduit installation begins with thorough pre-construction planning. Rushing into excavation without a clear understanding of existing utilities, soil conditions, and permit requirements creates costly problems that are far more difficult to solve once equipment is on site.

Before any digging begins, contact 811 to request a utility locate. This step is required by law in all 50 states and identifies the location of buried gas lines, water mains, electrical cables, and telecommunications infrastructure. Utility locate marks typically remain valid for 10 to 14 business days, so coordinate excavation schedules accordingly.

Obtain all required permits from the local authority having jurisdiction (AHJ) before breaking ground. Permit requirements vary by municipality, but most commercial and industrial conduit installations require both an excavation permit and an electrical permit. Projects in public rights-of-way often carry additional requirements for traffic control plans and restoration specifications.

Assess soil conditions along the planned conduit route. Sandy or granular soils drain well and provide stable bedding, while clay-heavy soils retain moisture and expand with temperature changes. Rocky terrain may require specialized trenching equipment and additional bedding material to protect the conduit from point loads. Document these conditions during the planning phase so the crew arrives with the right equipment and materials on day one.

Choosing the Right Conduit Material

Selecting the correct conduit material is one of the most consequential decisions in any underground installation. Each material offers distinct advantages depending on the application, soil conditions, and the type of cable being protected.

PVC conduit remains the most widely used material for underground installations due to its low cost, corrosion resistance, and availability. PVC rigid conduit in Schedule 40 is suitable for direct burial and concrete encasement, while Schedule 80 provides additional wall thickness for exposed runs or areas subject to physical damage.

HDPE conduit excels in directional drilling and plowing applications because of its flexibility and continuous lengths that reduce the number of joints in a run. Fiberglass RTRC conduit offers a higher temperature rating (110°C vs. 90°C for PVC) and is preferred for duct bank applications where heat dissipation is a design concern. Steel conduit, including rigid metal conduit (RMC) and intermediate metal conduit (IMC), is required at conduit risers and in hazardous locations per NEC Article 514.8.

NEC Burial Depth Requirements

The National Electrical Code (NEC) Table 300.5 establishes minimum cover requirements for underground conduit installations. "Cover" is measured from the top of the conduit to the finished grade. These are minimum values, and local codes may require greater depth.

Several important notes apply to these requirements. Where solid rock prevents adequate burial depth, the conduit may be installed at a reduced depth if protected by a minimum of 2 inches of concrete encasement. Warning ribbon or tape must be placed at least 12 inches above underground conduit installations that are not concrete encased (NEC 300.5(D)(3)). Raceways emerging from the ground require Schedule 80 PVC or rigid metal conduit to protect against physical damage.

Always confirm burial depth requirements with the local AHJ, as many jurisdictions adopt amendments that exceed NEC minimums.

Essential Conduit Installation Tools

Having the right tools on site prevents delays and reduces the risk of conduit damage during installation. The specific tool requirements vary based on project scope, conduit material, and installation method.

Trenching equipment forms the foundation of any open-cut conduit installation. Walk-behind trenchers work well for shorter residential runs, while ride-on chain trenchers and rock wheels handle longer commercial and industrial excavations. Backhoes provide versatility for projects that combine trenching with other excavation needs. For all trenching methods, maintaining a consistent depth and a level trench bottom is critical.

Conduit cutting tools must match the material being installed. PVC requires a ratchet cutter or fine-tooth saw for clean, square cuts. HDPE conduit calls for a specialized ratchet cutter designed for polyethylene. Fiberglass conduit cuts cleanly with a diamond blade or carbide-tipped saw, and steel conduit requires a pipe cutter or reciprocating saw with a metal-cutting blade.

Cable pulling equipment becomes essential for longer runs and multi-conductor installations. Fish tape works for shorter, simpler pulls, while powered cable pulling machines handle the tension demands of longer runs. Swivel coupling duct rod connectors allow smooth rotation during wire pulls, reducing friction and preventing cable twist. Tensiometers monitor pulling tension in real time to ensure cable does not exceed its rated pulling force.

Mandrel testing equipment verifies conduit integrity after installation and before cable is pulled. A properly sized mandrel (typically 3.25 inches for 4-inch conduit) confirms that no obstructions, deformations, or joint offsets exist within the installed conduit run.

Fittings and Connectors for Underground Systems

The fittings used in a conduit installation are just as critical as the conduit itself. Poor fitting selection or improper installation creates weak points where moisture, soil, and debris enter the system and compromise cable protection.

Couplings join two sections of conduit to create a continuous run. PVC couplings use solvent cement for a permanent, watertight bond. HDPE couplings rely on heat fusion or mechanical compression connections. Bell adapters provide smooth transitions at conduit termination points, reducing snag risk during cable pulls.

Elbows and sweeps change the direction of a conduit run without exceeding allowable bend radius limits. NEC Section 344.26 limits total bends to 360 degrees between pull points for rigid metal conduit, and similar restrictions apply to other conduit types. Fiberglass conduit elbows provide precise angles for duct bank applications, while DB-100 PVC sweeps offer long-radius bends that reduce cable pulling tension at directional changes.

Caps, plugs, and end seals protect conduit openings from contamination during and after installation. Vinyl end caps seal conduit ends against moisture ingress, soil, insects, and rodents. Leaving conduit ends unsealed during construction is one of the most common field mistakes and often results in blockages that must be cleared before cable can be pulled.

Stainless steel conduit clamps secure conduit at riser locations and support points where the conduit transitions from below grade to above grade. Type 316 stainless steel resists corrosion in outdoor and coastal environments where standard galvanized hardware degrades prematurely.

Step-by-Step Conduit Installation Techniques

With materials and tools assembled, the actual conduit installation follows a sequence of steps that, when executed properly, results in a system built to last.

Start by excavating the trench to the required depth plus an additional 3 to 4 inches for bedding material. The trench should be wide enough to provide at least 3 inches of clearance on each side of the conduit. For multiple conduit runs, increase width proportionally and maintain a minimum 3-inch separation between power conduits to preserve current-carrying capacity per NEC Section 310.15(B)(2)(a).

Place a layer of clean, compactable sand or fine gravel in the trench bottom to create a uniform bedding surface. This bedding layer prevents point loads from rocks or debris and supports the conduit evenly across the full length of the run. Remove any sharp stones, roots, or construction debris from the trench before placing the bedding.

Assemble and place the conduit in the trench, working from one end of the run to the other. For PVC conduit, apply primer and solvent cement to both the conduit end and the coupling socket, then insert with a quarter-turn to distribute the cement evenly. Allow joints to set before applying any stress. For HDPE, follow manufacturer specifications for heat fusion temperature and pressure. Keep conduit ends capped or plugged during assembly to prevent debris entry.

After the conduit is placed and joints have cured, place an initial layer of select backfill (sand or screened material free of rocks larger than 3/4 inch) to a depth of 6 inches above the conduit. Compact this layer gently to avoid displacing the conduit. Install detectable warning tape at least 12 inches above the conduit before completing backfill to finished grade. Compact remaining backfill in 6-inch lifts to the density specified by the project engineer, typically 95% to 98% standard Proctor density.

Duct Bank Assembly and Concrete Encasement

Multi-conduit duct bank installations require additional attention to spacing, alignment, and structural encasement. Duct banks are commonly used for power distribution, telecommunications, and campus utility corridors where multiple conduits run parallel routes.

Install plastic duct spacers every 5 to 6 feet along the conduit run to maintain uniform separation between conduits. Spacers prevent conduits from shifting during concrete placement and ensure consistent heat dissipation across all conduit positions. For power conduits, maintain a minimum 3-inch center-to-center separation to manage thermal effects on cable ampacity.

Place steel reinforcement per the project specifications before pouring concrete. Most duct bank designs call for #4 rebar in a cage configuration around the conduit array. NEC and most engineering specifications require a minimum of 3 inches of concrete cover on all sides of the duct bank. Use concrete with a minimum compressive strength of 3,000 PSI at 28 days.

Pour concrete carefully to avoid displacing conduits or spacers. Use vibration equipment to eliminate air pockets and ensure full encasement around all conduit surfaces. Allow concrete to cure completely before backfilling the trench over the duct bank. Premature backfill loading on uncured concrete can crack the encasement and compromise the structural integrity of the duct bank.

Cable Pulling and Post-Installation Testing

With conduit installed, tested, and backfilled, the final phase involves pulling cable and verifying system integrity.

Run a mandrel through every conduit run before pulling cable. A mandrel that passes cleanly from one end to the other confirms that the conduit is free of obstructions, joint offsets, and deformations. Leave a pull line or mule tape in the conduit after mandrel testing to facilitate cable pulling.

Apply cable lubricant as the cable enters the conduit to reduce friction during the pull. The correct lubricant depends on the cable jacket material and conduit type, so consult manufacturer compatibility charts. Monitor pulling tension throughout the operation and do not exceed the cable manufacturer's maximum rated pulling force. Excessive tension damages cable insulation and creates failure points that may not appear for months or years after installation.

After cable is pulled, seal all conduit openings with appropriate duct seal or mechanical plugs to prevent moisture migration. Perform insulation resistance testing and continuity checks on all conductors before energizing the circuit. Document all test results and as-built conduit routing for the project record.

Common Conduit Installation Mistakes to Avoid

Even experienced crews make errors that compromise system longevity. Recognizing these common pitfalls helps prevent them.

Skipping the bedding layer is one of the most frequent shortcuts. Placing conduit directly on rocky or uneven trench bottoms creates point loads that cause conduit deformation and eventual cracking. Always bed conduit on a minimum 3-inch layer of clean sand or fine gravel.

Failing to cap conduit ends during installation allows soil, water, and debris to enter the system. Clearing blocked conduit after backfill is complete often requires re-excavation, adding significant cost and delay. Keep every open conduit end sealed with a cap or plug at all times.

Exceeding the 360-degree bend limit between pull points makes cable installation extremely difficult or impossible. Plan conduit routing to stay within bend radius limits, and install pull boxes or junction boxes where needed to break up long or complex runs.

Using improper backfill material, such as soil with large rocks or construction debris, damages conduit under compaction loads. Specify clean, screened backfill material for the initial fill above the conduit, and enforce this requirement during construction.

Neglecting warning tape installation above direct-buried conduit violates NEC requirements and creates a serious safety hazard for future excavation work. This inexpensive step takes minutes and can prevent a catastrophic utility strike years later.

About Utility Pipe Supply

Utility Pipe Supply has been a trusted distributor of underground utility products since 1997, serving contractors, municipalities, and engineering firms nationwide. As a certified Woman Business Enterprise (WBE) and Disadvantaged Business Enterprise (DBE), the company provides a complete range of conduit, fittings, tools, and accessories designed to keep infrastructure projects on time and within budget.

Frequently Asked Questions

What is the minimum burial depth for PVC conduit?

Per NEC Table 300.5, PVC conduit (nonmetallic raceway) requires a minimum of 18 inches of cover in most residential and commercial applications. Under streets and highways, the minimum increases to 24 inches. Installations beneath a concrete slab at least 2 inches thick may use a reduced depth of 12 inches. Always verify local code amendments, as some jurisdictions require greater depth than the NEC minimum.

What type of conduit is best for underground installation?

The best conduit material depends on the application. PVC Schedule 40 is the most common choice for direct burial and duct bank encasement due to its low cost and corrosion resistance. HDPE is preferred for directional drilling and long continuous runs. Fiberglass RTRC is ideal for duct bank applications where heat dissipation and a higher temperature rating matter. Steel conduit is required at above-grade transitions and in hazardous locations.

How far apart should conduits be spaced in a duct bank?

Maintain a minimum 3-inch center-to-center separation between power conduits in a duct bank. This spacing allows proper heat dissipation and preserves the current-carrying capacity of the conductors inside. Use plastic duct spacers every 5 to 6 feet to maintain consistent alignment throughout the run. Project engineering specifications may require greater spacing depending on cable size and voltage.

Do I need to use concrete encasement for underground conduit?

Concrete encasement is not required for all underground conduit installations. It is typically required for duct bank configurations, installations under roadways or parking areas, and situations where conduit needs additional physical protection. NEC Table 300.5 allows reduced burial depth when conduit is encased in concrete. The concrete must provide a minimum of 3 inches of cover on all sides and achieve a compressive strength of at least 3,000 PSI.

What tools are needed for underground conduit installation?

Essential tools include trenching equipment (walk-behind or ride-on trencher), conduit cutters matched to the material type, solvent cement applicators for PVC work, a conduit bender or pre-formed elbows for directional changes, cable pulling equipment such as fish tape or a powered puller, a mandrel for post-installation testing, and a tensiometer to monitor pulling tension. Larger projects may also require a backhoe, vibratory compactor, and concrete vibration equipment for duct bank installations.

How do I prevent water from entering underground conduit?

Seal all conduit openings immediately during and after installation using caps, plugs, or duct seal compound. Use solvent-welded joints (PVC) or gasketed connections (fiberglass) to create watertight seals at every joint. At conduit risers where the system transitions from below grade to above grade, apply duct seal to block moisture migration through the conduit interior. After cable is pulled, install permanent mechanical seals at all termination points.
