MDS Enclosure — Product Overview

The MDS (MicroDuct Distribution System) Enclosure is a wall- or ladder-rack-mounted distribution enclosure built for MicroDuct cable routing in indoor enterprise, data center and DAS applications. It handles the splicing and distribution of a microduct system inside one box — eliminating extra parts and cutting the wall space needed to break out individual ducts.

Termination, Pass-Through or Breakout

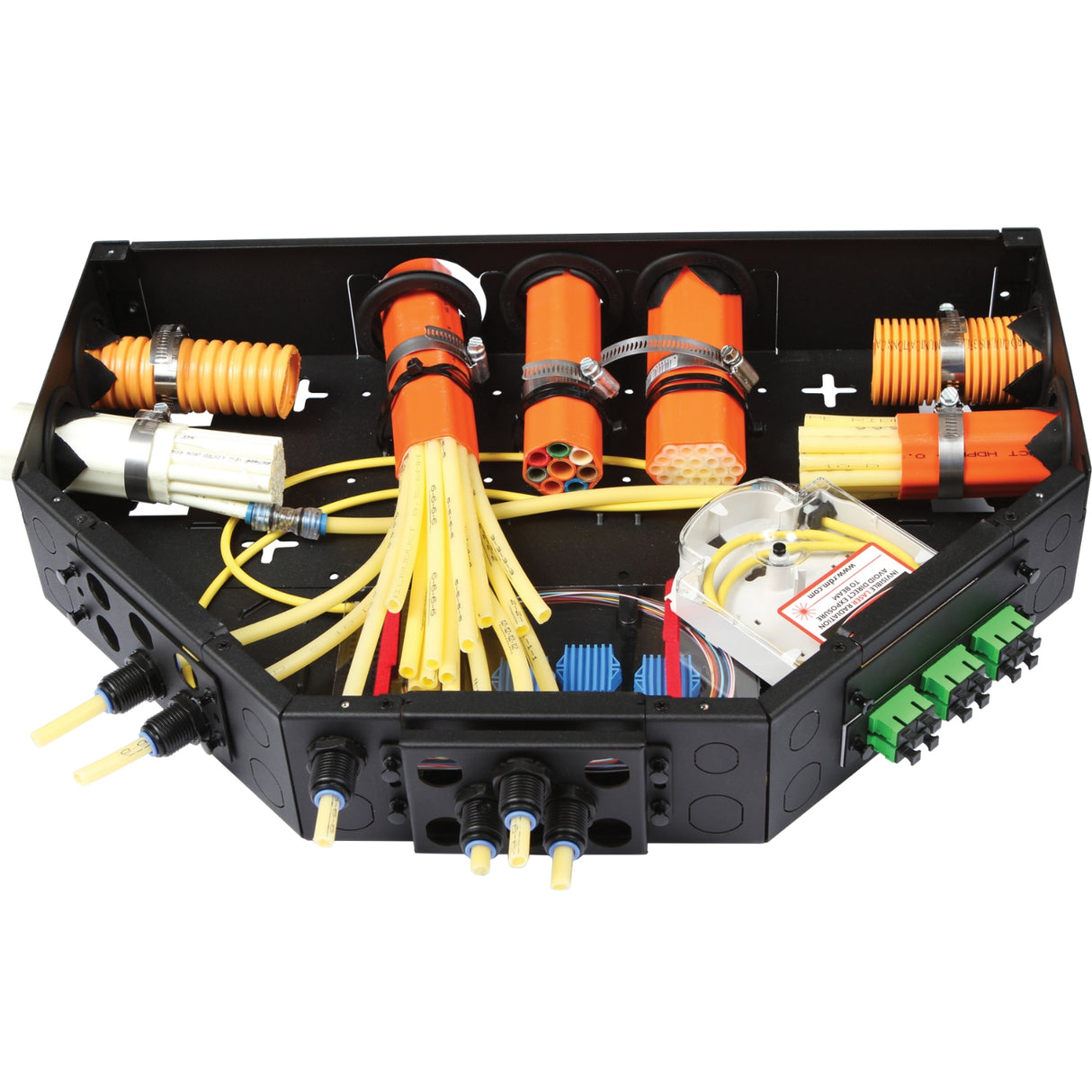

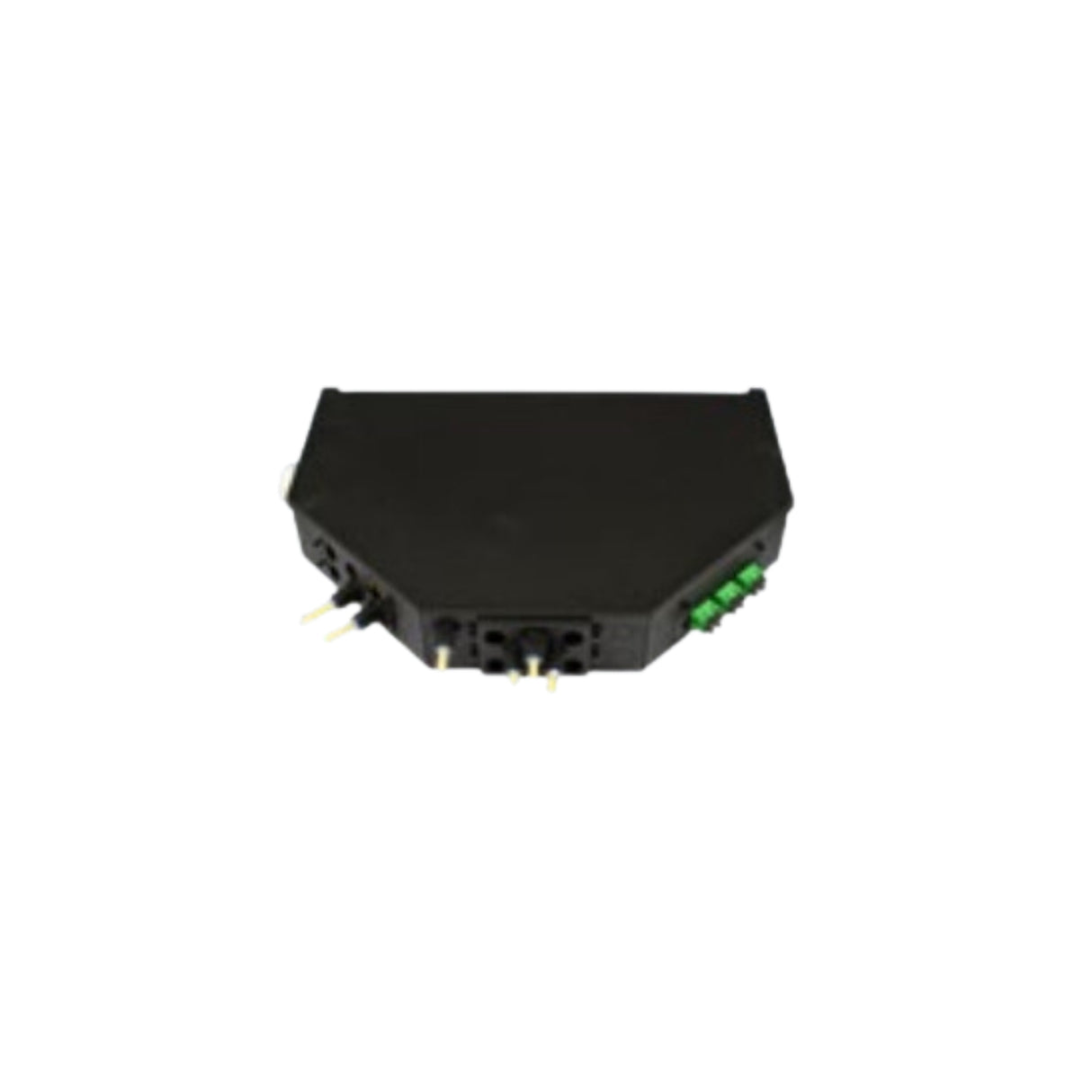

The MDS manages all forms of duct up to 2.50" OD and can be deployed as a termination point, a pass-through, or a breakout box for routing large-count cables into an OCEF. Six 2.50" ports handle cable and duct entry, and express ports on each side of the front rectangular slots take 12.7/10 and 8.5/6 bulkheads. The rectangular front ports accept an industry-standard LGX 118 adapter plate or cassette, and the enclosure accepts splice trays.

Scalable and Field-Configurable

Deploy a single unit or stack and attach enclosures back to back for larger jobs. Six "L"-type plate mounting slots let you configure the box to the job — swap a blank plate for an 8.5mm or 12.7mm position plate as the duct count grows. Dura-Line publishes a maximum plate count per enclosure that varies by plate style — three 2.50" cable-opening plates, six 8-position 8.5mm plates, or three L-type 6-position 8.5mm plates — so check the limit for the plate you need before ordering. The unique angular design allows gentle sweeps, which protects fiber blowing performance.

Mounting and Construction

Mounts to a wall or to an overhead ladder rack in 12", 18" or 24" widths using the stand-off bracket pair. Powder-coated steel construction, with captive/non-captive openings and front knock-outs for single bulkhead adapters. For outside-plant use it can be housed in a NEMA 6P closure.

Key Features

• Duct capacity — manages all forms of duct up to 2.50" OD.
• Six 2.50" entry ports — plus six L-type plate mounting slots for field configuration.
• Three roles in one box — termination point, pass-through, or breakout into an OCEF.
• LGX 118 compatible — front rectangular ports accept a standard LGX 118 adapter plate or cassette; the enclosure also accepts splice trays.
• Stackable — deploy singly or attach back to back for larger jobs.
• Wall or ladder rack — mounts to a wall or a 12", 18" or 24" overhead ladder rack.
• Powder-coated steel — can be housed in a NEMA 6P closure for an OSP environment.
• Ships complete — includes six L-type blank plates and an accessory bag.
• View MDS Enclosure Parts & Bulkhead Plates Here > LINK

Specifications

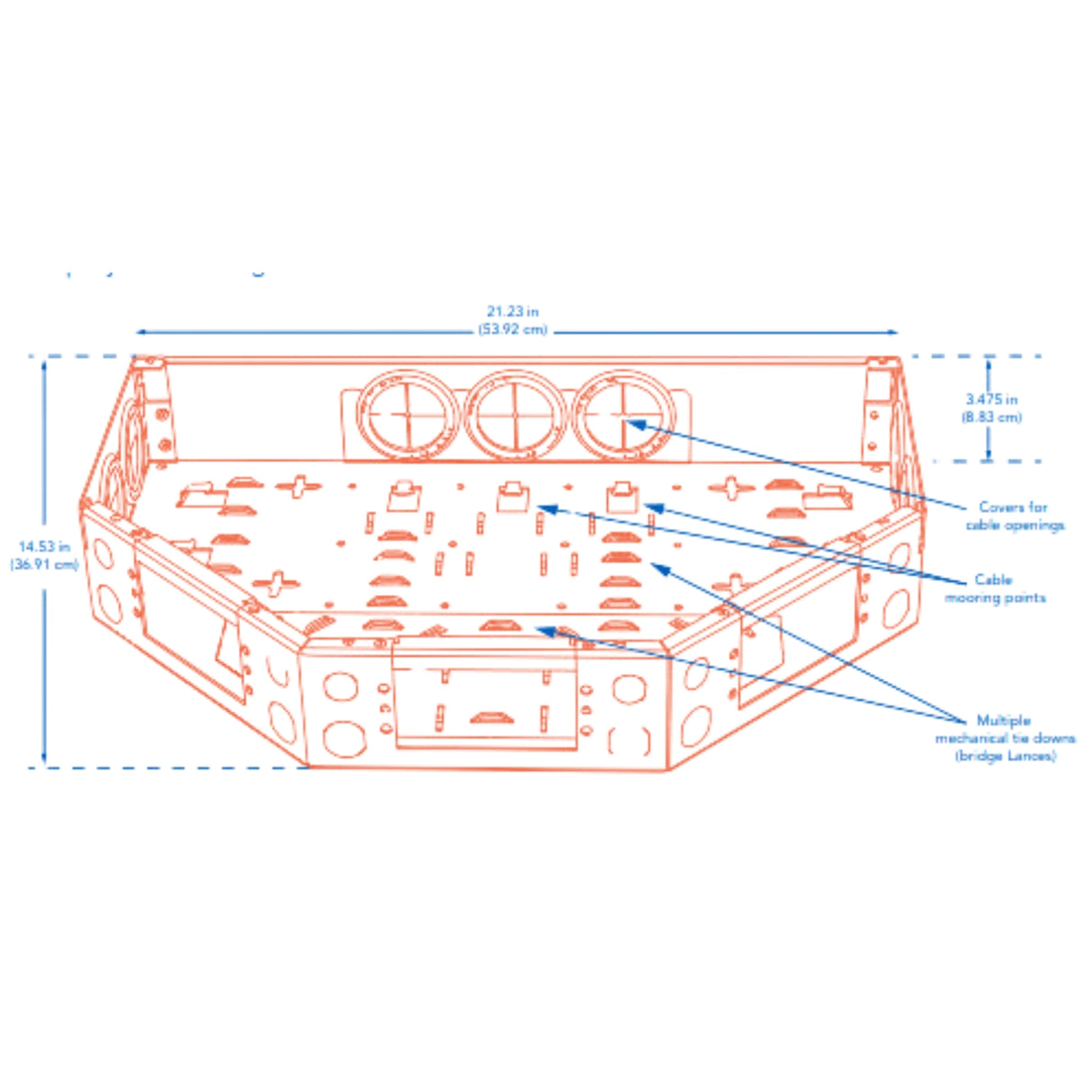

Dimensions are the bare enclosure per Dura-Line’s MDS Enclosure specification sheet. Bulkhead connectors, position plates and stand-off brackets are ordered separately — see the parts listing linked above.
