MDS Enclosure Parts & Bulkhead Plates — Product Overview

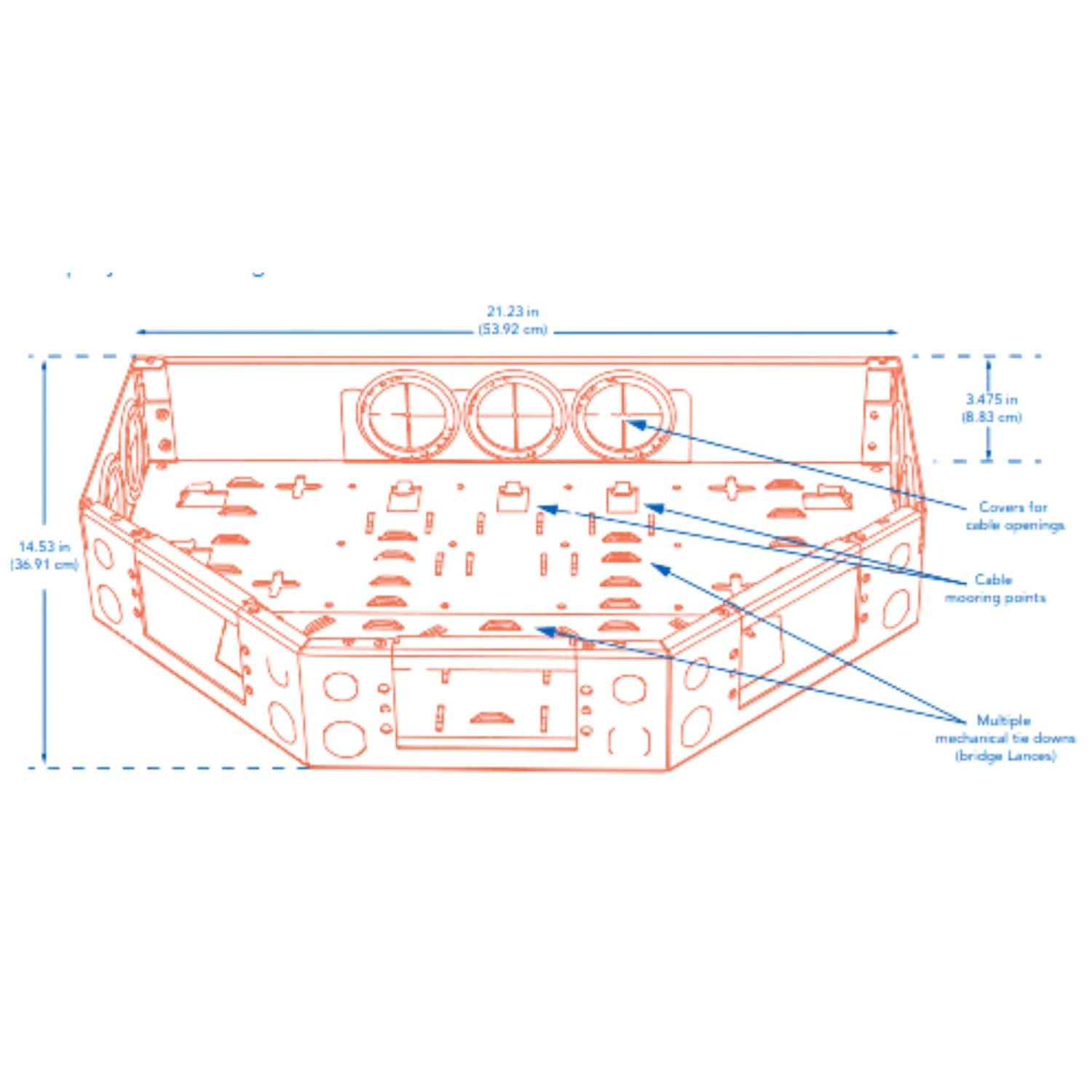

Replacement parts, bulkhead plates and mounting hardware for the MDS (MicroDuct Distribution System) Enclosure. Bulkhead plates are how you configure the enclosure — swap a blank L-type plate for an 8.5mm or 12.7mm position plate to bring MicroDucts out of the box, or a 2.50" cable-opening plate to bring a large cable in. The clamps, grommets, ties and screws are the wear and consumable items that go missing on a job.
Order by Dura-Line part number below. Every part on this page fits the MDS Enclosure only.
Key Features
- Configure the enclosure — five bulkhead plate styles cover 8.5mm and 12.7mm MicroDuct pass-through, 2.50" cable entry, and blanking off unused slots.
- Plate limits per enclosure — maximum three 2.50" cable-opening plates, six 8-position 8.5mm plates, or three L-type 6-position plates per box.
- Ladder rack mounting — stand-off brackets ship as a pair and mount the enclosure above or below an existing 12", 18" or 24" ladder rack.
- Field consumables — hose clamps in two ranges, 2.5mm web grommets, cable ties and the three MDS screw types, all sold individually.
- Bulkhead connectors sold separately — 8.5mm position plates take Dura-Line # 20001712; 12.7mm plates take # 20003017.

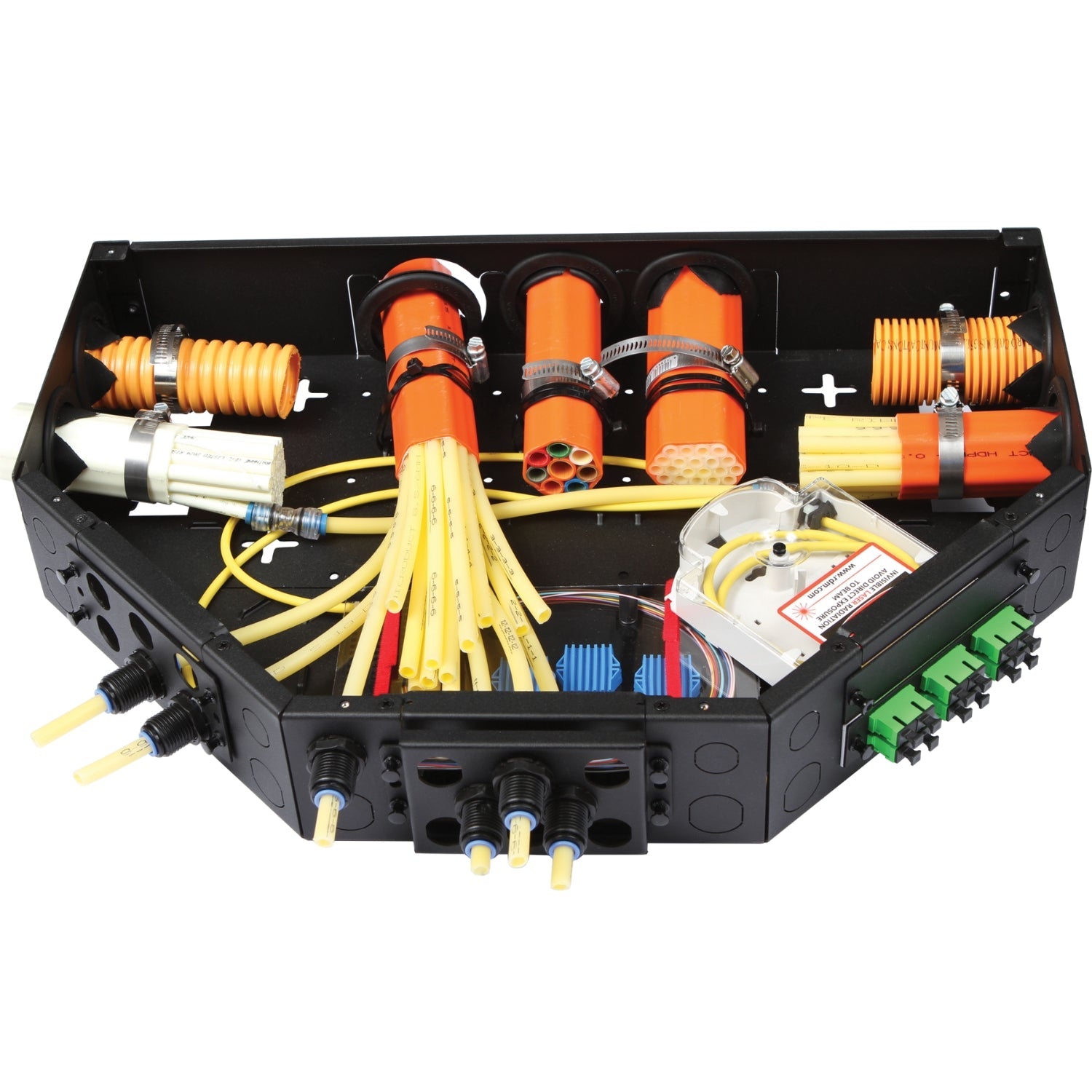

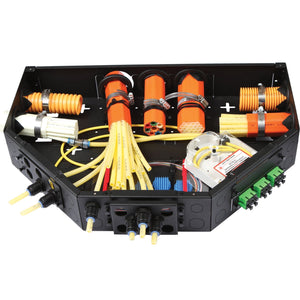

- View the MDS Enclosure Here > LINK
Part Reference
| Part | Specification | Max Per Enclosure | Packaging | Dura-Line Part # |
|---|---|---|---|---|

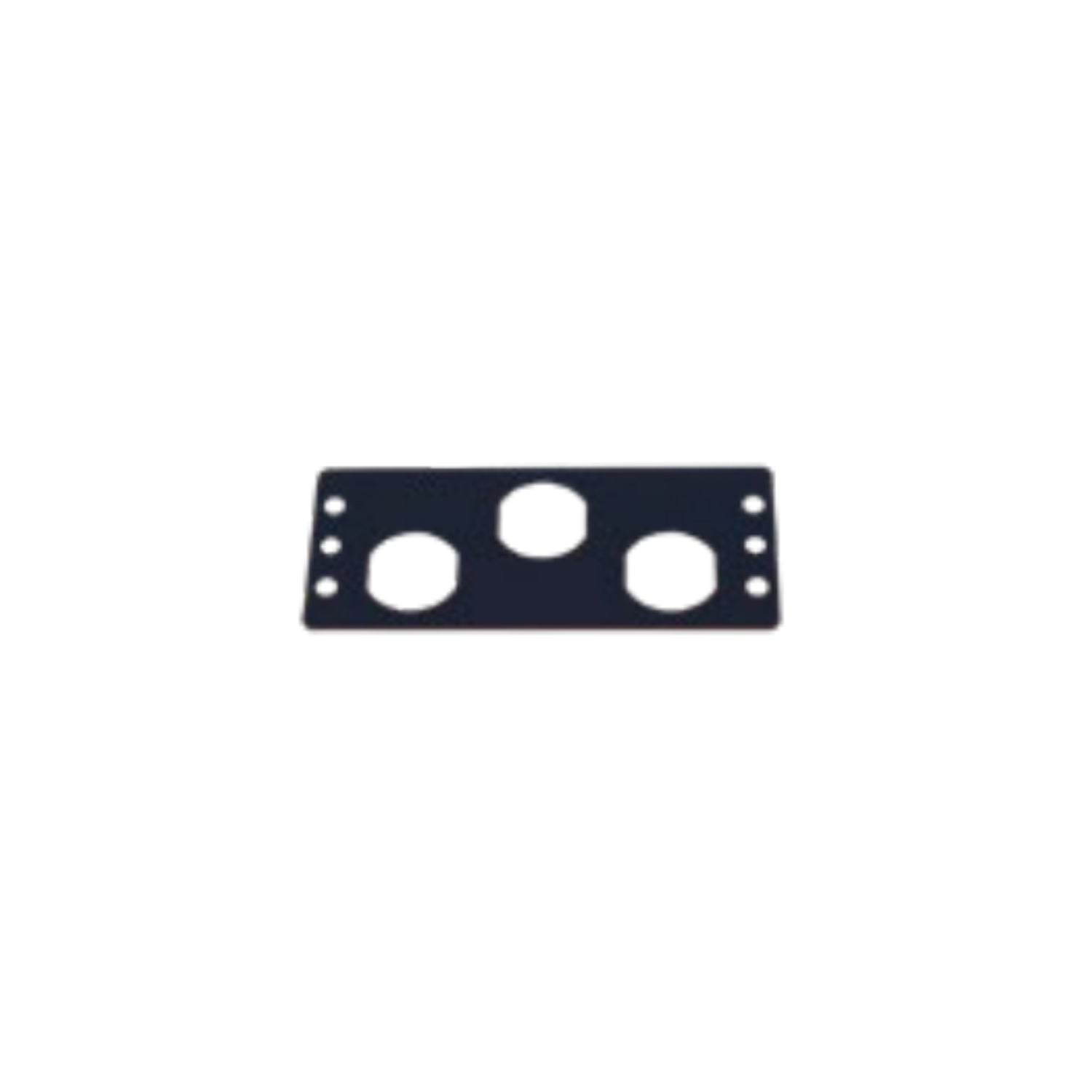

| Bulkhead Plate, 2.50" Cable Opening, 2-Slot | 2.50" cable openings; accepts grommet, includes tie-down point | 3 | Each | 20003847 |

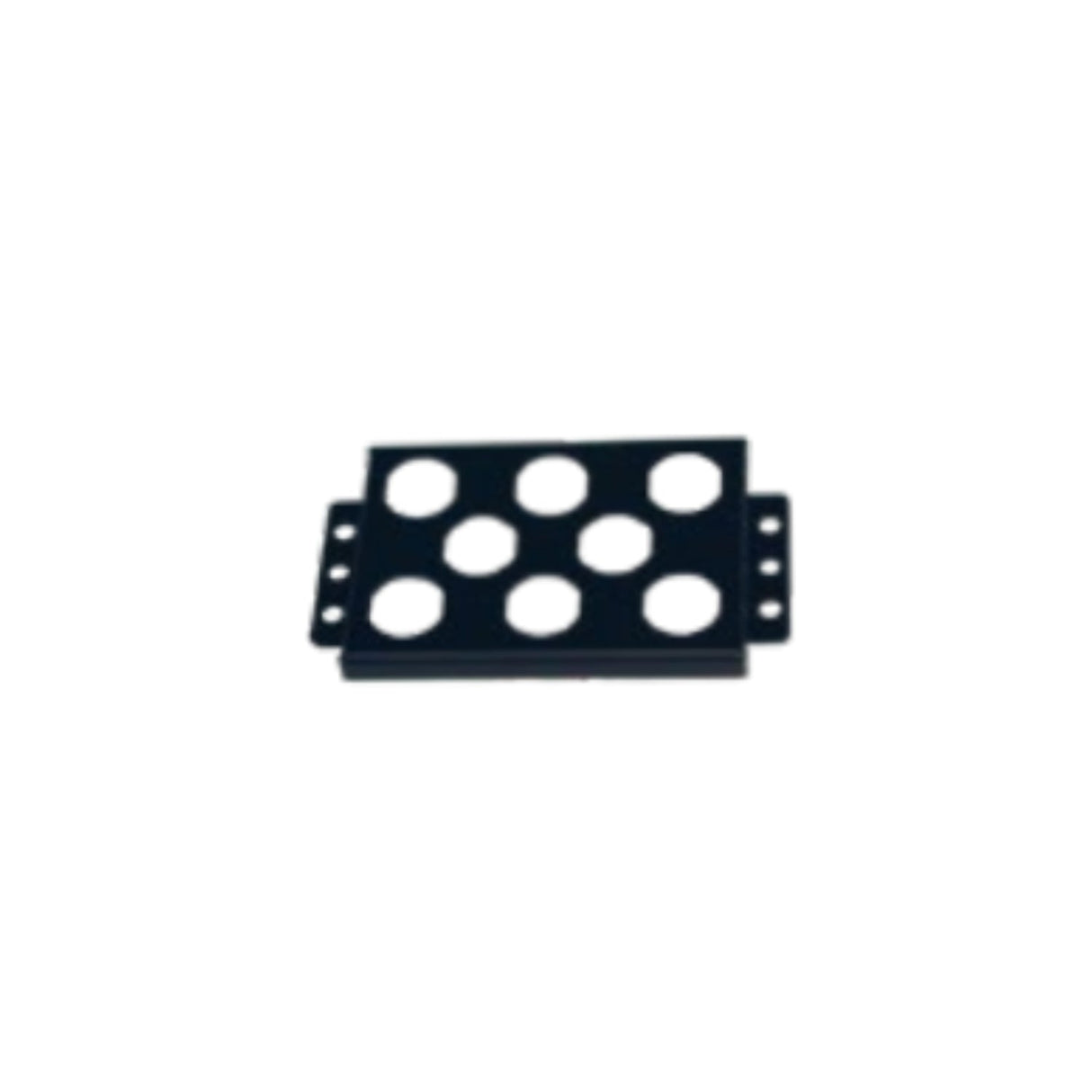

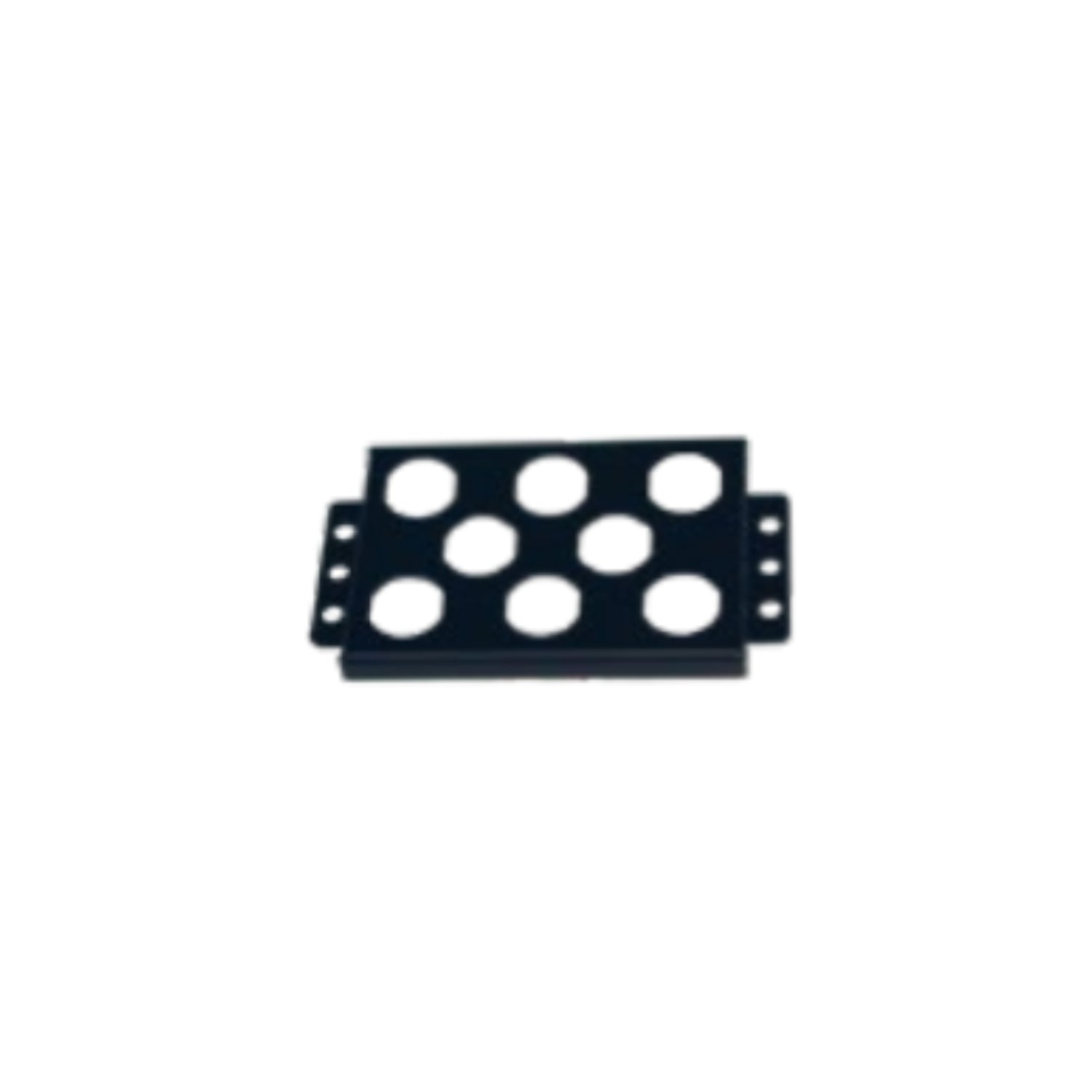

| Bulkhead Plate, 8-Position 8.5mm, 2-Slot | Accepts (8) 8.5mm bulkhead connectors (# 20001712) | 6 | Each | 20003848 |

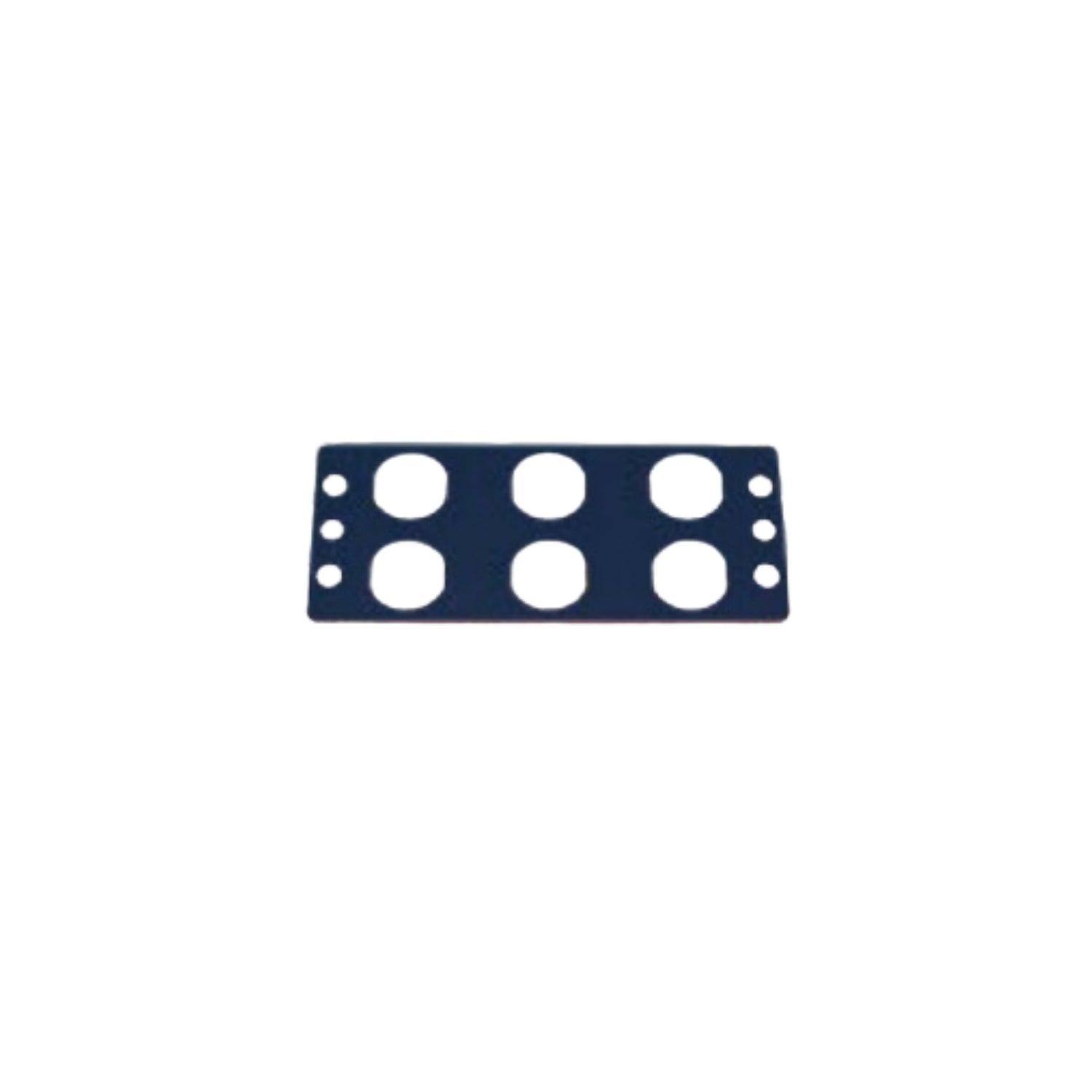

| Bulkhead Plate, L-Type, 6-Position 8.5mm, 1-Slot | Accepts (6) 8.5mm bulkhead connectors (# 20001712) | 3 | Each | 20003849 |
| Bulkhead Plate, L-Type, 3-Position 12.7mm, 2-Slot | Accepts (3) 12.7mm bulkhead connectors (# 20003017) | — | Each | 20003850 |

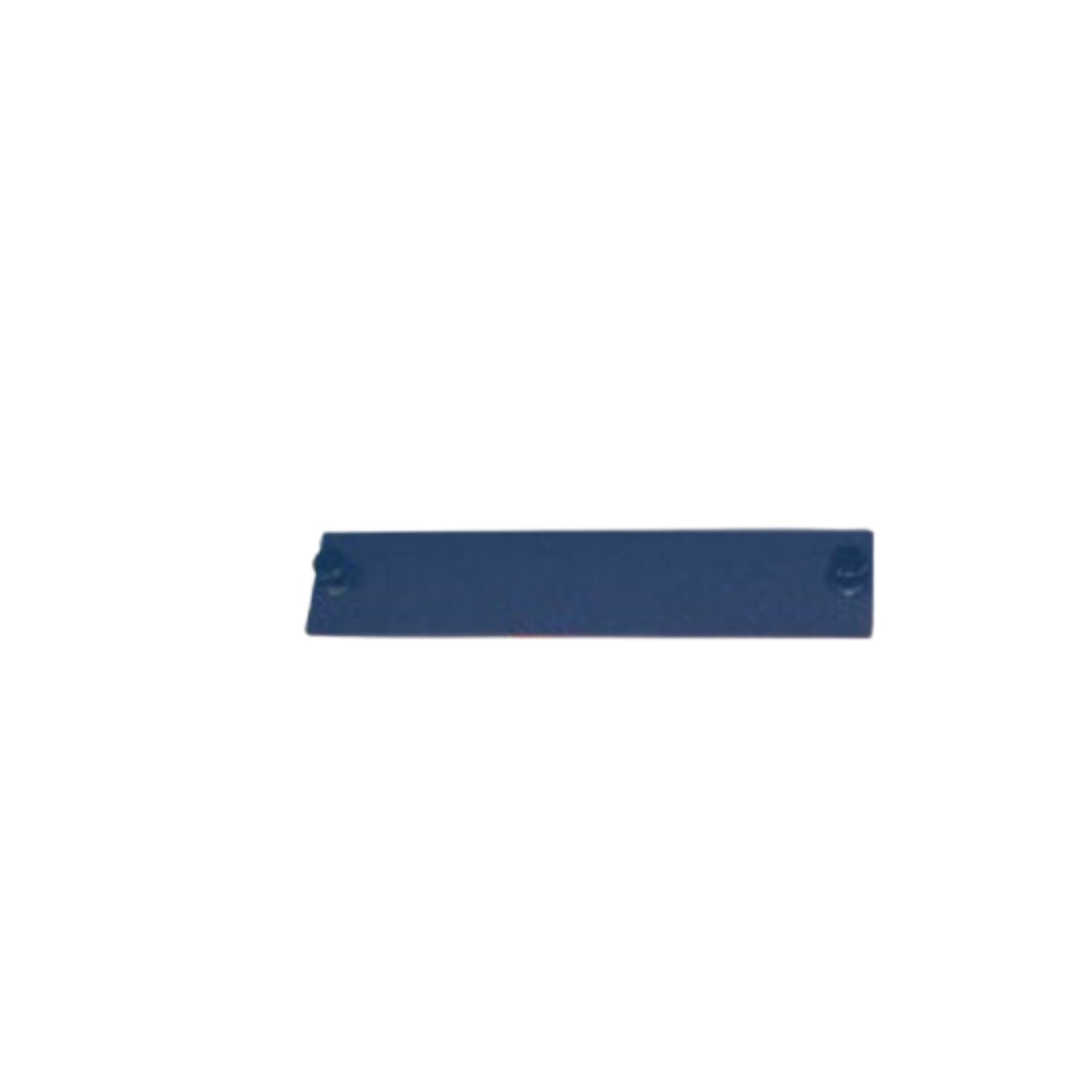

| Bulkhead Plate, L-Type, Blank | Covers unused L-type slots; six ship with a new enclosure | 6 | Each | 20003851 |

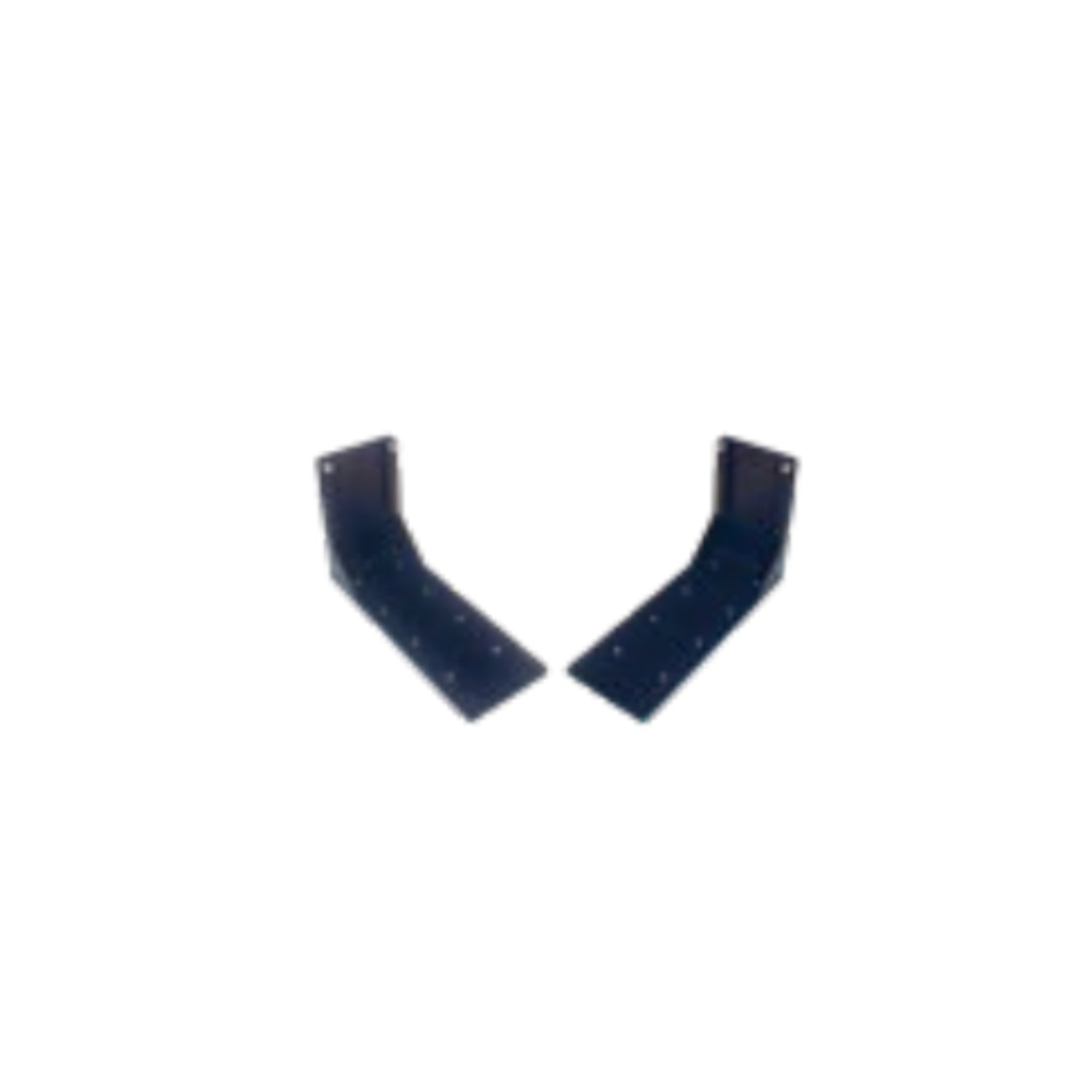

| Stand-Off Brackets, Ladder Rack Mount | Set of (2); mounts enclosure above or below existing ladder rack | — | Pair | 20003846 |

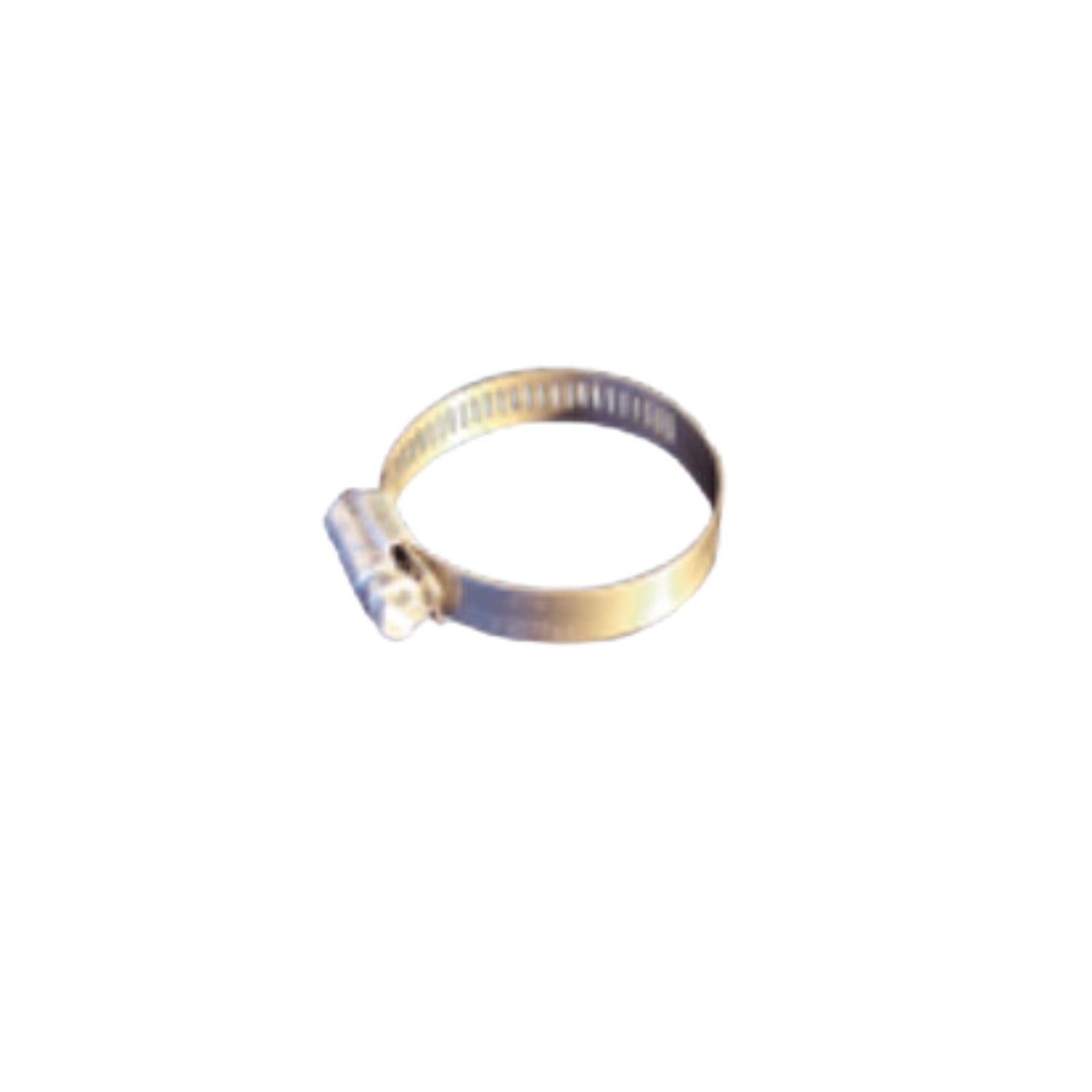

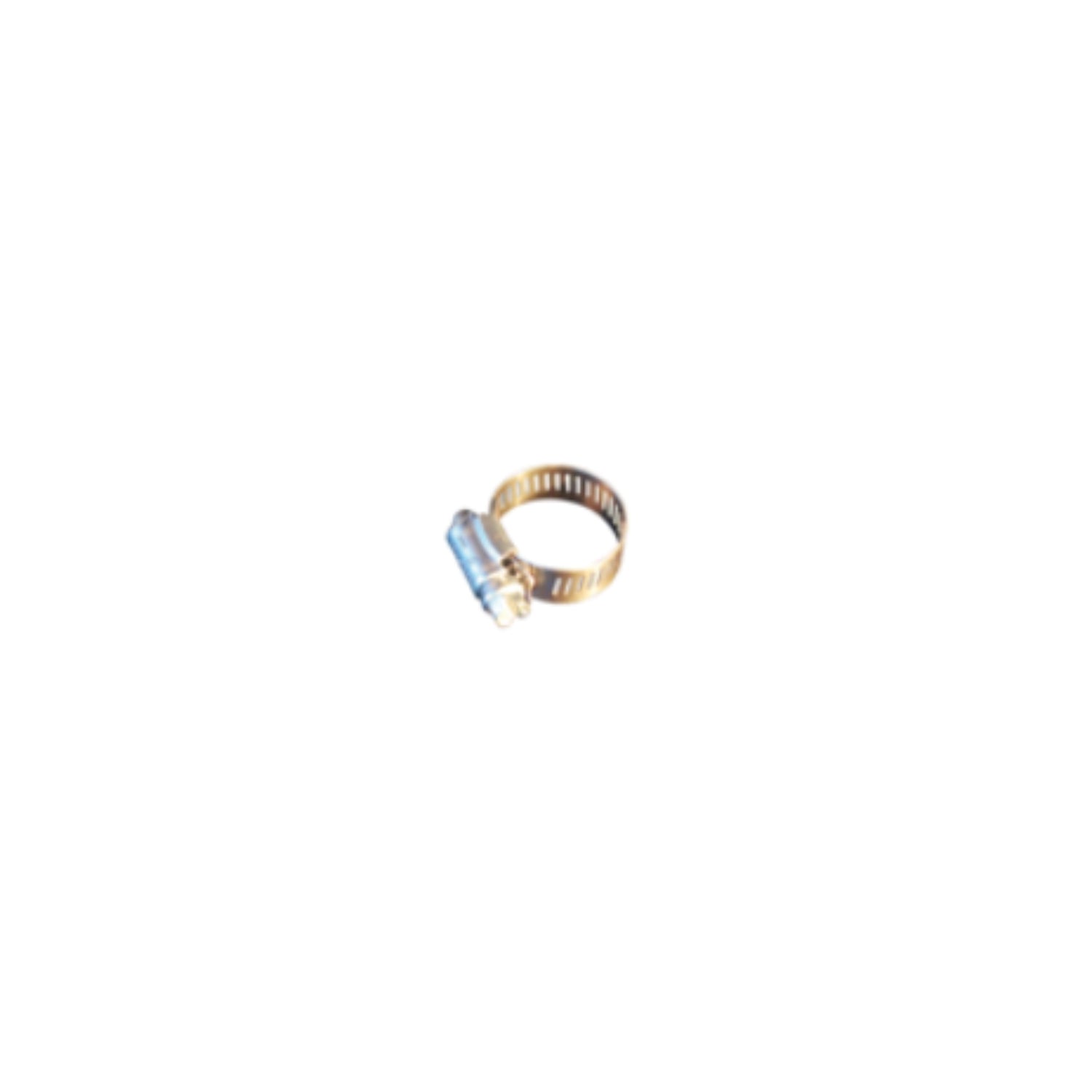

| Hose Clamp, 0.50" – 1.25" | Adjustable clamp for duct up to 1.25" OD | — | Each | 20003852 |
| Hose Clamp, 1.25" – 2.25" | Adjustable clamp for duct 1.25" to 2.25" OD | — | Each | 20003858 |
| Cable Tie | For the enclosure’s mechanical tie-down points (bridge lances) | — | Each | 20003853 |

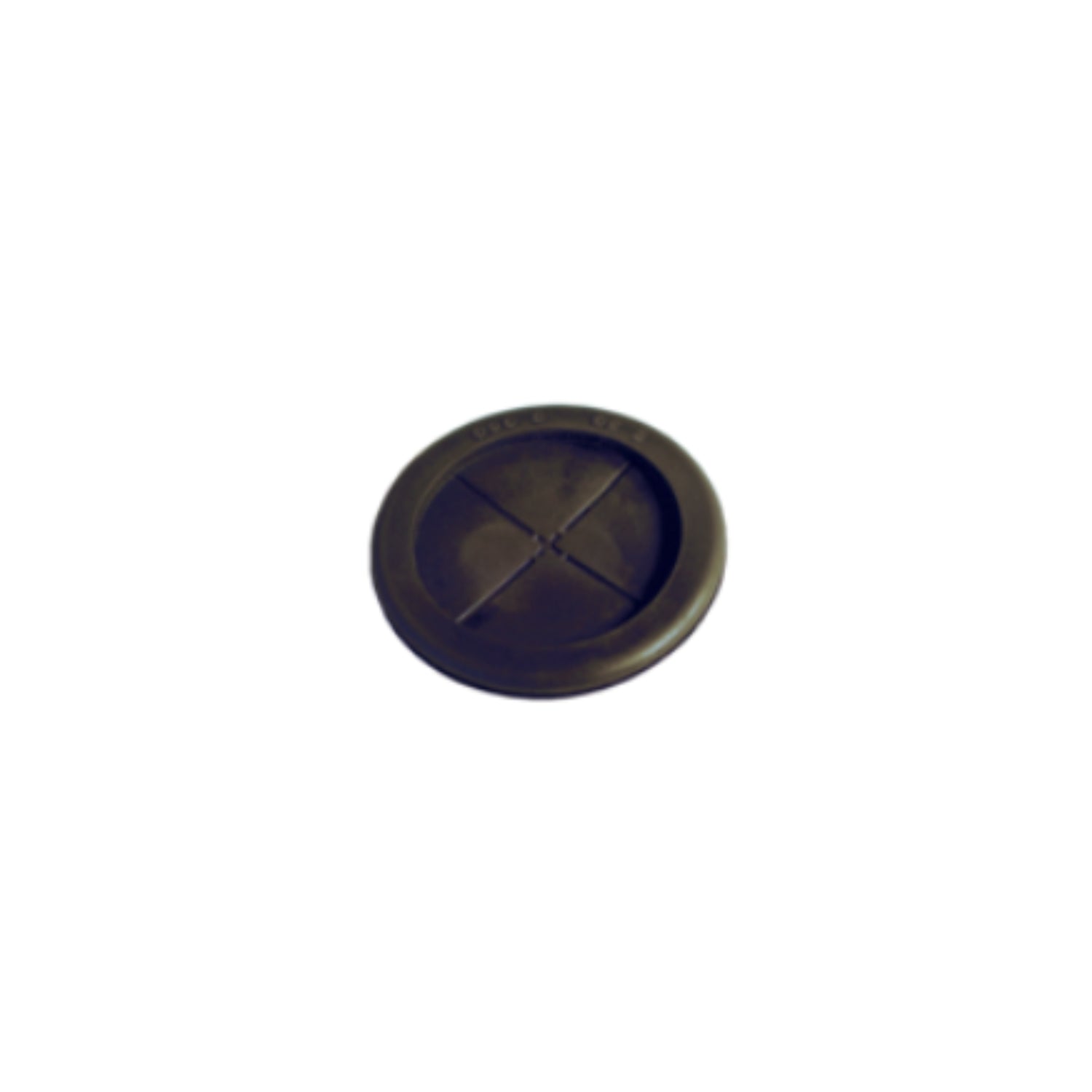

| Web Grommet, 2.5mm | Seals cable openings in the 2.50" bulkhead plate | — | Each | 20003857 |

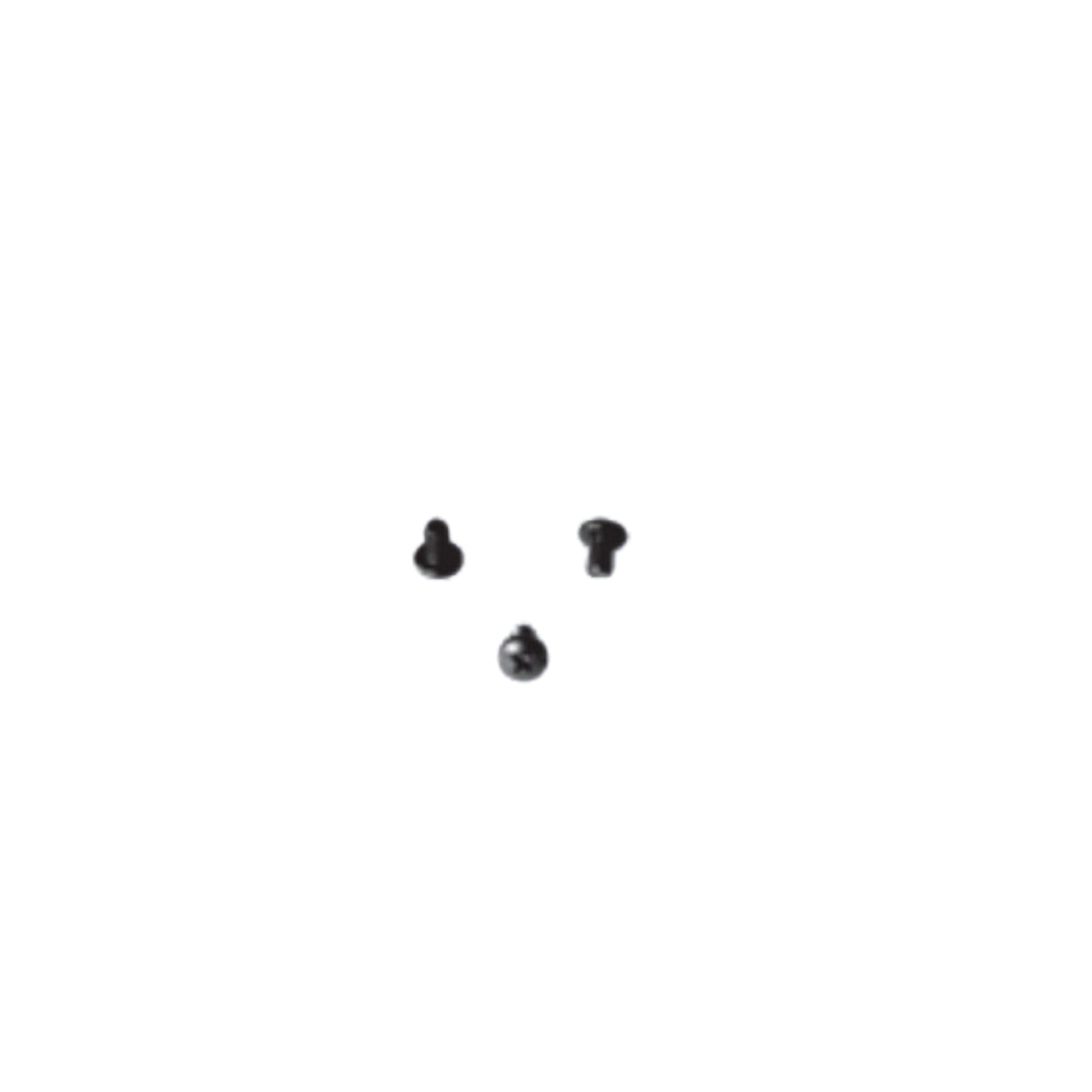

| MDS Replacement Screw | Enclosure cover and plate fastener | — | Each | 20003854 |
| MDS Ladder Bracket Screw | Fastens stand-off brackets to the enclosure | — | Each | 20003855 |

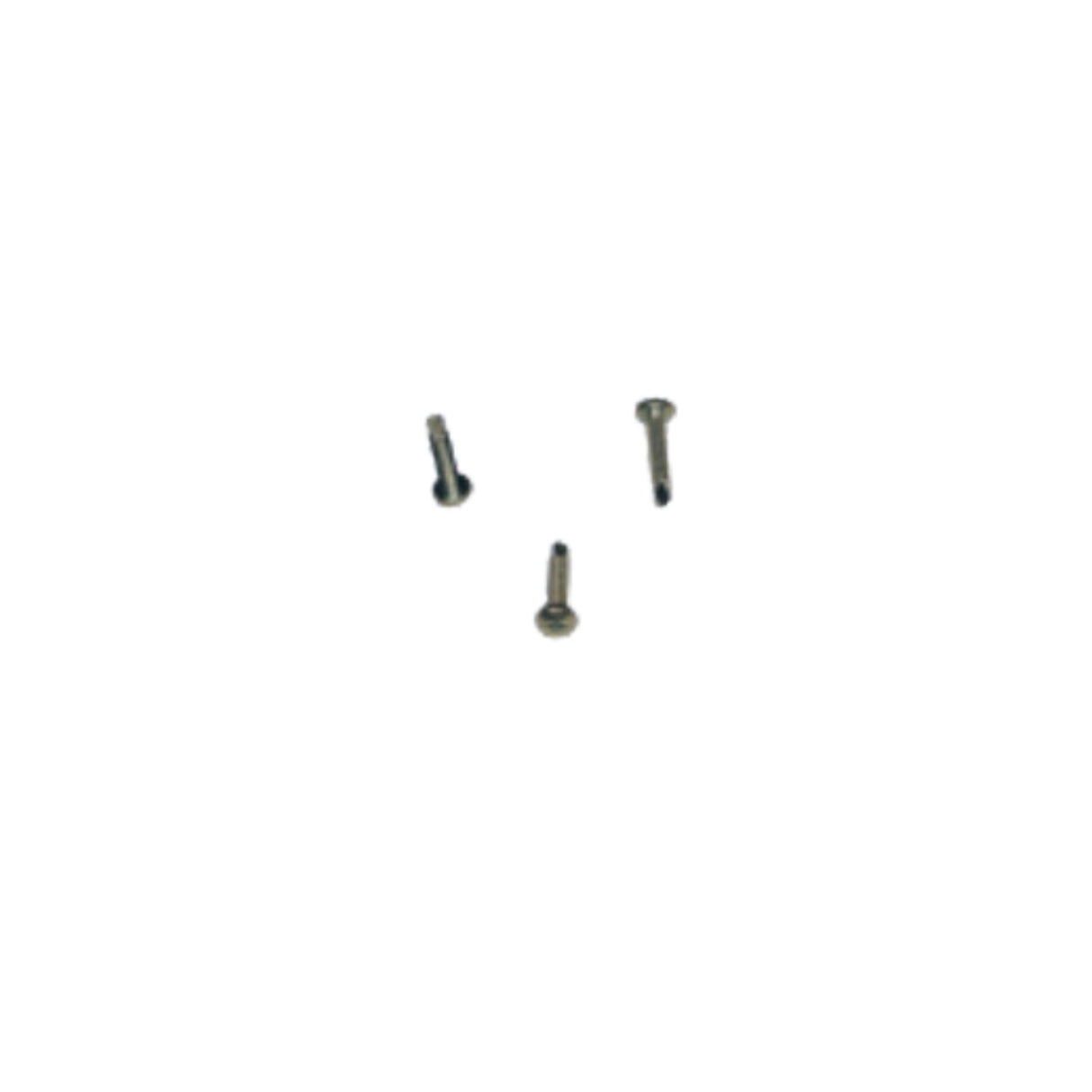

| MDS Wall Mount Screw, 1" | 1" screw for wall-mounting the enclosure | — | Each | 20003856 |
Plate quantity limits are per Dura-Line’s MDS Enclosure order reference. Bulkhead connectors (# 20001712 and # 20003017) are separate parts and are not included with any plate.
