Cable Packs | Gulfstream 350 | .16"–.61" Cable OD
Cable Packs | Gulfstream 350 | .16″–.61″ Cable OD — Product Overview
Gulfstream 350 Cable Packs are size-specific cable packs for the Condux Gulfstream 350 fiber optic cable blower. This listing offers four configurations covering cable outside diameters from .16″ to .61″ (4.0–15.5 mm).
Select the appropriate cable pack by matching your equipment model and cable outside diameter to the part number below. Condux's ordering information identifies associated venturis, cable seals and cable grips for each configuration.
Key Features
- Gulfstream 350 Compatibility: Cable packs listed for the Condux Gulfstream 350 system.
- Four Size Options: Available configurations cover cable outside diameters from .16″ to .61″ (4.0–15.5 mm).
- Size-Specific Selection: Each cable diameter range has a corresponding cable pack part number.
Ordering Information
| Cable Pack Part Number | Cable OD (in) | Cable OD (mm) |
|---|---|---|
| 08781160 | .16–.18 | 4.0–4.5 |
| 08781161 | .18–.31 | 4.6–8.0 |
| 08781162 | .32–.47 | 8.1–12.0 |
| 08781163 | .48–.61 | 12.1–15.5 |
Component Reference
The following component references correspond to the four cable packs offered above. Individual component size ranges differ from the overall cable pack range.
| Cable Pack Part Number | Venturi Cable OD | Venturi Part Number | Cable Seal Size / Part Number | Cable Grip Cable OD / Part Number |
|---|---|---|---|---|
| 08781160 | .16″–.18″ (4.0–4.5 mm) |
08781165 |
Sizes listed: 4.0 mm and 4.5 mm Part numbers: 08780960K and 08780961K Confirm the size-to-part-number match before ordering replacement seals. |
.10″–.22″ (2.5–5.6 mm) 08643753 |
| 08781161 | .18″–.31″ (4.6–8.0 mm) |
08781166 |
5.0 mm: 08780962K 5.5 mm: 08780963K 6.0 mm: 08780964K 6.5 mm: 08780965K 7.0 mm: 08780966K 7.5 mm: 08780967K 8.0 mm: 08780968K |
.10″–.22″ (2.5–5.6 mm): 08643753 .21″–.35″ (5.3–8.9 mm): 08643754 |
| 08781162 | .32″–.47″ (8.1–12.0 mm) |
08781167 |
8.5 mm: 08780969K 9.0 mm: 08780970K 9.5 mm: 08780971K 10.0 mm: 08780972K 10.5 mm: 08780973K 11.0 mm: 08780974K 11.5 mm: 08780975K 12.0 mm: 08780976K |
.32″–.48″ (8.1–12.2 mm) 08643755 |
| 08781163 | .48″–.61″ (12.1–15.5 mm) |
08781168 |
12.5 mm: 08780977K 13.0 mm: 08780978K 13.5 mm: 08780979K 14.0 mm: 08780980K 14.5 mm: 08780981K 15.0 mm: 08780982K 15.5 mm: 08780983K |
.42″–.61″ (10.7–15.5 mm) 08643756 |
Selection note: Match both the equipment model and cable outside diameter before ordering. Inch and metric ranges above follow Condux's published ordering information. Confirm individual replacement-component sizing and part numbers before ordering components separately.

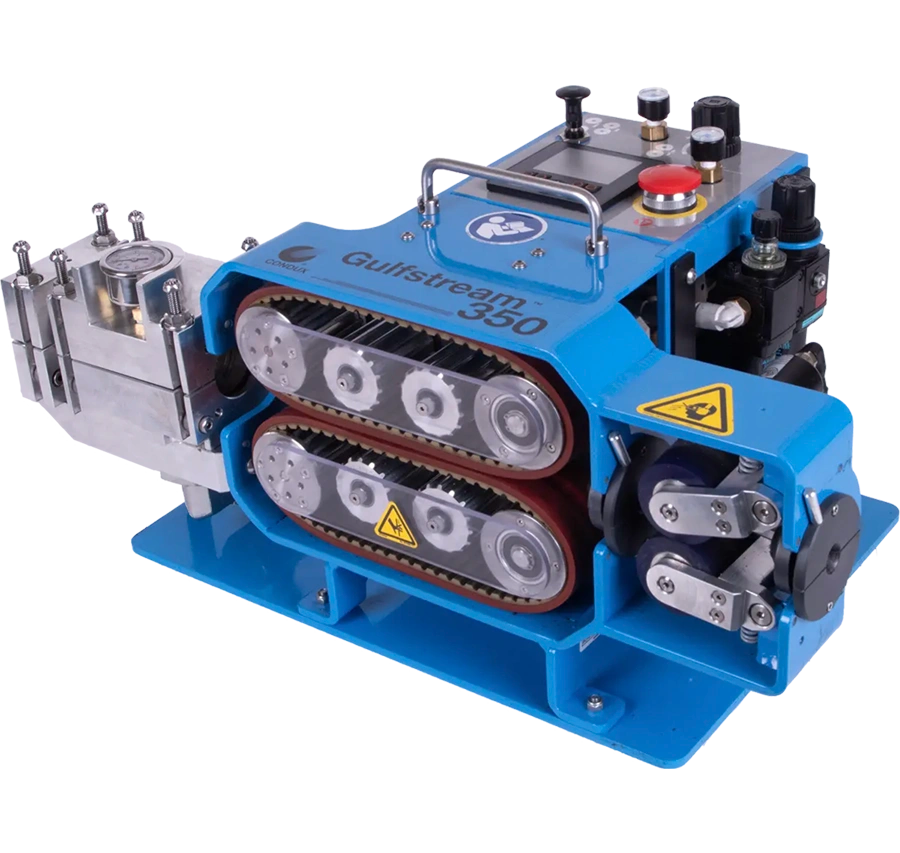

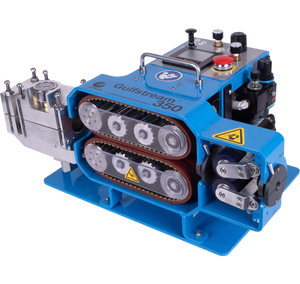

Machine not included: This listing is for the selected cable pack. Any blower shown is for equipment reference only.
