CONDUX  |  SKU: 30062032  |  MPN: 08918500

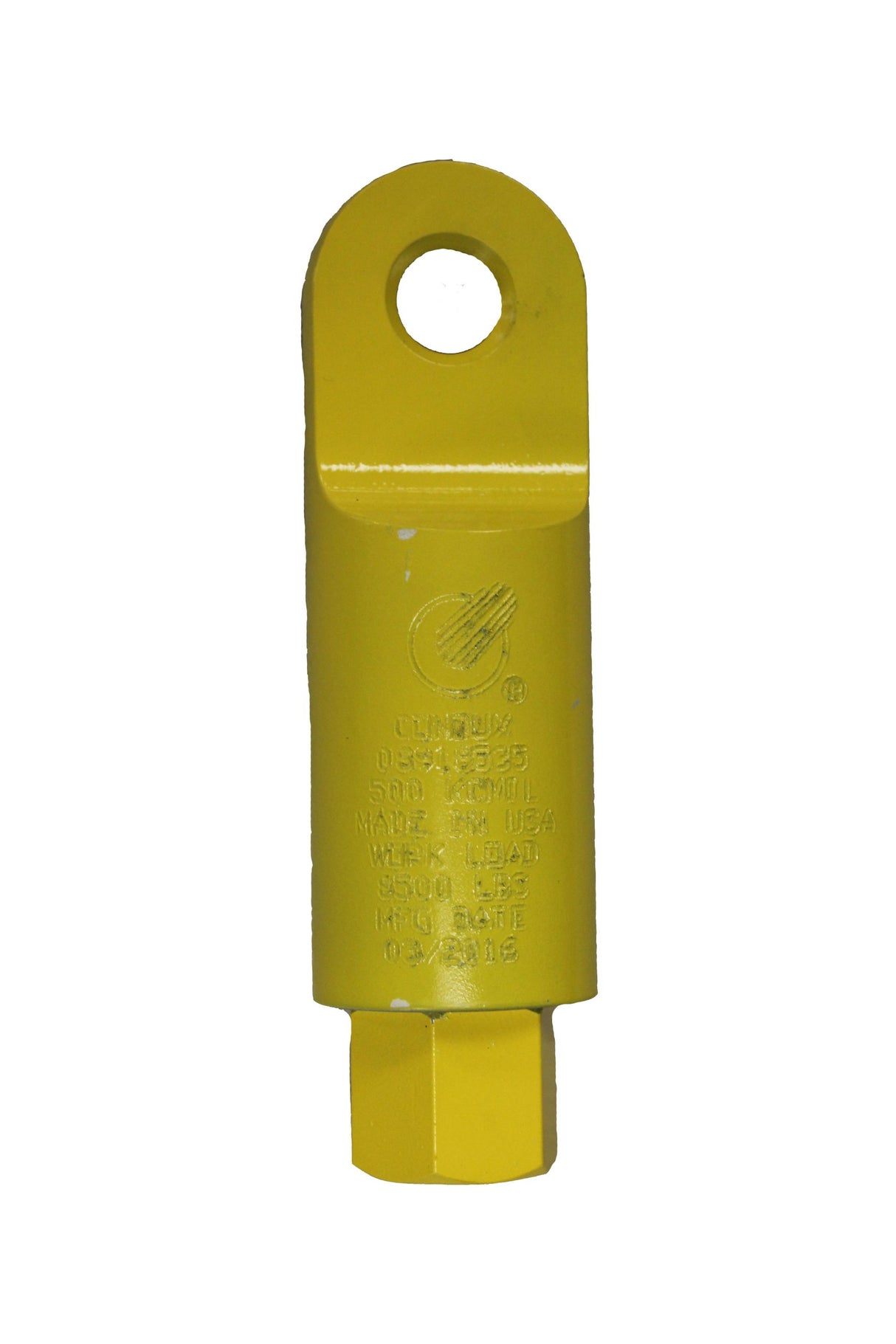

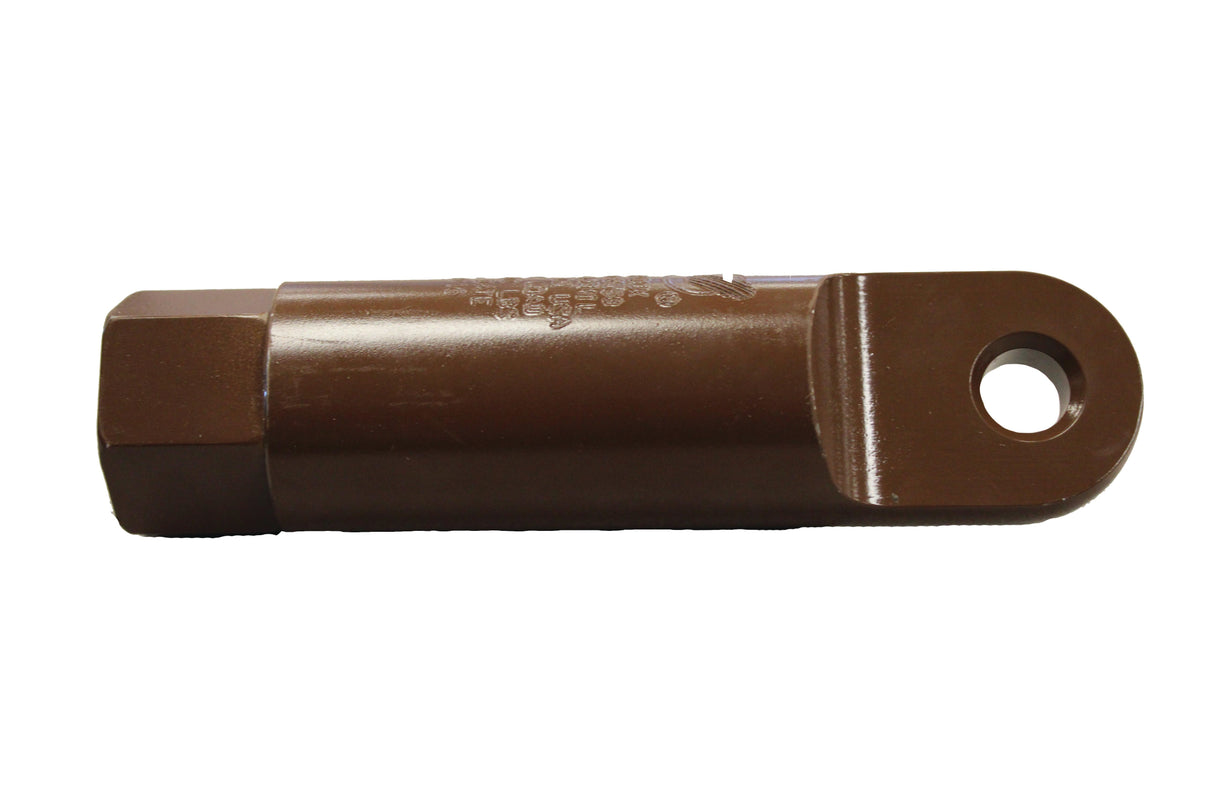

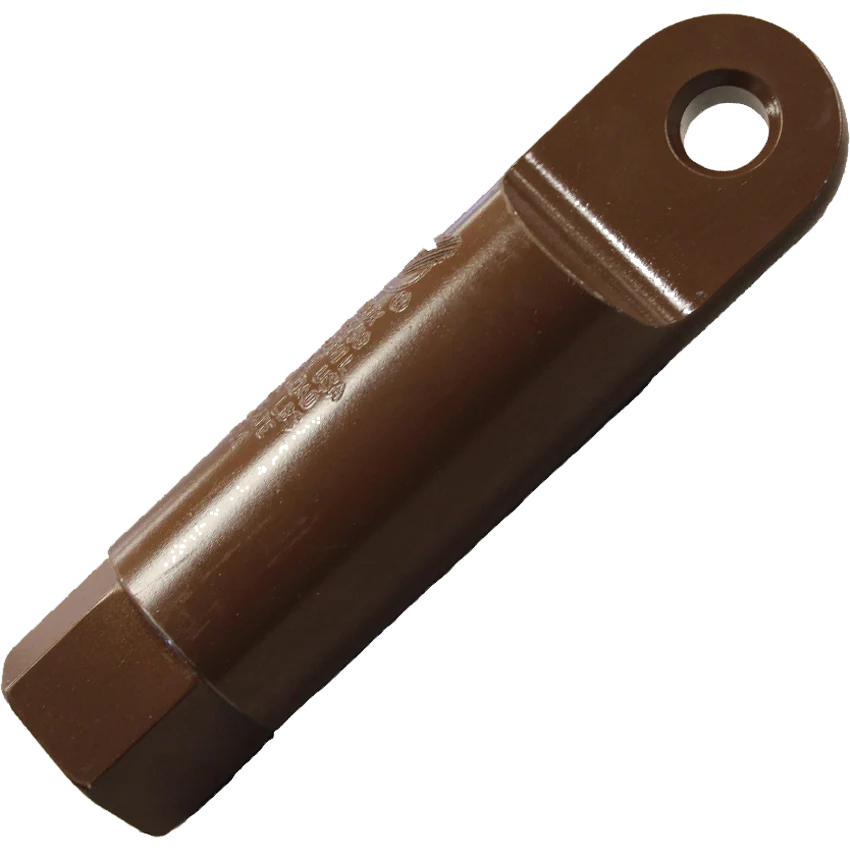

Standard Head Innerduct Pulling Eyes | Multi-Cable Conduit Pulling | Heavy-Duty Design

$257.00
  • Multi-Cable Pulling: Streamlines pulling multiple conductors into one conduit with a single assembly.
  • Complete Assembly: Includes eye socket, sleeve nut, and plug for secure, ready-to-use setup.
  • Fast Connection: Attaches easily to multiple pulling harnesses and swivels for quick setup.
  • Heavy-Duty Durability: Built from rugged materials to handle high loads and tough field environments.

Standard Head Innerduct Pulling Eyes | Multi-Cable Conduit Pulling | Heavy-Duty Design — Product Overview

Standard Head Innerduct Pulling Eyes streamline complex cable installations by allowing multiple conductors to be pulled into a single conduit with one unified pull. These precision-engineered tools help reduce setup time, minimize labor, and ensure secure, efficient cable handling in demanding utility, telecom, and electrical applications.

Each pulling eye includes an eye socket, sleeve nut, and plug for a strong, sealed connection. The design easily attaches to a multiple pulling harness or swivel, allowing several single conductors to be pulled simultaneously. Built from durable, high-strength materials, these pulling eyes deliver reliable performance under heavy loads and tough field conditions.

Note: Not compatible with flat aluminum stranded conductors.

Key Features

  • Multi-Cable Capability: Enables efficient pulling of multiple single conductors into one conduit using a single harness connection.
  • Complete Assembly: Includes eye socket, sleeve nut, and plug for a secure, ready-to-use setup.
  • Quick Attachment: Easily connects to multiple pulling harnesses and swivels for fast, reliable installations.
  • Heavy-Duty Build: Engineered from robust materials for long-term field durability and high load performance.
  • Safe, Proven Design: Trusted configuration that protects cable integrity and improves overall installation speed.

Ordering Information

Part Number Cable Size Color Max Conductor Dia. (in) Max Conductor Dia. (mm) Eye O.D. (in) Eye O.D. (mm) Hole Dia. (in) Hole Dia. (mm) Eye Thickness (in) Eye Thickness (mm) Replacement Plug Part Number Working Load (lbs) Working Load (kN)
08918440 5000 kcmil White 2.50 64 4.50 114 1.31 33 1.50 38 08918423 59,000 262.4
08918450 4000 kcmil Yellow 2.22 56 4.00 102 1.25 32 1.50 38 08918423 42,500 189.0
08918445 3500 kcmil Black 2.16 55 4.00 102 1.25 32 1.50 38 08918423 42,500 189.0
08918430 3000 kcmil Gray 2.03 52 4.00 102 0.88 22 0.94 24 08918423 26,000 115.6
08918585 2750 kcmil White 1.964 50 4.00 102 1.00 25 0.50 13 08918423 26,000 115.6
08918580 2500 kcmil Green 1.923 49 4.00 102 1.00 25 0.50 13 08918123 26,000 115.6
08918575 2000 kcmil Red 1.70 43 2.625 67 1.00 25 0.50 13 08918023 25,000 111.2
08918570 1750 kcmil Yellow 1.625 41 2.625 67 1.00 25 0.50 13 08917723 25,000 111.2
08918565 1500 kcmil Black 1.469 37 2.625 67 1.00 25 0.50 13 08917923 25,000 111.2
08918560 1250 kcmil Blue 1.328 34 2.625 67 1.00 25 0.50 13 08917823 25,000 111.2
08918550 750 kcmil Brown 1.031 26 2.00 51 0.60 15 0.43 11 08917223 13,500 60.0
08918540 600 kcmil Green 0.906 23 2.00 51 0.60 15 0.43 11 08918223 13,500 60.0
08918535 500 kcmil Yellow 0.843 21 1.88 48 0.81 21 0.50 13 08917423 8,500 37.8
08918520 250 kcmil Blue 0.64 16 1.25 32 0.63 16 0.50 13 08960323 6,500 28.9
08918515 4/0 AWG Green 0.531 13 1.25 32 0.50 13 0.34 9 08960423 6,500 28.9
08918510 3/0 AWG Orange 0.475 12 1.25 32 0.50 13 0.34 9 08960923 6,500 28.9
08918500 1/0 AWG Red 0.39 10 1.25 32 0.50 13 0.34 9 08960523 6,500 28.9
