CONDUX  |  SKU: 30051352  |  MPN: 08539550

Fiber Optic Hanger Block | 90° Cable Turns

$2,092.50
Each
  • 90° Cable Turns: Five aluminum rollers on bronze bearings guide cable through a gradual 90° turn.
  • 12" Pulling Radius: Published pulling radius is 12" (305 mm).
  • Keeper Rollers: Two non-metallic rollers hold the cable in place during the pull.
  • Cable Capacity: Supports cable up to 3/4" (19 mm) diameter with an 800 lb. (3,558 N) tension load capacity.
  • Mounting Options: Can be suspended in a manhole or hung on an overhead pole.
  • Replacement Sheave Available: Condux publishes replacement sheave MPN 08539308.
📄 Download Spec Sheet

Fiber Optic Hanger Block | 90° Cable Turns | 12" Pulling Radius — Product Overview

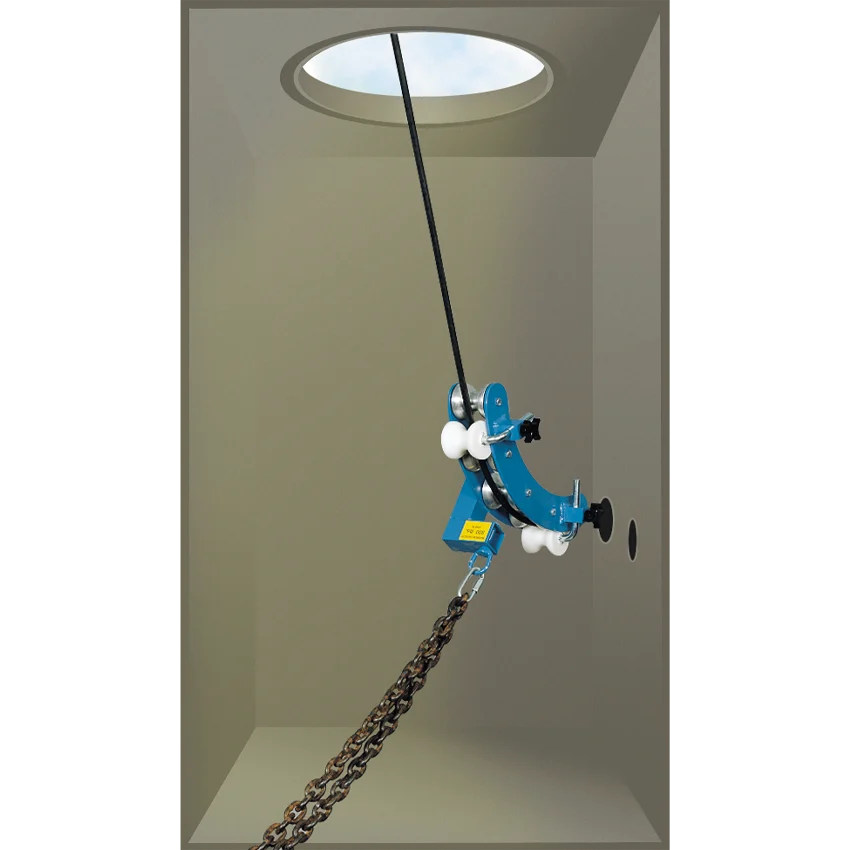

The Condux Fiber Optic Hanger Block uses five aluminum rollers on bronze bearings to allow cable to make a gradual 90° turn when pulling through a manhole opening. It has a 12" (305 mm) pulling radius.

Two non-metallic keeper rollers hold the cable in place during the pull. The hanger block features lightweight, corrosion-resistant aluminum side plates and can be suspended in a manhole or hung on an overhead pole for cable pulls.

Key Features

  • Five Aluminum Rollers: Mounted on bronze bearings for gradual 90° cable turns.
  • 12" Pulling Radius: Published pulling radius is 12" (305 mm).
  • Keeper Rollers: Two non-metallic rollers hold the cable in place during the pull.
  • Aluminum Side Plates: Lightweight and corrosion resistant.
  • Flexible Mounting: Can be suspended in a manhole or hung on an overhead pole.
  • Maximum Cable Diameter: 3/4" (19 mm). Consult the cable manufacturer for minimum bend radius.
  • Cable Tension Load Capacity: 800 lbs. (3,558 N).
  • Replacement Sheaves Available: Condux publishes replacement sheave MPN 08539308.

Ordering Information

Part Number Description
08539550 Fiber Optic Hanger Block
