Turnbuckle Eye & Eye | Hot Dip Galvanized | 1/4" to 3/4"
$4.20
Unit price
/
Select Option
Price per each (sold by the case of 200)

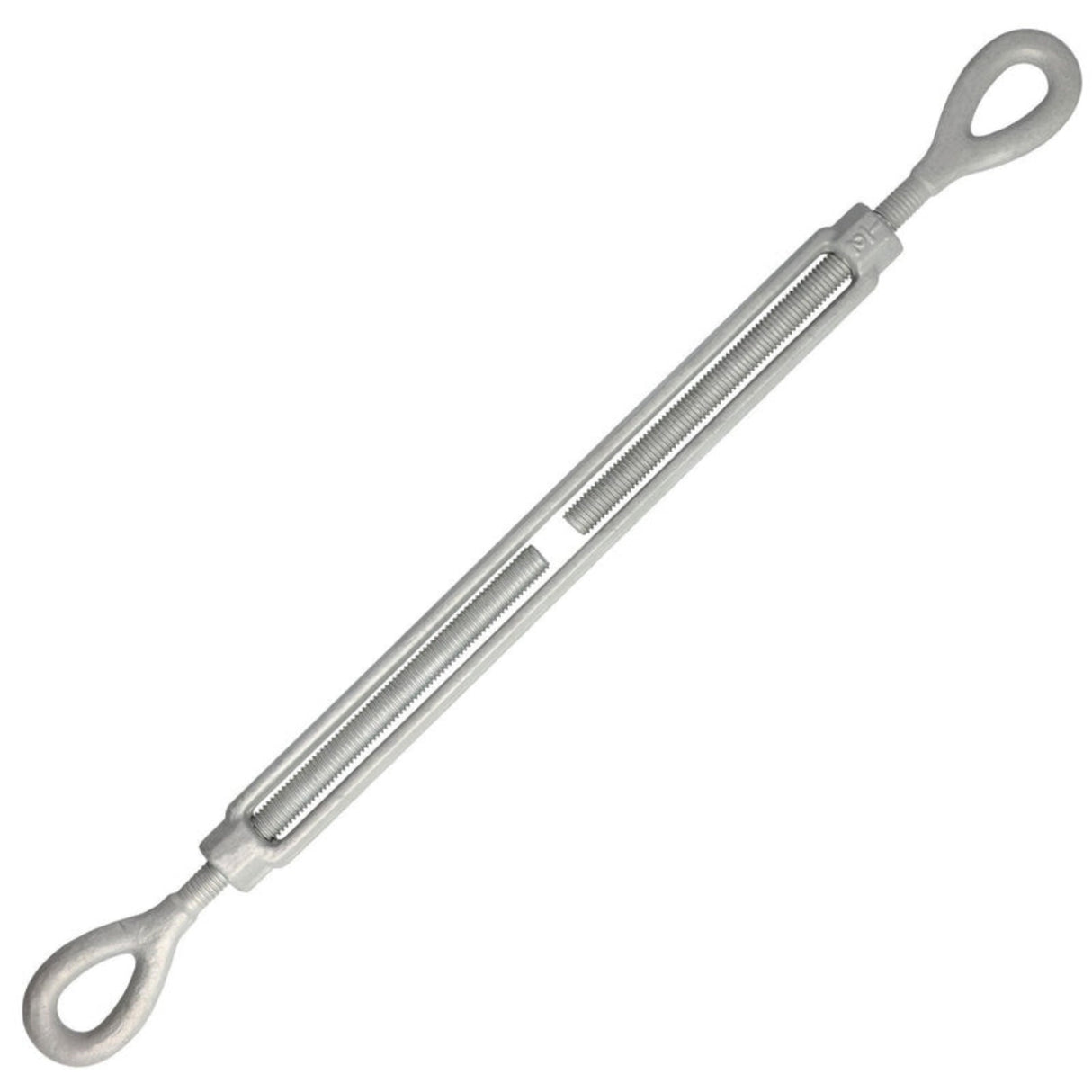

Turnbuckle, Eye and Eye — hot dip galvanized drop-forged turnbuckle with a closed eye on both ends, for permanent guy wire, cable and rope tensioning.
A turnbuckle takes the slack out of a line and holds it. With an eye on both ends the connections are made with shackles, bolts or thimbled cable eyes, so the assembly cannot unhook if the line goes slack. That makes eye and eye the pattern for permanent installations: pole guys, fence and railing cable, anchored duct bank ties. Turning the body draws the two eyes together; take-up is the working travel available.
Key Features
- Drop-forged steel, hot dip galvanized: for outdoor and buried-cable service
- Size is thread diameter x take-up: 1/4" x 4" through 3/4" x 12"
- Working load limits from 500 to 5,200 lb per the table below
- Sold by the case: case quantity in the table is the minimum order and the increment
- Other patterns: View Eye and Hook Turnbuckles Here > LINK
- View Jaw and Jaw Turnbuckles Here > LINK
Order Guide
| Part Number | Thread Dia. x Take-Up | Working Load Limit (lb) | Sold by the Case of | Weight Each (lb) |
|---|---|---|---|---|
| TBEE0804 | 1/4" x 4" | 500 | 200 | 0.29 |
| TBEE104.5 | 5/16" x 4-1/2" | 800 | 100 | 0.48 |
| TBEE1206 | 3/8" x 6" | 1,200 | 50 | 0.75 |
| TBEE1606 | 1/2" x 6" | 2,200 | 25 | 1.72 |
| TBEE1609 | 1/2" x 9" | 2,200 | 25 | 2.30 |
| TBEE1612 | 1/2" x 12" | 2,200 | 25 | 2.63 |
| TBEE2006 | 5/8" x 6" | 3,500 | 20 | 2.75 |
| TBEE2009 | 5/8" x 9" | 3,500 | 20 | 3.60 |
| TBEE2409 | 3/4" x 9" | 5,200 | 10 | 5.50 |
| TBEE2412 | 3/4" x 12" | 5,200 | 10 | 6.12 |
Working load limits are for in-line tension loading per the Erin Rope cut sheet. Ships from the manufacturer in full cases; the case quantity is the minimum order and the order increment for each size. Not for overhead lifting.
