Turnbuckle Jaw & Jaw | Hot Dip Galvanized | 3/8" to 3/4"

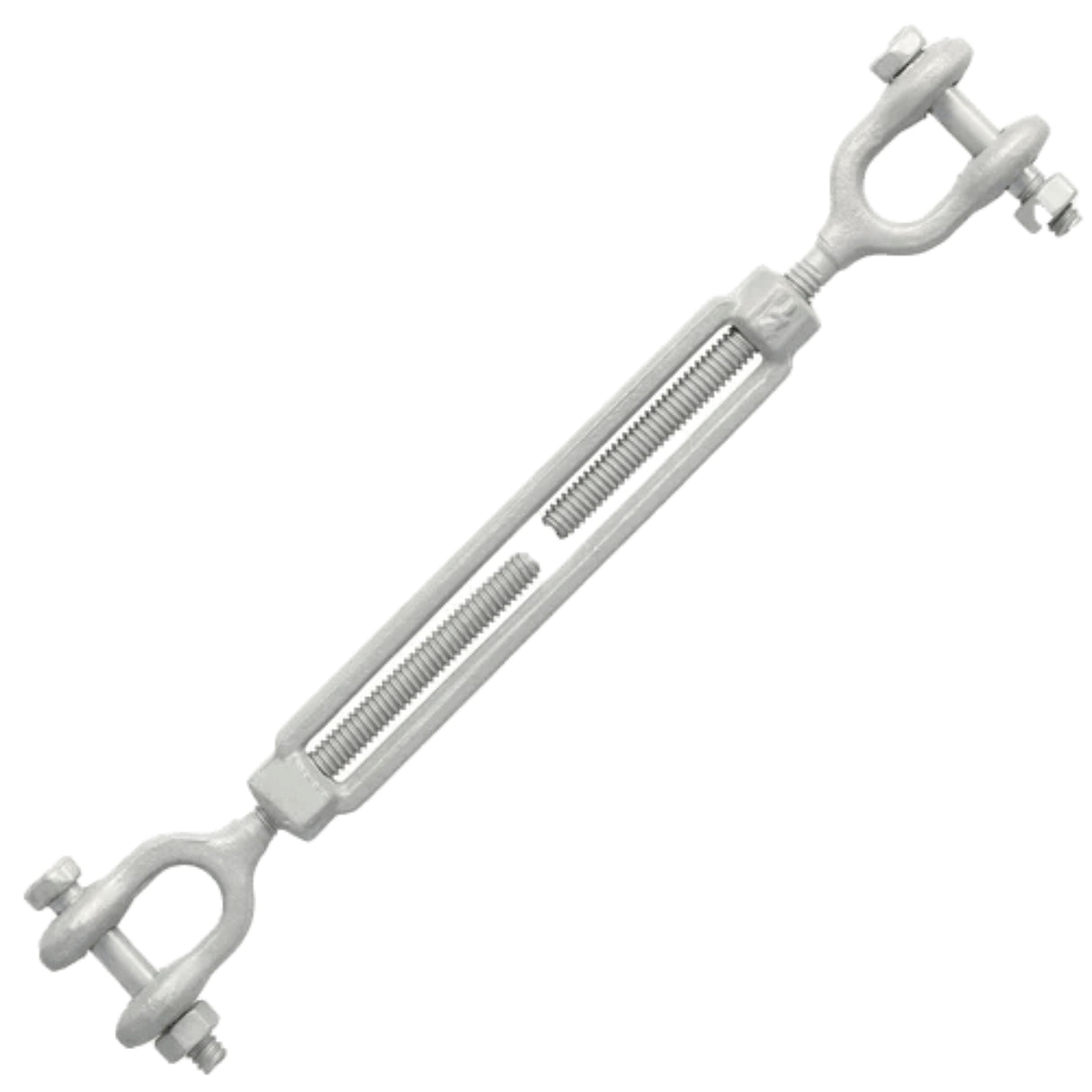

Turnbuckle, Jaw and Jaw — hot dip galvanized drop-forged turnbuckle with a pin-and-jaw fitting on both ends, for connecting directly to eye fittings without a shackle.

A jaw end is a clevis with a bolt or pin through it. It closes around an eye, a thimbled cable eye or an anchor plate hole directly, which saves a shackle at each end and gives a shorter, straighter assembly than eye and eye. Turning the body draws the two jaws together; take-up is the working travel available. Jaw and jaw is the pattern for structural and guy work where the anchor already has an eye or a drilled plate.

Key Features

• Drop-forged steel, hot dip galvanized: for outdoor and buried-cable service
• Size is thread diameter x take-up: 3/8" x 6" through 3/4" x 9"
• Working load limits from 1,200 to 5,200 lb per the table below
• Sold by the case: case quantity in the table is the minimum order and the increment
• Don't see your size? Call (815) 337-8845 and we'll quote it.
• Other patterns: View Eye and Eye Turnbuckles Here > LINK
• View Eye and Hook Turnbuckles Here > LINK

Order Guide

Working load limits are for in-line tension loading per the Erin Rope cut sheet. Ships from the manufacturer in full cases; the case quantity is the minimum order and the order increment for each size. Not for overhead lifting.
