Standard Micro Duct Pressure Test Kit — Product Overview
The Standard Micro Duct Pressure Test Kit is designed for pressure testing and proofing micro duct systems before fiber optic cable installation. It helps installers check duct integrity and identify potential issues that may affect cable installation.

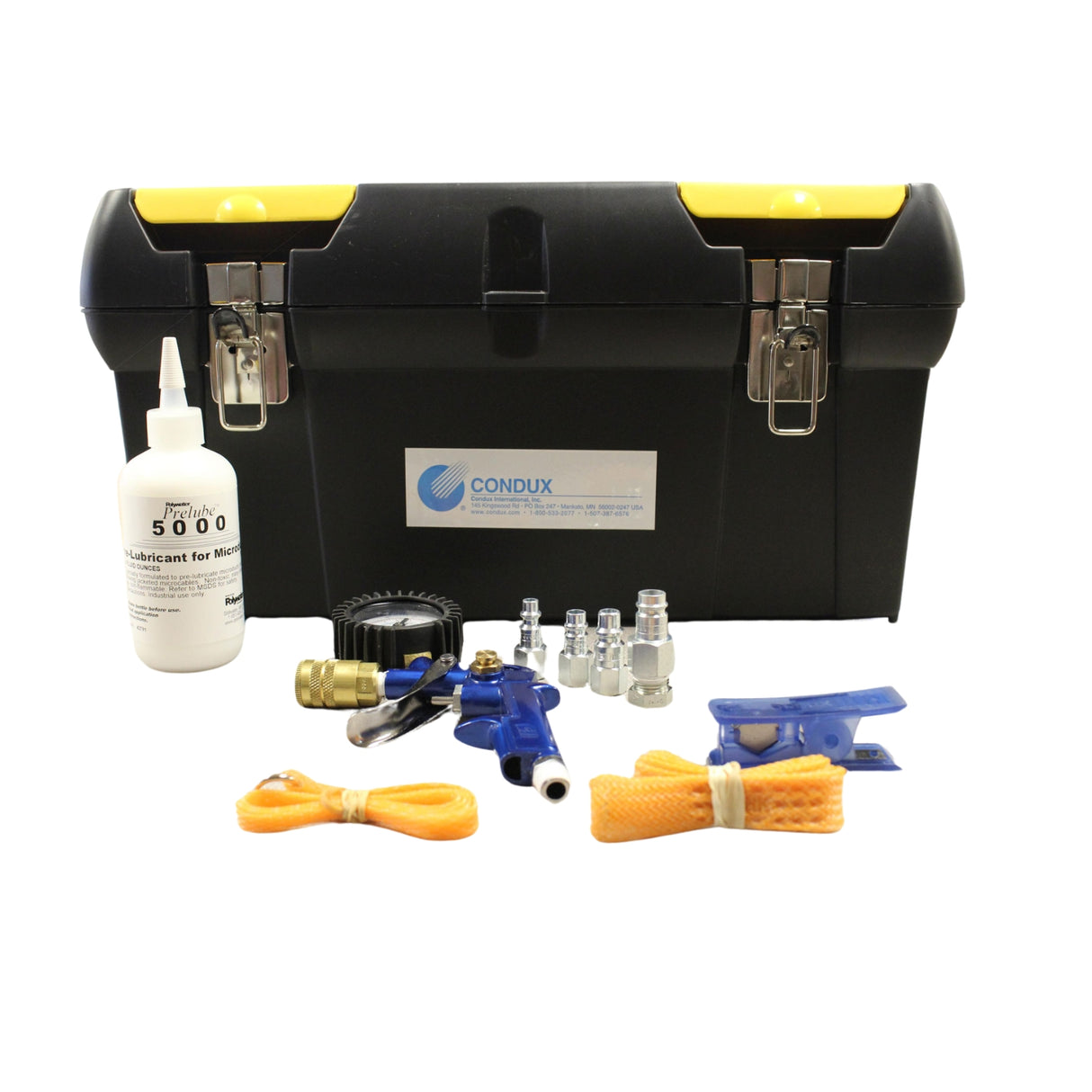

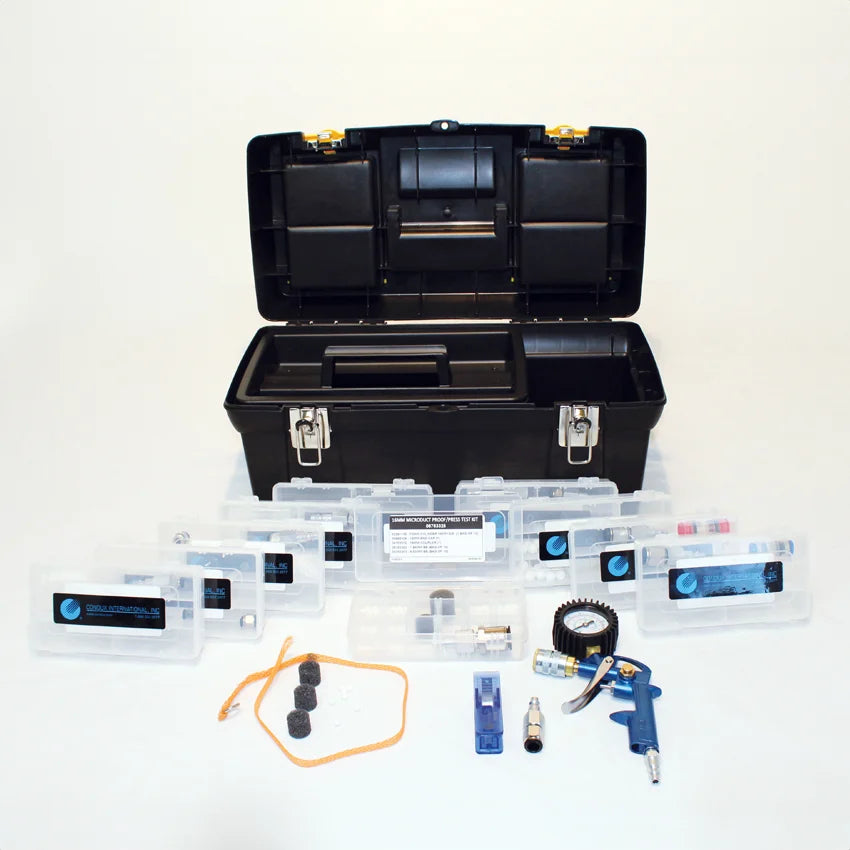

The kit includes a toolbox, pressure test gun, micro duct cutter, and micro duct cable grip test kit. These components support the preparation and testing of micro duct installations.
According to Condux, micro duct systems must withstand and maintain 100 PSI (7 bar) for proper cable blower operation. The duct must also allow passage of a proofing ball with approximately 80% fill ratio to help identify obstructions.
Key Features
- Micro Duct Pressure Testing: Supports checking duct pressure integrity before fiber optic cable installation.
- Duct Proofing: Helps identify potential obstructions before cable installation.
- Pressure Test Gun: Included for pressurizing the micro duct system during testing.
- Micro Duct Cutter: Included for preparing micro duct before testing.
- Cable Grip Test Kit: Included as part of the standard testing equipment.
- Toolbox Included: Provides storage for the supplied testing components.
- Separate Size Kits: Individual micro duct size kits are ordered separately according to installation requirements.
- Pair With: Gulfstream 150 Blower Kit LINK, Gulfstream 250 Blower Kit LINK, Gulfstream 300 Blower Kit LINK
Kit Includes
- Tool Box
- Pressure Test Gun
- Micro Duct Cutter
- Micro Duct Cable Grip Test Kit
The Standard Micro Duct Pressure Test Kit, Condux MPN 08783302, provides the listed tools for pressure testing and proofing micro duct installations. Select the individual micro duct size kits required for the application separately.
Ordering Information
| Part Number | Description |
|---|---|
| 08783302 | Standard Pressure Test Kit (Includes items listed below) |
| 02291159 | Tool Box |
| 08783304 | Pressure Test Gun |
| 08783315 | Micro Duct Cutter |
| 08783354 | Micro Duct Cable Grip Test Kit |
