Gulfstream 150 Micro Fiber Blower Standard Kit | US
$10,958.70
Unit price
/
Select Option
Each

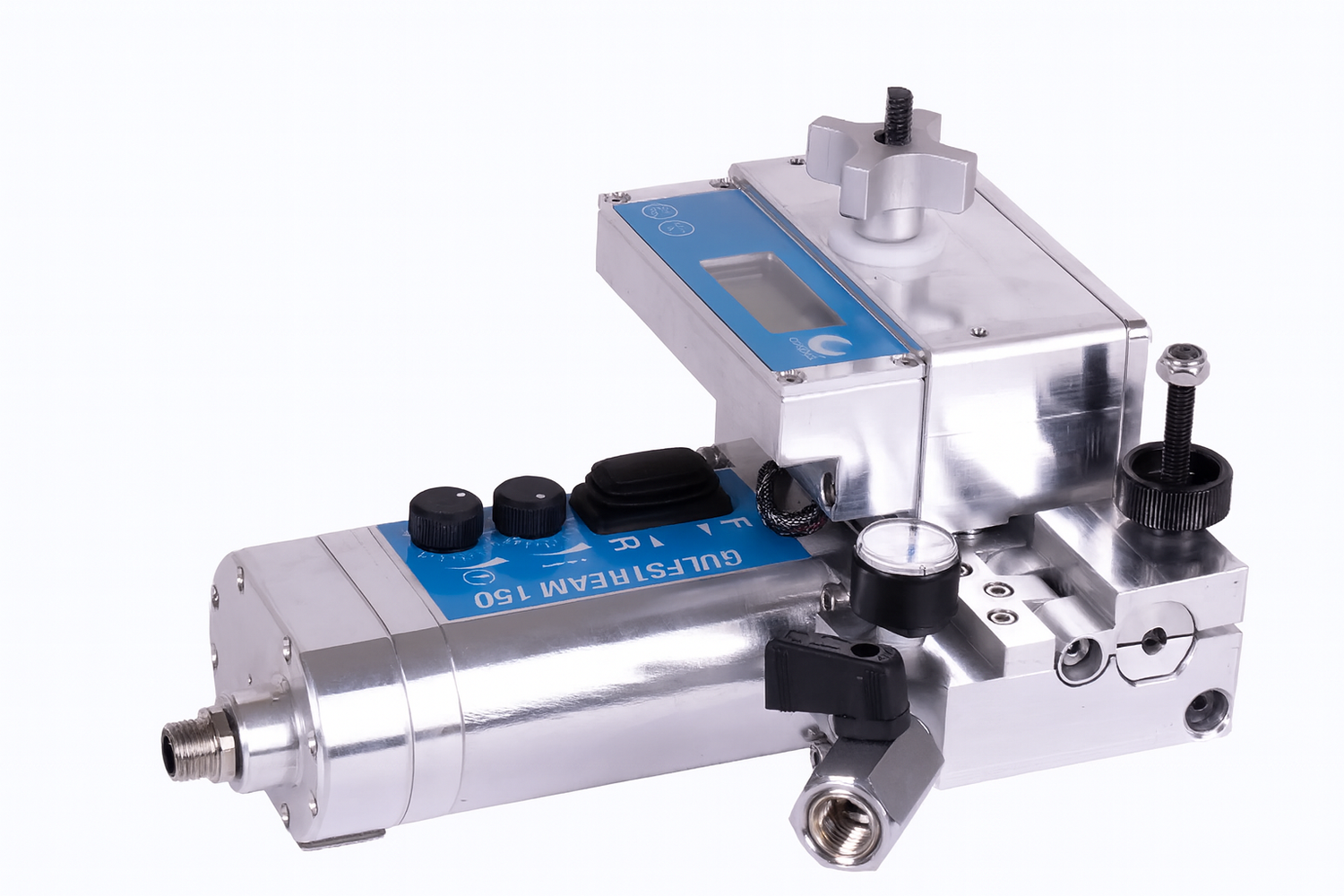

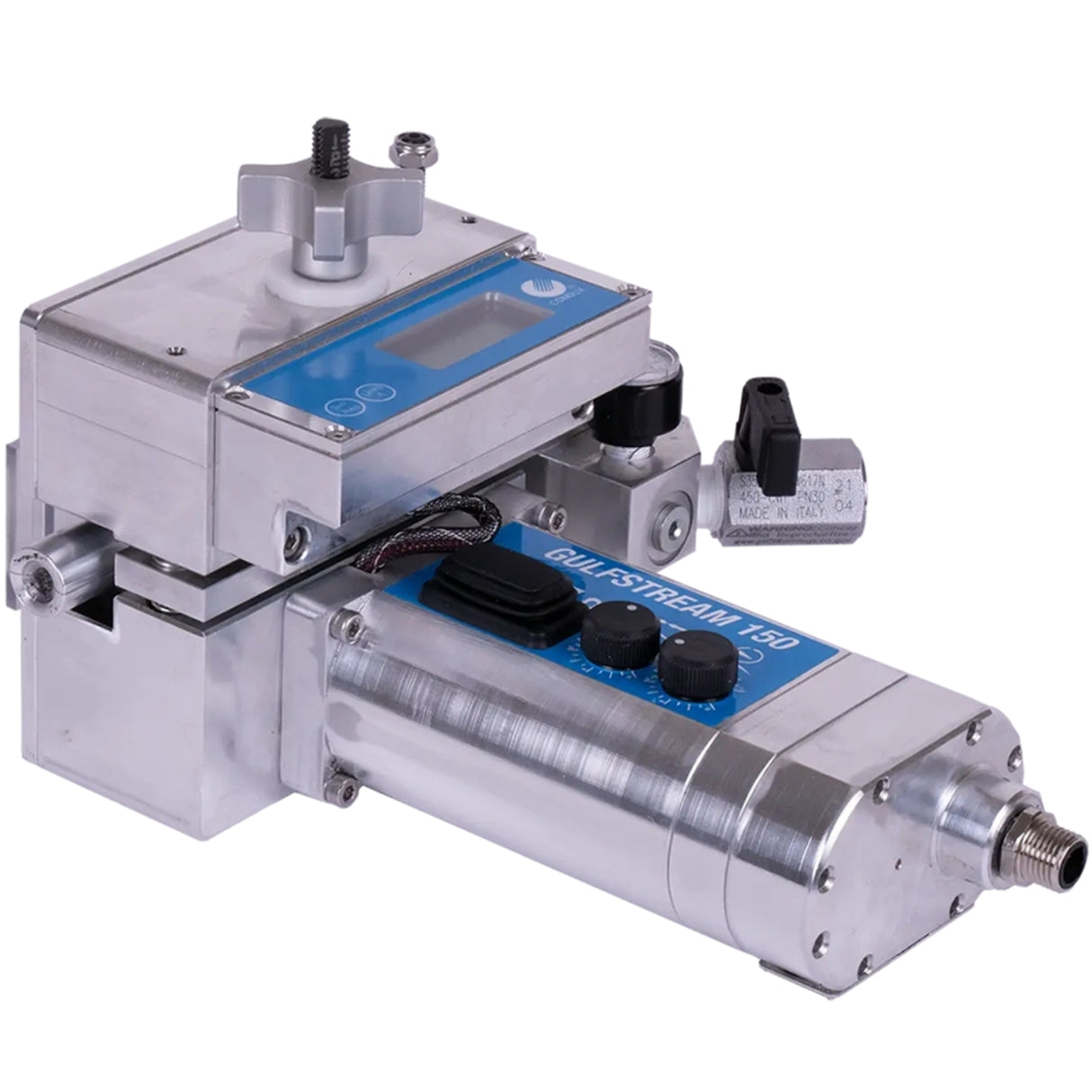

Gulfstream 150 Micro Fiber Blower Standard Kit | US — Product Overview
The Gulfstream 150 Micro Fiber Blower Standard Kit is designed for installing fiber optic cable into microduct applications. The system supports fiber cable sizes from 1 mm to 2.5 mm and microduct sizes from 5 mm to 18 mm.
The Gulfstream 150 uses an electric drive motor with a roller cover drive system. The standard kit includes components required for operation, including a plastic case, seal kit, tripod, cordset, belt battery clip, and additional installation accessories.
Note: The Gulfstream 150 does not include a battery or charger. Power requirements must be sourced separately by the installer.
Key Features
- Fiber Cable Compatibility: Supports fiber cable sizes from 1 mm to 2.5 mm.
- Microduct Range: Supports microduct sizes from 5 mm to 18 mm.
- Power System: Uses an electric drive motor with 12V US / 10.8V EU cordless battery options and optional AC power supply.
- Drive System: Roller Cover drive system with maximum push force of 4.5 lbs (20 N).
- Control Features: Includes screen monitoring, forward/reverse switch, speed control, and push force adjustment.
Specifications
| Specification | Details |
|---|---|
| Fiber Cable Range | 1 mm – 2.5 mm |
| Microduct Range | 5 mm – 18 mm |
| Blower Unit Weight | 7 lbs (3.2 kg) |
| Drive System | Roller Cover |
| Maximum Push Force | 4.5 lbs (20 N) |
| Speed Range | 0–375 fpm (0–115 mpm) |
| Power System | Electric drive motor; 12V US / 10.8V EU cordless battery option (battery not included); optional AC power supply |
Ordering Information
| Part Number | Description |
|---|---|
| 08783400-50 | Gulfstream 150 Micro Fiber Blower Standard Kit, US |
Included in Standard Kit
| Part Number | Qty | Description |
|---|---|---|
| 08783054 | 1 | Plastic Case |
| 02291020 | 1 | Hex Key Set |
| 08783426 | 2 | Small Groove Wheel |
| 08783076 | 1 | Seal Kit |
| 08783077 | 1 | O-Ring Kit (qty 5) |
| 02290882 | 1 | Adjustable Tripod, 9 lbs., 11"–63" |
| 02291088 | 1 | 3-Pin Cordset |
| 08783199 | 1 | Belt Battery Clip |
| 08783259 | 1 | Blank Seal Kit (qty 6) |
