PRIME CONDUIT  |  SKU: 30054733  |  MPN: BG340SP-010

PVC Conduit | Bore-Gard Trenchless Raceway | Schedule 40 | Bell End

$2,004.26
  • Tool-Free Watertight Seal – Locking strap + gasket system requires no glue or fusion
  • Heavy-Wall Schedule 40 – Rated for HDD use with pull forces up to 18,500 lbs
  • Standard Fitting Compatible – Joins with off-the-shelf PVC fittings for easy transitions
  • Stick Format – Ships in 10' or 20' lengths, no reels or return freight required
  • UL, CSA & NEMA Certified – Complies with NEC Articles 300 and 352 for underground use
📄 Download Spec Sheet

PVC Conduit | Bore-Gard Trenchless Raceway | Schedule 40 | Bell End

Bore-Gard Schedule 40 | Trenchless Raceway Conduit | PVC Pipe for HDD | Watertight No-Glue Assembly | 10' and 20' Lengths | UL651 | ETL Listed | CSA Listed | NEMA TC-2

Bore-Gard Trenchless Raceway is a heavy-wall Schedule 40 PVC conduit system designed for underground directional drilling (HDD) applications. Manufactured in the USA and listed to UL651, NEMA TC-2, and CSA C22.2 No.211.2 standards, Bore-Gard delivers watertight protection and high tensile strength for power, telecom, and utility runs.

Key Features:

  • Schedule 40 PVC Construction: Engineered for trenchless pulling, with tested pull forces up to 18,500 lbf depending on size

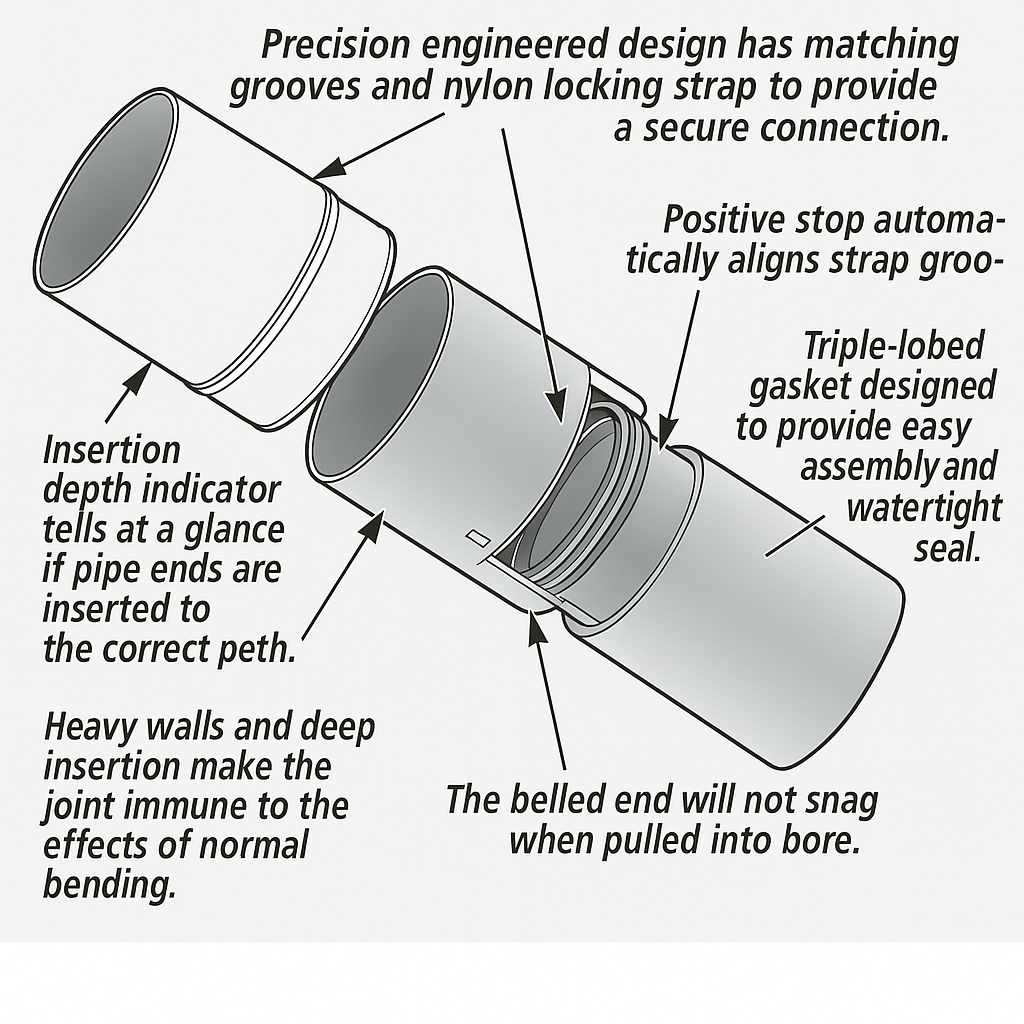

  • Tool-Free Watertight Joint: Triple-lobed gasket + locking strap system ensures quick, secure connection — no fusion or glue required
  • Standard Fitting Compatibility: Connects to off-the-shelf Schedule 40 PVC fittings for efficient transitions
  • Stick Format: Ships in 10' or 20' lengths — no reels or coiling equipment needed
  • Code Compliant: ETL & CSA listed; suitable for underground installation with electrical conductors (NEC Articles 300 & 352)

Installation Notes:

  • Ensure print line faces up when placing conduit in bore path
  • Trim spigot end (if needed) and insert pulling eye
  • Join spigot to bell until insertion line disappears
  • Secure locking strap into groove on bell — no cement required

Available Sizes:

  • 3" x 10', 20'
  • 4" x 10', 20'
  • 5" x 10', 20'
  • 6" x 10', 20'
  • 8" x 10', 20'

Performance Specifications

Trade Size OD (in.) Min. Wall (in.) Pull Test (lbf) Bend & Pull (lbf) Crush Resistance (lbs) Listings
3" 3.500 0.216 7,500 7,000 1,000 ETL, CSA
4" 4.500 0.237 9,200 8,700 900 ETL, CSA
5" 5.563 0.258 11,800 11,300 900 ETL, CSA
6" 6.625 0.280 14,500 14,000 850 ETL, CSA
8" 8.625 0.322 18,500 18,000 850 N/A

Bundle Quantities

Trade Size Wall Type Length Feet/Bundle Bundles/Truckload Feet/Truckload Weight per 100 ft (lbs)
3" Schedule 40 10' 350 56 19,600 164
3" Schedule 40 20' 700 28 19,600 164
4" Schedule 40 10' 260 56 14,560 234
4" Schedule 40 20' 520 28 14,560 234
5" Schedule 40 10' 230 40 9,200 317
5" Schedule 40 20' 460 20 9,200 317
6" Schedule 40 10' 200 40 8,000 418
6" Schedule 40 20' 400 20 8,000 418
8" Schedule 40 10' 140 32 4,480 647
8" Schedule 40 20' 280 16 4,480 647

Tags: Bore-Gard Schedule 40 | Trenchless Raceway Conduit | HDD PVC Pipe | Power & Telecom Duct | Locking Bell Joint | ETL | CSA | NEMA TC-2
