808 Champion Swivel with Clevis Pin | Heavy Duty Cable Pulling | Condux
Swivel with Clevis Pin | 808 Champion Series | Heavy-Duty Stainless Steel | Cable Pulling Tool — Product Overview

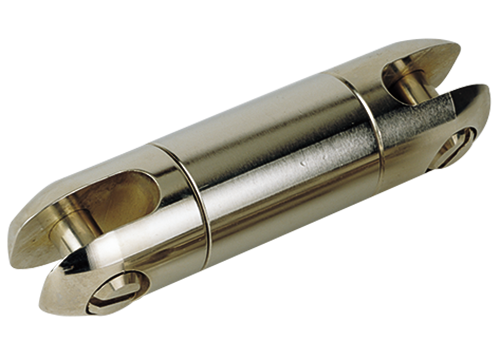

The 808 Champion Swivel with Clevis Pin is built for both underground and overhead cable pulling applications. Precision machined from high-strength stainless steel, it provides smooth rotation under load, helps reduce cable torque, and delivers dependable performance in demanding utility and telecom field conditions.
Designed for professional pulling setups, this swivel series supports a wide range of cable sizes and pulling loads. Sizes run from 5/8" through 3" with underground working loads from 600 lbs to 30,000 lbs. Most sizes are offered in both a standard slotted clevis pin and a hex head clevis pin configuration, so you can match whatever is already in the truck.
Key Features
- Built for Cable Pulling: Designed for underground and aerial pulling applications in utility, power, fiber, and telecom work.
- Durable Stainless Steel Construction: High-strength material helps resist corrosion, wear, and deformation in tough field conditions.
- Smooth Swivel Action: Helps reduce twisting and cable torque during pulling operations for more controlled handling.
- Standard or Hex Pin: Hex head clevis pin versions available in 7/8", 1-1/4", 1-3/8", 1-5/8", 2", and 2-1/2" sizes.
- Utility-Grade Ratings: Underground working loads are rated at a 3:1 safety factor; aerial working loads at 5:1.
- View Replacement Clevis Pins Here > LINK
Usage Guidelines
- Not for Bullwheels: 808 Champion Swivels are not designed to run around bullwheels or sheaves. Always verify size compatibility with your pulling grip, harness, or setup before use.
- Cable Pulling Only: Intended for stringing and pulling operations only. Do not use for directional drilling.
Product Specifications
- Material: High-strength stainless steel
- Application: Underground and aerial cable pulling
- Safety Factors: 3:1 underground, 5:1 aerial
- Configuration: Standard slotted clevis pin or hex head clevis pin
- Pin Replacement: Clevis pins are field-replaceable; see the replacement pin table below
Documentation:
Ordering Information

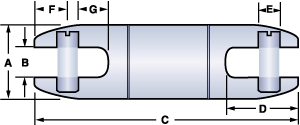

Dimensions A through G refer to the dimension diagram shown in the product images above.
| Part Number | Configuration | Underground (lbs) | Aerial (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| 08017000 | Standard | 600 | 360 | 5/8 | .28 | 3.56 | .80 | .16 | .37 | .34 |
| 08016000 | Standard | 2,500 | 1,500 | 7/8 | .38 | 4.41 | 1.03 | .31 | .53 | .35 |
| 08016000H | Hex | 2,500 | 1,500 | 7/8 | .38 | 4.41 | 1.03 | .31 | .53 | .35 |
| 08080912 | Standard | 5,000 | 3,000 | 1-1/4 | .56 | 5.44 | 1.34 | .37 | .59 | .57 |
| 08080912H | Hex | 5,000 | 3,000 | 1-1/4 | .56 | 5.44 | 1.34 | .37 | .59 | .57 |
| 08080913 | Standard | 7,000 | 4,200 | 1-3/8 | .56 | 5.25 | 1.31 | .43 | .56 | .54 |
| 08080913H | Hex | 7,000 | 4,200 | 1-3/8 | .56 | 5.25 | 1.31 | .43 | .56 | .54 |
| 08080916 | Standard | 10,000 | 6,000 | 1-5/8 | .63 | 6.51 | 1.59 | .56 | .78 | .54 |
| 08080916H | Hex | 10,000 | 6,000 | 1-5/8 | .63 | 6.51 | 1.59 | .56 | .78 | .54 |
| 08080920 | Standard | 15,000 | 9,000 | 2 | .75 | 6.99 | 1.78 | .62 | .72 | .75 |
| 08080920H | Hex | 15,000 | 9,000 | 2 | .75 | 6.99 | 1.78 | .62 | .72 | .75 |
| 08080925 | Standard | 25,000 | 15,000 | 2-1/2 | 1.00 | 10.20 | 2.80 | .87 | 1.23 | 1.13 |
| 08080925H | Hex | 25,000 | 15,000 | 2-1/2 | 1.00 | 10.20 | 2.80 | .87 | 1.23 | 1.13 |
| 08080930 | Standard | 30,000 | 18,000 | 3 | 1.31 | 12.04 | 3.56 | 1.12 | 1.38 | 1.60 |
Replacement Clevis Pins
Replacement pins are sold separately — see the 808 Champion Swivel Replacement Clevis Pin listing.
| Swivel Part Number | Configuration | Replacement Pin Part Number |
|---|---|---|
| 08017000 | Slotted | 08017016 |
| 08016000 | Slotted | 08955408 |
| 08016000H | Hex | 08081065 |
| 08080912 | Slotted | 08081046 |
| 08080912H | Hex | 08081042 |
| 08080913 | Slotted | 08081036 |
| 08080913H | Hex | 21000371 |
| 08080916 | Slotted | 08081026 |
| 08080916H | Hex | 21000381 |
| 08080920 | Slotted | 08081016 |
| 08080920H | Hex | 21000391 |
| 08080925 | Slotted | 08081006 |
| 08080925H | Hex | 21000401 |
| 08080930 | Slotted | 08081053 |
Note: Not for use with bullwheels, sheaves, or directional drilling. Always confirm size, configuration, and pulling setup compatibility prior to use.
