Hydronic Pump Flange Ball Valve | 2420F Series | EzPress x Flange
Hydronic Pump Flange Ball Valve | 2420F Series | EzPress x Flange | Full Port | 600 WOG

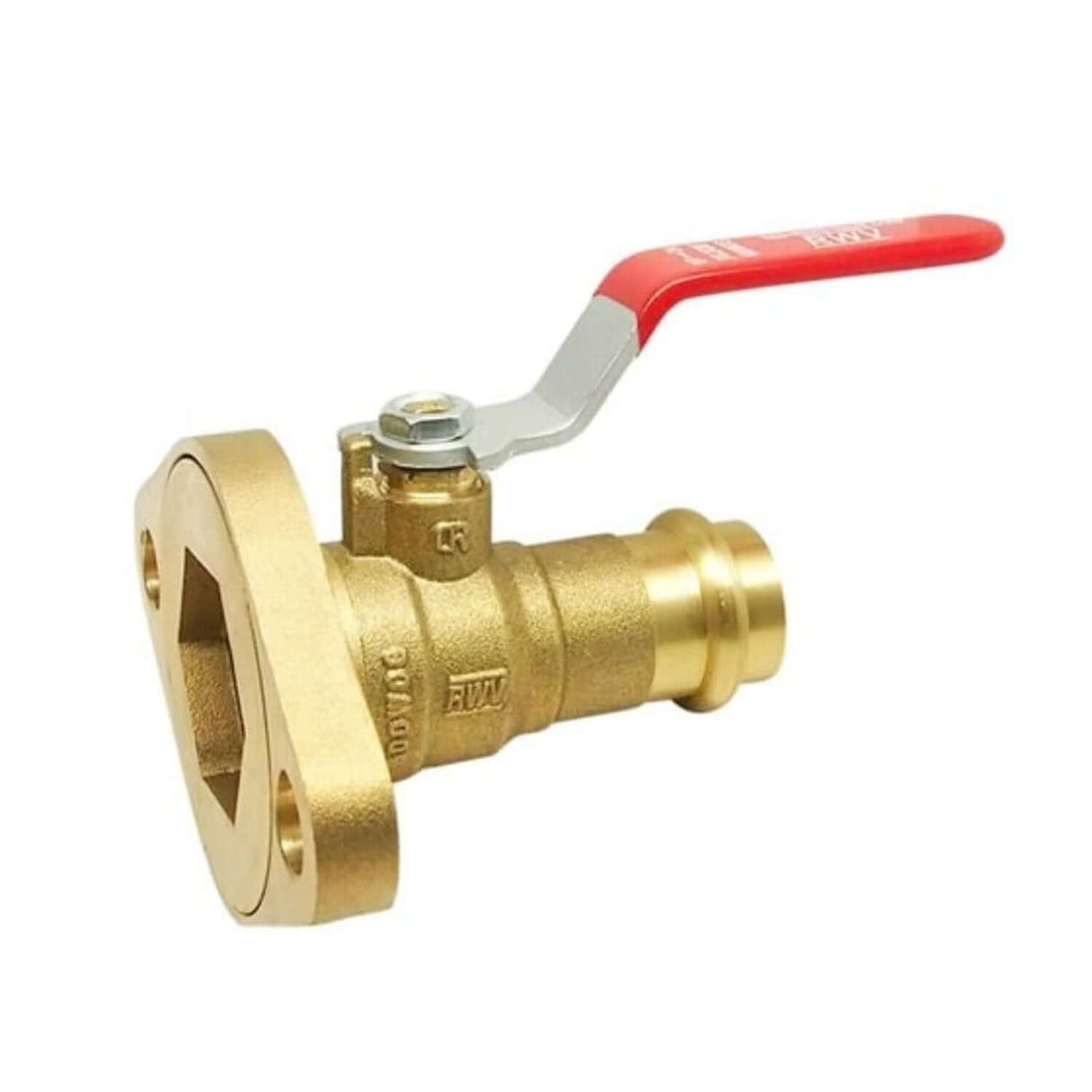

The Red-White Valve 2420F EzPress End Pump Flange Ball Valve combines strength, speed, and precision installation in one dependable unit. Built for professional hydronic, plumbing, and HVAC applications, this full-port brass valve features a 600 PSI WOG rating, rotating flange design, and flame-free EzPress connection for quick, secure installs.
Constructed with DZR brass (UNS C35330) for superior corrosion resistance, the 2420F is ideal for aggressive water environments and closed-loop systems. Every valve includes a steel wing handle with a Dacromet coating and a bolt kit for complete installation right out of the box.
Key Features
- 600 WOG Pressure Rating: Withstands demanding hydronic, plumbing, and HVAC conditions.
- EzPress x Flange Connection: Enables quick, leak-proof press-fit installation—no soldering required.
- DZR Brass Construction: Dezincification-resistant material for long-term corrosion protection.
- Full Port 3-Piece Design: Ensures maximum flow with easy internal maintenance access.
- Rotating Flange: Simplifies pump alignment and reduces stress during setup.
- ¼-Turn Wing Handle: Dacromet-coated steel handle for reliable operation and corrosion resistance.
- NSF-Approved Seals: Includes PTFE seats and FKM + EPDM O-rings for high-performance sealing.
- Includes Bolt Kit: Complete hardware set provided for installation convenience.
Applications
- Hydronic and chilled water systems
- Pump isolation and control setups
- Commercial HVAC and mechanical rooms
- Press-end plumbing connections
Dimensions & Weights (inches-lbs.)
| Size | ⌀ (in) | A | C | H | L | P | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 3/4″ | 0.89 | 2.50 | 0.63 | 2.07 | 3.58 | 0.73 | 1.50 |
| 1″ | 1.14 | 2.81 | 0.75 | 2.36 | 4.96 | 0.94 | 1.92 |
| 1-1/4″ | 1.43 | 3.32 | 0.77 | 2.58 | 4.96 | 1.22 | 2.20 |
| 1-1/2″ | 1.64 | 3.70 | 0.77 | 2.87 | 5.55 | 1.46 | 2.80 |
| 2″ | 2.14 | 4.57 | 0.79 | 3.25 | 5.55 | 1.95 | 4.16 |
Material & Specifications
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | DZR Brass | UNS C35330 |
| 2 | End Piece | Brass | ASTM B283 C37700 |
| 3 | End Piece* | Brass | ASTM B124 C37700 |
| 4 | Ball | Brass / Chrome-Plated | ASTM B30 C85700 |
| 5 | Seat | PTFE | PTFE |
| 6 | Flange | Brass | ASTM B283 C37700 |
| 7 | Stem | Brass | ASTM B124 C37700 |
| 8 | O-Ring | FKM | NSF Approved |
| 9 | Packing Ring | PTFE | PTFE |
| 10 | Packing Nut | Brass | ASTM B124 C37700 |
| 11 | Handle | Steel / Dacromet Plated | ASTM A36 |
| 12 | Nut | Steel / Zinc Plated | ASTM A36 |
| 13 | O-Ring | EPDM Perox | NSF Approved |
* Only for 1-1/2″ and 2″ sizes
