POLY-CAM  |  SKU: 30086878  |  MPN: 412-0100BZ0211N

412 Series Transition Fitting | 1.00" Female NPT Thread | DR 11

$2,004.26
NPT SIZE
MAIN SIZE
MATERIAL
  • High-Flow 0.75" NPT Port – Larger threaded outlet supports 50% greater flow than standard 0.50" fittings
  • DR 11 Pressure Rated – Thin-wall optimized for 250+ PSI systems where standard fittings fail
  • Material-Matched Performance – Choose from C954 Bronze (marine), 316 SS (chemical), 304 SS (cost-effective), or PVC (non-conductive)
  • Permanent Hydraulic Fusion – Creates molecular-level bonds with HDPE conduit (2"-24")
  • See All 412 Series Fittings >LINK
📄 Download data sheet

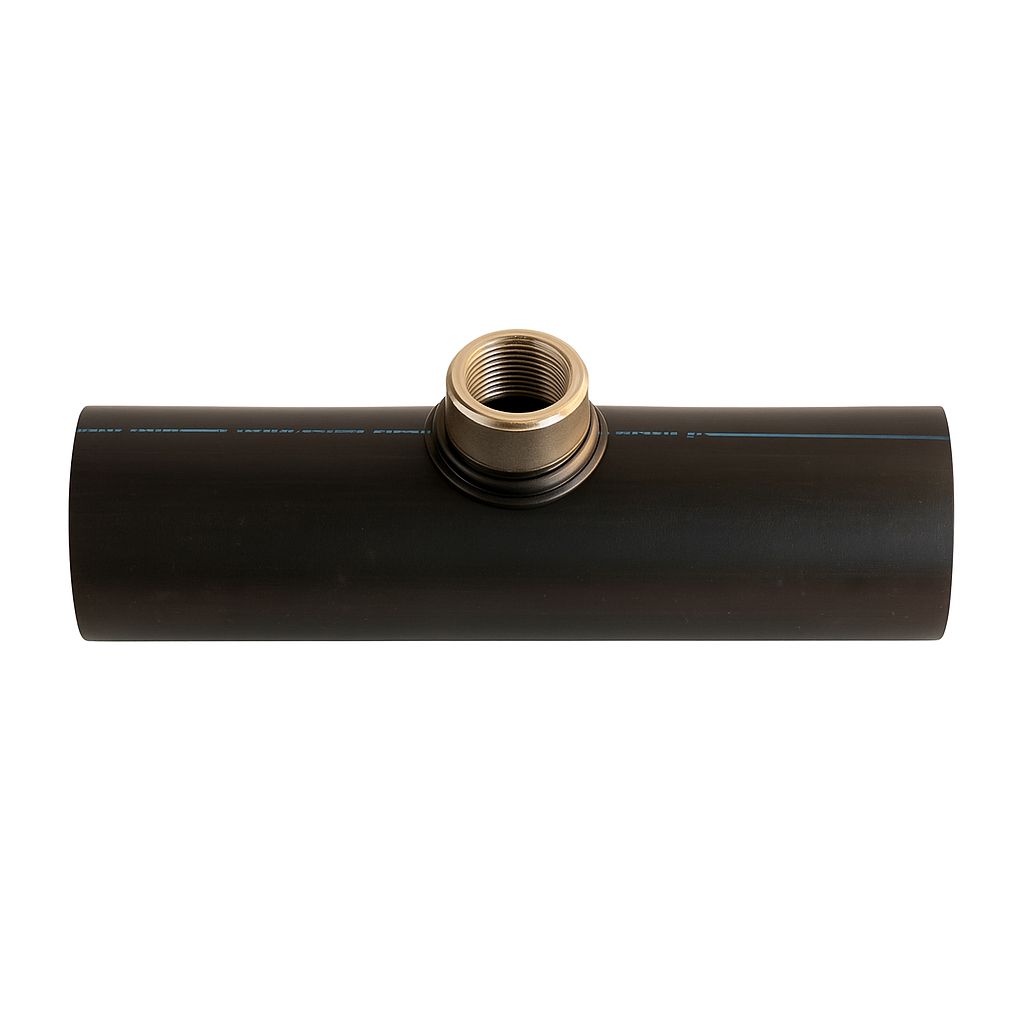

Series 412 Female NPT Thread Transition Fittings provide durable, leak-proof connections between HDPE conduit and NPT-threaded components. This listing covers all options for 1.00" Female NPT Thread with a DR 11 pressure rating. Crafted from rugged C954 Aluminum Bronze, 304 Stainless Steel, 316 Stainless Steel, or PVC, the barbed low-profile design hydraulically fuses to the pipe wall, forming a permanent, maintenance-free seal. Widely used in underground utility, industrial, and telecom installations.

Key Features & Benefits

✅ Leak-Proof Fusion Seal – Barbed design permanently bonds to HDPE (2"–24" diameters)
✅ Multiple Materials Available – Choose from C954 Bronze, 304 SS, 316 SS, or PVC
✅ Standard 1.00" NPT Thread – Complies with ANSI/ASME B1.20.1 – 2013 standards
✅ Pressure Rated DR 11 – Suitable for standard pressure conduit systems
✅ Cap-Ready Design – Can be installed in end caps for flow control or test ports
✅ Low-Profile Configuration – Enables probe or meter use without extended fittings

Technical Specifications

  • Series: 412
  • Outlet Thread Size: 1.00" Female NPT
  • Available DR Ratings: DR 11
  • Main Size Compatibility: 2" to 4" HDPE conduit
  • Fusion Type: Barbed mechanical design with hydraulic compression
  • Installation Method: Hydraulic fusion per PPI butt fusion guidelines
  • Materials: C954 Aluminum Bronze, 304 SS, 316 SS, or PVC
  • Standards: ASTM D3035, D1599, D1598, D3350; ARRA compliant
  • See all Series 412 Female NPT Transition Fittings »

Common Applications

  • Utility Metering Stations
  • Industrial Process Monitoring
  • Municipal and Industrial Water Systems
  • Chemical and Petroleum Transfer Lines
  • Geothermal System Connections

Available Configurations

Main Size DR Rating Material Options Outlet Thread
2" DR 11 C954 Bronze, 304 SS, 316 SS, PVC 1.00" Female NPT
3" DR 11 C954 Bronze, 304 SS, 316 SS, PVC 1.00" Female NPT
4" DR 11 C954 Bronze, 304 SS, 316 SS, PVC 1.00" Female NPT
6" DR 11 C954 Bronze, 304 SS, 316 SS, PVC 1.00" Female NPT
8" DR 11 C954 Bronze, 304 SS, 316 SS, PVC 1.00" Female NPT
10" DR 11 C954 Bronze, 304 SS, 316 SS, PVC 1.00" Female NPT
12" DR 11 C954 Bronze, 304 SS, 316 SS, PVC 1.00" Female NPT
16" DR 11 C954 Bronze, 304 SS, 316 SS 1.00" Female NPT
20" DR 11 C954 Bronze, 304 SS, 316 SS 1.00" Female NPT
24" DR 11 C954 Bronze, 304 SS, 316 SS 1.00" Female NPT

Note: All fittings come with machine-finished threads and precision-machined barbs to ensure optimal fusion and field performance.

Note #2: This listing is for 1.00" Female NPT Thread outlet fittings only. Please select the correct main pipe size from the dropdown menu above.

DR Compatibility Matrix

Main Size DR 7 DR 9 DR 11 DR 17
2" ✅ ✅ ✅ ✅
3" ✅ ✅ ✅ ✅
4" ✅ ✅ ✅ ✅
6" ❌ ❌ ✅ ✅
8" ❌ ❌ ✅ ✅
10" ❌ ❌ ✅ ✅
12" ❌ ❌ ✅ ✅
16" ❌ ❌ ✅ ✅
20" ❌ ❌ ✅ ✅
24" ❌ ❌ ✅ ✅
