5° Bell x Spigot Coupling | DB and EB Duct | 4" and 5"

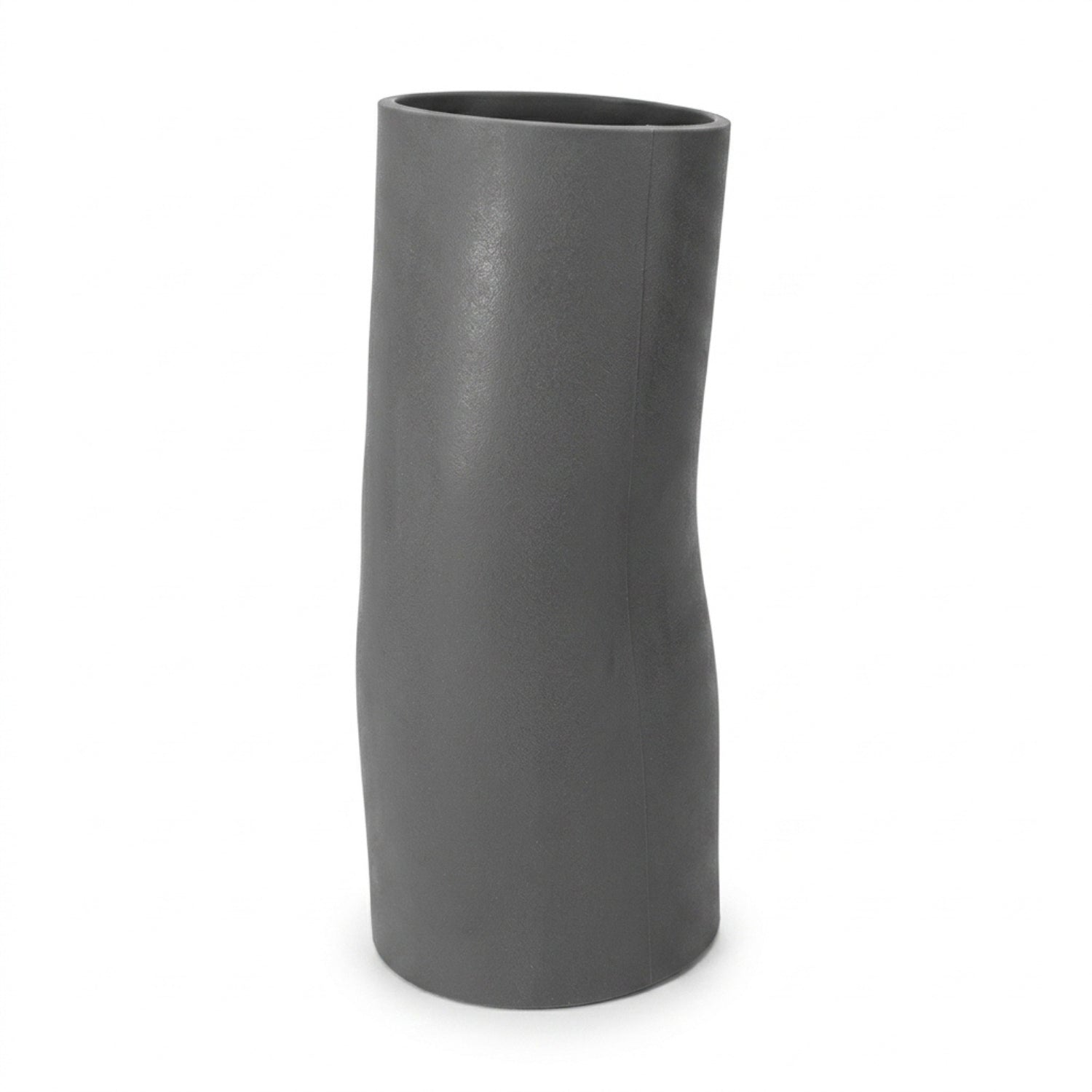

5° Bell x Spigot Coupling — PVC coupling for DB and EB power and communications duct with a built-in 5° offset, for gradual changes of direction in a duct bank.

A bell x spigot (BXS) coupling has a socket on one end that takes the duct and a spigot on the other that fits into the next fitting or coupling, joined with solvent cement. The 5° version puts a small angle into the run so a duct bank can follow a grade change or clear an obstruction without a full sweep. Made to the DB/EB outside diameter, not Schedule 40.

Key Features

• 5° offset: gradual direction change without a sweep; stack couplings for a larger angle
• Bell x spigot: socket end over the duct, spigot end into the next fitting
• DB and EB duct: sized to power and communications duct outside diameters
• Solvent weld PVC: UV resistant, for direct burial and concrete encasement
• Two sizes: 5" stocked in Woodstock IL with a minimum order of 5; 4" made to order by the case of 15
• Don't see your size? Call (815) 337-8845 and we'll quote it, usually same day.

Order Guide

Size is nominal duct trade size. The 2", 3" and 6" (CPBXSDB200, CPBXSDB300, CPBXSDB600) are available on request; call for pricing. Made-to-order sizes ship from the manufacturer in full cases.
