Champion Fiber Glass  |  SKU: 30067599  |  MPN: 07C-XW-44

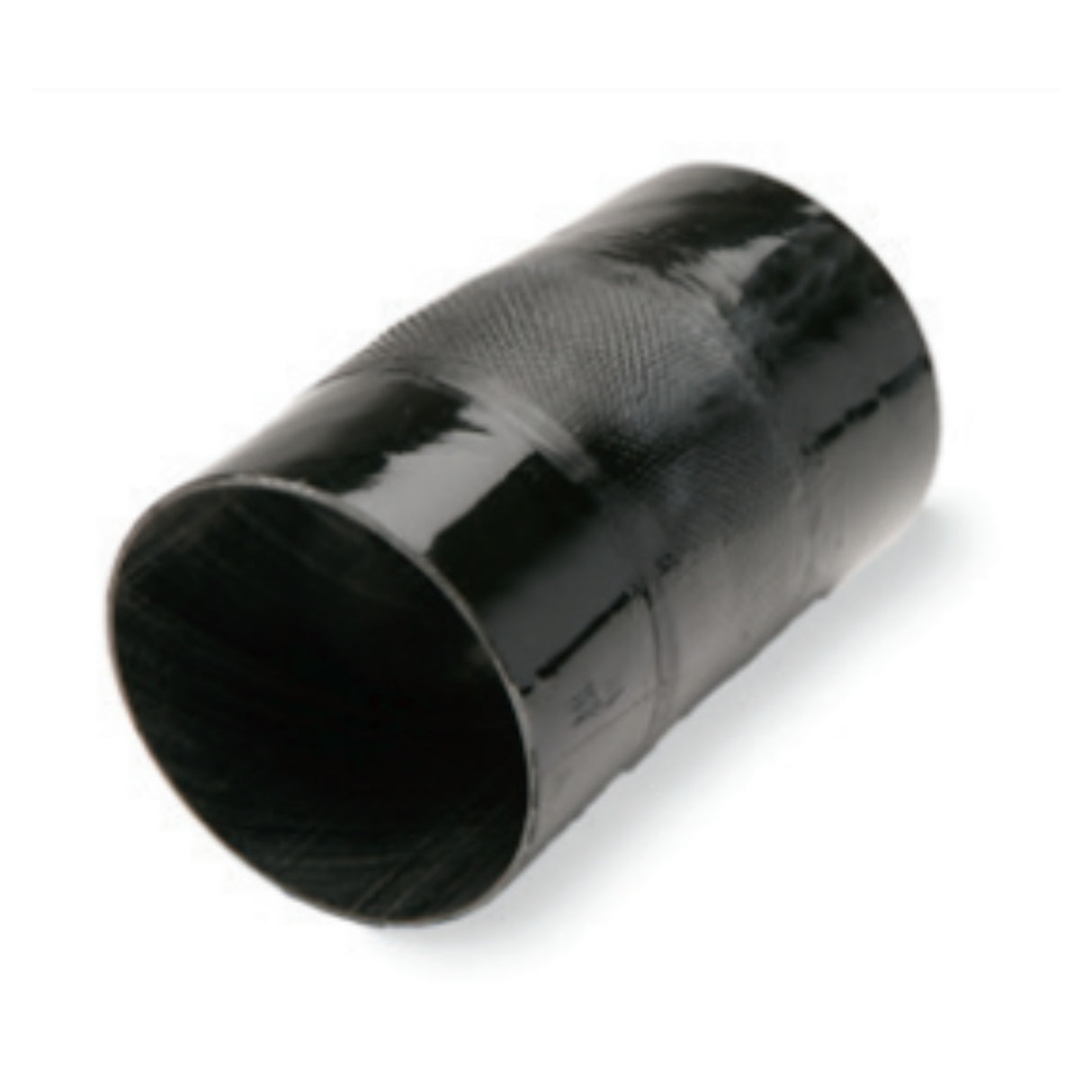

5° DOUBLE BELL COUPLING (XW) - ABOVE GROUND

$0.00
SIZE | TYPE
$50 minimum order required
  • High-Strength Construction: Double bell design delivers a secure and reliable connection for above-ground installations.
  • Built for Harsh Environments: Corrosion-resistant and durable, ensuring long-term performance in industrial and utility applications.
  • 5° Precision Angle: Designed for accurate conduit alignment and optimal installation efficiency.
  • Customizable Options: Available in other angles, such as 2.5°, to suit your project’s specific requirements—consult with Champion Fiberglass for tailored solutions.

The 5° Double Bell Coupling (XW) is a highly durable and versatile connector designed for above-ground conduit installations, specifically in applications that require high-strength connections. This coupling is engineered with precision to provide a reliable and secure join between two lengths of conduit, offering superior performance even in harsh environments. The XW coupling features a double bell design that ensures a tight, long-lasting seal, which is crucial for protecting cables and electrical systems in hazardous locations or areas exposed to severe impact.

Manufactured with the same high-quality standards as the XW Extra Heavy Wall conduit, the 5° Double Bell Coupling provides exceptional strength and durability. Ideal for use in applications such as wastewater treatment plants, utility installations, and industrial settings, this coupling ensures a secure and corrosion-resistant connection. Additionally, Champion Fiberglass offers the flexibility to manufacture couplings in other angles, such as 2.5°, to suit the specific needs of your project. Contact Champion Fiberglass for customized solutions and consultations to meet your installation requirements.

Key Features:

  • High-Strength Design: Engineered for above-ground use with a robust double bell construction for a secure, tight connection.
  • Durable and Corrosion-Resistant: Made to endure harsh environmental conditions, extending the lifespan of your conduit installations.
  • Precision Fit: 5° angle ensures accurate and reliable alignment for seamless conduit installations.
  • Flexible Customization: Available in other angles, such as 2.5°, to meet specific project needs—contact Champion Fiberglass for consultation.
  • Ideal for Hazardous Locations: Perfect for Class I, Division 2 environments, utility installations, and industrial applications that demand maximum protection.

Choose the 5° Double Bell Coupling (XW) for your next above-ground project to ensure a secure, durable, and long-lasting conduit connection that meets the highest standards of performance and safety.

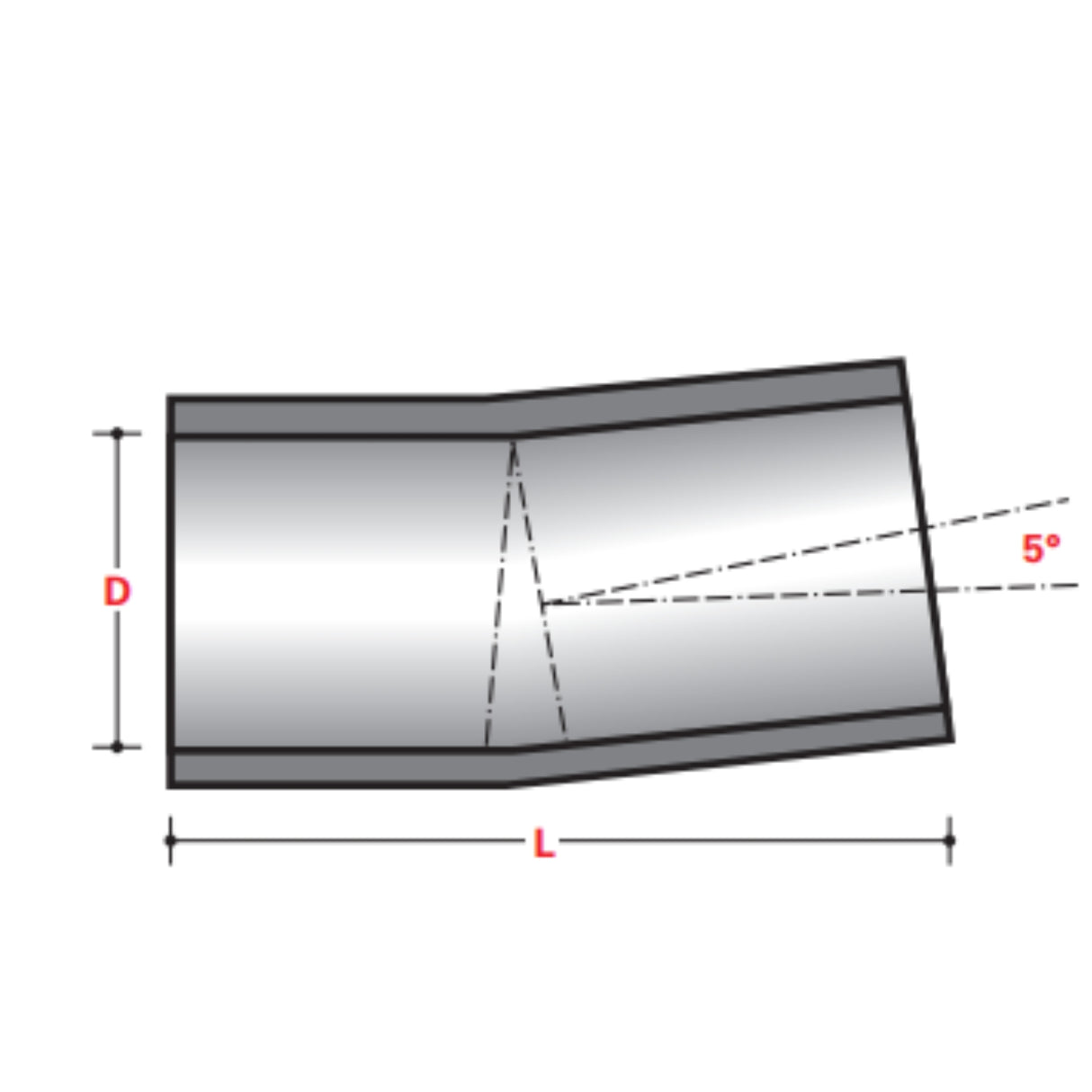

Nominal Size Type XW Item No - Above Ground D L Weight (LBS) Weight (KG)
3/4" XW 07C-XW-44 1.435" (36) 6" (152) 0.22 0.10
1" XW 10C-XW-44 1.700" (43) 6" (152) 0.29 0.13
1-1/4" XW 12C-XW-44 2.045" (52) 6" (152) 0.36 0.16
1-1/2" XW 15C-XW-44 2.285" (58) 6" (152) 0.39 0.18
2" XW 20D-XW-44 2.525" (64) 6" (152) 0.92 0.42
2-1/2" XW 25D-XW-44 3.025" (77) 6" (152) 1.28 0.58
3" XW 30D-XW-44 3.525" (90) 6" (152) 1.48 0.67
3-1/2" XW 35D-XW-44 4.025" (102) 6" (152) 1.70 0.77
4" XW 40D-XW-44 4.525" (115) 6" (152) 1.53 0.67
5" XW 50D-XW-44 5.525" (140) 6" (152) 2.17 0.98
6" XW 60D-XW-44 6.525" (166) 10" (254) 2.55 1.16
