5 Mil Detectable Underground Warning Tape | 2" to 12" x 1000' Rolls
$44.29
Unit price
/
Select Option
Price per roll (sold by the case of 6)
Lead Time:

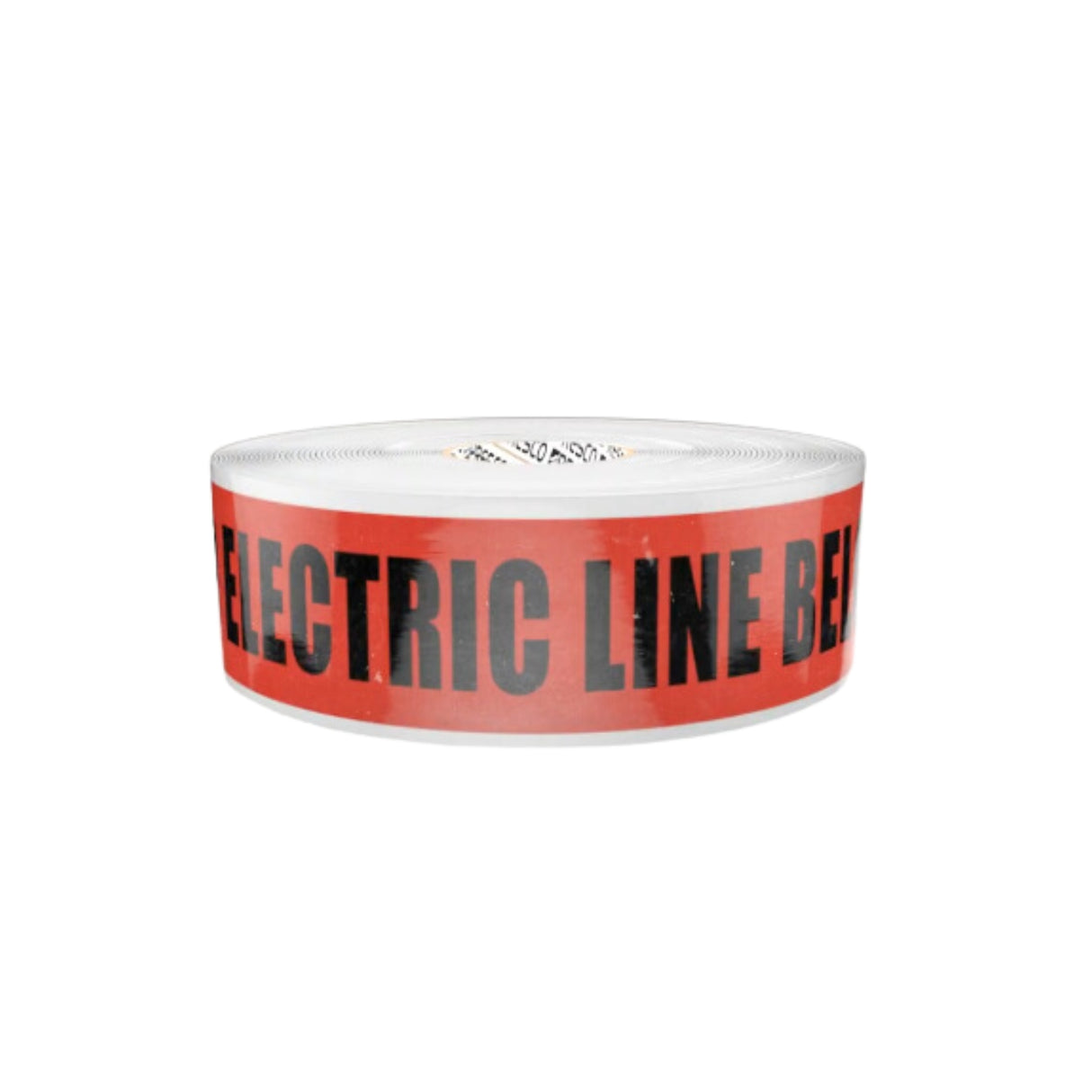

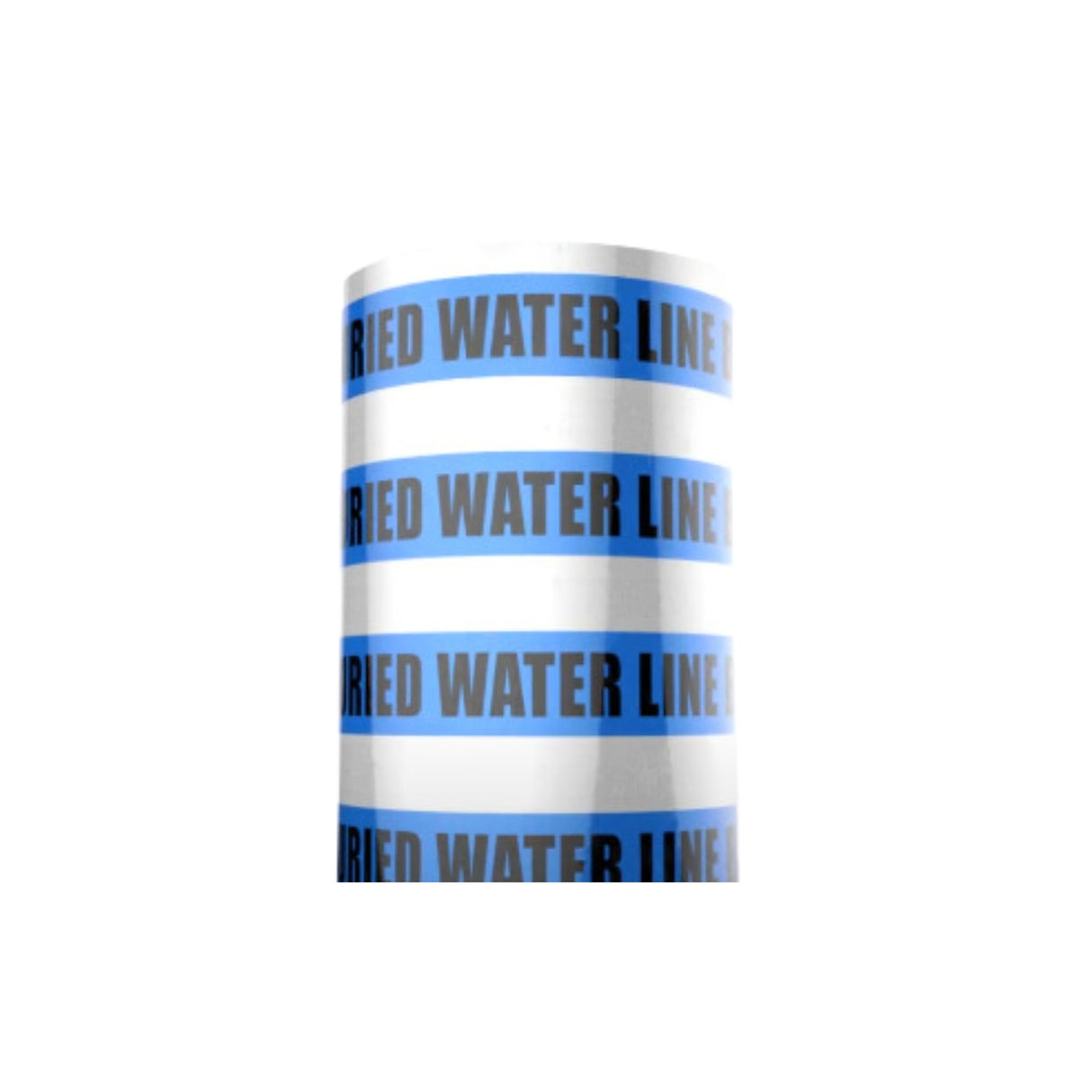

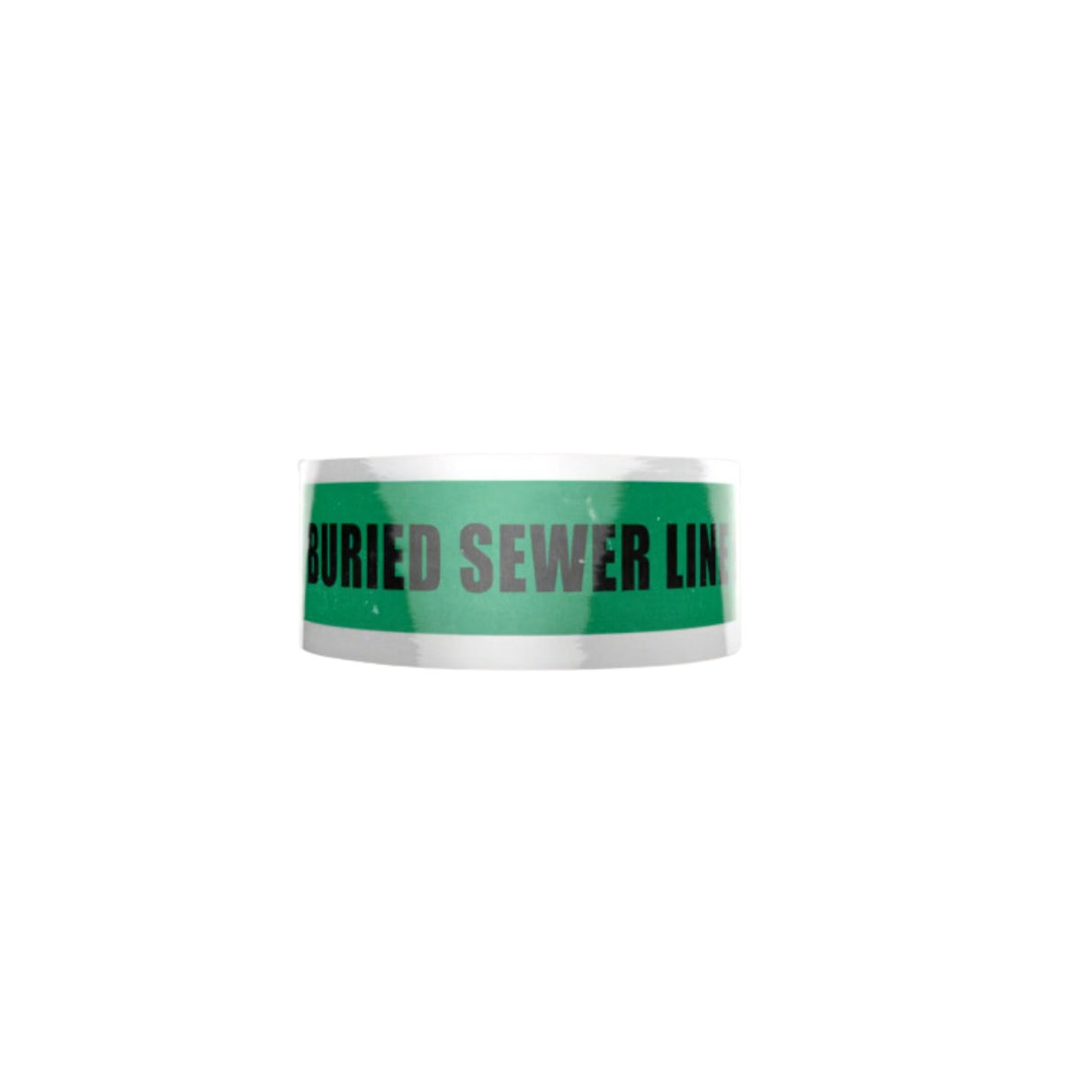

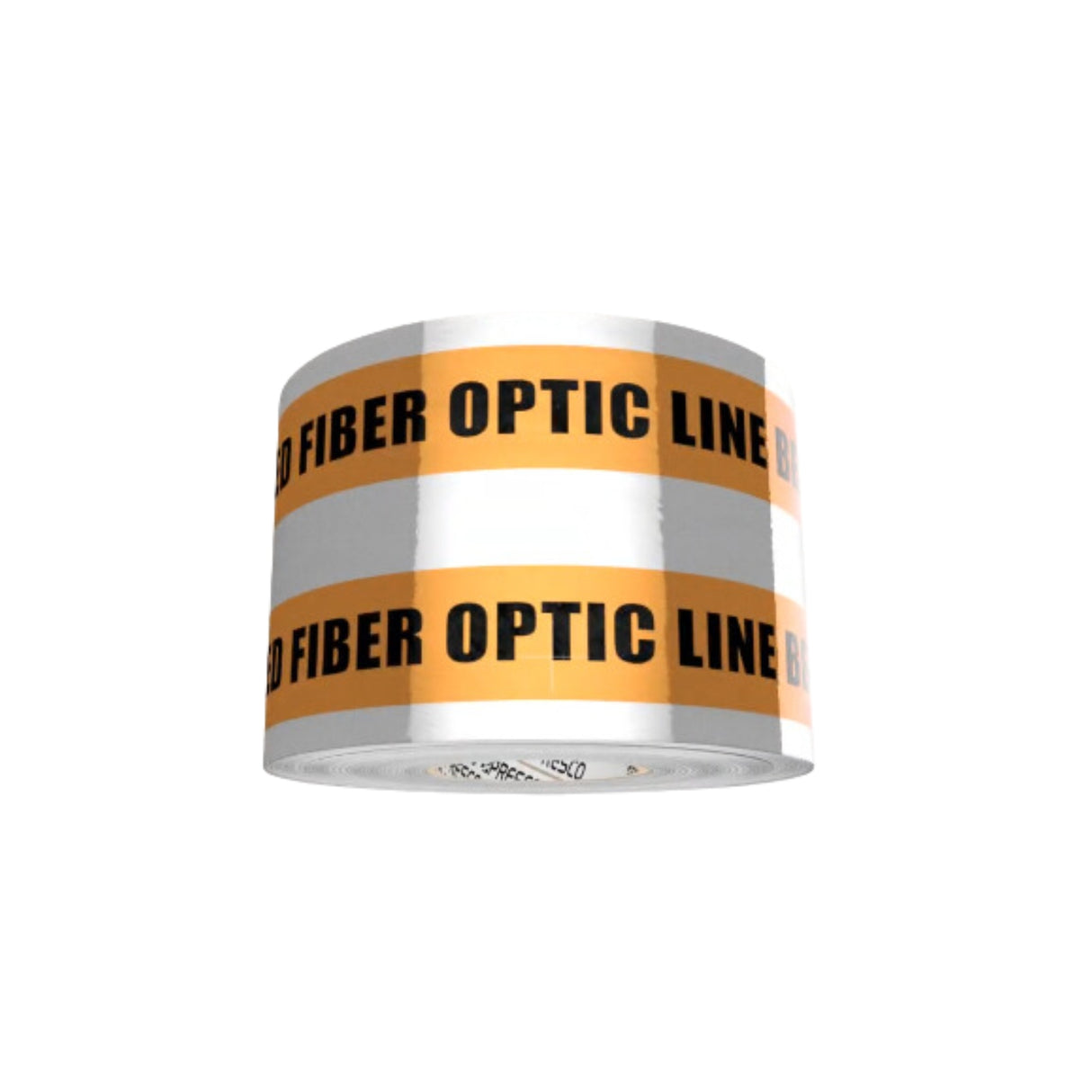

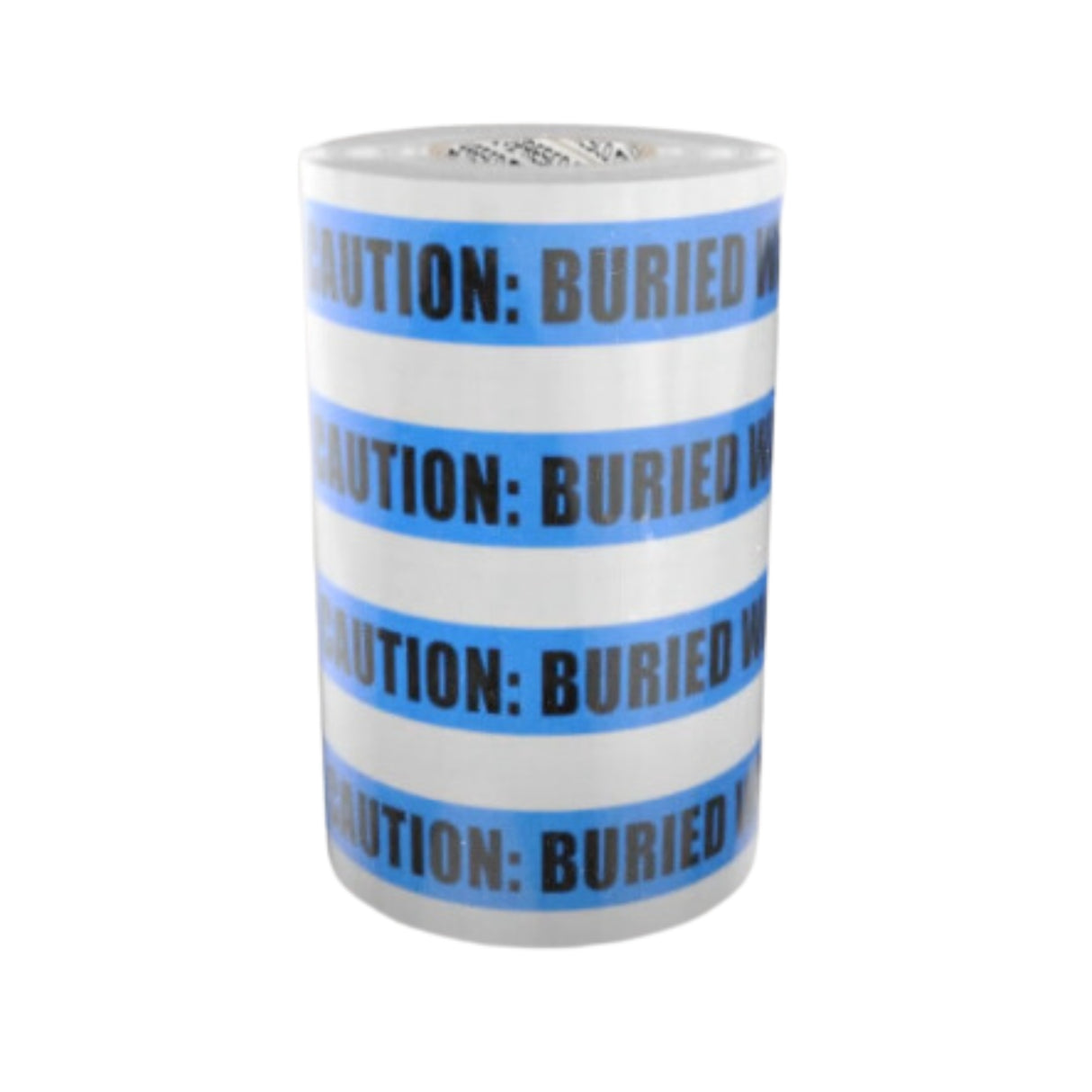

5 Mil Detectable Underground Warning Tape for Utility Line Locating — Product Overview
Our detectable underground warning tape marks and protects buried electric, water, gas, sewer and telecom lines. A solid aluminum core runs the full length of the tape, so a standard inductive locator can find the tape, and the line under it, before anyone digs.
Sold by the roll. Every roll is 1,000 ft long, in a 2", 3", 6" or 12" width. The price shown is per roll, and rolls are sold in full manufacturer cases.
Key Features:
- Locatable: 0.35 mil solid aluminum foil core laminated inside the tape, detectable by inductive locating equipment.
- Construction: 5 mil overall. Clear virgin polypropylene film, reverse printed, laminated to the foil core, so the ink is sealed inside and cannot wear off.
- Strength: 15,000 psi tensile strength. Elongation MD 139% | TD 80%.
- Temperature Range: -60°F to 250°F.
- APWA Standard Colors: Stocked in Blue, Green, Orange, Purple, Red and Yellow, with a diagonal-stripe print and bold black legend.
Which Tape Do I Need?
- Need to locate the line later? Use this 5 mil detectable tape. The foil core can be found with a locator.
- Warning only, no locating? Use our 4 mil non-detectable tape, 3" and 6" x 1,000 ft rolls. LINK
Customizable Options:
- Private Labeling & UPC Coding: Custom packaging, labeling and coding available.
- Custom Legends & Sizes: Choose from the stock legend library or request a custom legend.
- Stock Sizes: 2", 3", 6" and 12" wide rolls, 1,000 ft per roll. Custom widths and lengths available upon request.
Applications:
- Electric cables and high voltage lines
- Water, reclaimed water and force main lines
- Gas and oil lines
- Sewer lines
- Fiber optic and telecom lines
Part Numbers & Specifications:
Priced per roll (1,000 ft) and sold in full manufacturer cases. Quote by part number or UPSI SKU.
| Part Number | UPSI SKU | Size (W x L) | Case Qty | LB Per Roll | Color | Legend |
|---|---|---|---|---|---|---|
| D2105B52-457 | 30089322 | 2" x 1,000' | 9 | 4.6 | Blue | CAUTION BURIED WATERLINE BELOW |
| D2105G4-457 | 30089316 | 2" x 1,000' | 9 | 4.6 | Green | CAUTION BURIED SEWER LINE BELOW |
| D2105G1051-457 | 30089317 | 2" x 1,000' | 9 | 4.6 | Green | CAUTION BURIED FORCE MAIN LINE BELOW |
| D2105O1056-457 | 30089309 | 2" x 1,000' | 9 | 4.6 | Orange | CAUTION BURIED OIL LINE BELOW |
| D2105O51-457 | 30089310 | 2" x 1,000' | 9 | 4.6 | Orange | CAUTION BURIED FIBER OPTIC LINE BELOW |
| D2105PP115-457 | 30089313 | 2" x 1,000' | 9 | 4.6 | Purple | CAUTION BURIED RECLAIMED WATER LINE BELOW |
| D2105R6-457 | 30089305 | 2" x 1,000' | 9 | 4.6 | Red | CAUTION BURIED ELECTRIC LINE BELOW |
| D2105Y5-457 | 30089326 | 2" x 1,000' | 9 | 4.6 | Yellow | CAUTION BURIED GAS LINE BELOW |
| D3105B52-457 | 30089325 | 3" x 1,000' | 6 | 6.9 | Blue | CAUTION BURIED WATERLINE BELOW |
| D3105G4-457 | 30089321 | 3" x 1,000' | 6 | 6.9 | Green | CAUTION BURIED SEWER LINE BELOW |
| D3105O51-457 | 30089312 | 3" x 1,000' | 6 | 6.9 | Orange | CAUTION BURIED FIBER OPTIC LINE BELOW |
| D3105PP115-457 | 30089315 | 3" x 1,000' | 6 | 6.9 | Purple | CAUTION BURIED RECLAIMED WATER LINE BELOW |
| D3105R6-457 | 30089308 | 3" x 1,000' | 6 | 6.9 | Red | CAUTION BURIED ELECTRIC LINE BELOW |
| D3105R2598-457 | 30089307 | 3" x 1,000' | 6 | 6.9 | Red | CAUTION BURIED HIGH VOLTAGE CABLE BELOW |
| D3105Y5-457 | 30089328 | 3" x 1,000' | 6 | 6.9 | Yellow | CAUTION BURIED GAS LINE BELOW |
| D6105B52-457 | 30089324 | 6" x 1,000' | 3 | 13.8 | Blue | CAUTION BURIED WATERLINE BELOW |
| D6105G4-457 | 30089320 | 6" x 1,000' | 3 | 13.8 | Green | CAUTION BURIED SEWER LINE BELOW |
| D6105O51-457 | 30089311 | 6" x 1,000' | 3 | 13.8 | Orange | CAUTION BURIED FIBER OPTIC LINE BELOW |
| D6105PP115-457 | 30089314 | 6" x 1,000' | 3 | 13.8 | Purple | CAUTION BURIED RECLAIMED WATER LINE BELOW |
| D6105R6-457 | 30089306 | 6" x 1,000' | 3 | 13.8 | Red | CAUTION BURIED ELECTRIC LINE BELOW |
| D6105Y5-457 | 30089327 | 6" x 1,000' | 3 | 13.8 | Yellow | CAUTION BURIED GAS LINE BELOW |
| D12105B52-457 | 30089323 | 12" x 1,000' | 1 | 27.6 | Blue | CAUTION BURIED WATERLINE BELOW |
| D12105G1051-457 | 30089318 | 12" x 1,000' | 1 | 27.6 | Green | CAUTION BURIED FORCE MAIN LINE BELOW |
| D12105G4-457 | 30089319 | 12" x 1,000' | 1 | 27.6 | Green | CAUTION BURIED SEWER LINE BELOW |
Customization Options:
We can tailor detectable tape to your project with custom legends, widths, lengths, private labeling and packaging. Call us at (815) 337-8845 to discuss your specifications.
