6 Ton Pistol Grip Crimping Tool | Changeable Head System | REC-MK7NDSL | Makita Lxt Compatible
$3,062.25
Unit price
/
Select Option

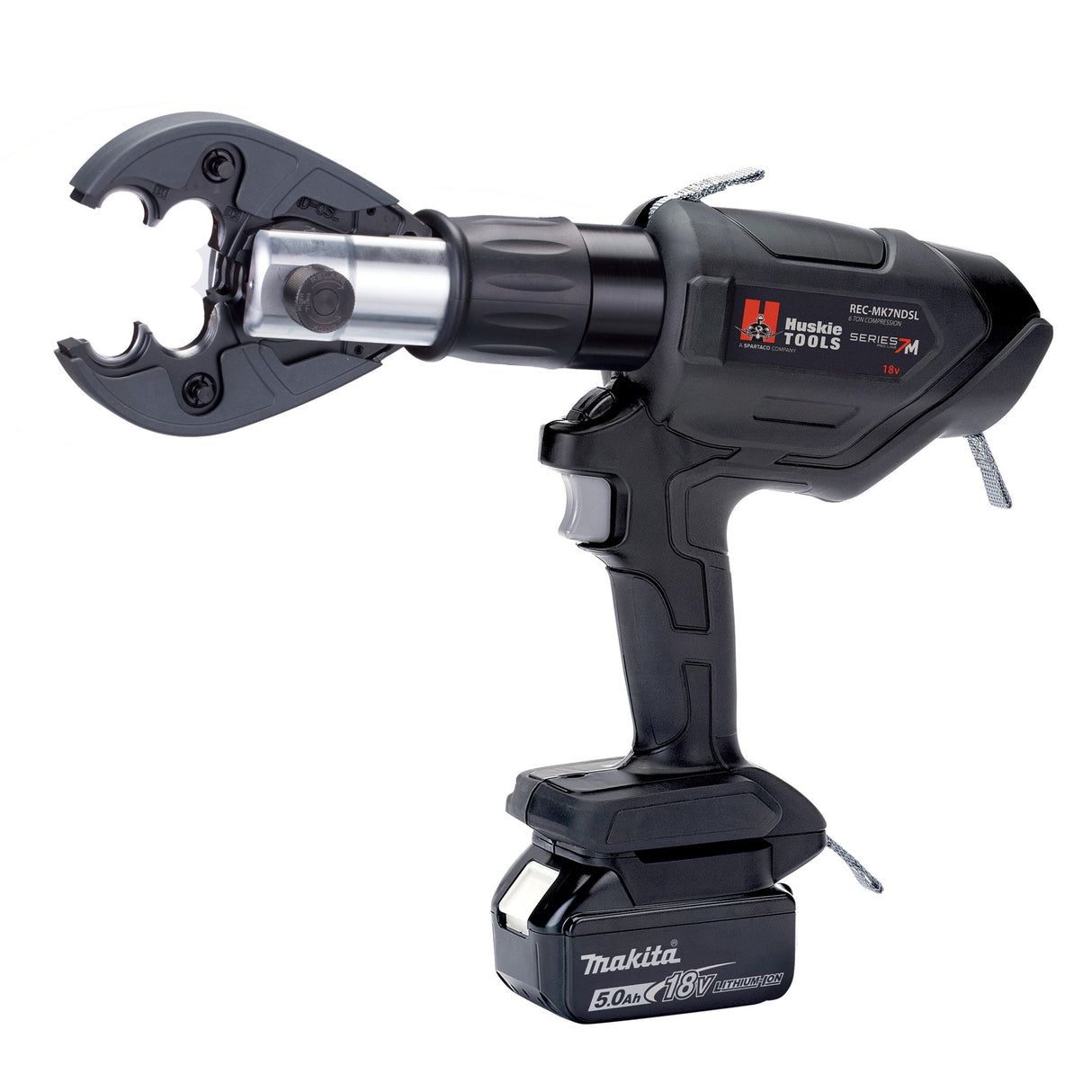

6 Ton Pistol Grip Crimping Tool | Changeable Head System | REC-MK7NDSL | Makita Lxt Compatible — Product Overview
Upgrade your crimping capability with the REC-MK7NDSL 6 Ton Pistol Grip Crimping Tool, designed for unmatched versatility, efficiency, and safety. This innovative tool operates on the Makita LXT 18V battery platform and supports a wide range of crimping applications with its changeable head system, making it a powerful solution for utility and electrical professionals alike.
Key Features:
- Changeable Head System: Quick pull-pin design allows for easy jaw swaps—supports up to 10 optional jaws.
- Advanced Hydraulics: 20% faster advance and 30% faster retraction speed improve cycle times and jobsite productivity.
- Selectable Auto-Retract: Patent-pending auto-retract switch gives operators full control over retraction with ON/OFF functionality.
- Wide Die Compatibility: Accepts “W”, “X”, and “Y” type dies for enhanced flexibility.
- 180° Rotating Head: Allows for improved positioning in tight workspaces and confined areas.
- Built-in LED Work Light: Illuminates the work area to improve visibility in low-light environments.
- High Voltage Tested: Safe for live-line work, tested to withstand 75kV without internal damage.
- Safety First: Forged jaws and brush guards help reduce the risk of contact with energized components.
- Cycle Feedback: Audible tone signals successful completion of each cycle for user confidence.
- Lightweight & Ergonomic: Designed for one-handed use, reducing fatigue on long jobs.
Specifications:
- Crimp Force: 6 Ton
- Weight: 9 lbs (4.08 kg)
- Dimensions (H x L x W): 13.7” x 10.6” x 3.3” (349 x 269 x 85 mm)
Application Range:
- Copper Lugs & Splices: #8 AWG – 500 MCM
- Aluminum Lugs & Splices: #8 AWG – 350 MCM
- H-Taps: Up to 4/0 – 4/0
- ACSR: Up to 4/0
- Standard Guy Wire: Up to 3/8”
- Soft Locks & Bolts: Up to 3/8”
Jaw Options:

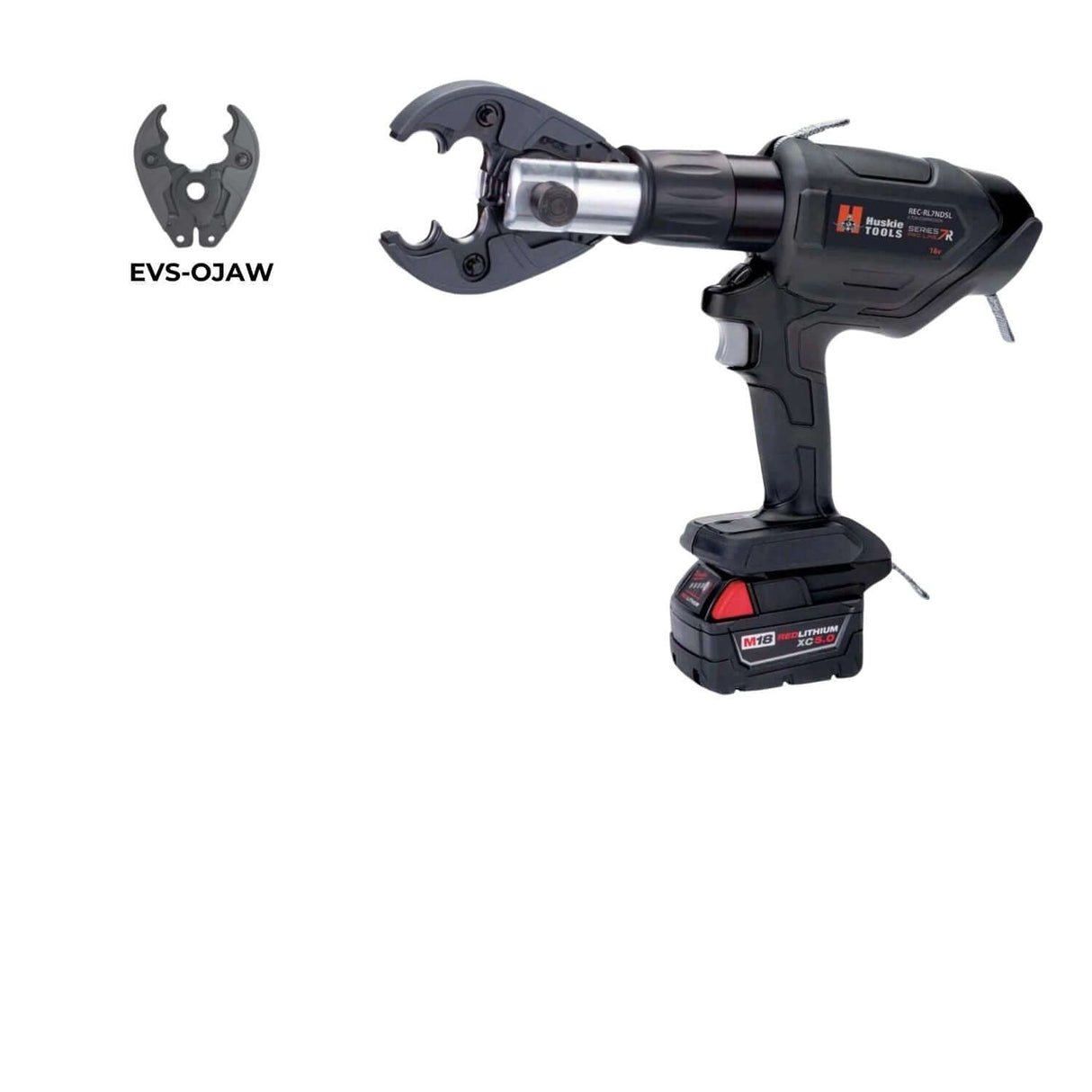

- EVS-O Jaw: For lugs, splices & H-taps
- EVS-BG Jaw: For larger conductor ranges
- EVS-K Jaw: Kearney-style die set
- ND Jaw: Narrow jaw for compact access
Cutting Jaw Capabilities (Optional):
| Material | EVS-ACSRJAW | EVS-CUALJAW | EVS-GWJAW |
|---|---|---|---|
| Copper | Up to 350 MCM | Up to 750 MCM | Up to 4/0 |
| Aluminum | Up to 350 MCM | Up to 1" OD | Up to 4/0 |
| ACSR | Up to 556 MCM | Do Not Cut | Up to 4/0 |
| EHS Guy Wire | Up to 3/8" | Do Not Cut | Up to 1/2" |
| Soft Locks | Do Not Cut | Do Not Cut | Do Not Cut |
| Soft Steel Bolts | Up to 3/8" | Do Not Cut | Up to 1/2" |
