60 Ton Single-Acting Hydraulic Press | EP-60SA Series

60 Ton Single-Acting Hydraulic Press | EP-60SA Series — Product Overview

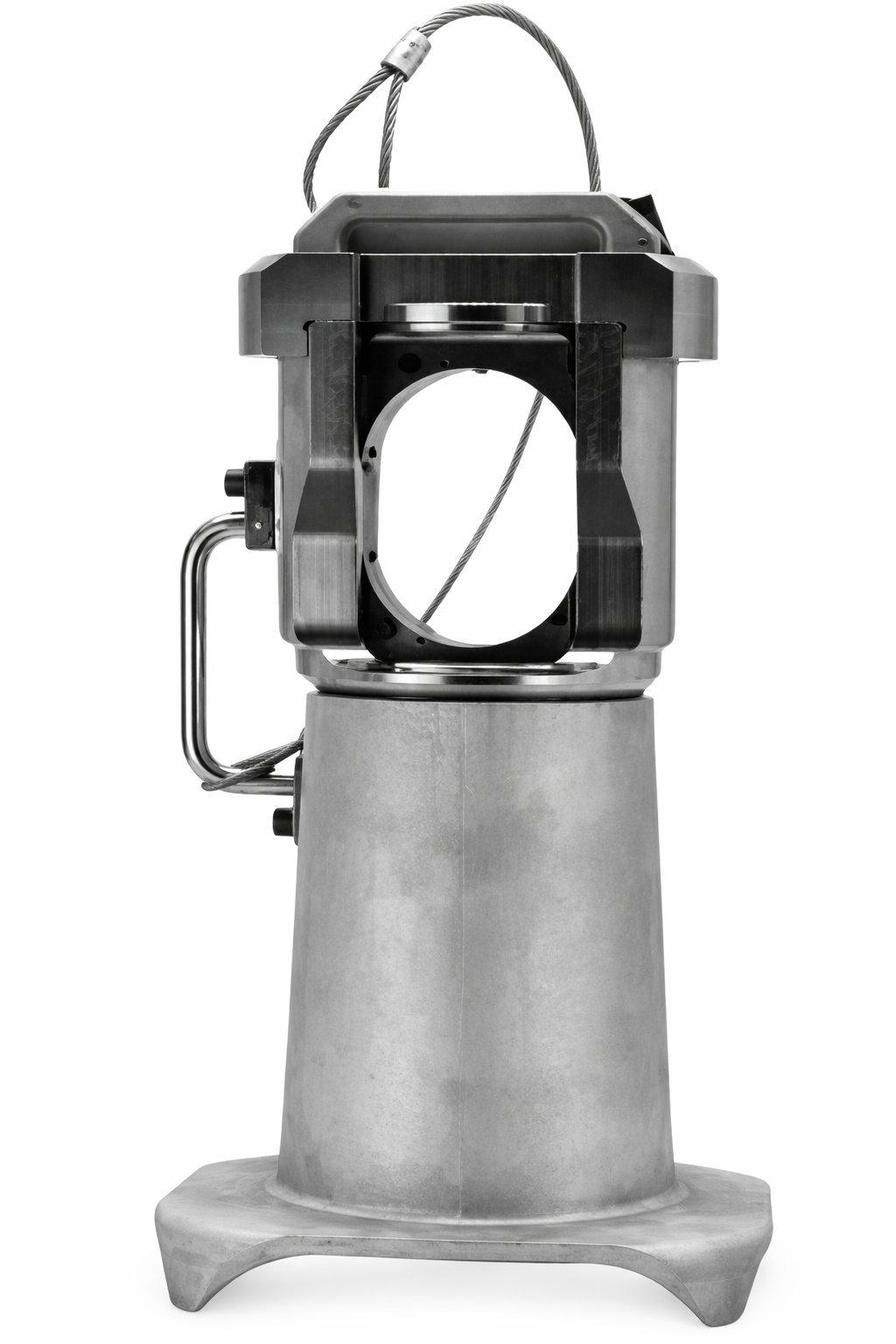

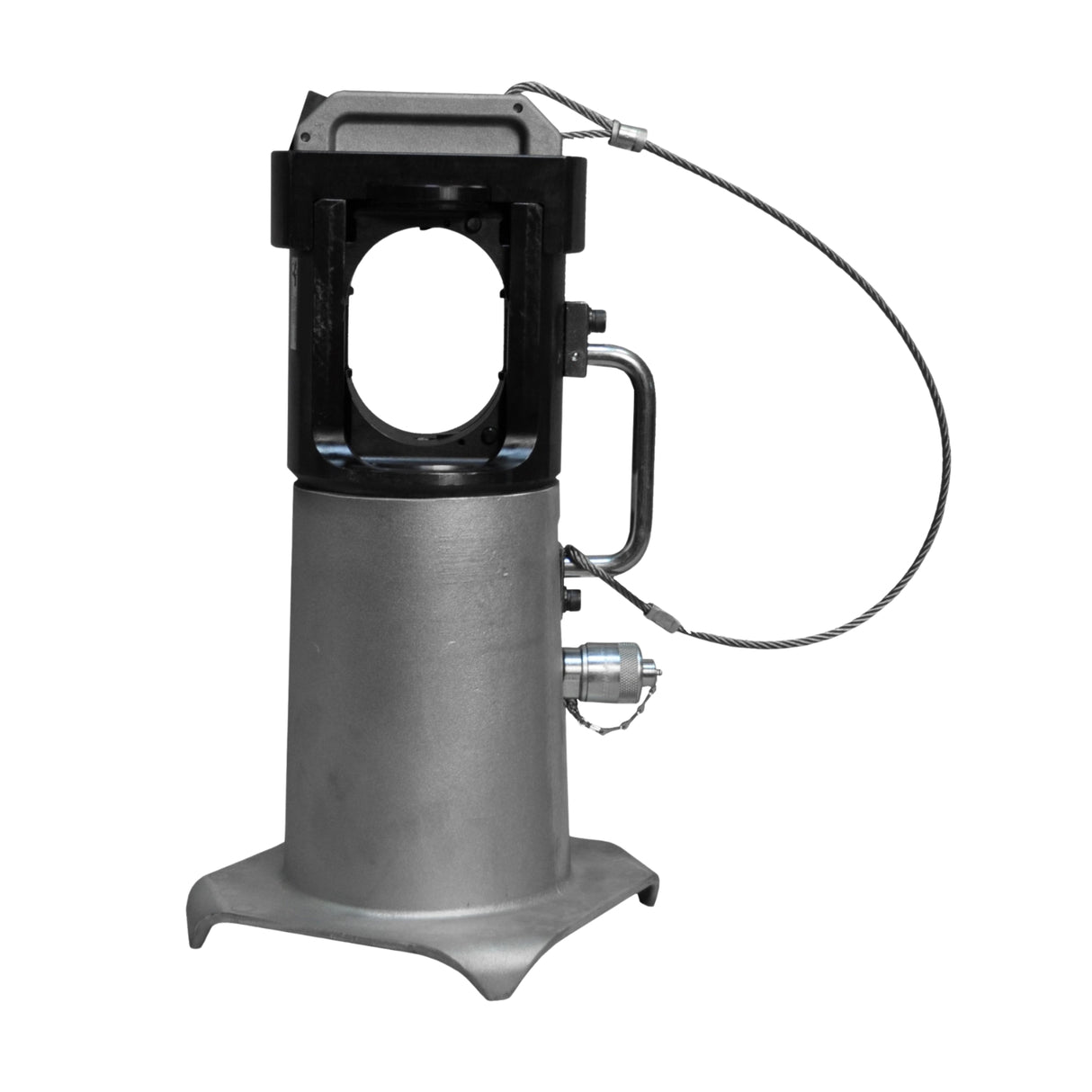

The Huskie EP-60SA Series is a rugged, single-acting 60 ton remote hydraulic compression head press designed to compress sleeves and lugs on ACSR and ACAR transmission and distribution cable. Built for demanding utility and substation work, this press is engineered for consistent high-force compression while remaining field-ready and easy to maneuver.

The EP-60SA Series is operable from any 10,000 psi pumping source with proper oil capacity and accepts widely used shell-type dies for 60-ton presses. A removable die cap helps speed cable insertion, while the removable base and lift ring support efficient setup for ground or aerial applications.

Key Features

• 60 Ton Single-Acting Output: Built for high-force compression on heavy-duty transmission and distribution conductors.
• 10,000 psi Compatible: Operates from standard high-pressure hydraulic pumping sources (with proper oil capacity).
• Shell-Type Die Compatible: Accepts common shell-type die systems used for 60-ton presses.
• Removable Die Cap: Supports faster cable insertion and smoother field workflow.
• Removable Base: Helps with stability and setup flexibility on the jobsite.
• Lift Ring: Useful for maneuvering and aerial applications.

Coupler Options (Select a Variant)

• EP-60SA – Screw-Type Coupler
• EP-60SAF – Female Coupler
• EP-60SASC – Snap Coupler

Specifications

Order Guide

Notes

• Always use 10,000 psi-rated non-conductive hose when operating high-pressure hydraulic tools.
• Choose the correct Coupler Type variant to match your hydraulic hose/pump setup.
• Single units may ship parcel. Multiple units or bundled orders may ship freight.
