Union Ball Valve | 8060P Series | Press x FNPT | Full Port
Union Ball Valve with Hose Drain | 8060P Series | Press × FNPT | Full Port | DZR Lead-Free Brass

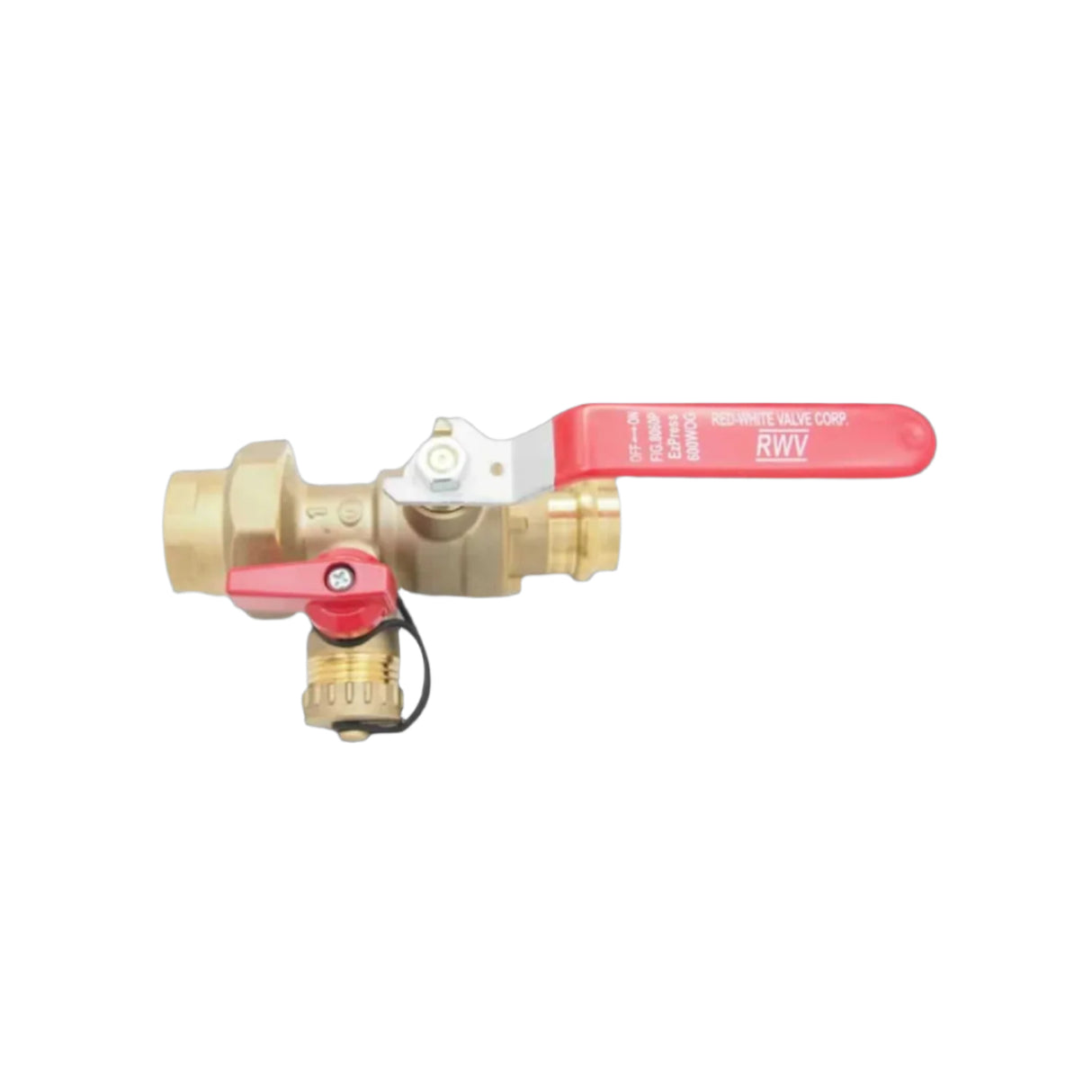

The Red-White Valve 8060P Series Union Ball Valve with Hose Drain provides dependable shutoff, serviceability, and lead-free performance for potable water, hydronic, and general plumbing systems. Manufactured from DZR (dezincification-resistant) lead-free brass and rated to 250 PSI WOG, this valve is designed for reliable operation in residential and commercial applications.
The 8060P Series features a Press × FNPT union connection, combining fast, flame-free press installation on one end with a traditional threaded connection on the other. An integrated high-flow hose drain with cap and chain supports system purging, flushing, and winterization.
Key Features & Benefits
- 250 PSI WOG Rating — Suitable for potable water, hydronic, and general plumbing systems.
- Full-Port Design — Allows unrestricted flow with minimal pressure drop.
- Union Body — Simplifies installation and future service without cutting pipe.
- Integrated Hose Drain — High-flow drain with cap and chain for routine maintenance.
- DZR Lead-Free Brass Construction — Engineered for corrosion resistance and long service life.
- Press × FNPT Connection — Supports fast, flame-free installation with threaded system compatibility.
- Virgin PTFE Seats & EPDM O-Rings — Provide reliable sealing and durability.
- Chrome-Plated Brass Ball — Ensures smooth operation and consistent shutoff.
- Blow-Out Proof Stem — Enhances safety under pressure.
Technical Specifications
- Series: 8060P
- Valve Type: Union Ball Valve with Hose Drain
- Body Material: DZR Lead-Free Brass (ASTM B927 C27453)
- Ball: Chrome-Plated Lead-Free Brass
- Seats: Virgin PTFE
- O-Rings: EPDM Perox 70 SH (NSF Approved)
- Pressure Rating: 250 PSI WOG
-
Temperature Range: 15°F to 260°F (–9°C to 127°C)
- Below 32°F – use antifreeze additives
- Above 212°F – use anti-boil additives
- Certifications: AB 1953, NSF/ANSI/CAN 61 & 372
Dimensions & Weight
| Part # | φA [in] | B [in] | φT [in] | D [in] | φE [in] | F [in] | G [in] | H [in] | I [in] | L [in] | M [in] | N [in] | φP [in] | Wt. [lb] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8060P 075P075P | 0.89 | 0.98 | 3/4–14 NPT | 0.73 | 0.50 | 2.35 | 3/4–11.5 NH | 2.20 | 3.98 | 3.60 | 4.78 | 6.46 | 0.73 | 1.44 |
| 8060P 100P100P | 1.14 | 1.06 | 1–11.5 NPT | 0.75 | 0.50 | 2.54 | 3/4–11.5 NH | 2.57 | 4.28 | 4.98 | 5.27 | 8.15 | 0.98 | 2.02 |
| 8060P 125P125P | 1.39 | 1.06 | 1-1/4–11.5 NPT | 0.77 | 0.73 | 3.02 | 3/4–11.5 NH | 2.74 | 4.80 | 4.98 | 5.79 | 8.57 | 1.23 | 2.80 |
Material Specifications
| Component | Material | Specification |
|---|---|---|
| Body, Union & Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| Ball | Lead-Free Brass, Chrome Plated | ASTM B927 C27450 |
| Seats | Virgin PTFE | — |
| O-Rings | EPDM Perox 70 SH | NSF Approved |
| Handle | Steel (Dacromet®) or Aluminum | ASTM A36 / ASTM B85 |
⚠ California Prop 65 Warning:
This product may expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
