Jameson Aerial Buddy Fiber Optic Sheave | SHV Series | 1,600 lb
Aerial Fiber Optic Sheave | SHV Series

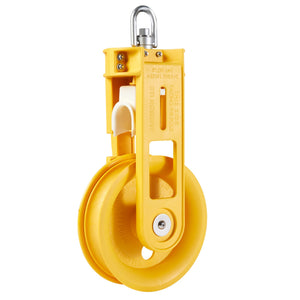

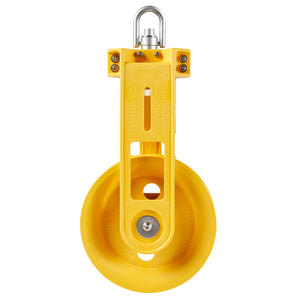

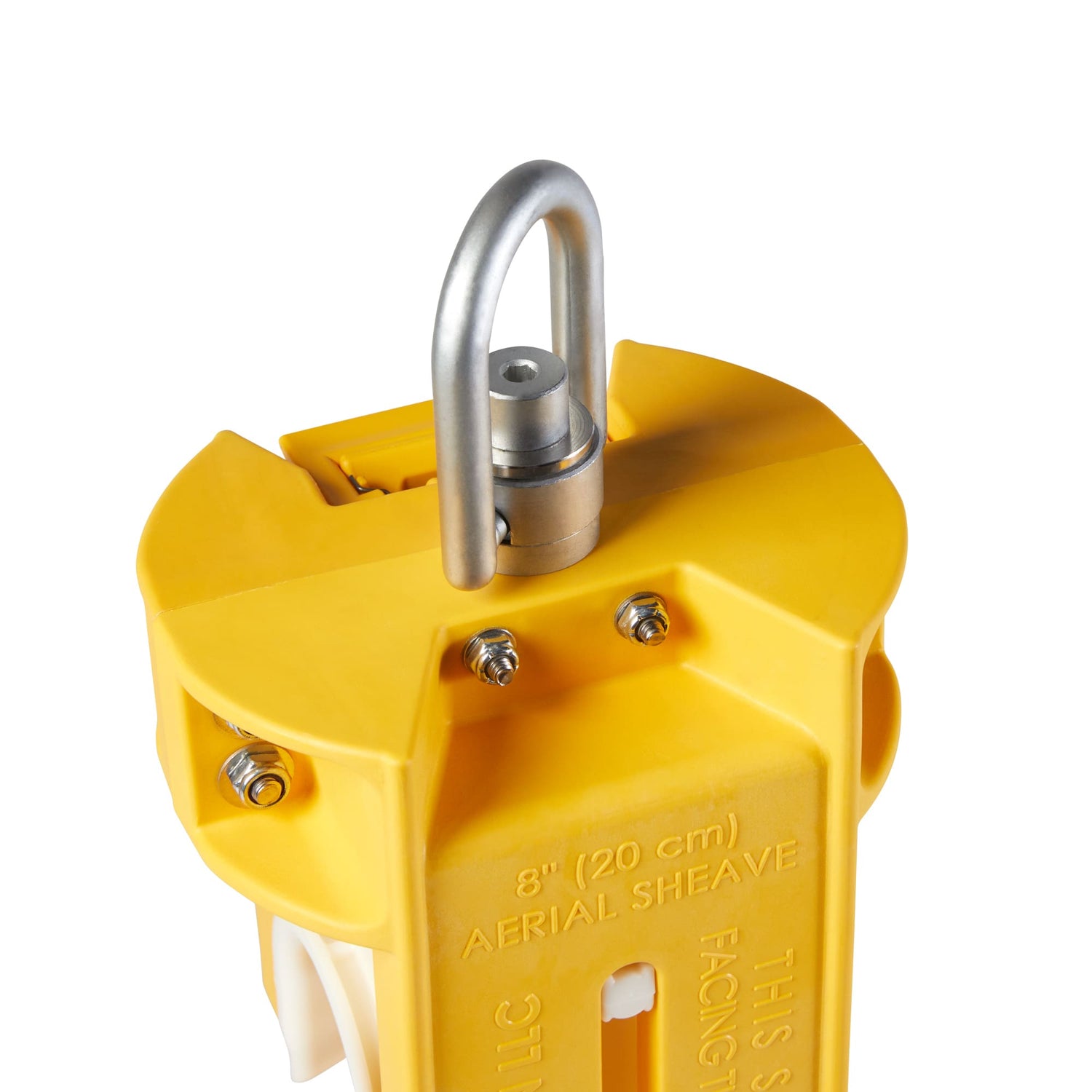

The Jameson SHV Series Aerial Buddy Fiber Optic Sheave is designed to protect ADSS and other jacketed fiber optic cable during aerial placement, setup, and directional turns. Available in 8" and 24" sizes, these sheaves feature a self-leveling design and spring-loaded cable capture to reduce derails while maintaining smooth, controlled cable feeding during installation. Offered as sheave only or with slip hook for added mounting flexibility.
- Self-leveling sheave design. Built for aerial setup, takedown and directional cable routing.
- 1,600 lb rated load. Supports controlled pulls for ADSS and jacketed fiber installations.
- Spring-loaded cable capture. Keeps cable and pull tape on the sheave to reduce derail risk.
- Dielectric polymer body. Components rated to 100 kV/ft dielectric strength.
- Slip hook option available. Adds mounting and aerial positioning flexibility.
Specifications
| Specification | 8" Sheave | 24" Sheave |
|---|---|---|
| Model Series | SHV-8 | SHV-24 |
| Sheave Size | 8" | 24" |
| Maximum Load (Rated) | 1,600 lb | 1,600 lb |
| Cable Compatibility | Jacketed cable up to 2" diameter (ADSS compatible) | Jacketed cable up to 2" diameter (ADSS compatible) |
| Cable Capture | Spring-loaded retracting cable guard | Spring-loaded retracting cable guard |
| Mounting / Maneuverability | Hoist ring swivels 360°; rotates 180° | Hoist ring swivels 360°; rotates 180° |
| Dielectric Strength | 100 kV/ft (polymer components) | 100 kV/ft (polymer components) |
| Construction | Reinforced polymer body; stainless steel fasteners | Reinforced polymer body; stainless steel fasteners |
| Axle | Anodized aluminum | Anodized aluminum |
| Weight | 8 lb | 14 lb |
| Overall Dimensions (Approx.) | 20.6" H x 9.7" W x 7.6" D | 33.7" H x 25.9" W x 5.6" D |
Available Configurations

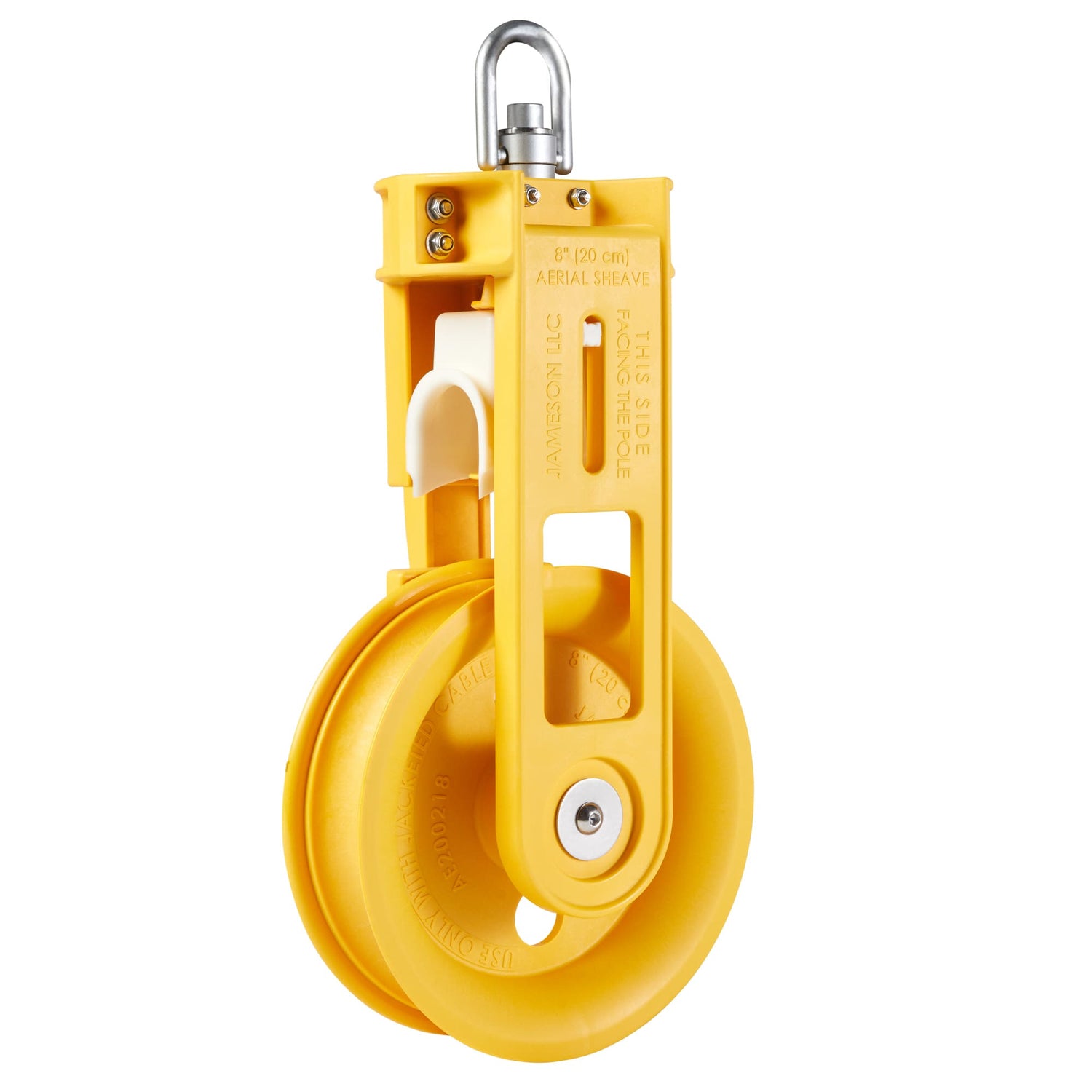

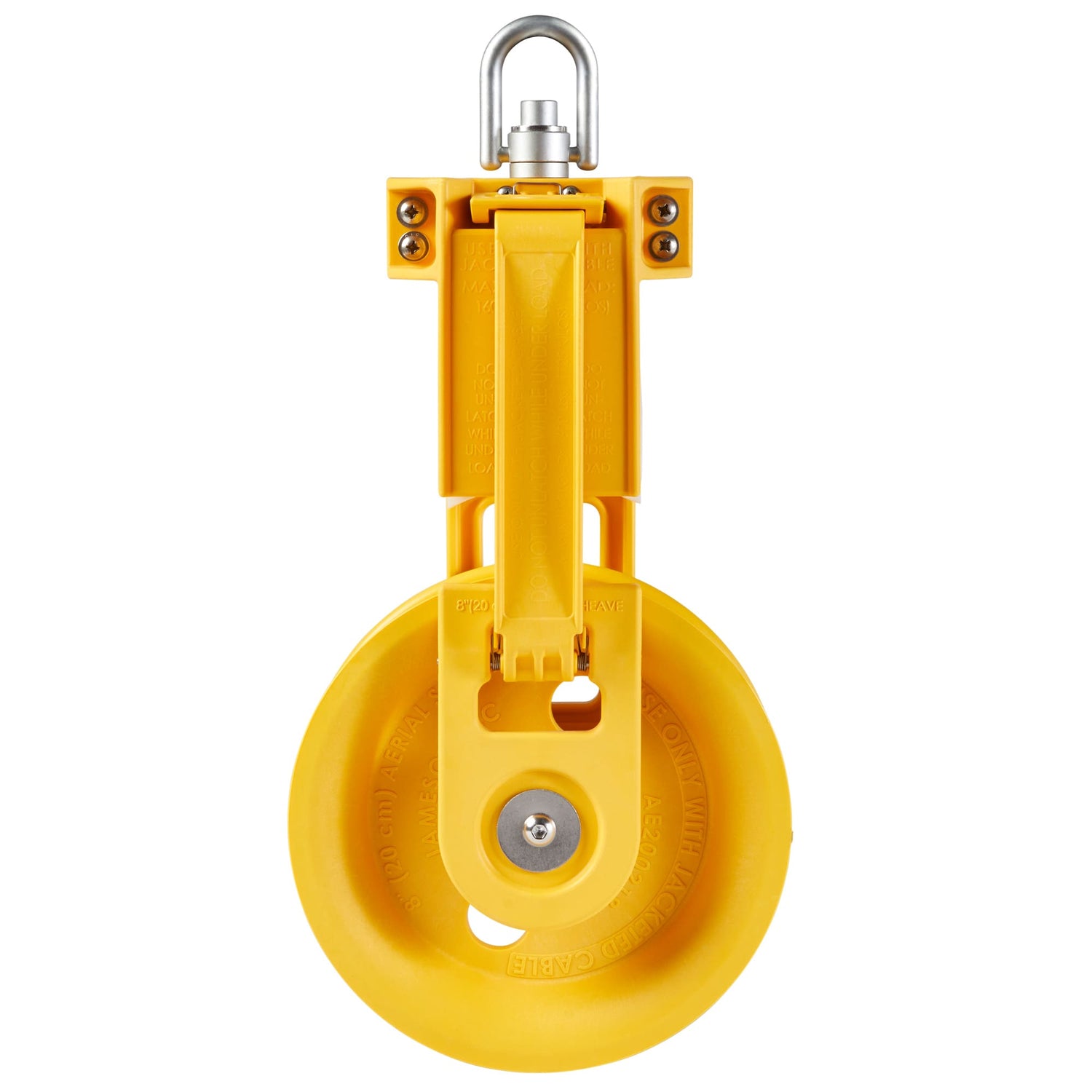

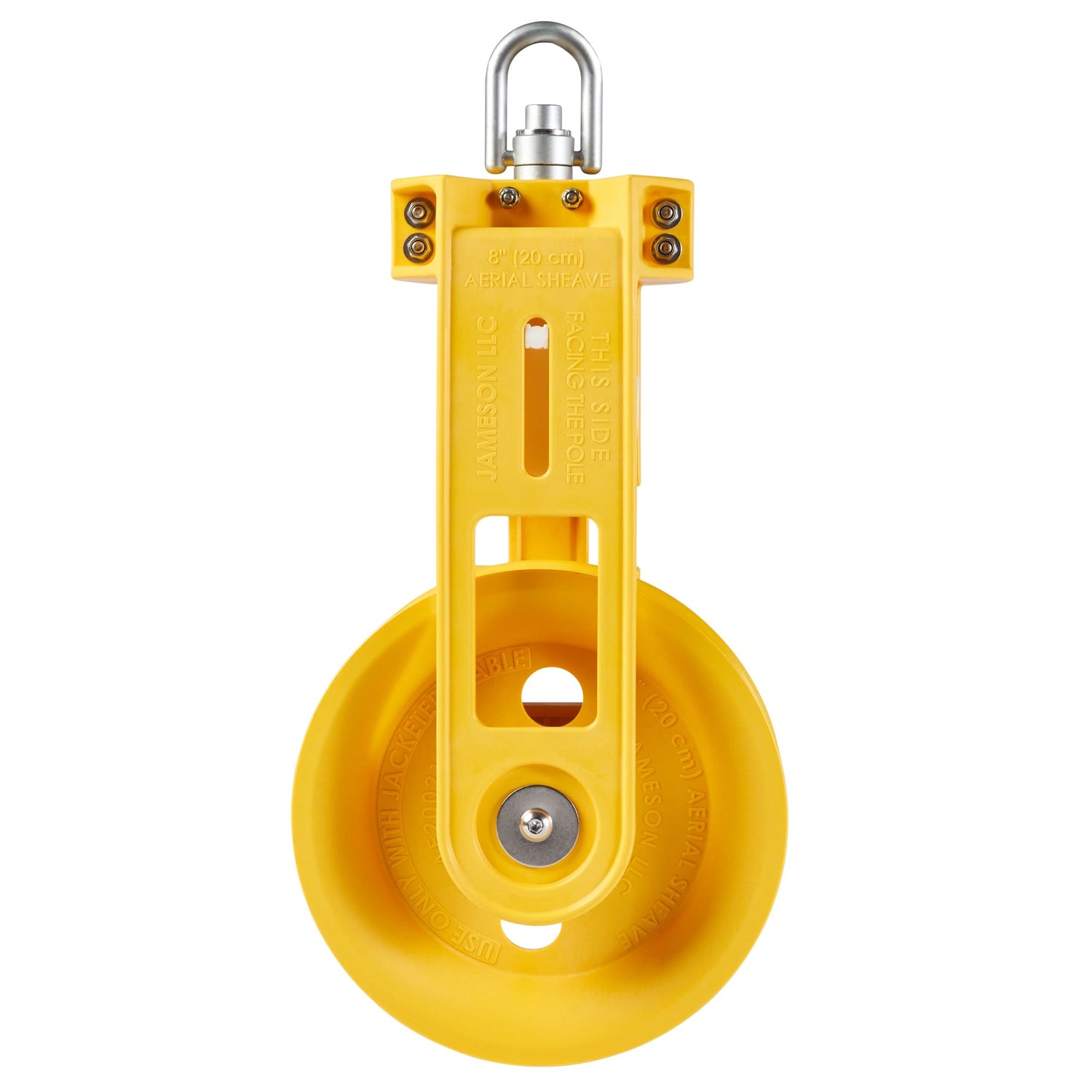

- 8" Std – 8" Aerial Buddy Fiber Optic Sheave

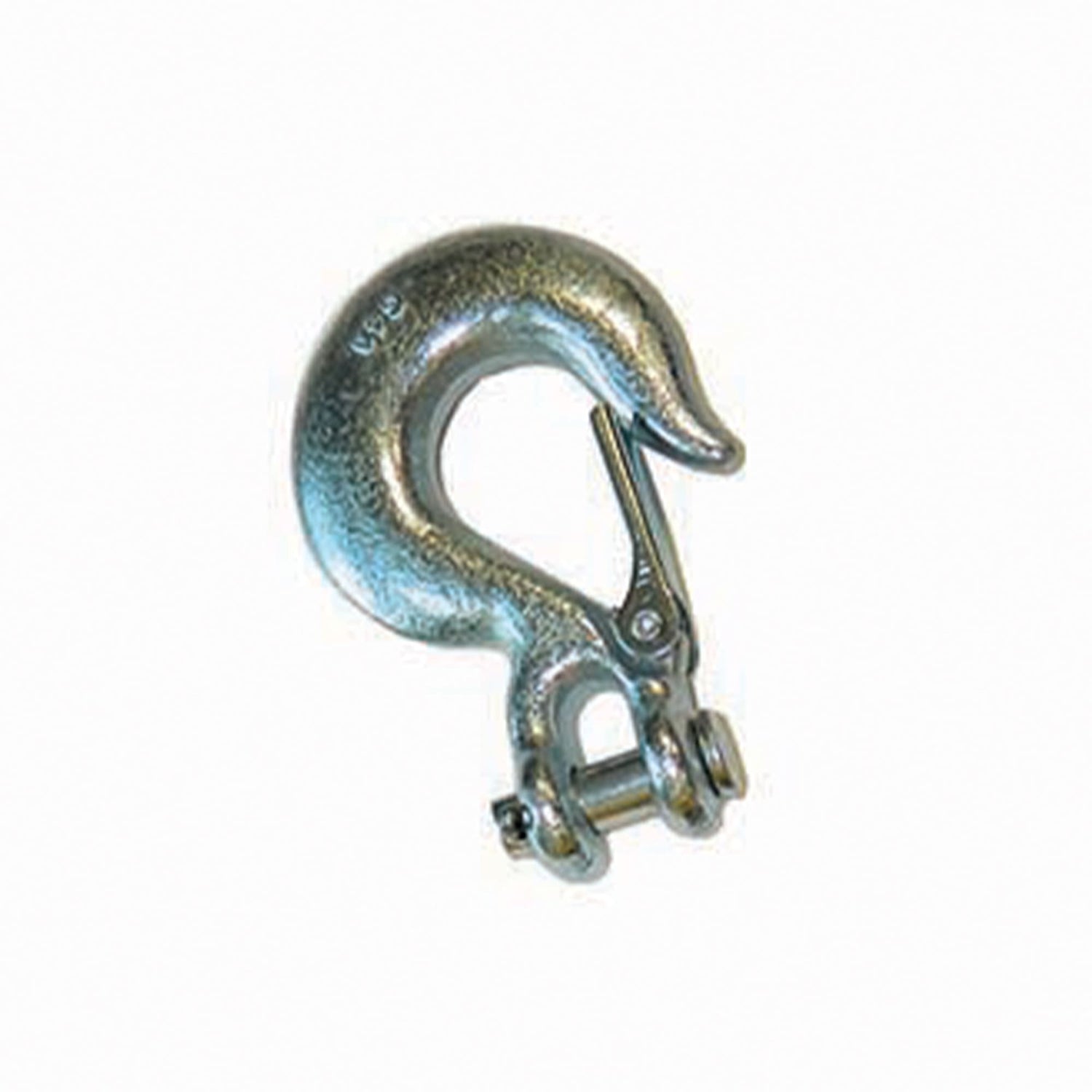

- 8" w/ Hook – 8" Aerial Buddy Fiber Optic Sheave with slip hook

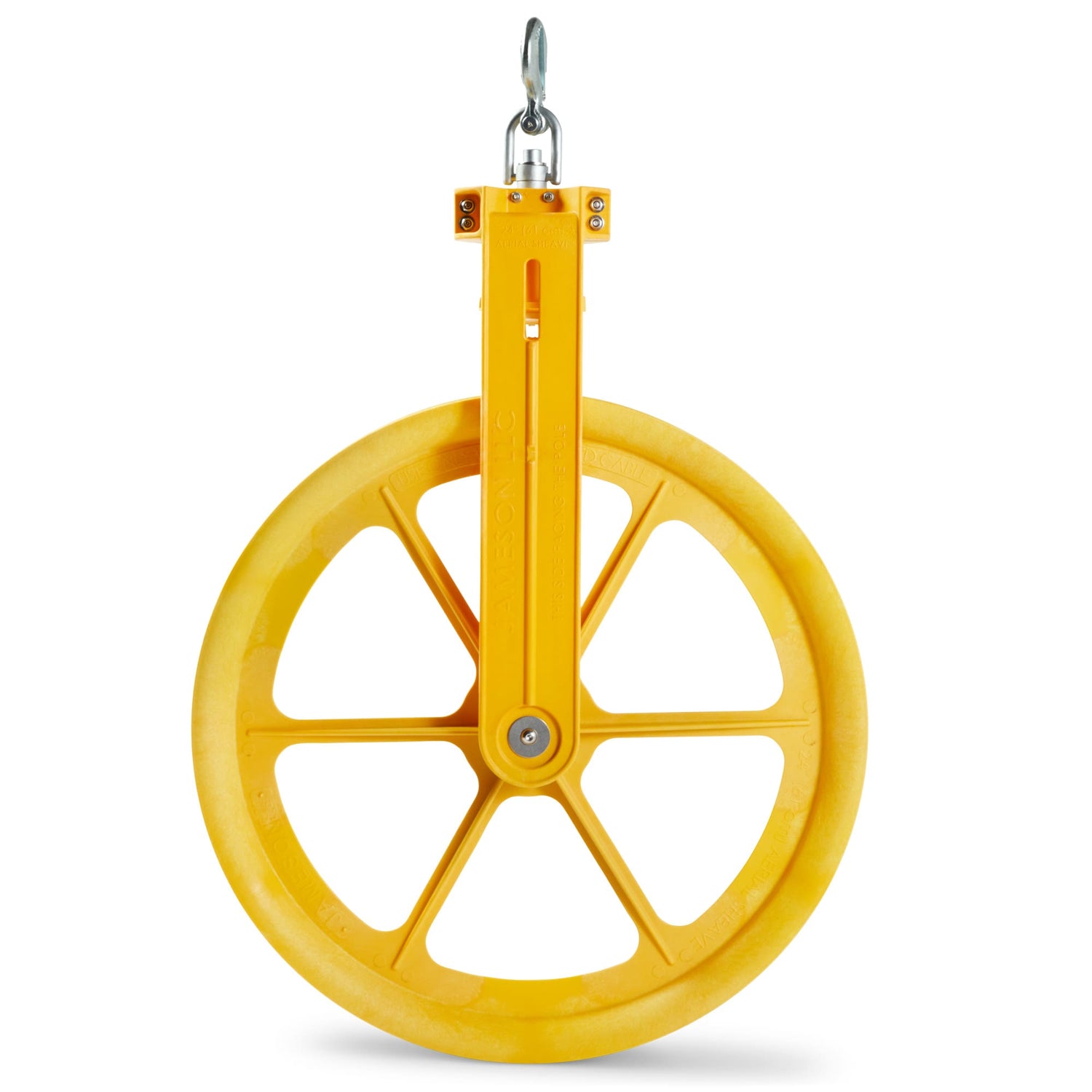

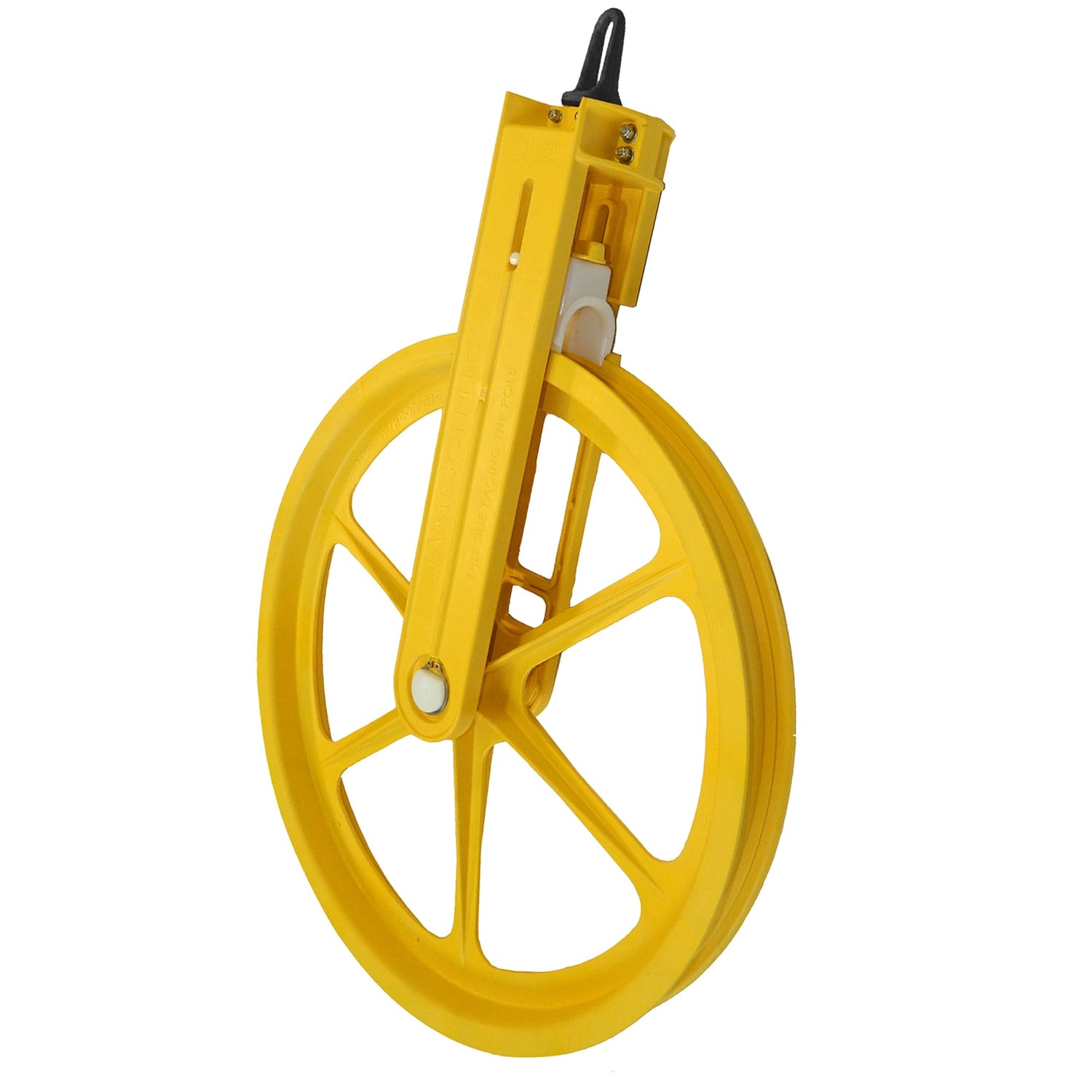

- 24" Std – 24" Aerial Buddy Fiber Optic Sheave
- 24" w/ Hook – 24" Aerial Buddy Fiber Optic Sheave with slip hook
Applications
Used for aerial fiber optic cable placement, setup and directional routing where controlled cable handling and derail prevention are critical for safe and efficient installation.
Safety Note
Do not exceed the 1,600 lb rated load. Use only with jacketed cable up to 2" diameter and inspect lifting hardware and cable capture components before each use.
