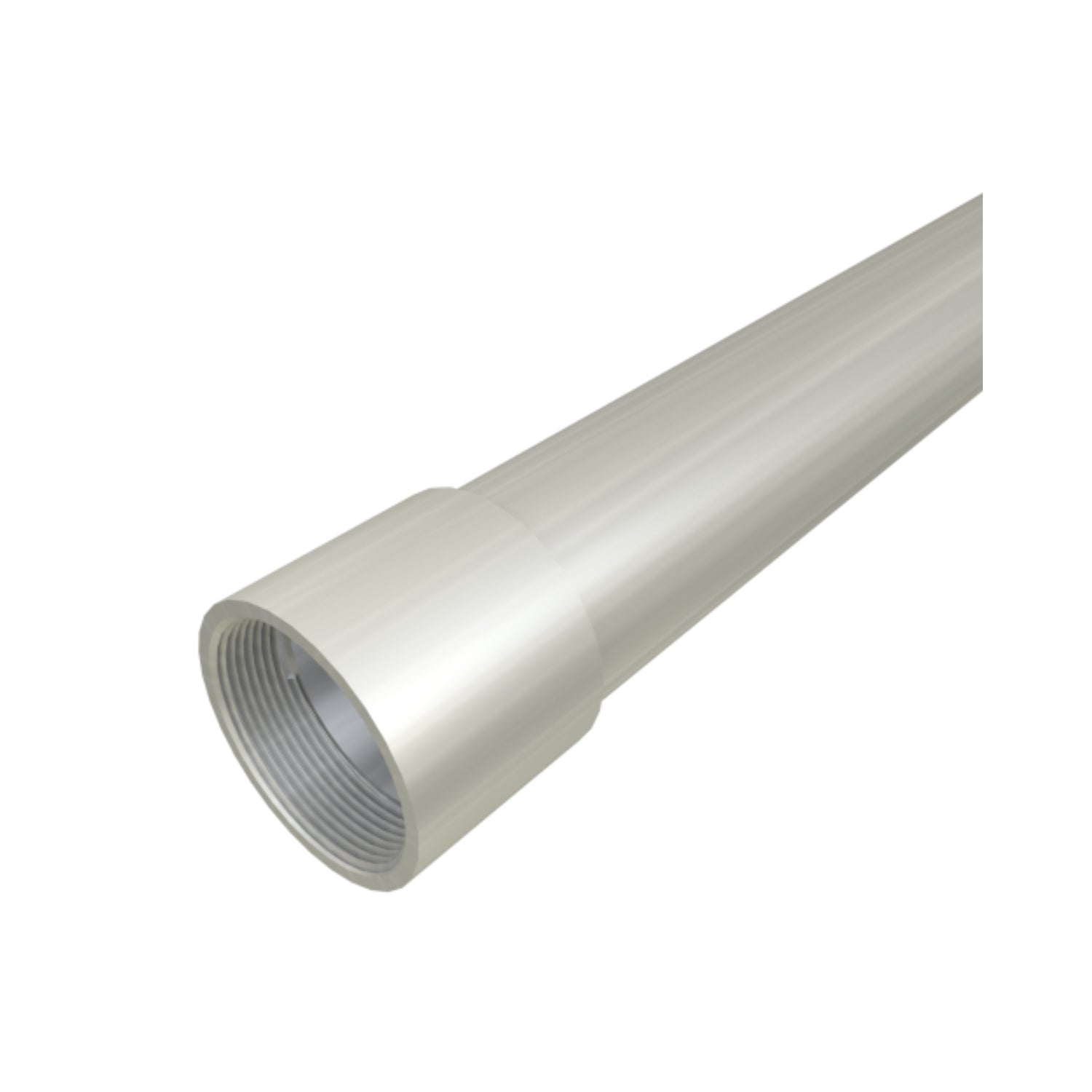

Aluminum Rigid Conduit (ARC) is designed to protect electrical wiring in demanding, highly corrosive environments. Made from high-purity 6063 aluminum alloy (T-1 temper), this lightweight yet durable conduit is ideal for industrial, commercial, and utility applications. It offers superior corrosion resistance and is approximately one-third the weight of steel, making installation faster and easier without the need for special tools.
ARC is UL listed and manufactured in accordance with ANSI C80.5 standards, ensuring top-tier safety and performance. With a full range of sizes available—from 1/2 inch up to 6 inches—this conduit is the perfect solution for environments requiring a balance of strength, corrosion resistance, and low maintenance.
Key Features:
- Manufactured from high-purity 6063 aluminum alloy, T-1 temper
- Lightweight – approximately one-third the weight of steel
- Corrosion-resistant – ideal for industrial and marine environments
- Easy to cut, bend, and thread – no special tools required
- Low maintenance – won’t leave streaks or discoloration
- Listed to UL Safety Standard 6A
- Compliant with ANSI C80.5
- Supplied with color-coded thread protectors for easy identification
- Available in sizes 1/2" to 6"
- Compatible with a full line of elbows, nipples, and couplings
Applications:
- Industrial facilities
- Wastewater treatment plants
- Petrochemical environments
- Marine and coastal installations
- Utility systems and infrastructure
Standards & Certifications:
- UL Listed (UL 6A)
- ANSI C80.5 Compliant
- Replaces Federal Specification WWC-540C
Available Brands:
- Allied Tube & Conduit
- Calconduit
Documentation:
SPECIFICATIONS
| Catalog Number | Trade Size | Outside Diameter (in) | Length (ft) | Wall Thickness (in) | Part Weight (lb/ft) | Standard Package Qty (ft) | Standard Package Weight (lb) |
|---|---|---|---|---|---|---|---|
| 732035 | 1/2 | 0.840 | 10 | 0.104 | 0.28 | 250 | 70 |
| 732036 | 3/4 | 1.050 | 10 | 0.107 | 0.37 | 250 | 94 |
| 732302 | 1 | 1.315 | 10 | 0.126 | 0.55 | 200 | 109 |
| 732303 | 1-1/4 | 1.660 | 10 | 0.133 | 0.72 | 100 | 72 |
| 732304 | 1-1/2 | 1.900 | 10 | 0.138 | 0.89 | 100 | 89 |
| 732305 | 2 | 2.375 | 10 | 0.146 | 1.19 | 45 | 53 |
| 732306 | 2-1/2 | 2.875 | 10 | 0.193 | 1.88 | 30 | 56 |
| 732307 | 3 | 3.500 | 10 | 0.205 | 2.46 | 20 | 49 |
| 732308 | 3-1/2 | 4.000 | 10 | 0.215 | 2.96 | 20 | 59 |
| 732309 | 4 | 4.500 | 10 | 0.225 | 3.50 | 20 | 70 |
| 732310 | 5 | 5.563 | 10 | 0.245 | 4.79 | 8 | 38 |
| 732311 | 6 | 6.625 | 10 | 0.266 | 6.35 | 6 | 38 |
