Full Port Brass Ball Valve | 5023 Series | Press x Press | DZR Brass | 600 WOG
Full Port Brass Ball Valve | 5023 Series | Press x Press | DZR Brass | 600 WOG

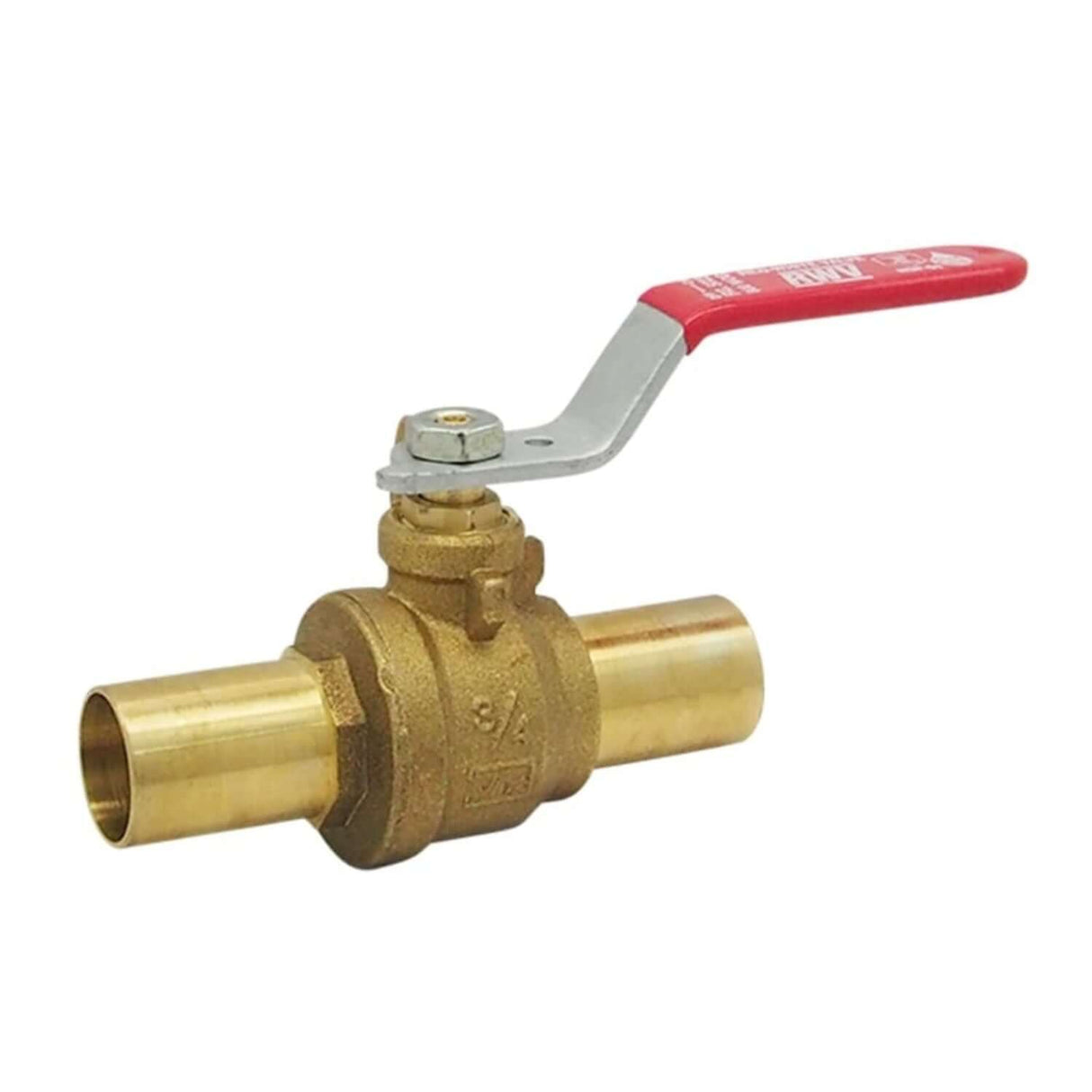

The 5023 Series Full Port EzPress Ball Valve delivers the perfect combination of strength, safety, and speed for professional plumbing and mechanical applications. Manufactured from dezincification-resistant (DZR) brass, it’s built to withstand corrosion, ensuring reliable long-term service even in aggressive water conditions. The press x press ends make installation fast and flame-free — no soldering or threading required.
Engineered for precision and performance, the 5023 valve is rated for 600 PSI WOG and 300°F, providing dependable shut-off and flow control for potable water, hydronic, and commercial piping systems. The PTFE seats and packing ring minimize wear and ensure smooth, leak-free operation over years of service.
Key Features
- Full Port Flow: Unrestricted flow path with minimal pressure drop and Cv values up to 360.
- DZR Brass Body: Made from UNS C35330 for exceptional dezincification and corrosion resistance.
- Press x Press Ends: Dual EzPress connections for quick, solder-free installation and a clean finish.
- High Pressure Rating: 600 PSI WOG at 200°F | Max Temperature: 300°F.
- PTFE Seats & Packing Ring: Resistant to chemicals, wear, and thermal expansion.
- Chrome-Plated Brass Ball: Provides smooth turning action and long service life.
- Blow-Out Proof Stem: Enhances safety during pressurized use.
- Adjustable Packing Nut: Allows easy maintenance and long-term seal integrity.
- Complies with MSS-SP-110 and BAA Requirements.
Applications
- Potable water systems
- Hydronic heating and cooling circuits
- Commercial and residential plumbing
- Industrial piping and mechanical systems
- Corrosion-prone or dezincification-sensitive environments
Dimensions & Weights (inches-lbs.)
| Size | Φ (in) | A (in) | C (in) | H (in) | L (in) | P (in) | Cv | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 1/2″ | 0.622–0.626 | 3.21 | 0.98 | 2.13 | 3.60 | 0.59 | 15 | 0.44 |
| 3/4″ | 0.872–0.876 | 3.80 | 1.10 | 2.24 | 3.60 | 0.79 | 30 | 0.62 |
| 1″ | 1.122–1.127 | 4.02 | 1.10 | 2.56 | 5.00 | 0.98 | 60 | 0.98 |
| 1-1/4″ | 1.372–1.377 | 4.84 | 1.30 | 2.78 | 5.00 | 1.26 | 110 | 1.50 |
| 1-1/2″ | 1.621–1.627 | 6.18 | 1.73 | 3.27 | 5.59 | 1.58 | 130 | 2.30 |
| 2″ | 2.121–2.127 | 7.05 | 1.93 | 3.56 | 5.59 | 1.97 | 360 | 3.42 |
Pressure / Temperature Ratings
| Pressure / Temperature Rating | |
|---|---|
| 600 PSI WOG at 200°F | 300°F Max Temperature |
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | DZR Brass | UNS C35330 |
| 2 | End Piece | DZR Brass | UNS C35330 |
| 3 | Ball | Brass / Chrome-Plated | ASTM B283 C37700 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Brass | ASTM B124 C37700 |
| 6 | Packing Ring | PTFE | PTFE |
| 7 | Packing Nut | Brass | ASTM B124 C37700 |
| 8 | Handle | Steel / Geomet Plated | ASTM A36 |
| 9 | Nut | Steel / Zinc Plated | ASTM A36 |
⚠ California Proposition 65 Warning:
This product contains chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
