RED-WHITE VALVE CORP.  |  SKU: 30077908  |  MPN: 5155F 3/8

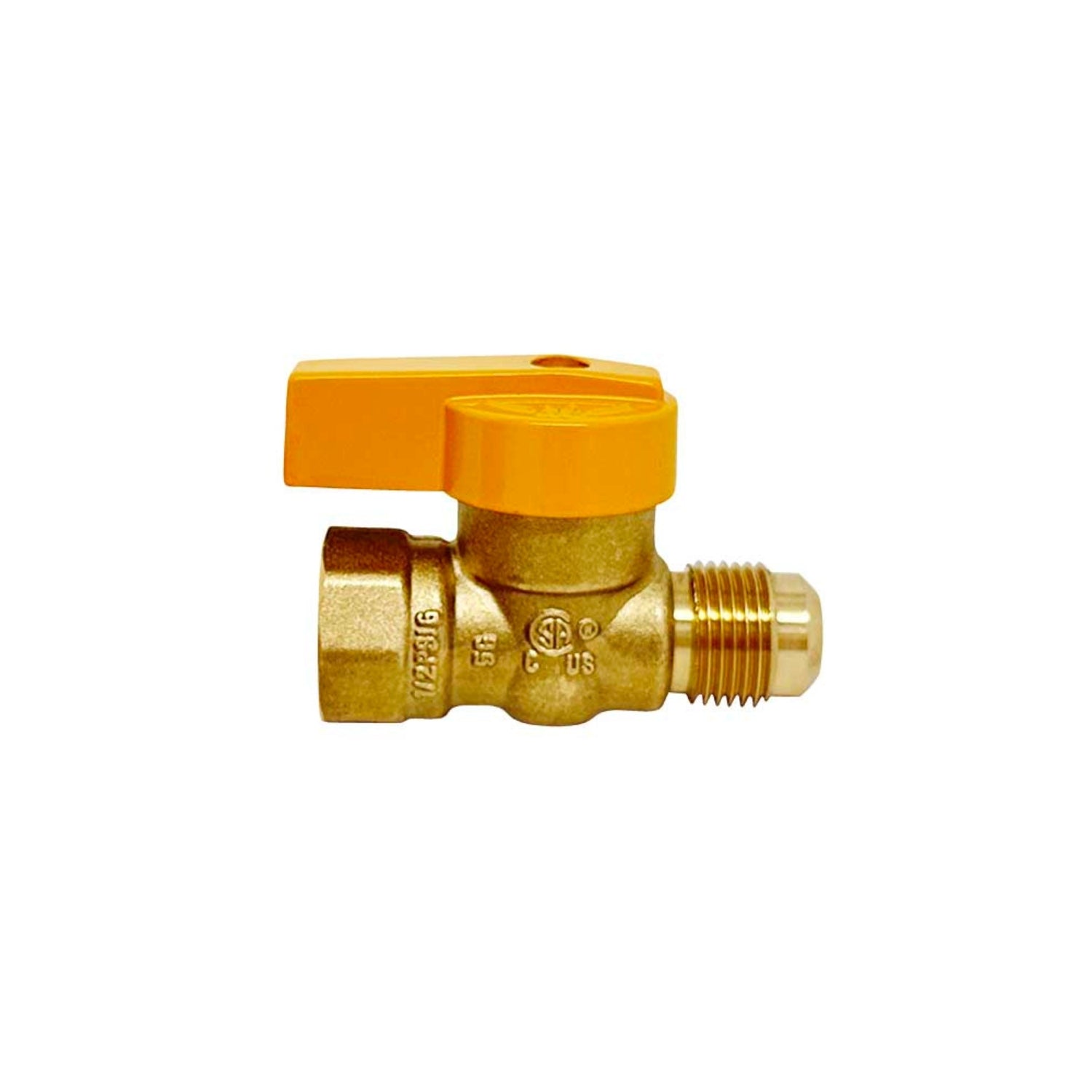

CSA Gas Ball Valve | 5155F Series | FNPT x Flared | 125 PSI | Brass

$9.40
Size | Connection Type | Min Order Qty (MOQ)
  • Durable Brass Construction: Made with high-quality brass UNS C37700, ensuring long-lasting performance and reliability.
  • Pressure Rating: Rated for 125 PSI (400 CWP), ideal for a variety of gas applications.
  • Versatile End Connections: Features FNPT x Flared threaded ends (ASME B1.20.1-NPT and SAE J513 flare), providing compatibility with different systems.
  • Superior Chrome-Plated Ball: The chrome-plated ball enhances durability and reduces wear, ensuring smooth operation and extended valve life.
  • Compact & Lightweight Design: The valve's compact dimensions and lightweight construction make it suitable for tight spaces and easy installation.
📄 Download data sheet

The 1-Piece CSA Gas Ball Valve by Red-White Valve Corp is designed for superior durability and performance, offering a reliable solution for gas control applications. This high-quality valve is made from a 1-piece brass body (UNS C37700) with chrome-plated ball for smooth operation and enhanced corrosion resistance. Its construction is ideal for both residential and commercial gas systems, offering 125 PSI pressure tolerance and compatibility with various piping systems.

Key features include threaded ends (ASME B1.20.1-NPT) and flare end SAE J513, ensuring secure and tight connections. The valve meets ANSI Z21.15 / CSA 9.1 standards, ensuring safe operation in gas systems, with an added CSA ½ & 5 psi rating. With a commercial-grade PTFE seat and NBR o-rings, this valve is engineered for long-lasting performance under high-stress conditions.

Dimensions & Specifications:

  • Available Sizes: ⅜”, ½”, ¾”
  • Material: Brass UNS C37700
  • Handle Material: Aluminum (ANSI A380)
  • Seat Material: PTFE (Commercial grade)
  • Pressure Rating: 125 PSI (400 CWP)
  • Connection Types: FNPT x Flared

Compliance & Safety:

  • ANSI Z21.15 / CSA 9.1 certified
  • Meets ASME B16.44 and CSA9.4 standards
  • Warning: This product can expose you to chemicals like lead, known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Applications:

  • Ideal for gas control in residential and commercial systems
  • Perfect for use in gas pipelines, HVAC systems, and industrial gas applications

Features:

  • Durable, 1-piece brass body
  • Chrome-plated ball for smooth operation
  • PTFE seat and NBR o-rings for leak prevention
  • CSA Gas Valve compliant for safe and efficient gas flow management

This valve offers exceptional reliability, ease of use, and compliance with rigorous industry standards, making it a top choice for professionals seeking safe and efficient gas flow solutions. Perfect for use in high-pressure applications, the 1-Piece CSA Gas Ball Valve provides a long-lasting solution to ensure gas systems remain secure and functional.

Dimension, Weight

Size T1 T2 W [in] H [in] L [in] DN [in] C1 [in] C2 [in] Wt. [lb]
¾" ½ - 14 NPT ⅝ - 18 UNF 2.46 1.42 1.38 0.39 0.61 0.62 0.38
½" ½ - 14 NPT ¾ - 16 UNF 2.52 1.42 1.38 0.39 0.61 0.75 0.39
¾" ¾ - 14 NPT 15⁄16 - 16 UNF 2.95 1.54 1.48 0.59 0.63 0.87 0.62

Material

Part # Part Material Specification
1 Body Brass UNS C37700
2 Seat PTFE Commercial grade
3 Ball Brass / Cr plated UNS C37700
4 Cap Brass UNS C37700
5 Screw Plated Steel ASME SA6
6 Stem Brass UNS C37700
7 O-ring NBR Commercial grade
8 Handle Aluminum ANSI A380
9 Packing PTFE Commercial grade
10 O-ring NBR Commercial grade
