Lead Free Threaded Gate Valve | 267AB Series | FNPT x FNPT
Lead Free Threaded Gate Valve | 267AB Series | FNPT x FNPT

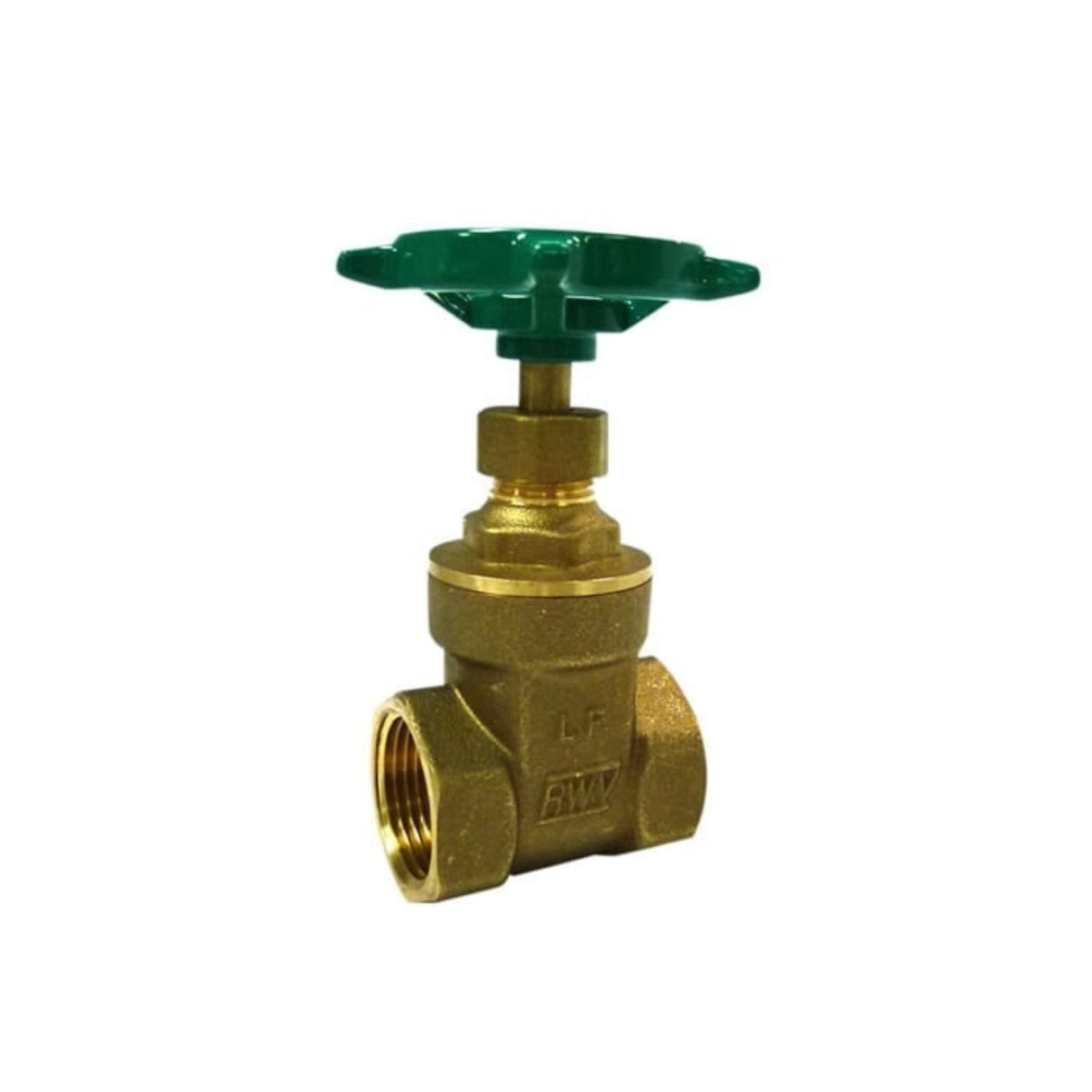

Red-White Valve’s 267AB Lead-Free Threaded Gate Valve provides reliable shut-off control for potable water, oil, and gas systems. Built from ASTM B927 C28500 lead-free brass, it ensures corrosion resistance and long-lasting durability in residential, commercial, and industrial installations.
With FNPT x FNPT threaded ends meeting ASME B1.20.1 standards, a solid brass disc, and a non-rising stem for compact installation, this valve delivers dependable operation and easy maintenance. Certified to NSF/ANSI 61 & 372 and fully compliant with California AB1953, the 267AB is an ideal eco-conscious choice for safe drinking water systems.
Key Features
- Certified Lead-Free — Meets AB1953, NSF/ANSI 61 & 372 standards for potable water applications.
- Solid Brass Construction — Body, bonnet, stem, and disc are made of ASTM B927 C28500 lead-free brass for superior corrosion resistance.
- Threaded FNPT Ends — ASME B1.20.1 standard ensures tight, leak-free threaded connections.
- Non-Rising Stem Design — Space-saving configuration ideal for limited vertical clearance installations.
- Screw-In Bonnet — Simplifies disassembly and reassembly during maintenance.
- Pressure Rating — 200 PSI WOG max at 212°F for water, oil, or gas service.
- Eco-Valve Design — Environmentally responsible construction with reduced lead content (<0.25%).
Pressure / Temperature Rating
| Pressure / Temperature Rating | |
|---|---|
| 200 PSI WOG | Max 212°F (100°C) |
Dimension, Weight
| Size | T | D (in) | H (in) | L (in) | Wt. (lb) |
|---|---|---|---|---|---|
| ½″ | ½ - 14 NPT | 1.78 | 2.75 | 1.67 | 0.46 |
| ¾″ | ¾ - 14 NPT | 1.78 | 3.18 | 1.77 | 0.62 |
| 1″ | 1 - 11.5 NPT | 2.05 | 3.50 | 2.03 | 0.84 |
| 1¼″ | 1¼ - 11.5 NPT | 2.38 | 4.35 | 2.25 | 1.44 |
| 1½″ | 1½ - 11.5 NPT | 2.38 | 4.75 | 2.37 | 1.74 |
| 2″ | 2 - 11.5 NPT | 3.12 | 5.60 | 2.60 | 2.70 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C28500 |
| 2 | Bonnet | Lead-Free Brass | ASTM B927 C28500 |
| 3 | Stem | Lead-Free Brass | ASTM B927 C28500 |
| 4 | Disc | Lead-Free Brass | ASTM B927 C28500 |
| 5 | Lock Nut | Lead-Free Brass | ASTM B927 C28500 |
| 6 | Gland Nut | Brass | ASTM B124 |
| 7 | Gland | Brass | ASTM B124 |
| 8 | Packing | PTFE | - |
| 9 | Handwheel | Aluminum | - |
| 10 | Nut | Steel | A36 |
| 11 | Tag | Aluminum | - |
| 12 | Gasket | PTFE | - |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or reproductive harm. For more information, visit www.P65Warnings.ca.gov.
