RED-WHITE VALVE CORP.  |  SKU: 30077777  |  MPN: 360 1/2

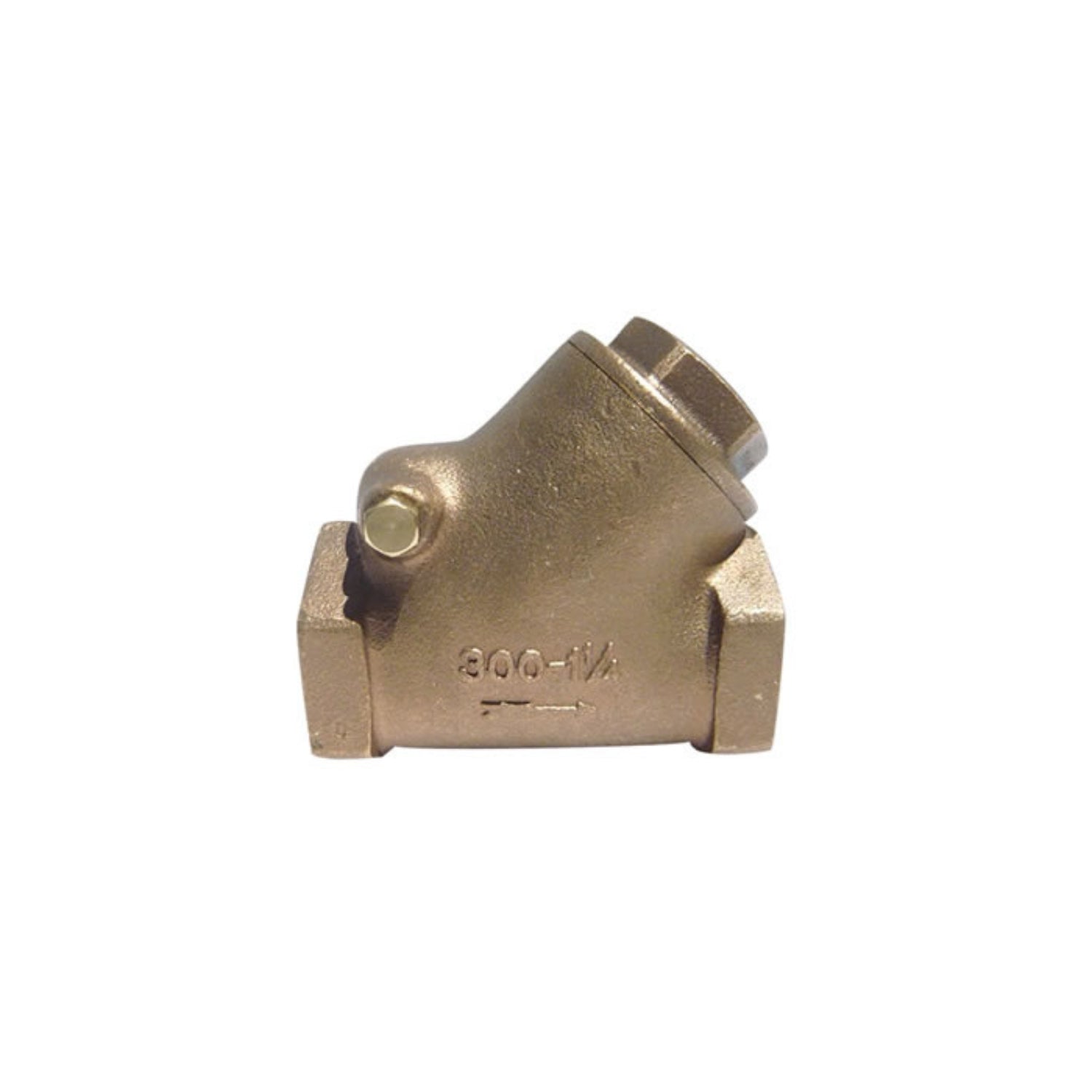

Bronze Swing Check Valve | 360 Series | FNPT × FNPT | Y Pattern | 300# WSP | 500# WOG

$33.00
  • Durable Bronze Construction — Body, disc, and cap made from ASTM B62 bronze for corrosion resistance and long service life.
  • High Pressure Ratings — Rated 300# WSP / 500# WOG for dependable performance in steam, water, and gas systems.
  • Y-Pattern Swing Check Design — Provides smooth flow with minimal pressure loss while preventing backflow.
  • Threaded FNPT × FNPT Ends — Conforms to ASME B1.20.1-NPT for secure, leak-free installation.
  • MSS-SP-80 Compliant — Meets industry standard for threaded-end bronze swing check valves.
📄 Download Spec Sheet

Bronze Swing Check Valve | 360 Series | FNPT × FNPT | Y Pattern | 300# WSP / 500# WOG

Red-White Valve 360 Series is a bronze threaded swing check valve designed for reliable backflow prevention in water, oil, and gas systems. Featuring a Y-pattern design and precision-machined FNPT × FNPT threaded ends per ASME B1.20.1-NPT, this valve ensures dependable performance in high-pressure applications. Constructed from ASTM B62 bronze, it provides long-lasting corrosion resistance and meets MSS-SP-80 standards for industrial use.

Key Features & Benefits

  • Durable Bronze Construction: Body, disc, and cap made from ASTM B62 bronze for corrosion resistance and long service life.
  • Y-Pattern Swing Design: Promotes smooth flow with minimal pressure drop while preventing backflow.
  • High Pressure Ratings: Rated for 300# WSP and 500# WOG, suitable for steam, water, and gas service.
  • Threaded FNPT × FNPT Ends: Easy installation and secure, leak-free connections built to ASME B1.20.1-NPT.
  • MSS-SP-80 Compliant: Meets industry standards for threaded-end bronze valves in commercial and industrial systems.

Applications

  • Water, oil, and gas systems
  • Steam lines and boiler systems
  • Commercial and industrial piping
  • Hydronic and mechanical installations

Dimension & Weight

Size Thread (NPT) H [in] H [mm] L [in] L [mm] Wt. [lb] Wt. [kg]
½″ ½–14 NPT 1.65 42 2.36 60 0.92 0.42
¾″ ¾–14 NPT 2.01 51 2.83 72 1.20 0.54
1″ 1–11.5 NPT 2.40 61 3.31 84 2.20 1.00
1¼″ 1¼–11.5 NPT 2.91 74 3.90 99 3.02 1.37
1½″ 1½–11.5 NPT 3.27 83 4.45 113 3.80 1.72
2″ 2–11.5 NPT 3.86 98 5.16 131 6.00 2.72

Material

# Part Material Specification
1 Body Bronze ASTM B62
2 Disc Bronze ASTM B62
3 Hinge Pin Copper —
4 Plug Brass —
5 Cap Bronze ASTM B62

For complete technical and dimensional details, refer to the Red-White Valve 360 specification sheet.
