Bronze Threaded End Gate Valve | 208A Series | FNPT × FNPT | 125# WSP | 200# WOG
$22.10
Unit price
/
Select Option
Bronze Threaded End Gate Valve | 208A Series | FNPT × FNPT | 125# WSP / 200# WOG

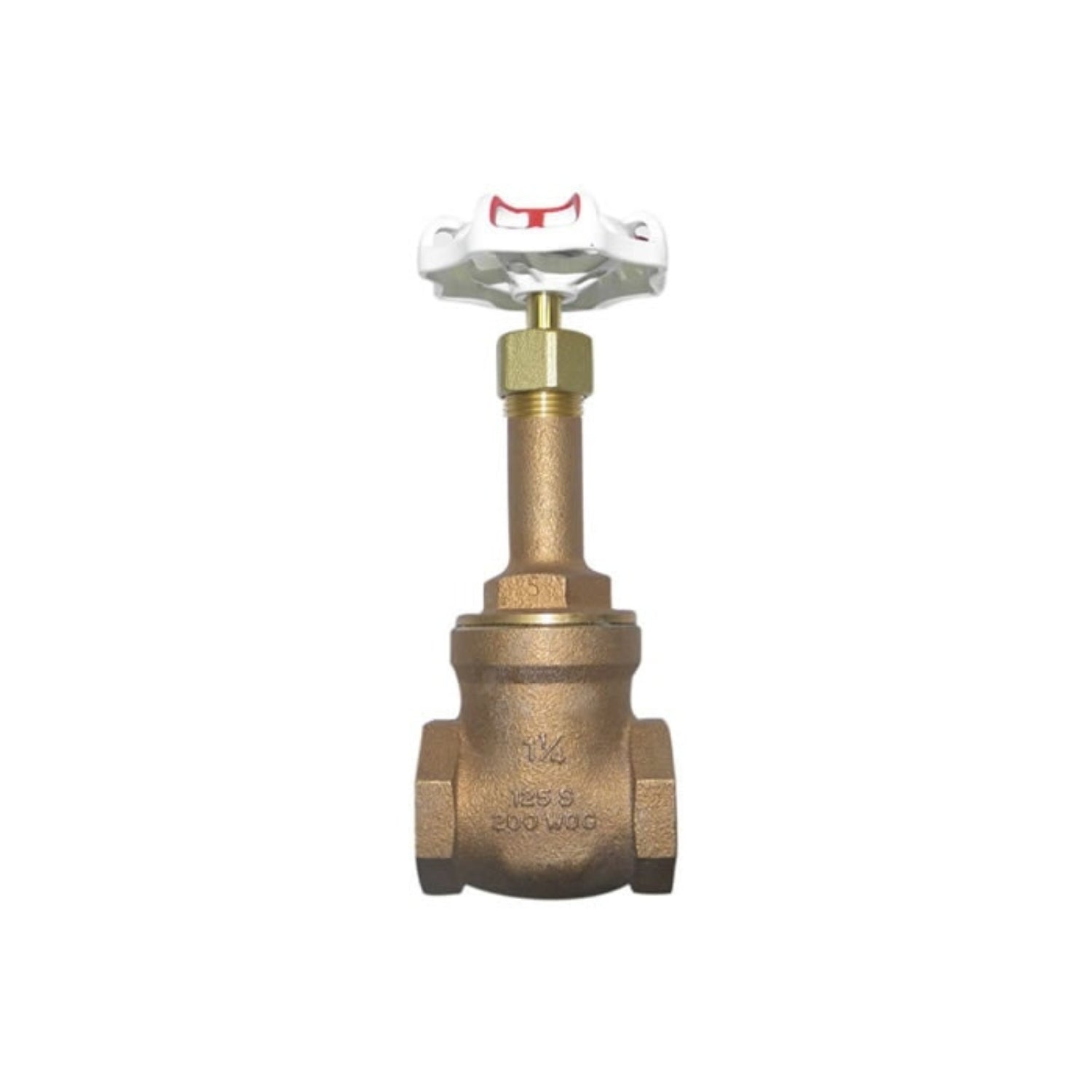

Red-White Valve’s 208A Bronze Threaded End Gate Valve provides dependable shutoff and control for commercial, industrial, and plumbing applications. Constructed from cast bronze (B62-C83600) and designed with a rising stem and inserted bonnet, this valve ensures long service life, clear valve position visibility, and consistent performance under pressure. Compliant with MSS-SP-80 standards, it is ideal for use in water, oil, gas, and hydronic systems requiring high reliability.
Key Features & Benefits
- All-Bronze Construction — Cast bronze body, bonnet, and disc (B62-C83600) for superior strength and corrosion resistance.
- Rising Stem Design — Indicates open or closed position and reduces stem wear compared to non-rising designs.
- Threaded FNPT Ends — Precision-cut NPT threads ensure tight, leak-free installations across standard piping systems.
- High Pressure Rating — Rated for 125 PSI steam (WSP) and 200 PSI water, oil, or gas (WOG) service.
- Inserted Bonnet — Allows secure assembly and simplified maintenance access.
- MSS-SP-80 Compliant — Meets industry mechanical and dimensional standards for bronze gate valves.
Technical Specifications
| Parameter | Details |
|---|---|
| Pressure Rating | 125# WSP / 200# WOG |
| Body & Bonnet | Cast Bronze (B62-C83600) |
| Disc | Cast Bronze (B62-C83600) |
| Stem | Brass (DR Alloy) |
| Packing Nut & Gland | Brass (B283-C37700 / B124-C37700) |
| Packing | Plastic Graphite (T#2996NA) |
| Handwheel | Zinc Alloy (¾″ & up) / Aluminum Alloy (½″ only) |
| Connection Type | FNPT × FNPT (Threaded Ends) |
| Compliance | MSS-SP-80 |
Dimensions / Weights (inches-lbs.)
| Size | D | d (NPT) | H | L | S | Cv | Wt. [lb] |
|---|---|---|---|---|---|---|---|
| ⅜″ | 1.89 | 0.375 | 4.9 | 1.73 | 1.08 | 5.7 | 0.88 |
| ½″ | 2.17 | 0.5 | 5.16 | 1.97 | 1.14 | 12 | 1.00 |
| ¾″ | 2.48 | 0.75 | 5.98 | 2.21 | 1.38 | 26 | 1.25 |
| 1″ | 2.76 | 1.0 | 6.93 | 2.56 | 1.61 | 42 | 2.00 |
| 1¼″ | 3.15 | 1.25 | 8.35 | 2.84 | 1.97 | 72 | 2.70 |
| 1½″ | 3.54 | 1.5 | 9.80 | 3.11 | 2.24 | 120 | 4.00 |
| 2″ | 3.94 | 2.0 | 11.65 | 3.35 | 2.76 | 210 | 5.90 |
| 2½″ | 3.94 | 2.5 | 12.20 | 4.00 | 3.40 | 335 | 12.20 |
| 3″ | 4.90 | 3.0 | 14.00 | 5.20 | 3.90 | 486 | 17.40 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Cast Bronze | B62-C83600 |
| 2 | Bonnet | Cast Bronze | B62-C83600 |
| 3 | Disc | Cast Bronze | B62-C83600 |
| 4 | Stem | Brass | DR Alloy |
| 5 | Packing Nut | Brass | B283-C37700 |
| 6 | Gland | Brass | B124-C37700 |
| 7 | Gland Packing | Plastic Graphite | T#2996NA |
| 8 | Handwheel | Zinc Alloy (¾″ & up) / Aluminum Alloy (½″ only) | B85-SC114A / B86-AG40A |
| 9 | Wheel Nut | Steel | A36 |
| 10 | Name Plate | Aluminum | B209 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
