RED-WHITE VALVE CORP.  |  SKU: 30077817  |  MPN: 220 3/8

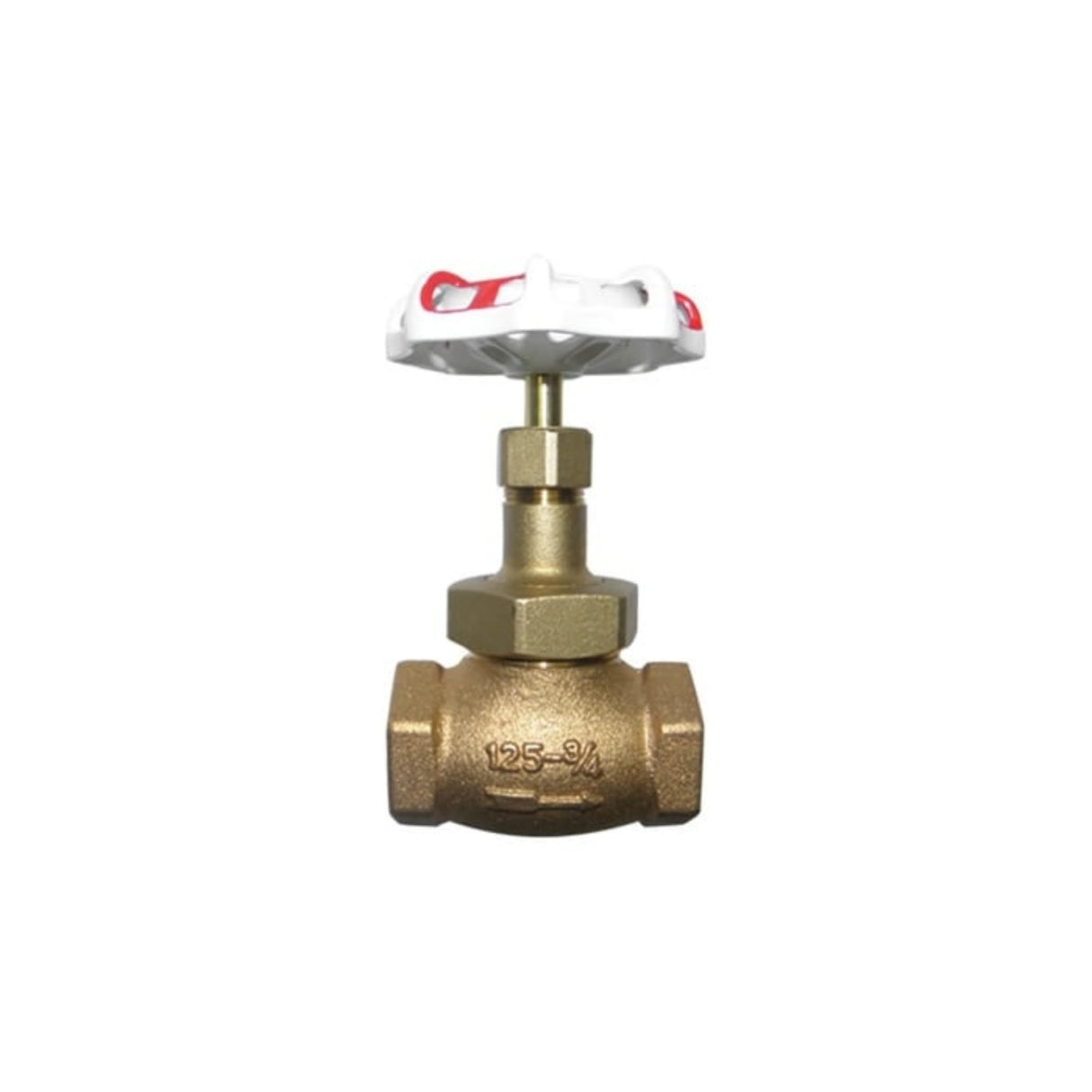

Bronze Threaded Globe Valve | 220 Series | FNPT × FNPT | 125# WSP | 200# WOG

$30.90
  • Rugged Bronze Construction — ASTM B62-C83600 body ensures long-term durability and corrosion resistance in fluid systems.
  • Threaded FNPT Ends — NPT-compatible threaded ends allow for quick, leak-free installation without welding or soldering.
  • PTFE or RPTFE Soft Seat — Provides chemical resistance and a tight seal for smooth throttling performance.
  • Union Bonnet Design — Enables fast and easy maintenance without removing the valve from the line.
  • Rated 200 WOG / 125 WSP — Engineered for high-pressure applications; meets MSS-SP-80 standards for bronze valves.
📄 Download Spec Sheet

Bronze Threaded Globe Valve | 220 Series | FNPT × FNPT | 125# WSP / 200# WOG

Red-White Valve’s 220 Bronze Threaded Globe Valve is designed for reliable shutoff and flow control across water, oil, gas, and steam systems. Its PTFE soft-seat disc ensures chemical resistance and tight sealing, while the union bonnet design simplifies maintenance without disturbing pipework. Built from ASTM B62-C83600 bronze for long-lasting durability, the 220 Series is ideal for commercial, mechanical, and industrial service lines.

Key Features & Benefits

  • Pressure Rating — 125 PSI Steam (WSP) / 200 PSI Water, Oil & Gas (WOG) for demanding fluid systems.
  • Heavy-Duty Bronze Body — Constructed from ASTM B62-C83600 bronze for superior corrosion resistance and strength.
  • PTFE or RPTFE Disc Seat — Provides reliable shutoff, smooth throttling, and chemical compatibility with a wide range of media.
  • Union Bonnet — Allows tool-free bonnet removal for quick inspection and service.
  • Threaded FNPT Ends — Standard ASME B1.20.1 threads ensure a secure, leak-free fit for easy installation.
  • MSS-SP-80 Compliant — Meets industry standards for bronze globe valves used in HVAC, plumbing, and process piping systems.

Technical Specifications

Parameter Details
Pressure Rating 125# WSP / 200# WOG
Body Bronze (B62-C83600)
Bonnet Bronze (1″–3″) / Brass (⅜″ & ¾″)
Seat PTFE (⅜″, 2½″–3″) / RPTFE (½″–2″)
Stem Brass (DR Alloy)
Connection Type FNPT × FNPT (ASME B1.20.1)
Bonnet Type Union Bonnet
Compliance MSS-SP-80

Dimensions / Weights (inches-lbs.)

Size D d₁ H L S Cv Wt. [lb]
⅜″ 2.48 0.49 4.17 2.28 1.02 2 0.88
½″ 2.48 0.59 3.62 2.28 1.10 3.5 0.86
¾″ 2.76 0.79 3.94 2.64 1.38 6.5 1.26
1″ 3.15 0.98 4.80 3.07 1.69 12 1.85
1¼″ 3.54 1.26 5.55 3.47 2.05 21 2.84
1½″ 3.94 1.58 6.22 4.02 2.28 30 4.12
2″ 4.33 1.97 7.09 4.72 2.84 49 6.46
2½″ 4.92 2.52 9.13 5.71 3.50 87 11.05
3″ 5.51 2.72 10.16 6.30 4.09 128 16.12

Material Construction

# Part Material Specification
1 Body Bronze B62-C83600
2 Bonnet Bronze (1″–3″) / Brass (⅜″ & ¾″) B62-C83600 / B124-C37700
3 Soft Seat PTFE (⅜″, 2½″–3″) / RPTFE (½″–2″) PTFE / RPTFE
4 Disc Holder Bronze (1½″–3″) / Brass (½″–1¼″) B62-C83600 / B124-C37700
5 Stem Brass DR Alloy
6 Union Nut Bronze (1¼″–3″) / Brass (⅜″–1″) B62-C83600 / B283-C37700
7 Lock Nut Brass B16-C36000
8 Seat Holder Brass B36-C26000
9 Disc Nut Brass B16-C36000
10 Gland Brass B124-C37700
11 Packing Nut Brass B283-C37700
12 Gland Packing Plastic/Graphite T#2996NA
13 Handwheel Aluminum Alloy B85-SC114A
14 Wheel Nut Zinc-Plated Steel A36
15 Name Plate Aluminum B209-1100

Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
