1-1/4" Orange Corrugated Innerduct with Pull Tape | HDPE | 500' Coil
$0.88
Unit price
/
Select Option

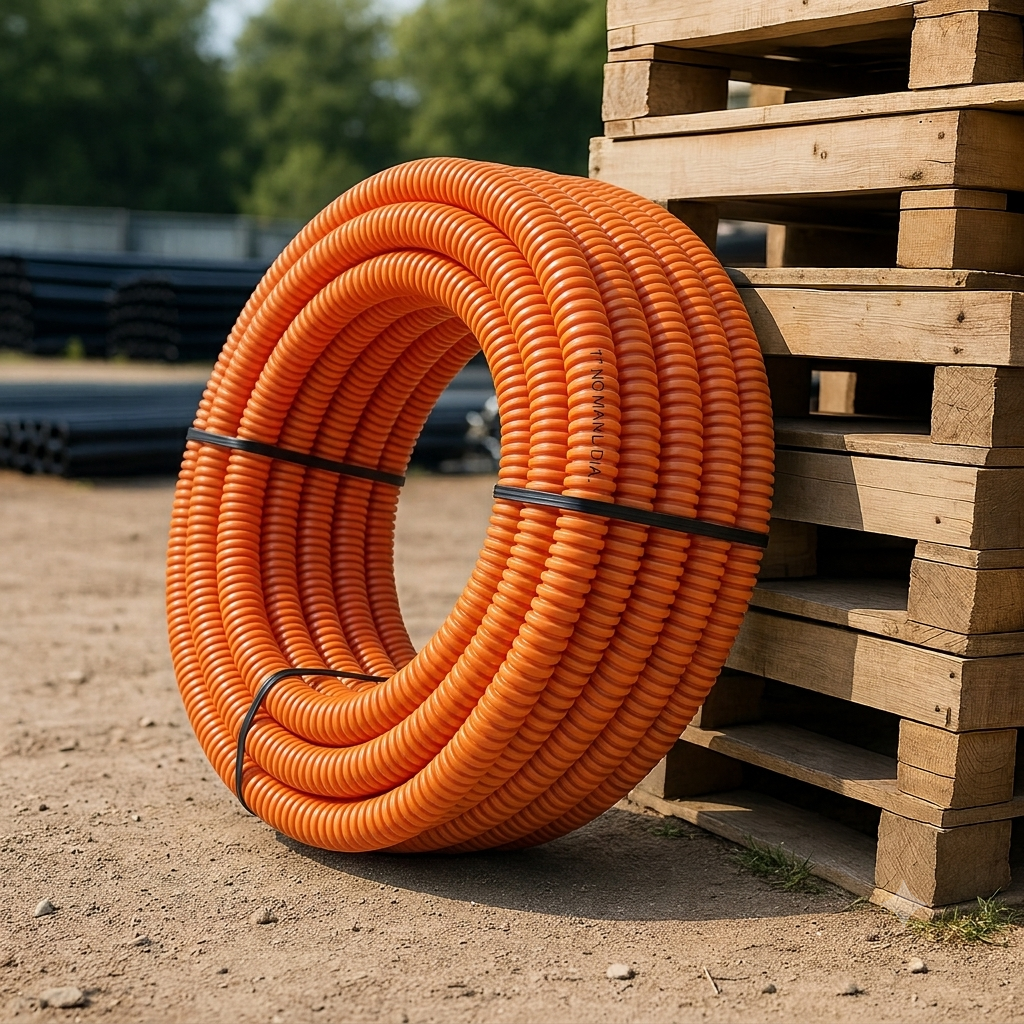

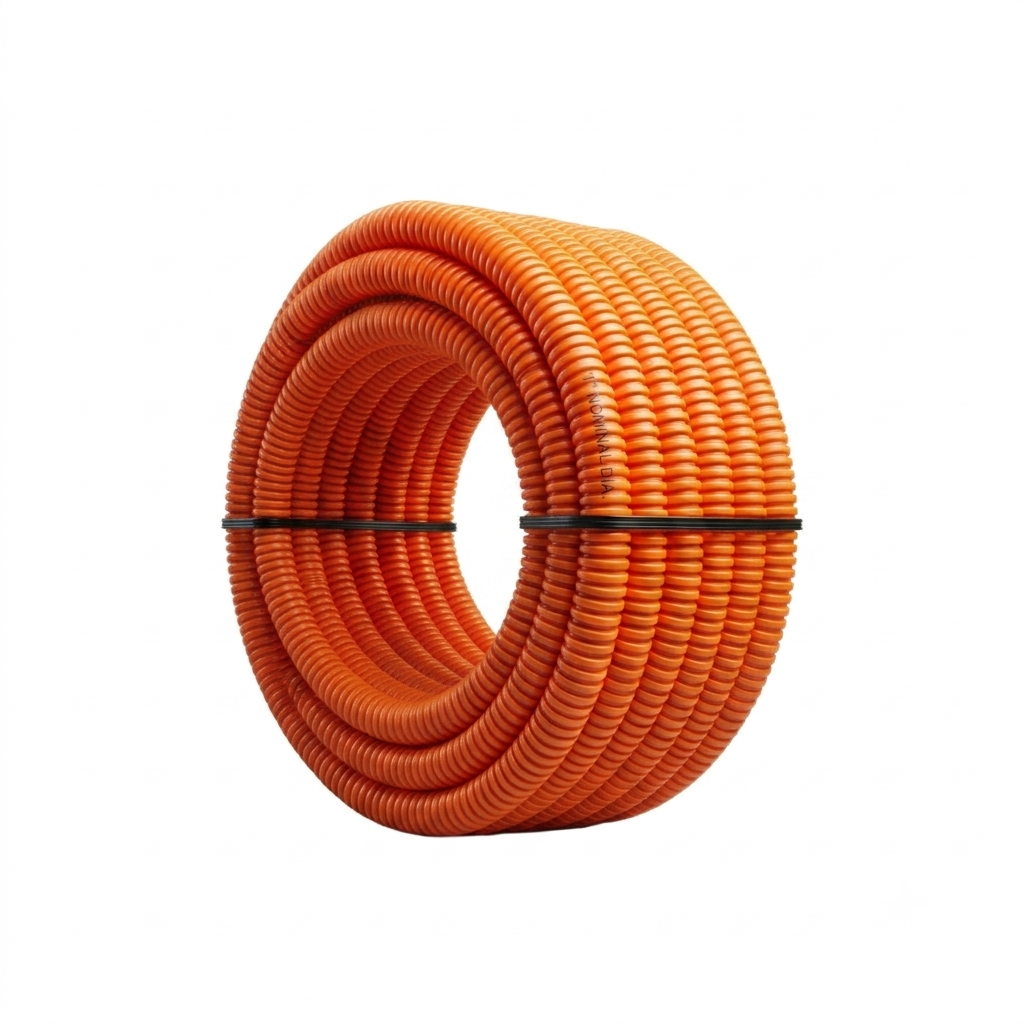

1-1/4" Orange Corrugated Innerduct with Pull Tape — 500' Coil
Flexible corrugated HDPE innerduct in high-visibility orange, supplied on a 500-foot coil with pull tape already installed so crews can pull fiber or copper as soon as the duct is in the ground. The corrugated wall flexes around obstructions and through tight trench runs while the ribbed profile holds the bore open under backfill.
Sold by the foot in 500-foot increments — one full coil minimum.
Key Features
- 1.250" nominal inside diameter, 1.600" outside diameter
- Pull tape pre-installed the full 500' length
- 32 to 36 corrugations per foot for tight-radius bends without kinking
- .050" minimum wall thickness, .080" maximum
- PE 3406/3408 polyethylene, cell classification PE 335440C per ASTM D-3350
- High-visibility orange for locate and identification in shared trench
Specifications
| Specification | Value |
|---|---|
| Nominal Size | 1.250" |
| Inside Diameter | 1.250" (+.050" / -.050") |
| Outside Diameter | 1.600" max (+.030" / -.020") |
| Wall Thickness | .050" min / .080" max |
| Corrugations per Foot | 32 to 36 |
| Length Tolerance | 0 to +1.5% |
| Approx. Weight | 14 lbs per 100 ft |
| Material | PE 3406 / PE 3408 polyethylene |
| Cell Classification | PE 335440C per ASTM D-3350 |
| PPI Designation | Type III, Grade P34, Category 5 per ASTM D-1248 |
| Color | Orange |
| Pull Tape | Installed |
| Coil Length | 500 ft |
