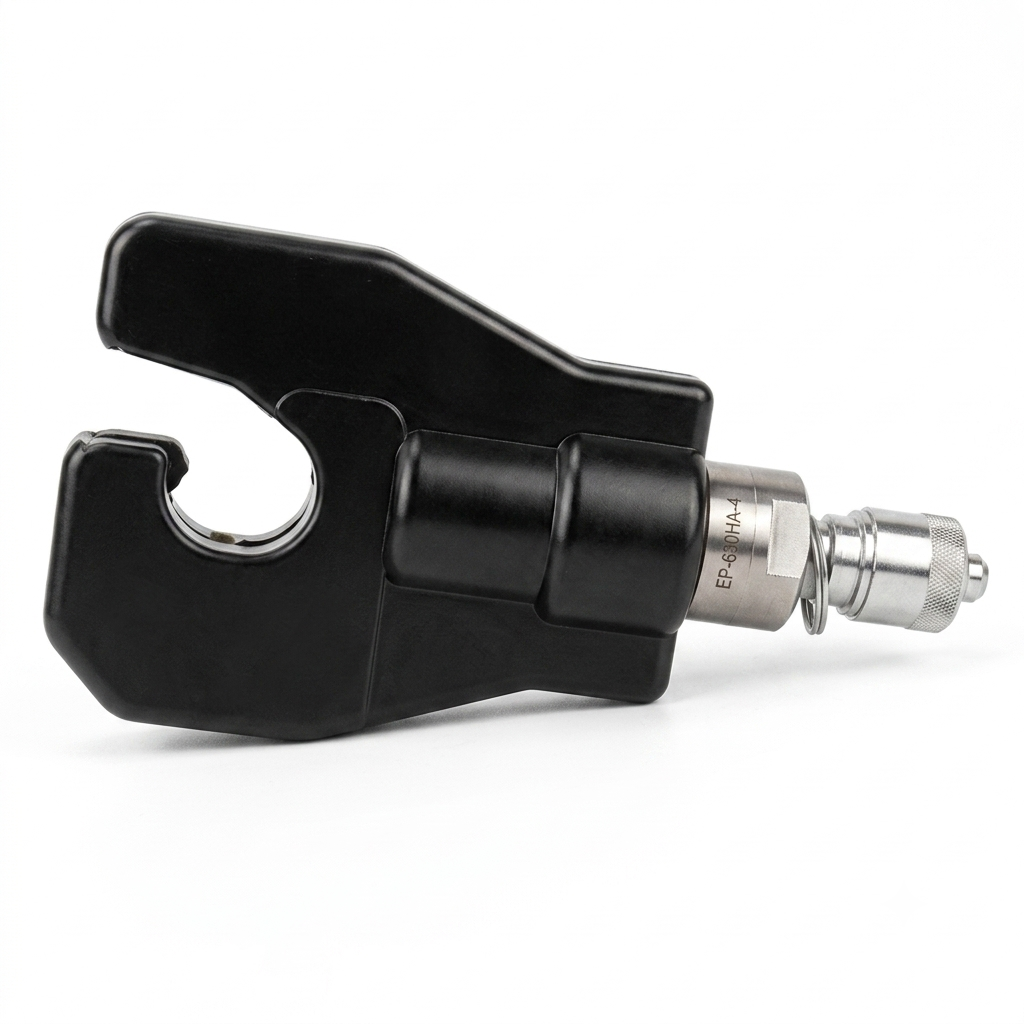

6.2 Ton Dieless Remote Hydraulic "C" Crimping Head | Anderson Connectors | EP-630HA
6.2 Ton Dieless Remote Hydraulic "C" Crimping Head for Anderson Style Connectors - Product Overview
The 6.2 Ton Dieless Remote Hydraulic "C" Crimping Head is built for fast, reliable compression of Anderson-style connectors without the need for interchangeable dies. Designed for use with an external 10,000 PSI hydraulic pump, this remote crimping head delivers consistent, high-quality crimps while reducing setup time in the field.
Engineered for electrical utility and industrial professionals, this tool is compatible with Anderson connectors and other connectors manufactured to ANSI C119.4 standards. Its dieless design eliminates the hassle of changing dies, making it an efficient solution for a wide range of compression applications.
The durable "C" style head features a protective rubber boot for added durability in demanding jobsite environments. A 3/8" male screw-type hydraulic coupler is included for quick connection to compatible hydraulic pumping systems.
Key Features
- — 6.2-ton remote hydraulic crimping head
- — Dieless design eliminates the need for interchangeable dies
- — Designed for Anderson-style connectors and ANSI C119.4 compatible connectors
- — Crimps #10 stranded to 500 MCM bare aluminum conductors
- — Crimps #10 solid to 500 MCM bare copper conductors
- — Protective rubber boot helps shield the crimping head from jobsite wear
- — Includes 3/8" male screw-type hydraulic coupler
- — Requires an external 10,000 PSI hydraulic pump
- — Ideal for electrical utility, industrial, and contractor applications
Ideal Applications
Perfect for electrical utility crews, lineworkers, industrial electricians, and contractors who require a dependable, dieless compression tool for Anderson-style connectors in field or shop environments.
DOCUMENTATION:
| Specifications | |
|---|---|
| Output | 6.2 Ton |
| Weight | 6.5 lb |
| Overall Length | 10 in. (with coupler) |
| Jaw Opening | 0.90 in. |
| Center Opening | 1.25 in. |
| Width | 4.5 in. |
| Connector Range | |
|---|---|
| Lugs & Splices | #10 AWG – 500 MCM |
