Fiberglass Reinforced Plastic Enclosures — Product Overview

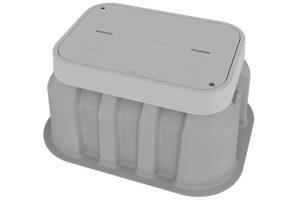

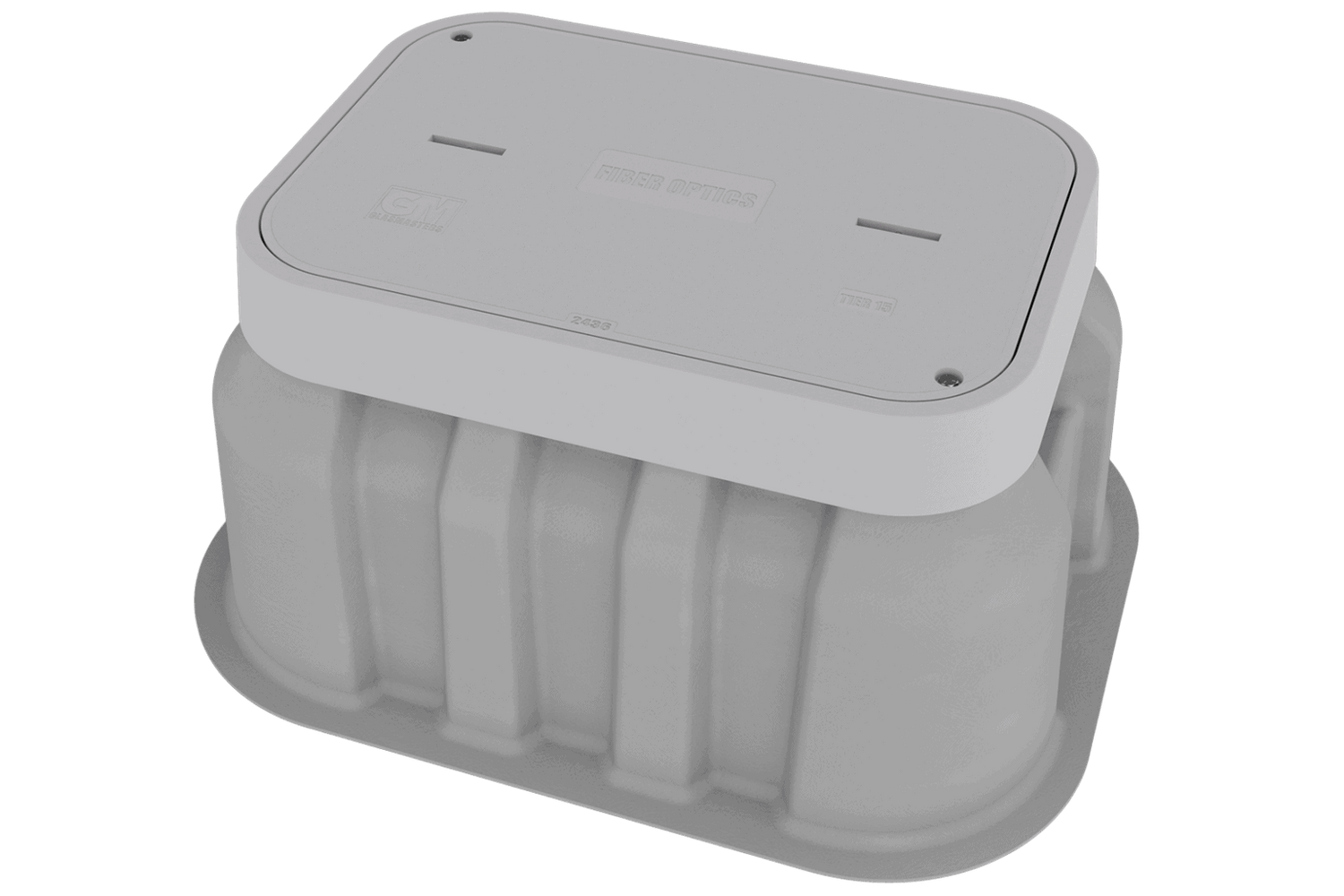

Elevate your project with our Fiberglass Reinforced Plastic (FRP) Enclosures, engineered for unparalleled strength and durability. These enclosures feature a robust fiberglass body combined with a polymer concrete lid assembly, offering a superior solution for a range of applications. Designed to withstand the toughest conditions while remaining remarkably lightweight, they provide a cost-effective and efficient option for your enclosure needs.
Key Features
- Enhanced Strength and Durability: Our FRP enclosures are crafted with a fully fiberglass body and a polymer concrete lid, making them up to three times stronger than traditional concrete. This exceptional strength ensures superior protection and longevity, even in harsh environments.
- Lightweight and Easy to Handle: Despite their impressive strength, these enclosures are significantly lighter than traditional concrete options. This reduced weight simplifies transportation and handling, making installation faster and more efficient.
- Cost-Effective Shipping: The innovative design of our FRP enclosures allows for nesting, optimizing shipping space and reducing costs. This feature not only saves money but also minimizes the environmental impact of transportation.
- Versatile Applications: Ideal for a wide range of uses, our enclosures are perfect for applications requiring robust protection and resistance to environmental stressors. Whether for industrial, commercial, or utility settings, these enclosures deliver reliable performance and long-term value.
- Low Maintenance: The fiberglass composition provides excellent resistance to corrosion, chemicals, and UV radiation, ensuring that your enclosure remains in excellent condition with minimal upkeep.
Load Ratings (ANSI/SCTE 77)
These FRP enclosures are offered in Tier 8 and Tier 15 load classes. The full ANSI/SCTE 77 range is shown below so you can match the enclosure to your application; the classes this product is available in are highlighted.
| Class | Typical Application | Vertical Design Load | Vertical Test Load | Lateral Design Load | Lateral Test Load |
|---|---|---|---|---|---|
| Pedestrian | Green space; pedestrian traffic only (never vehicular) | — | 3,000 lb (13.3 kN) | — | — |
| Tier 8 | Sidewalks; occasional non-deliberate vehicular traffic | 8,000 lb (35.6 kN) | 12,000 lb (53.4 kN) | 600 lb/sq ft (28.7 kN) | 900 lb/sq ft (43.1 kN) |
| Tier 15 | Driveways, parking lots, off-roadway; occasional heavy non-deliberate traffic | 15,000 lb (66.7 kN) | 22,500 lb (100.1 kN) | 800 lb/sq ft (38.3 kN) | 1,200 lb/sq ft (57.5 kN) |
| Tier 22 | Right-of-ways and medians; very heavy non-deliberate traffic | 22,500 lb (100.1 kN) | 33,750 lb (150.1 kN) | 2,400 lb/sq ft (38.3 kN) | 3,600 lb/sq ft (57.5 kN) |
| AASHTO H-20 | Deliberate vehicular traffic — requires certified precast concrete, cast iron, or AASHTO-recognized material | ||||
Note: Verify the required rating per local codes and project specifications; see the individual data sheets below for the tier designation by size.
Available Sizes & Data Sheets
| Part No. | Size | Data Sheet |
|---|---|---|
| AF101512P | 10" × 15" × 12" | View PDF |
| AF111812P | 11" × 18" × 12" | View PDF |
| AF132412P | 13" × 24" × 12" | View PDF |
| AF132418P | 13" × 24" × 18" | View PDF |
| AF173012P | 17" × 30" × 12" | View PDF |
| AF173018P | 17" × 30" × 18" | View PDF |
| AF243618P | 24" × 36" × 18" | View PDF |
| AF243624P | 24" × 36" × 24" | View PDF |
| AF243636P | 24" × 36" × 36" | View PDF |
| AF304824P | 30" × 48" × 24" | View PDF |
| AF304836P | 30" × 48" × 36" | View PDF |
