IPS HDPE Conduit | AT&T Print Line | Black with Orange Stripe & Solid Orange

HDPE CONDUIT | AT&T PRINT LINE | ORANGE STRIPE | SDR 13.5 & SDR 11 — Product Overview

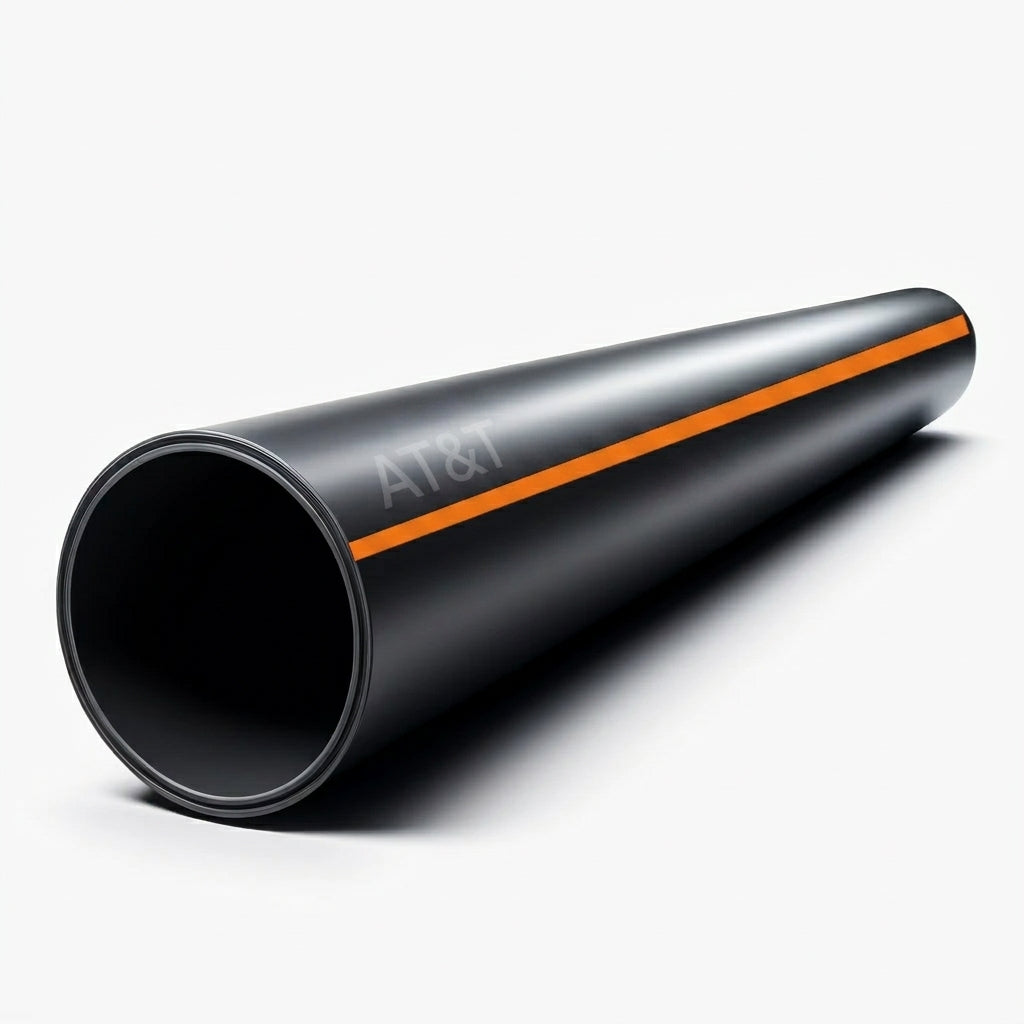

IPS HDPE conduit carrying the AT&T print line, supplied on reels with pull tape already installed. Sizes 1.25" through 3" are black with an orange stripe; the 4" is solid orange. Every reel is high-density polyethylene for maximum flexibility and long-term underground protection, and every reel ships with pull tape so a crew can start pulling the day it lands on site.

Note the wall ratings differ by size. The 1.25", 2" and 3" are SDR 13.5; the 4" is the heavier-wall SDR 11. Check the spec table below before ordering.

Key Features

• AT&T Print Line: Sequentially marked to AT&T specification for telecom placement work.
• Pull Tape Installed: Every reel ships with pull tape in place — no pre-rodding on site.
• Two Wall Ratings: SDR 13.5 in 1.25", 2" and 3"; heavier-wall SDR 11 in 4".
• Interior Finish: The 1.25" runs a ribbed interior to cut pulling friction; 2", 3" and 4" are smooth wall.
• Material: High-density polyethylene (HDPE) for maximum flexibility and durability.
• Bend Radius: Makes gradual bends without special equipment, saving time in the trench.
• Temperature Resistance: Low-temperature properties allow installation in cold weather.
• Protection: Long-term cable protection against shifting ground, rock and root impingement.

Specifications

All conduit is sold and priced by the foot; each size is supplied on full reels only, in the reel length shown above. Wall and ID dimensions are nominal IPS values derived from the outside diameter and SDR rating.
