INTEGRITY FUSION  |  SKU: 30092947  |  MPN: 100402

HDPE Flange Adapter | IPS & DIPS | SDR 7–17 | 125–335 PSI

$13.25
price per each (min. order qty 15)
Size
Pipe Type
SDR
  • Compliant & USA Made: Ideal for government-funded projects, fully meeting Build America, Buy America standards.
  • Reliable Performance: Engineered for 200 PSI working pressure at 73.4˚ F, ensuring strength and dependability.

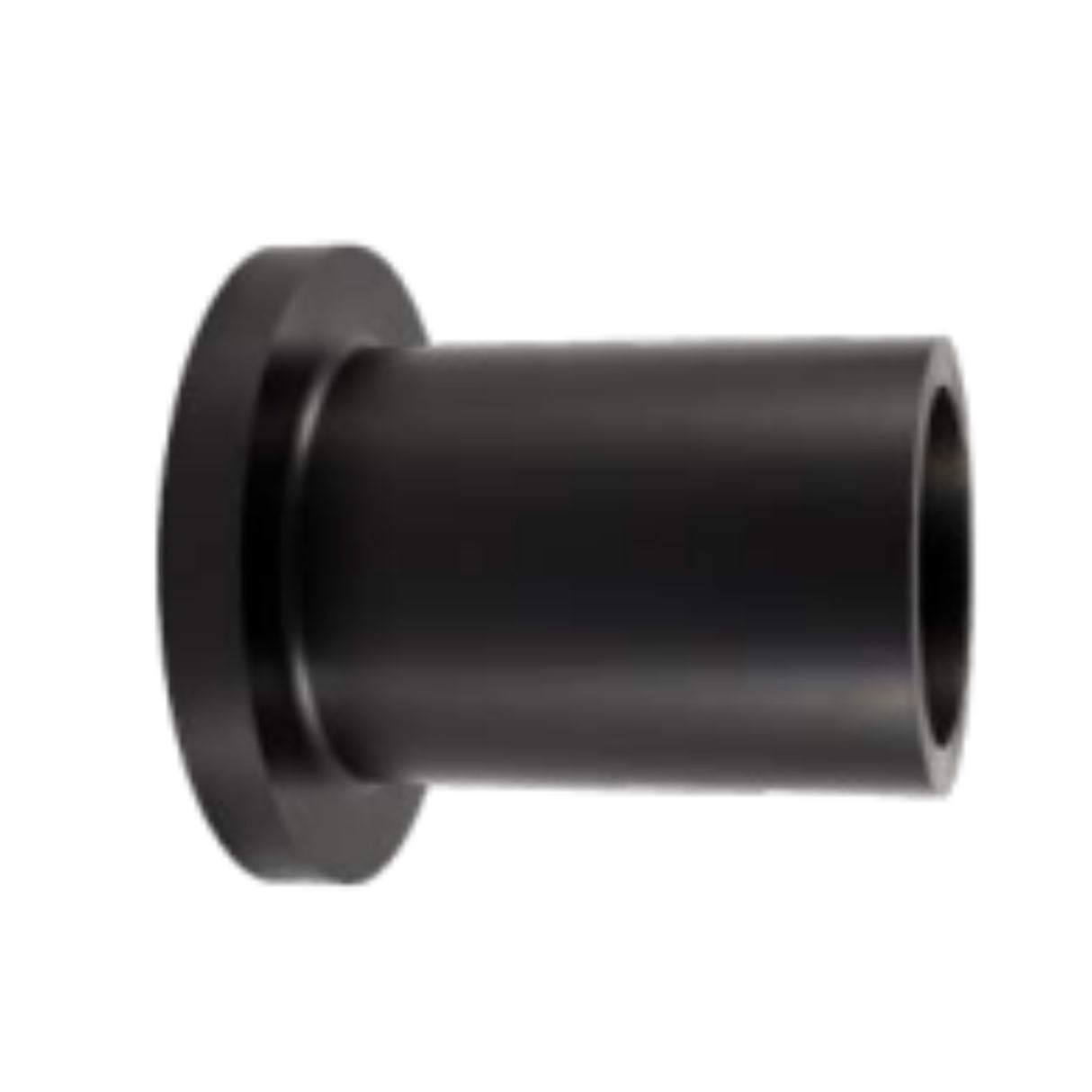

  • Versatile Size Range: Available in DIPS sizes 4" to 12" for a wide variety of applications.
  • Precision Fit: Beveled edges and exact dimensions for secure, leak-proof connections.
📄 Download Spec Sheet

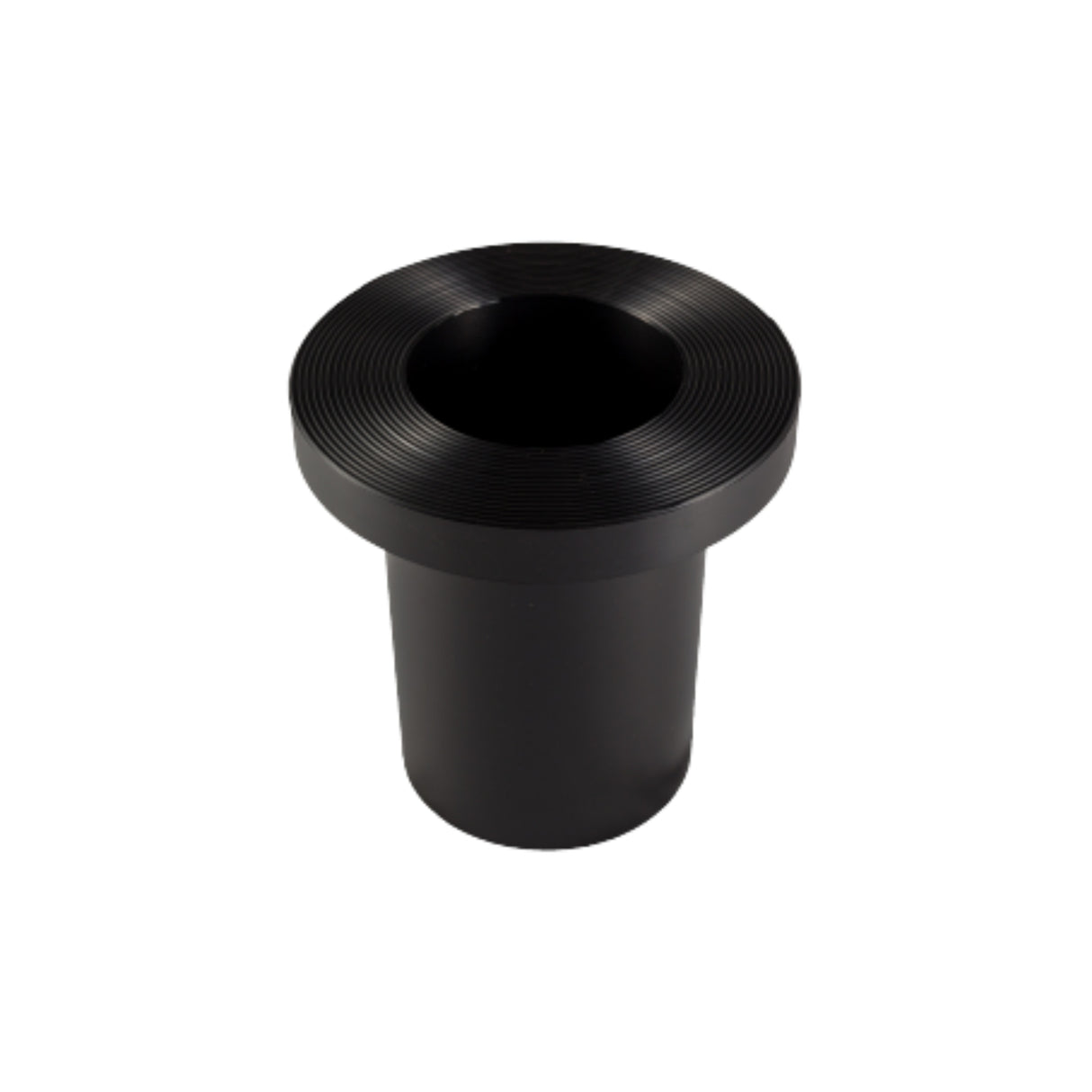

HDPE Flange Adapter | IPS & DIPS | SDR 7–17 | 125–335 PSI

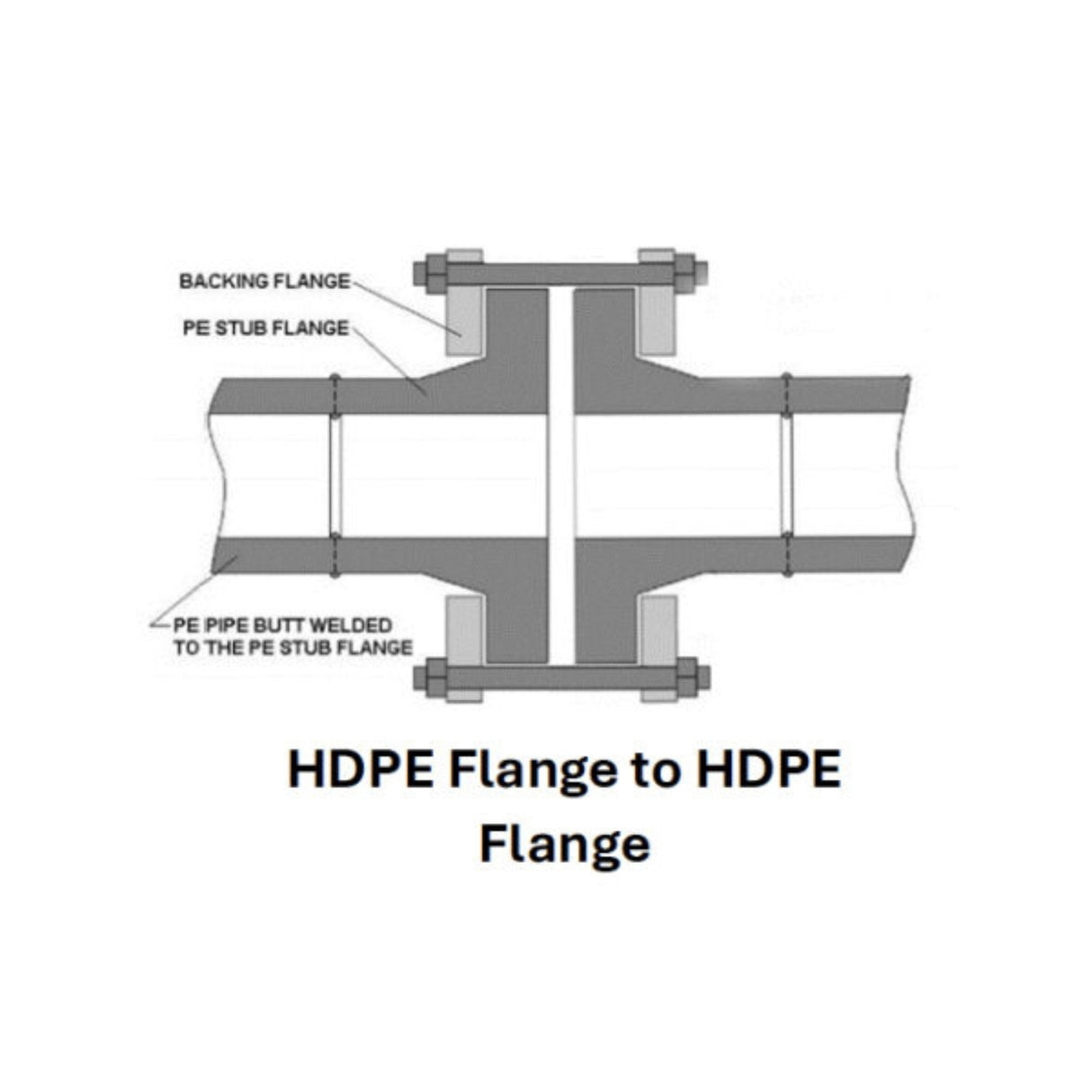

Molded HDPE Flange Adapters provide a reliable, pressure-rated transition between HDPE pipe and flanged connections in water, sewer, and industrial applications. Manufactured in the USA using NSF-listed PE4710/PE100 resin, these adapters deliver exceptional durability and long-term performance.

Available in IPS and DIPS dimensions and multiple SDR ratings (7, 9, 11, 17), each fitting is engineered to meet ASTM D3261, AWWA C901/C906, and FM 1613 requirements. The flange adapter’s smooth molded design ensures full fusion compatibility and leak-free service up to 335 PSI.

Key Features

  • Made in the USA: Manufactured using PE4710 resin and compliant with the Build America, Buy America Act (BABA).
  • Pressure-Rated Options: SDR 17 = 125 PSI | SDR 11 = 200 PSI | SDR 9 = 250 PSI | SDR 7 = 335 PSI (@ 73.4 °F).
  • Full Fusion Compatibility: Molded butt-fusion design meets ASTM D3261 and FM 1613.
  • Versatile Sizing: IPS 2″–24″ and DIPS 4″–12″ configurations available.
  • Resin & Certification: PE4710 / PE100 Bi-Modal Virgin Resin | NSF 61 | ASTM D3350 | AWWA C906.

Dimensional Data – IPS & DIPS

Size Type SDR Pressure (PSI) A (OD) B C D (Length) E (Wall) Weight (lb) Item Code
2″ IPS 17 125 2.375 3.94 0.40 5.71 0.140 0.30 100401
3″ IPS 17 125 3.500 5.00 0.42 5.82 0.206 0.55 100405
4″ IPS 17 125 4.500 6.00 0.54 6.54 0.265 1.10 100409
6″ IPS 17 125 6.625 8.50 0.80 8.00 0.390 2.75 100413
8″ IPS 17 125 8.625 10.63 1.02 9.02 0.507 5.50 100417
10″ IPS 17 125 10.75 12.75 1.29 10.01 0.632 9.10 100421
12″ IPS 17 125 12.75 15.00 1.55 10.75 0.750 13.55 100424
14″ IPS 17 125 14.00 17.50 1.62 12.00 0.824 22.00 100427
16″ IPS 17 125 16.00 20.00 1.85 12.00 0.941 31.00 100429
18″ IPS 17 125 18.00 21.12 2.08 12.00 1.059 37.00 100431
20″ IPS 17 125 20.00 23.50 2.31 12.00 1.176 49.00 100433
24″ IPS 17 125 24.00 28.00 2.77 14.00 1.411 80.00 100437
2″ IPS 11 200 2.375 3.94 0.40 5.71 0.216 0.40 100400
3″ IPS 11 200 3.500 5.00 0.42 5.82 0.318 0.70 100404
4″ IPS 11 200 4.500 6.00 0.54 6.54 0.409 1.40 100408
6″ IPS 11 200 6.625 8.50 0.80 8.00 0.602 3.50 100412
8″ IPS 11 200 8.625 10.63 1.02 9.02 0.792 6.50 100416
10″ IPS 11 200 10.75 12.75 1.29 10.01 0.972 10.00 100420
12″ IPS 11 200 12.75 15.00 1.55 10.75 1.182 16.00 100423
14″ IPS 11 200 14.00 17.50 1.62 12.00 1.273 27.00 100426
16″ IPS 11 200 16.00 20.00 1.85 12.00 1.455 36.00 100428
18″ IPS 11 200 18.00 21.12 2.08 12.00 1.636 42.00 100430
20″ IPS 11 200 20.00 23.50 2.31 12.00 1.818 54.00 100432
24″ IPS 11 200 24.00 28.00 2.77 14.00 2.182 91.00 100436
2″ IPS 9 250 2.375 3.94 0.40 5.71 0.263 0.45 100403
3″ IPS 9 250 3.500 5.00 0.42 5.82 0.389 0.75 100407
4″ IPS 9 250 4.500 6.00 0.54 6.54 0.500 1.60 100411
6″ IPS 9 250 6.625 8.50 0.80 8.00 0.736 3.90 100415
8″ IPS 9 250 8.625 10.63 1.02 9.02 0.960 7.50 100419
10″ IPS 9 250 10.75 12.75 1.29 10.01 1.197 12.50 100422
12″ IPS 9 250 12.75 15.00 1.55 10.75 1.421 18.50 100425
2″ IPS 7 335 2.375 3.94 0.40 5.71 0.337 0.48 100402
3″ IPS 7 335 3.500 5.00 0.42 5.82 0.497 0.95 100406
4″ IPS 7 335 4.500 6.00 0.54 6.54 0.625 1.90 100410
6″ IPS 7 335 6.625 8.50 0.80 8.00 0.920 4.80 100414
8″ IPS 7 335 8.625 10.63 1.02 9.02 1.200 8.80 100418
10″ IPS 7 335 10.75 12.75 1.29 10.01 1.500 14.00 100451
12″ IPS 7 335 12.75 15.00 1.55 10.75 1.800 20.00 100452
4″ DIPS 11 200 4.800 6.56 0.68 6.00 0.436 1.65 100446
6″ DIPS 11 200 6.900 8.60 1.00 8.00 0.627 4.35 100447
8″ DIPS 11 200 9.050 10.72 1.25 9.00 0.823 8.00 100448
10″ DIPS 11 200 11.10 12.15 1.35 9.00 1.009 12.20 100449
12″ DIPS 11 200 13.20 15.94 1.81 10.78 1.200 20.08 100450
