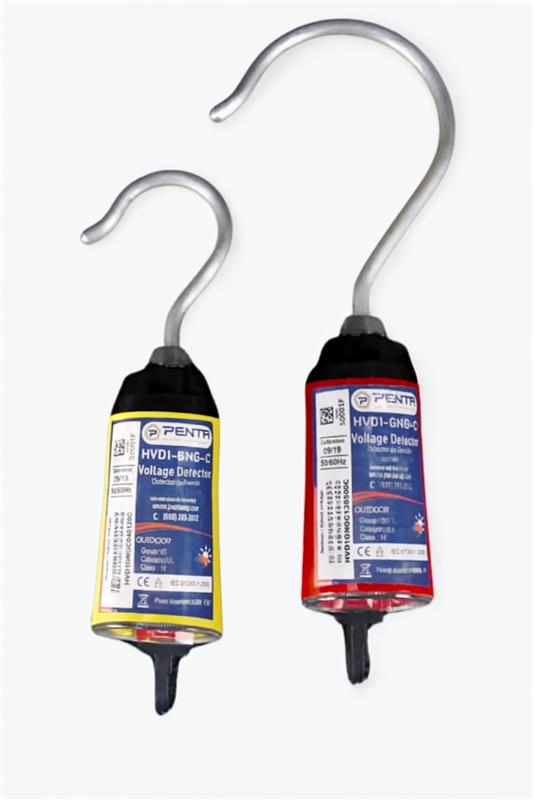

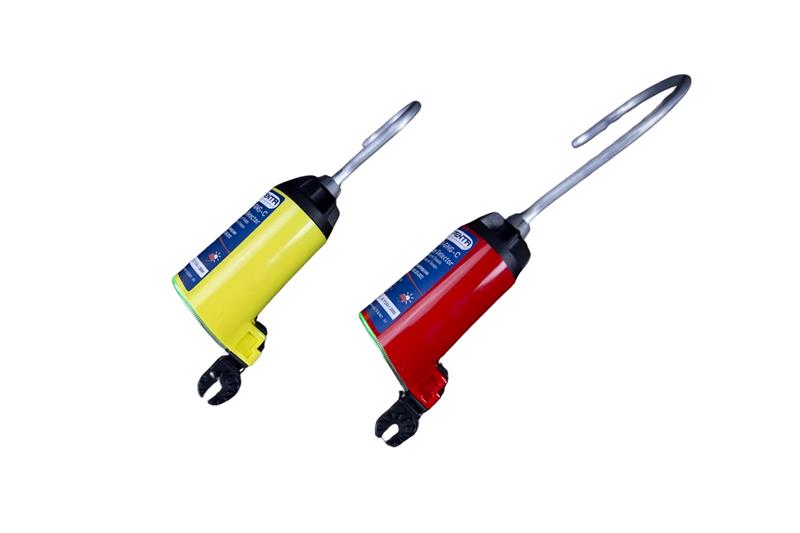

HVD1 High Voltage Detector | 60kV to 500kV Range — Product Overview

The HVD1 High Voltage Detector is a reliable, high-performance device designed for "proving dead" and ensuring the absence of nominal voltage in high voltage (HV) transmission systems. This device is specifically built to detect nominal voltage in overhead lines and stations, ensuring the safety of grounding operations while avoiding interference from most induced voltages. Ideal for use in HV systems ranging from 50kV to 765kV, the HVD1 offers an essential tool for maintaining safety during maintenance or emergency operations.

Key Features:

• Voltage Range: Available in various models, including 60kV to 220kV, 220kV to 500kV, 69kV to 230kV, and 138kV to 500kV. Customizable from 50kV to 765kV.
• Proving Dead Functionality: Ensures no nominal voltage is present, facilitating safe grounding operations.

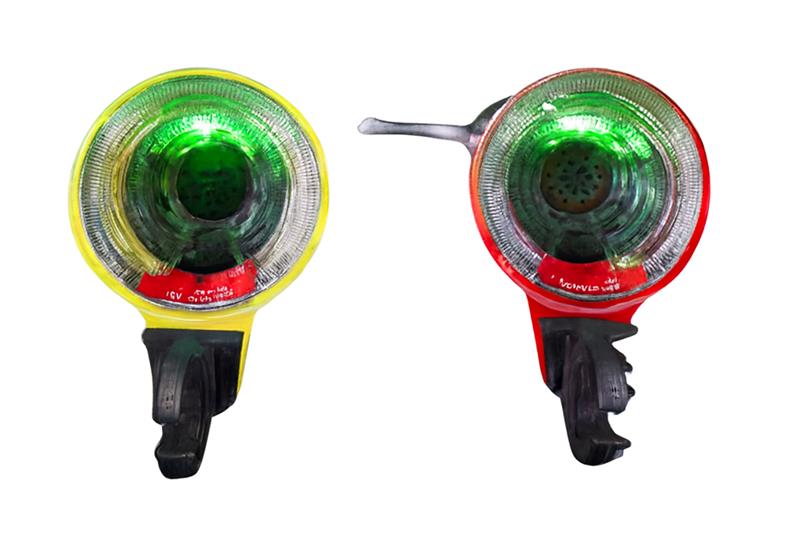

• Visual & Audible Alerts: A wide-angle optic ring design provides clear visual indications, even in foggy or sunny conditions. The acoustic horn emits an amplified signal up to 100dB, ideal for noisy environments.
• Easy Battery Access: Battery and sealed electronics are easily accessible, preventing accidental interchange of housing or circuitry.
• Durable Design: The sealed electronics protect against damage from humidity ingress, particularly when replacing the battery outdoors.
• Replaceable Adaptors: Comes with replaceable adaptors for different stick end fittings for versatility and adaptability.

Technical Specifications:

• Voltage Range: Customizable between 50kV and 765kV.
• Indication: Visual and audible signals clearly recognized in all working conditions (fog, sunlight).
• Audio Output: 100dB acoustic horn for noisy environments.
• Battery Access: Easy access with sealed electronics for safety.
• Environmentally Durable: Prevents humidity ingress when replacing battery outdoors.

The HVD1 High Voltage Detector is a critical safety tool designed for use by electrical professionals in the field. Its customizable range and robust features make it a versatile solution for high voltage detection in any environment.
