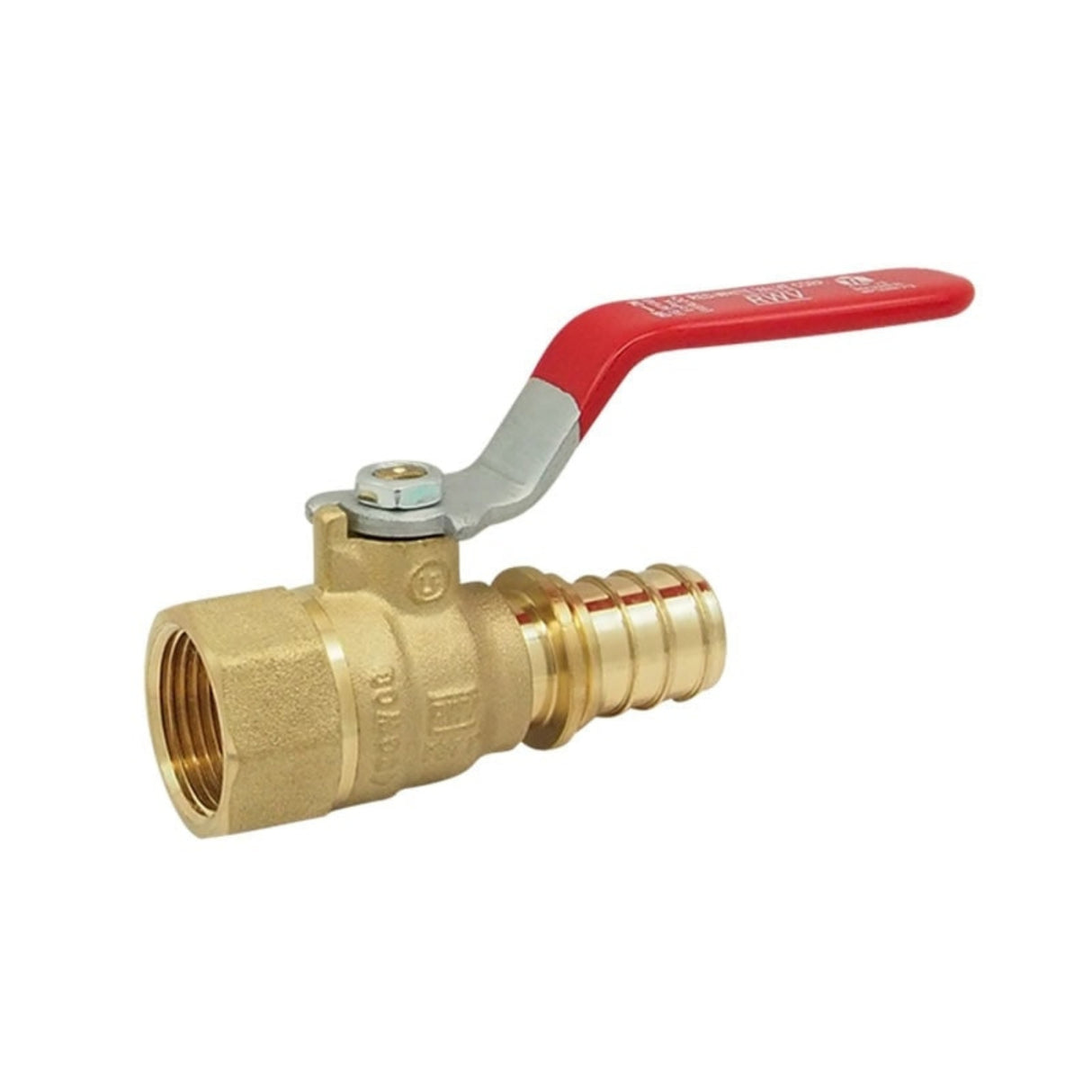

5416AB Series Hydronic Ball Valves combine REHAU’s EVERLOC+® compression-sleeve technology with a robust female NPT threaded connection to deliver a professional-grade solution for modern hydronic and potable water systems. Built from DZR (Dezincification-Resistant) lead-free brass, these valves are fully certified for safe drinking water use and are engineered to perform under demanding conditions while maintaining easy installation and long service life.
Key Features & Benefits
- Lead-Free DZR Brass Body — Manufactured to ASTM B927 C27453 standards; resists dezincification and corrosion in potable water systems.
- EVERLOC+ × FNPT Connections — Compatible with REHAU PEXa pipe and EVERLOC+ compression sleeves on one end, and a standard female NPT connection on the other.
- Full-Port Flow Design — Chrome-plated brass ball and virgin PTFE seats provide unrestricted flow and low operating torque.
- Dual NBR O-Ring Stem Seal — Leak-tight packing ensures lasting reliability and reduced maintenance.
- Blow-Out Proof Stem — Provides additional safety and compliance for high-pressure systems.
- Steel Handle with Dacromet® Finish — Durable, corrosion-resistant handle design for long-term performance.
- Pressure Rating — Rated 400 PSI WOG (Water, Oil, Gas) for maximum versatility in demanding installations.
- Certified Lead-Free — Meets CSA B125.14, AB1953, and NSF/ANSI 61 & 372 standards.
- Optional Versions — Available with wing handle (5416ABW) or extension stem for tight-space installations.
Installation Guidelines
Valves with EVERLOC+® compression-sleeve connections require REHAU PEXa pipe and EVERLOC+ compression sleeves. Installation must be performed using REHAU-approved EVERLOC+ tools. Follow current REHAU technical instructions available at the REHAU Resource Center. Licensed under REHAU patents (view patent list).
Dimension, Weight
| Size | A [in] | H [in] | L [in] | C [in] | P [in] | Thread | Weight [lb] |
|---|---|---|---|---|---|---|---|
| 1/2" | 2.49 | 1.38 | 3.19 | 0.61 | 0.38 | 1/2 - 14 NPT | 0.31 |
| 3/4" | 3.13 | 1.77 | 3.58 | 0.63 | 0.60 | 3/4 - 14 NPT | 0.55 |
| 1" | 3.73 | 1.93 | 3.58 | 0.75 | 0.77 | 1 - 11.5 NPT | 0.79 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2 | End Piece | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3 | Ball | Chrome-Plated DZR Lead-Free Brass | ASTM B927 C27453 |
| 4 | Seat | PTFE | - |
| 5 | Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6 | O-Ring | NBR | NSF Approved |
| 7 | Handle | Steel, Dacromet® Plated | ASTM A36 |
| 8 | Handle Nut | Steel, Zinc Plated | ASTM A36 |
