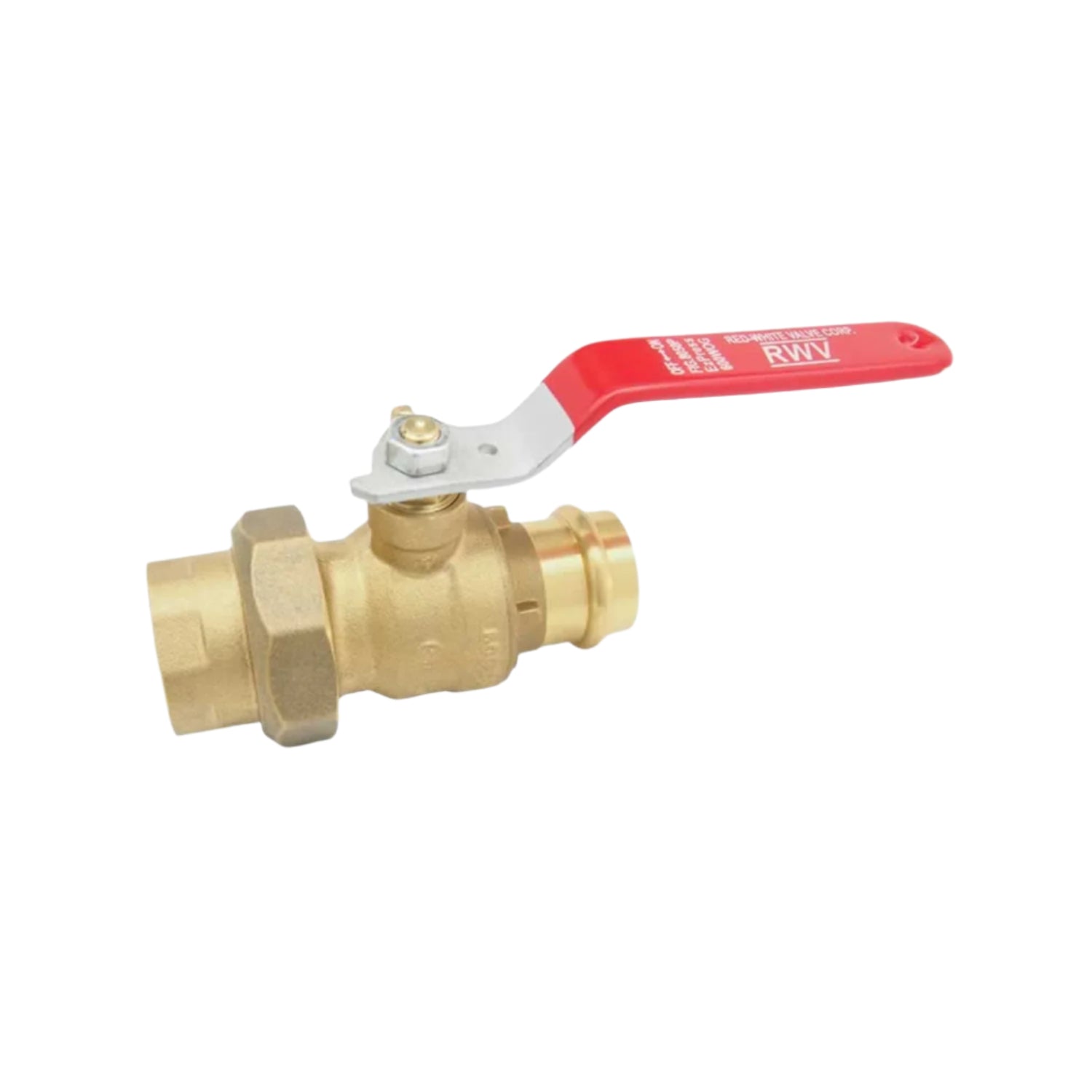

Hydronic Union Valve | 8050P-PF Series | Press × FNPT | Full Port | DZR Lead-Free Brass
$30.00
Unit price
/
Select Option
Hydronic Union Valve | 8050P-PF Series | Press × FNPT | Full Port | DZR Lead-Free Brass
The Red-White Valve 8050P-PF Union Valve provides a secure, high-performance solution for hydronic and plumbing systems requiring press-to-threaded transitions. Crafted from DZR (Dezincification-Resistant) lead-free brass and rated for 250 PSI WOG, this union body ball valve combines fast installation, corrosion resistance, and long-term reliability in potable-water and heating applications.
Key Features & Benefits
- Press × FNPT Connection — Combines quick, reliable press-fit installation with secure female-threaded sealing for system flexibility.
- DZR Lead-Free Brass Body — ASTM B927 C27453 construction meets AB1953 and NSF/ANSI 61 & 372 certifications for potable-water safety.
- Full-Port Chrome-Plated Ball — Enables unrestricted flow and smooth operation while reducing wear and scale buildup.
- Union Body Design — Simplifies valve removal and service without cutting pipe or disturbing adjacent joints.
- Adjustable Packing Gland — Maintains a leak-free seal over time under temperature and pressure cycling.
- Blow-Out Proof Stem — Provides additional safety in pressurized systems.
Technical Specifications
- Body Material: DZR Lead-Free Brass (ASTM B927 C27453)
- Seats: Virgin PTFE
- O-Rings: EPDM Perox 70 SH (NSF Approved)
- Pressure Rating: 250 PSI WOG
-
Temperature Range: 15 °F to 260 °F
- Below 32 °F – use antifreeze additives
- Above 212 °F – use anti-boil additives
- Certifications: AB1953, NSF/ANSI/CAN 61 & 372
Dimension, Weight
| Part # | Size | φT [in] | φA [in] | B [in] | D [in] | E [in] | F [in] | G [in] | H [in] | L [in] | φP [in] | Wt. [lb] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8050P 075P075P | 3/4″ | 3/4 – 14 NPT | 0.89 | 0.98 | 0.73 | 3.08 | 3.88 | 5.55 | 2.20 | 3.60 | 0.73 | 0.97 |
| 8050P 100P100P | 1″ | 1 – 11.5 NPT | 1.14 | 1.06 | 0.75 | 3.35 | 4.35 | 7.23 | 2.57 | 4.98 | 0.98 | 1.52 |
| 8050P 125P125P | 1-1/4″ | 1-1/4 – 11.5 NPT | 1.39 | 1.06 | 0.77 | 3.58 | 4.57 | 7.35 | 2.74 | 4.98 | 1.23 | 2.13 |
Material
| Part | Material | Specification |
|---|---|---|
| 1–2 | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3 | LF Brass / Chrome Plated | ASTM B927 C27450 |
| 4 | PTFE Seat | – |
| 5 | DZR Brass Stem | ASTM B927 C27453 |
| 6, 13 | EPDM Perox 70 SH O-Ring | NSF Approved |
| 7 | PTFE Packing Ring | – |
| 8 | Brass Packing Nut | ASTM B124 C37700 |
| 9 | Steel Handle / Dacromet® Plated | ASTM A36 |
| 10 | Steel Nut / Zn Plated | ASTM A36 |
| 11 | Brass Union Nut | ASTM B283 C37700 |
| 12 | DZR Lead-Free Brass Union | ASTM B927 C27453 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
