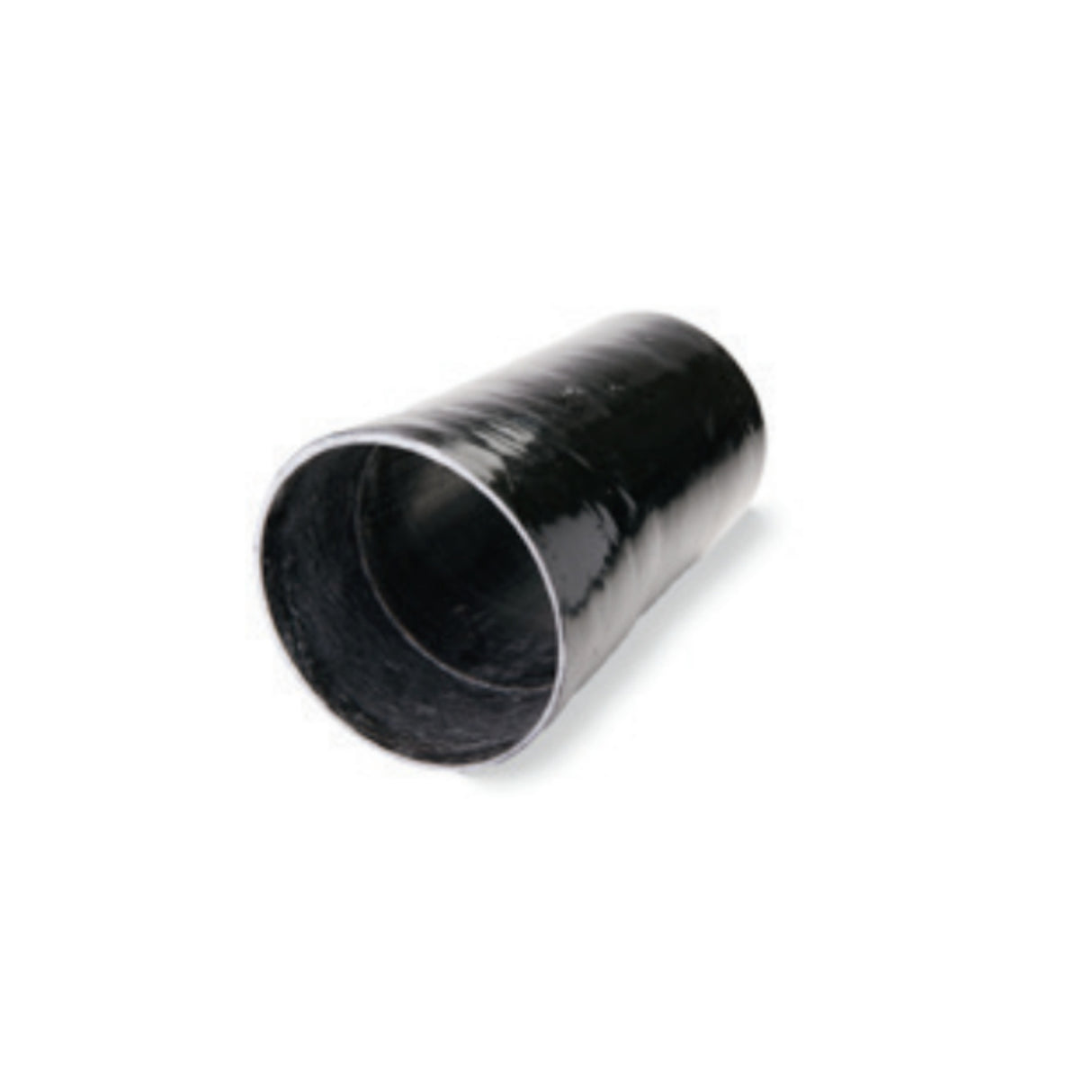

ID Telecom Conduit - SW Standard Wall, Multiple Joints - ABOVE GROUND
The ID (Inside Diameter) Telecom Conduit is an essential choice for telecom applications in Canada, designed specifically for above-ground installations. Engineered to provide a durable and reliable solution, this conduit offers flexibility in installation while maintaining the performance needed for telecom infrastructure.
Designed for Versatility and Compatibility
This conduit type features a smaller Outside Diameter (OD) compared to traditional IPS conduit, allowing it to be used with standard pipe clamps. While it is compatible with standard clamps, careful attention must be paid to sizing to ensure a proper fit. To guarantee that the clamp fits securely, choose the right pipe clamp with an inside diameter that matches the conduit’s OD. It’s important to note that while standard pipe clamps can be used, the fit may not be as optimized as with other conduit types, so proper matching is essential for a secure and safe installation.
Flexible Sizing Options and Connection Types
The ID Telecom Conduit is available in sizes ranging from 2" to 6", providing flexibility for different installation requirements. Whether you are working on a small-scale project or a larger telecom setup, these conduit sizes offer a range of options to fit your needs.
In addition to its varied sizing, this conduit offers two types of joint connections for ease of installation:
Ideal for Above-Ground Installations
This conduit is specially designed for above-ground use, offering resilience and protection for telecom cables exposed to the elements. Its robust construction ensures that it can withstand harsh conditions, providing a long-lasting solution for outdoor telecom applications.
Key Features:
- Application: Perfect for Canadian telecom installations, designed to meet industry-specific requirements.
- Material: SW Standard Wall for durability and long-lasting performance in outdoor environments.
- Sizes Available: 2"–6", catering to a wide range of telecom needs.
- Connection Types: Choose between straight socket (-S) or interference joint (-I) connections for a secure and customizable fit.
- Compatibility: Can be used with standard pipe clamps (with the correct sizing), providing flexibility in installation.
- Above Ground Installation: Ideal for above-ground applications, offering protection and reliability for telecom cables.
Ensure that your telecom installation is both secure and efficient with the ID Telecom Conduit, designed for optimal performance in above-ground applications. Whether you need flexibility in sizing or a specific connection type, this conduit offers the perfect solution to meet your requirements.
(ABOVE GROUND)

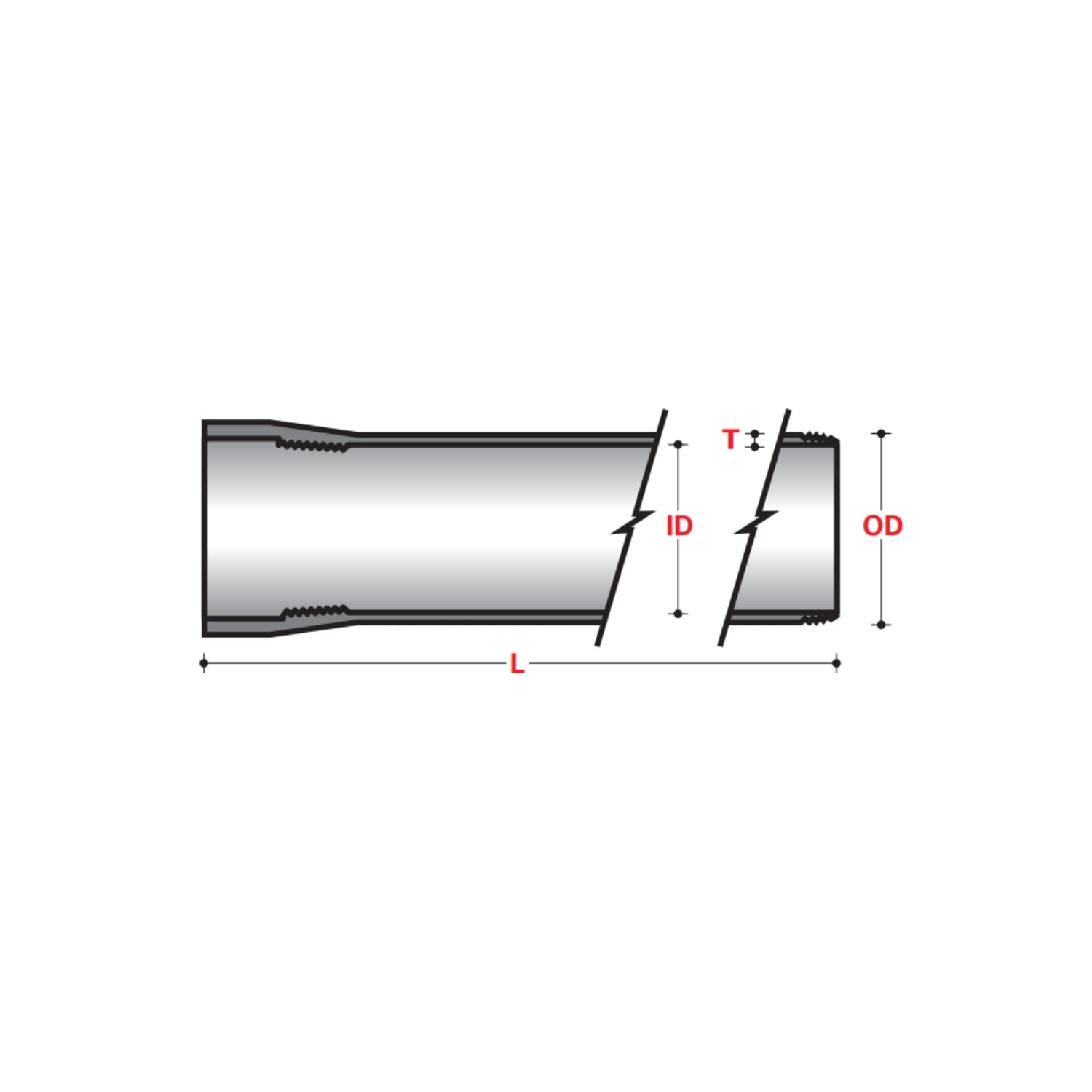

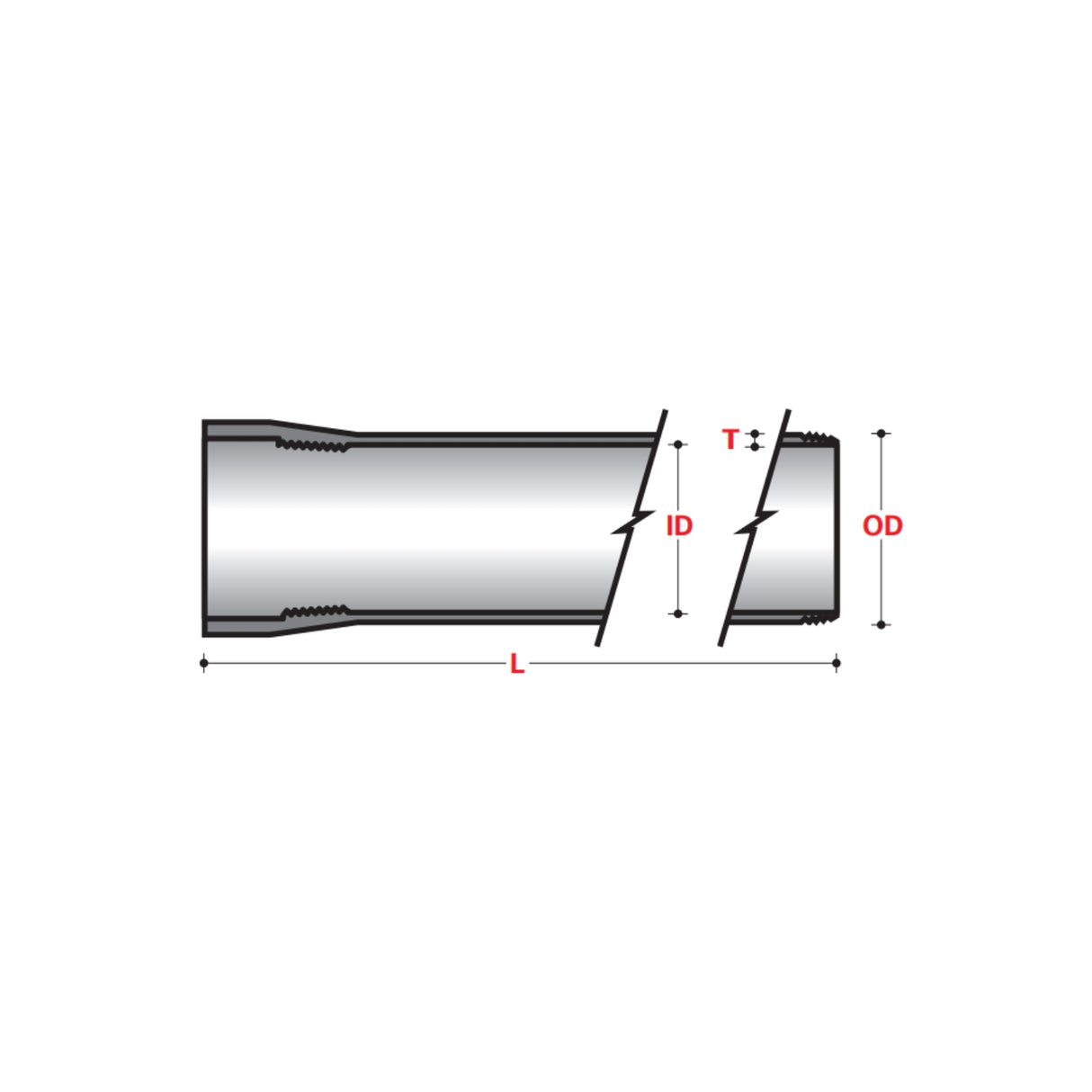

| Nominal Size | ID Item No Above Ground | UL/CSA Listed | Outside Diameter - Average | Outside Diameter - Tolerance | Min. Inside Diameter | Nominal Wall Thickness (T) | Length (L) | Weight lbs/ft | Weight kg/m |
|---|---|---|---|---|---|---|---|---|---|
| 2" (51) | 20D-SW-20-I | Yes | 2.140" (54) | +0.028" / -0.018" (0.7 / 0.4) | 2.000" (51) | .070" (2) | 20 ft (6.1 m) | 1.34 (0.51) | 0.51 (0.51) |
| 2-1/2" (64) | 25D-SW-20-I | Yes | 2.640" (67) | +0.028" / -0.018" (0.7 / 0.4) | 2.500" (64) | .070" (2) | 20 ft (6.1 m) | 1.42 (0.63) | 0.63 (0.63) |
| 3" (76) | 30D-SW-20-I | Yes | 3.140" (80) | +0.028" / -0.018" (0.7 / 0.4) | 3.000" (76) | .070" (2) | 20 ft (6.1 m) | 1.48 (0.72) | 0.72 (0.72) |
| 3-1/2" (89) | 35D-SW-20-I | Yes | 3.640" (92) | +0.028" / -0.018" (0.7 / 0.4) | 3.500" (89) | .070" (2) | 20 ft (6.1 m) | 1.60 (0.89) | 0.89 (0.89) |
| 4" (102) | 40D-SW-20-I | Yes | 4.140" (105) | +0.028" / -0.018" (0.7 / 0.4) | 4.000" (101) | .070" (2) | 20 ft (6.1 m) | 0.66 (1.12) | 0.75 (1.12) |
| 4-1/2" (114) | 45D-SW-20-I | Yes | 4.640" (118) | +0.028" / -0.018" (0.7 / 0.4) | 4.500" (114) | .070" (2) | 20 ft (6.1 m) | 1.15 (1.23) | 1.23 (1.23) |
| 5" (127) | 50D-SW-20-I | Yes | 5.140" (131) | +0.028" / -0.018" (0.7 / 0.4) | 5.000" (127) | .070" (2) | 20 ft (6.1 m) | 1.52 (1.52) | 1.52 (1.52) |
| 6" (152) | 60D-SW-20-I | Yes | 6.140" (156) | +0.028" / -0.018" (0.7 / 0.4) | 6.000" (152) | .090" (2) | 20 ft (6.1 m) | 1.86 (2.77) | 2.77 (2.77) |
| 8" (203) | 80D-SW-20-I | Yes | 8.192" (208) | +0.036" / -0.018" (0.9 / 0.4) | 8.000" (203) | .119" (3) | 20 ft (6.1 m) | 3.03 (4.52) | 4.52 (4.52) |
| 10" (254) | 100D-SW-20-S | Yes | 10.250" (260) | +0.036" / -0.018" (0.9 / 0.4) | 10.000" (254) | .125" (3) | 20 ft (6.1 m) | 3.13 (4.65) | 4.65 (4.65) |
| 12" (305) | 120D-SW-20-I | Yes | 12.250" (311) | +0.036" / -0.018" (0.9 / 0.4) | 12.000" (305) | .125" (3) | 20 ft (6.1 m) | 3.64 (5.42) | 5.42 (5.42) |
