Jameson 60° Corner Block Cable Roller | Nylon Rollers | Single, Dual & Quad
$233.00
Unit price
/
Select Option
Jameson 60° Corner Block Cable Roller — Product Overview
Jameson 60° Corner Block Cable Rollers are designed for controlled aerial cable routing around angled pole transitions and directional changes less than 90°. These blocks help evenly distribute pulling pressure while maintaining cable control through directional changes. Each model features a 17" bend radius, durable steel side plates, nylon rollers, and an adjustable keeper arm to keep cable properly seated during installation.
- 60° Routing — Guides fiber and coax smoothly around angled pole transitions
- Multiple Configurations — Available in Single, Dual, and Quad setups for different pull requirements
- Nylon Rollers — Smooth cable guidance with reduced friction
- 1" Cable Capacity — Sized for standard fiber and coax installations
- View 90° Corner Blocks Here > LINK
- View Compatible Pole Mount Brackets Here > LINK
Available 60° Nylon Variants
| Part Number | Configuration | Max Cable Diameter | Recommended Use |
|---|---|---|---|

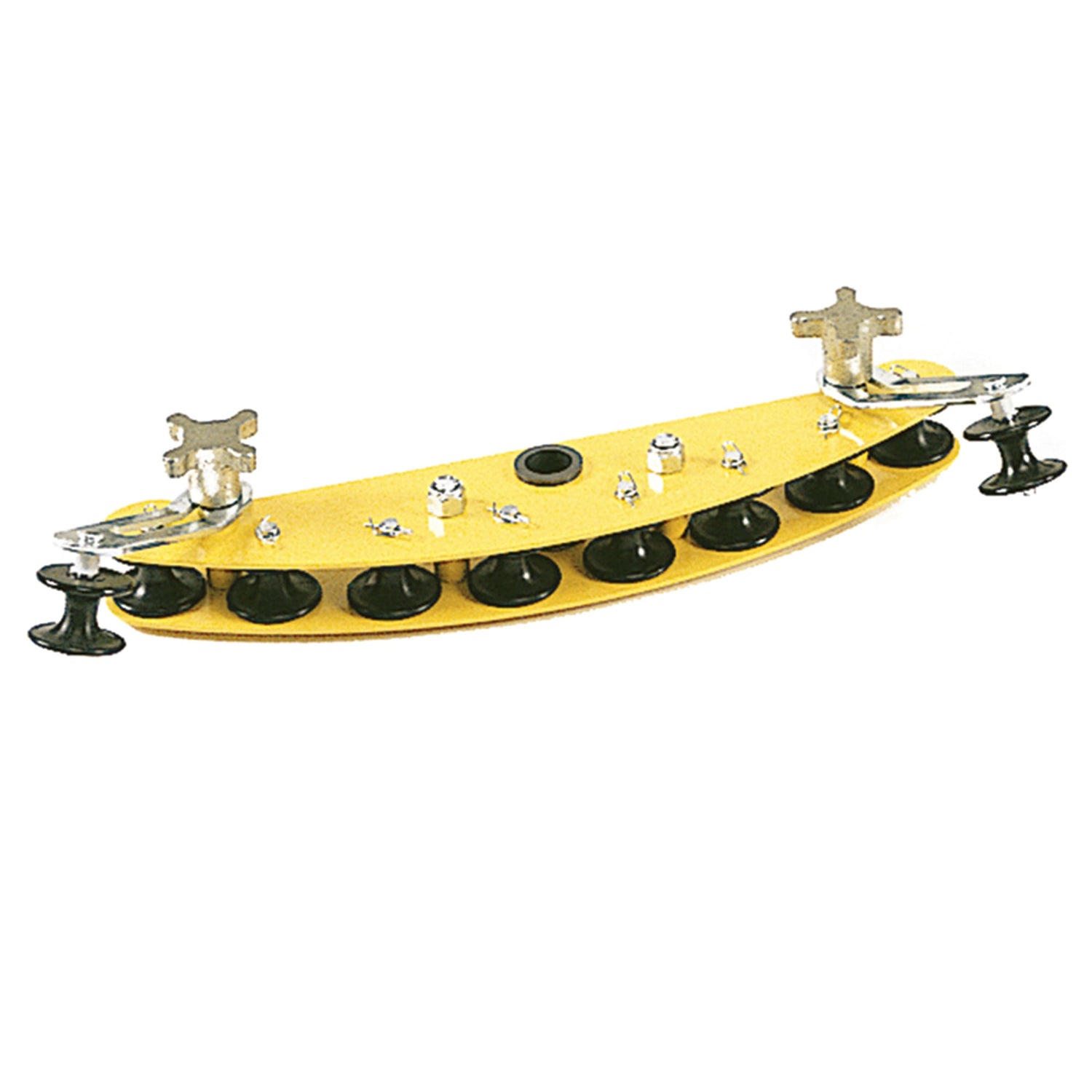

| 80-161 | Single | 1" | Light-duty fiber and coax routing |

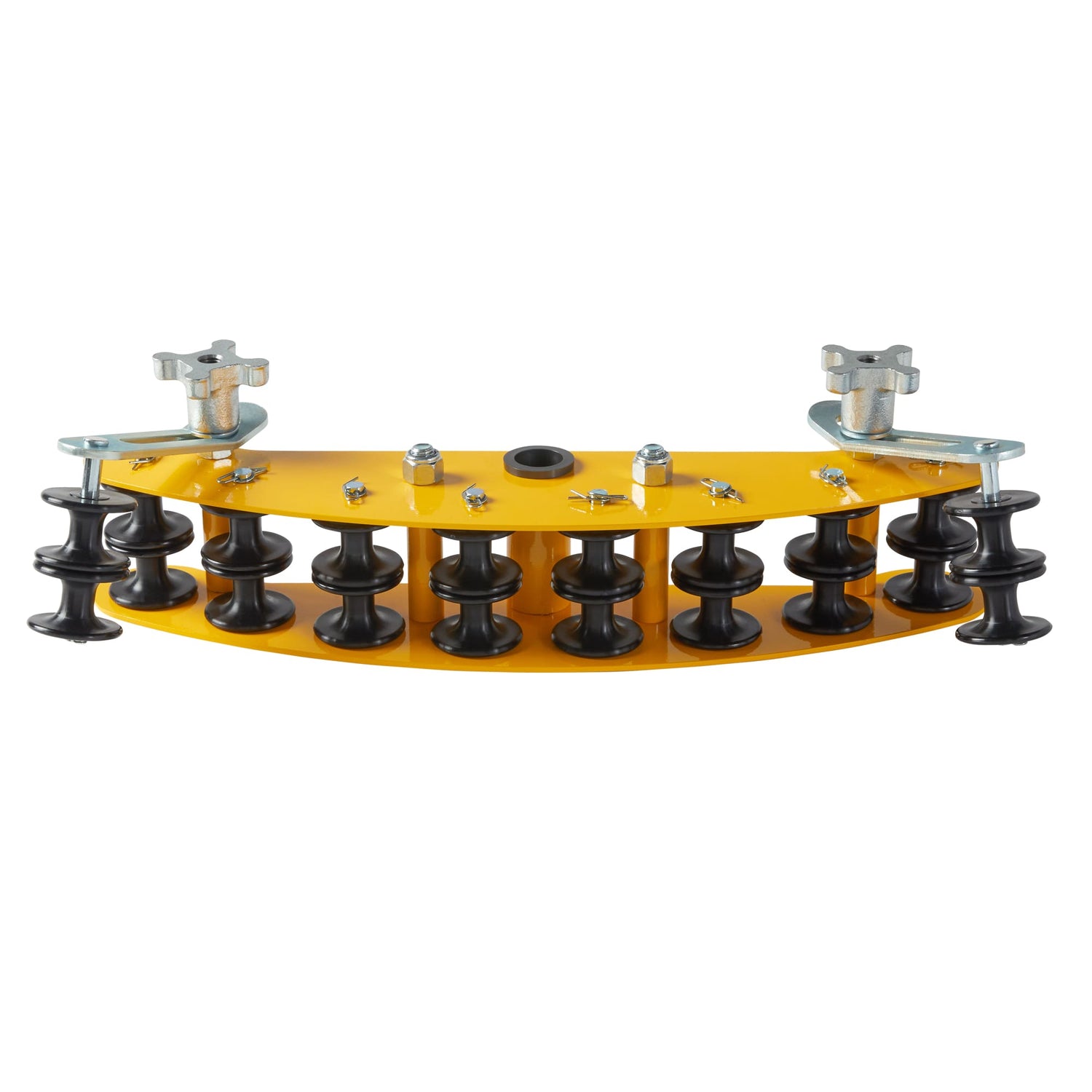

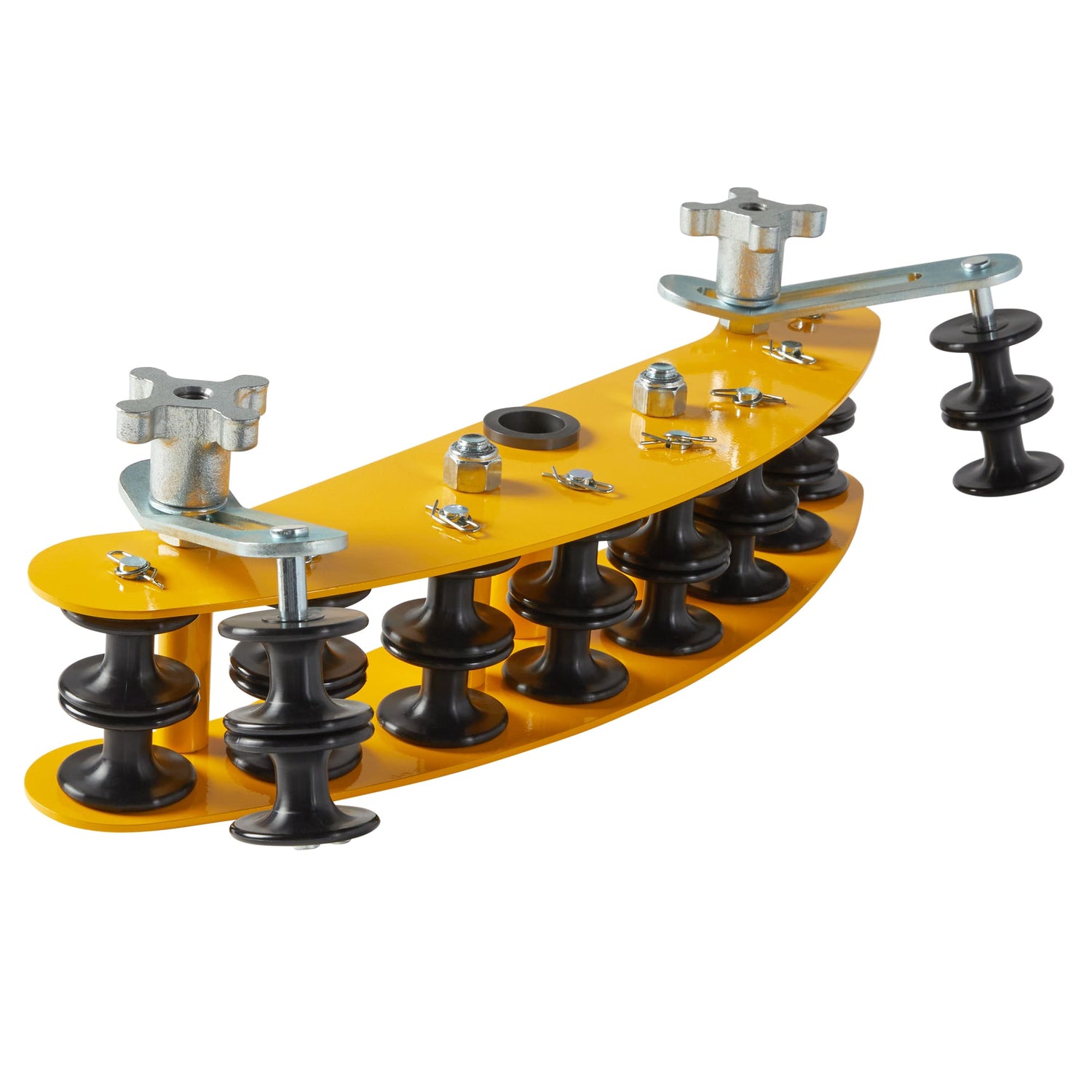

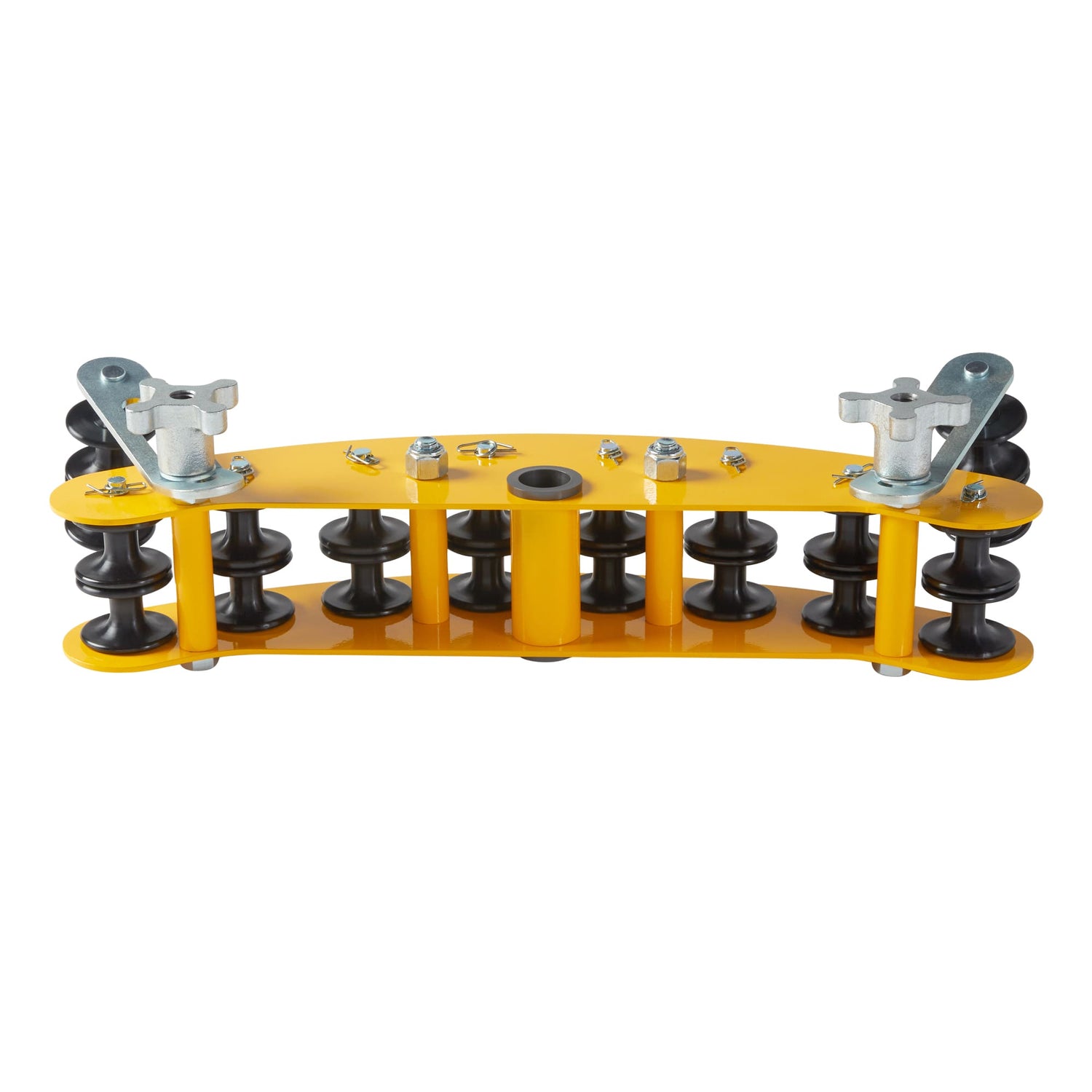

| 80-162 | Dual | 1" | Added cable support for mid-weight pulls |
| 80-164 | Quad | 1" | Maximum support for heavier 1" cable pulls |
Specifications
| Specification | Details |
|---|---|
| Corner Angle | 60° |
| Roller Material | Nylon |
| Max Cable Diameter | 1" |
| Bend Radius | 17" |
| Side Plates | Steel; field-replaceable |
| Keeper Arm | Adjustable |
Compatible Pole Mount Brackets (Sold Separately)
| Corner Block Model | Compatible Bracket |
|---|---|
| 80-161 (Single) | 70-101 |
| 80-162 (Dual) | 70-102 |
| 80-164 (Quad) | 70-104 |
What’s Included
- Corner Block Assembly — (1) Selected 60° nylon corner block
Safety note: Keep hands clear of rollers and pinch points during setup and pulling. Use appropriate PPE and follow standard aerial cable-handling procedures.
