Fiber Driver Installation System for Final Drop Work
The Jameson Fiber Driver Installation System is a complete, job-ready setup for final drop installs—combining a drill-driven fiber pusher, cable winder, and collapsible spool stand for true reel-to-duct installation. Choose the system option that matches your conduit OD range, then stage the reel on the Spool Mule, manage slack with the Fiber Winder, and drive flat drop fiber into duct with controlled feed.
- Complete 3-piece system. Fiber Driver Kit + Fiber Winder + Spool Mule for organized feed from reel to duct.

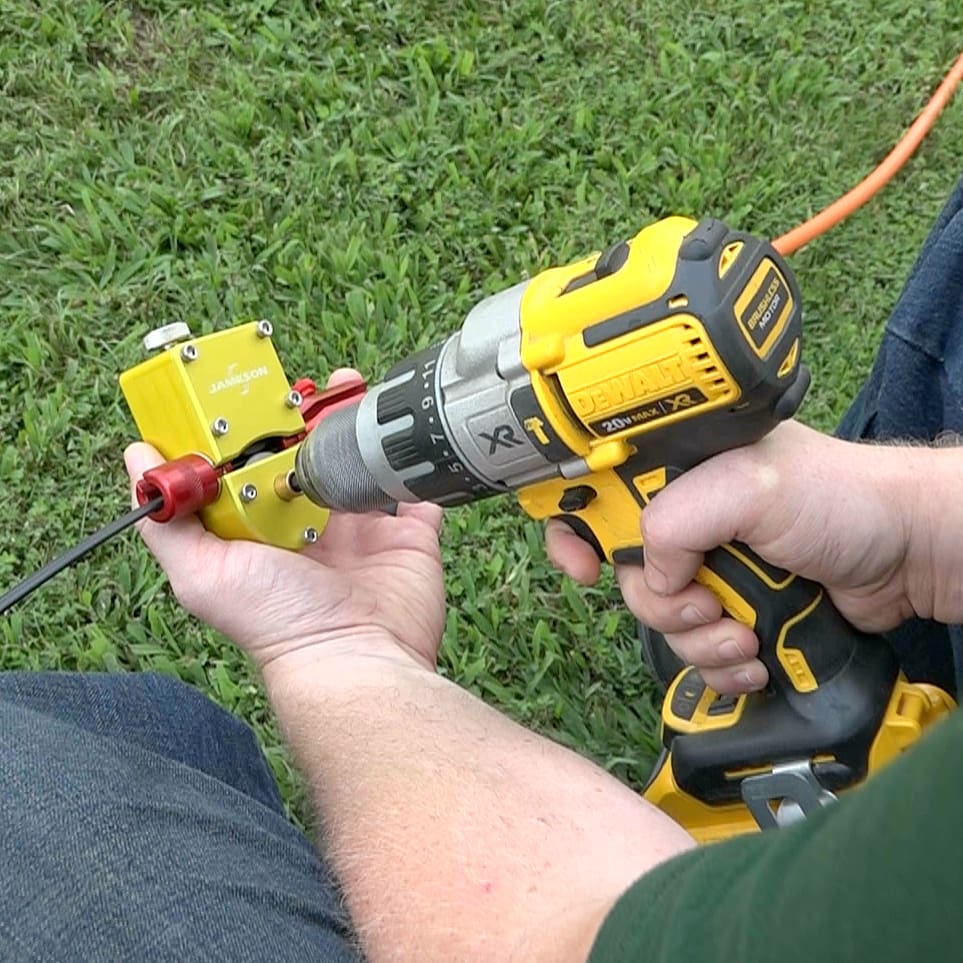

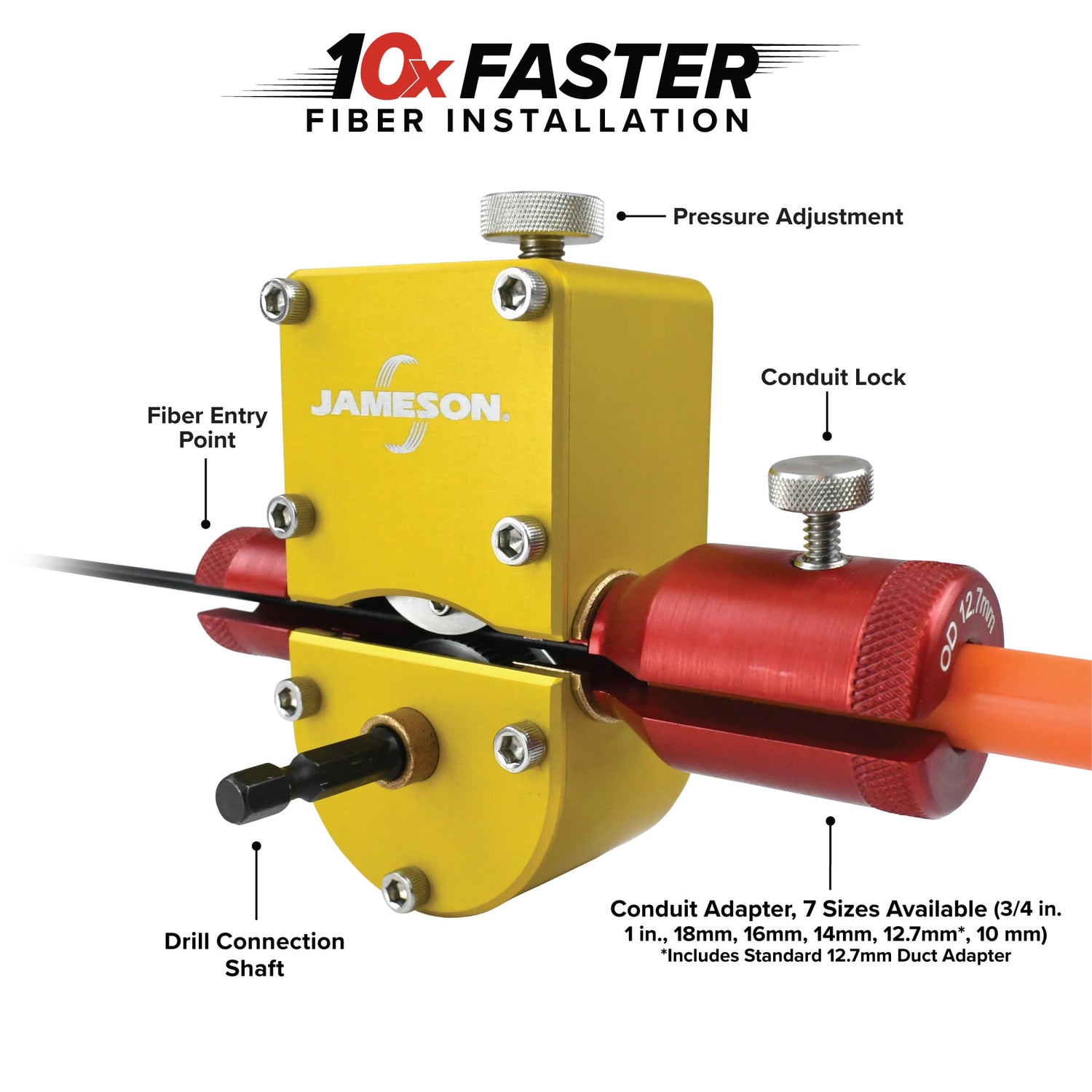

- Fast drill-driven installation. Forward/reverse operation with mid-span load/unload for easier control on short runs.
- 300’+ push capability. Designed to drive flat drop fiber into conduit/duct (application dependent).
- 36" spool capacity. Supports reels up to 100 lb.

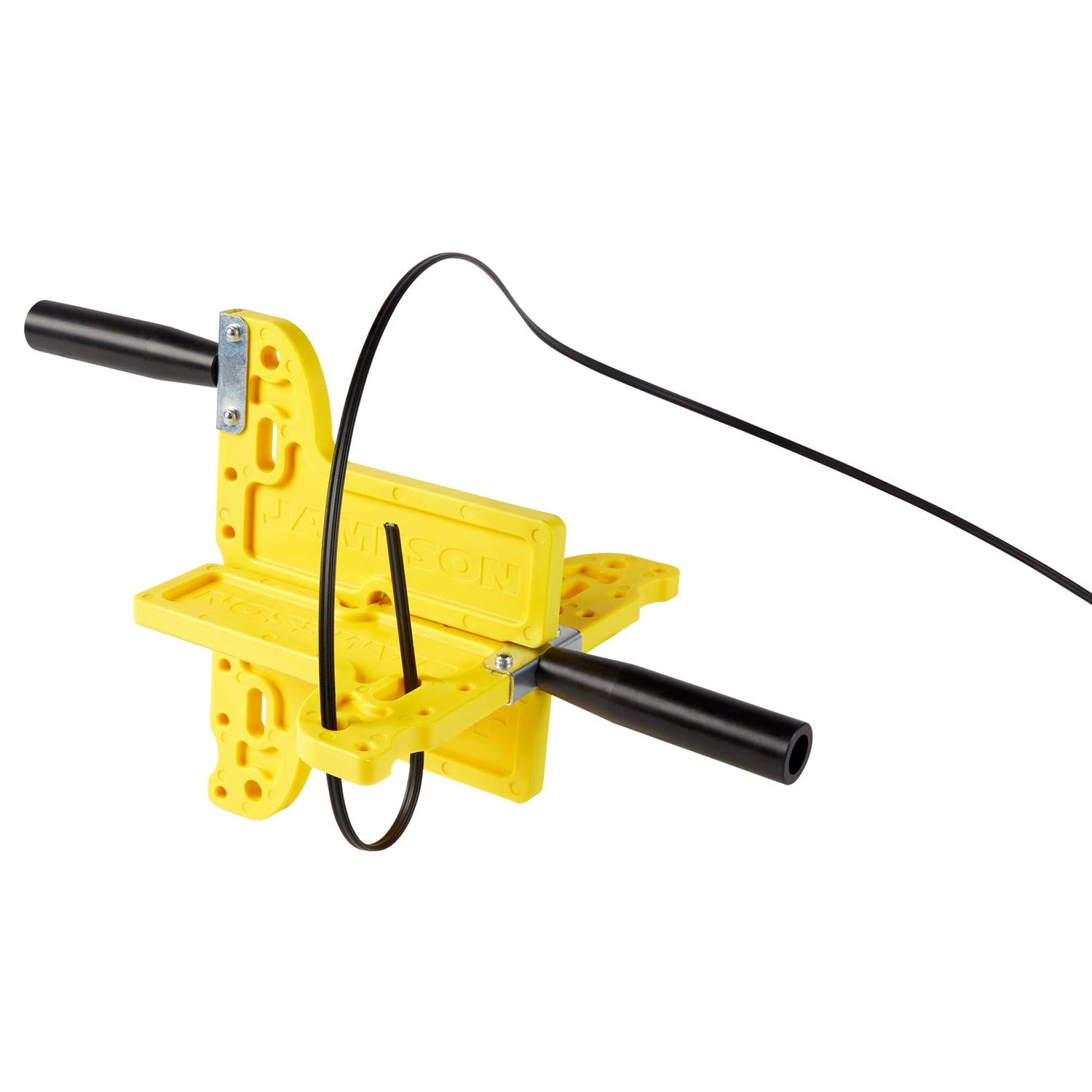

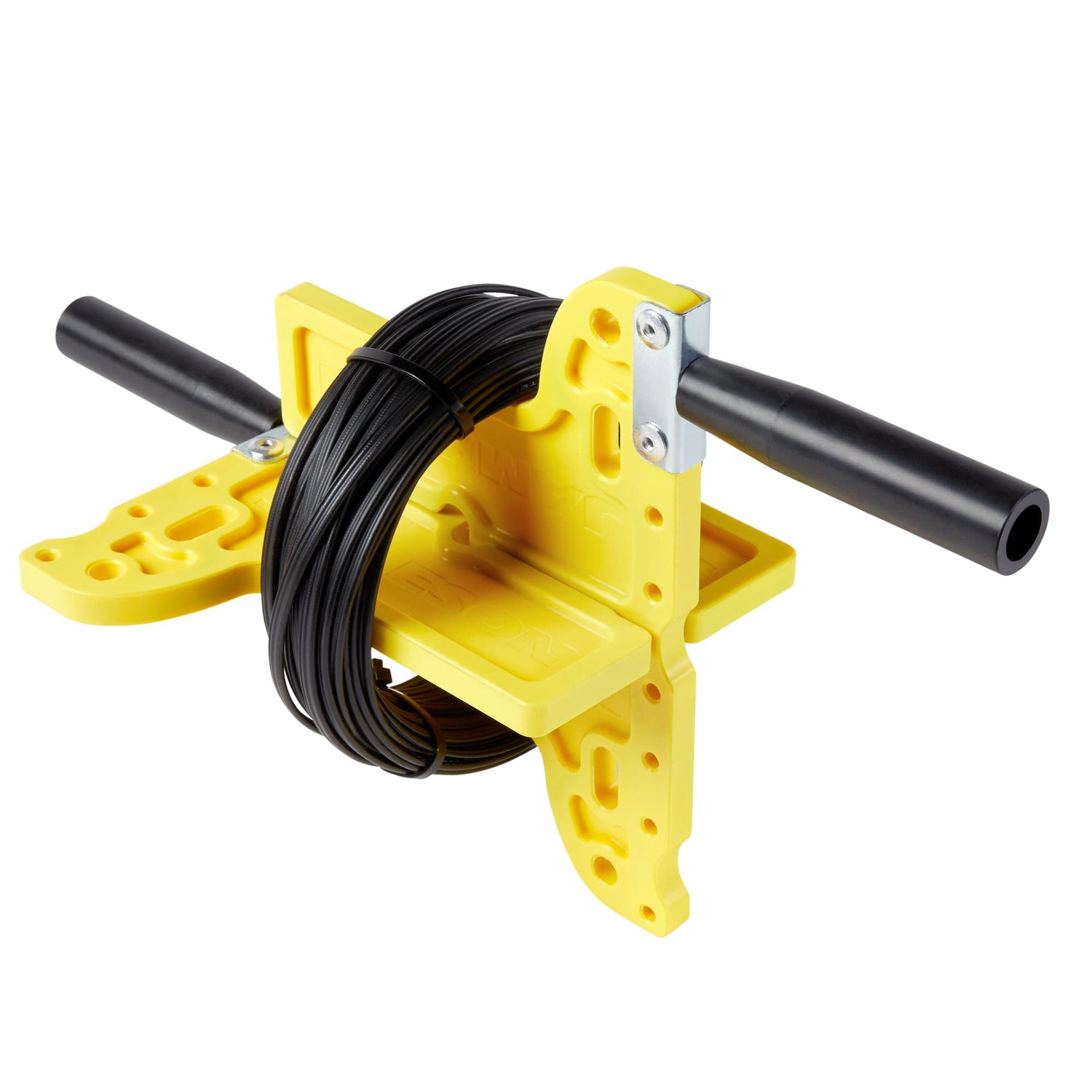

- Clean cable management. Fiber Winder holds up to 200 ft to reduce tangles and keep slack controlled.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Jameson Tools |
| System Use | Final drop fiber installation from reel to conduit/duct |
| Drive Method | Standard power drill (forward and reverse) – Drill not included |
| Push Distance | Up to 300’+ (application dependent) |
| Cable Type | Optimized for fiberglass reinforced flat drop optical cable (~0.3" wide); accommodates similar sizes |
| Spool Mule Capacity | Up to 36" spool diameter; 100 lb max load; 27" axle |
| Fiber Winder Capacity | Holds up to 200 ft of cable |
| Approx. Shipping Weight | ~32 lb (system) |
System Options
| System Option | Included Fiber Driver Adapter Set |
|---|---|

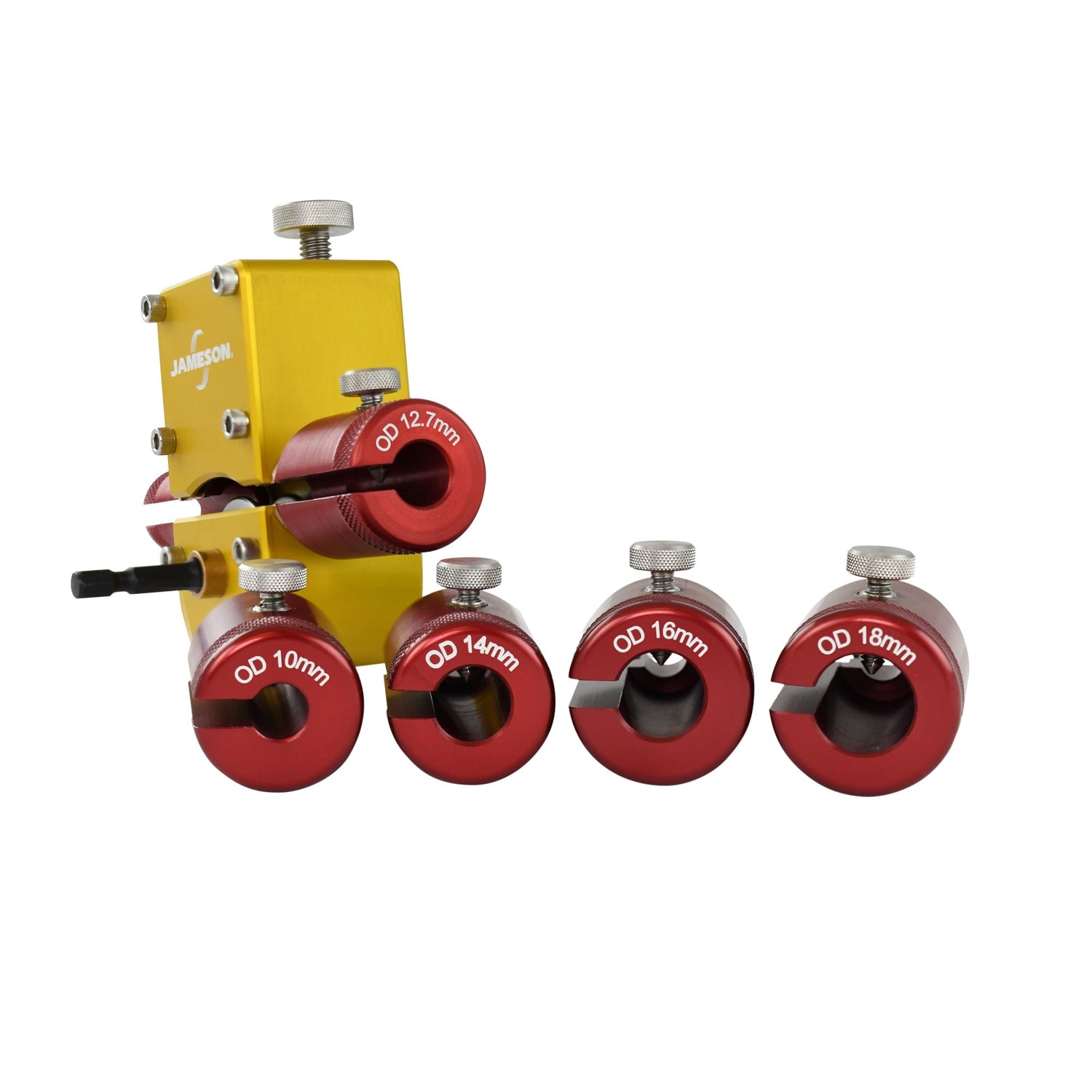

| System 1 | 10mm, 12.7mm, 14mm, 16mm, 18mm |
| System 2 | 14mm, 16mm, 18mm, 3/4", 1" |

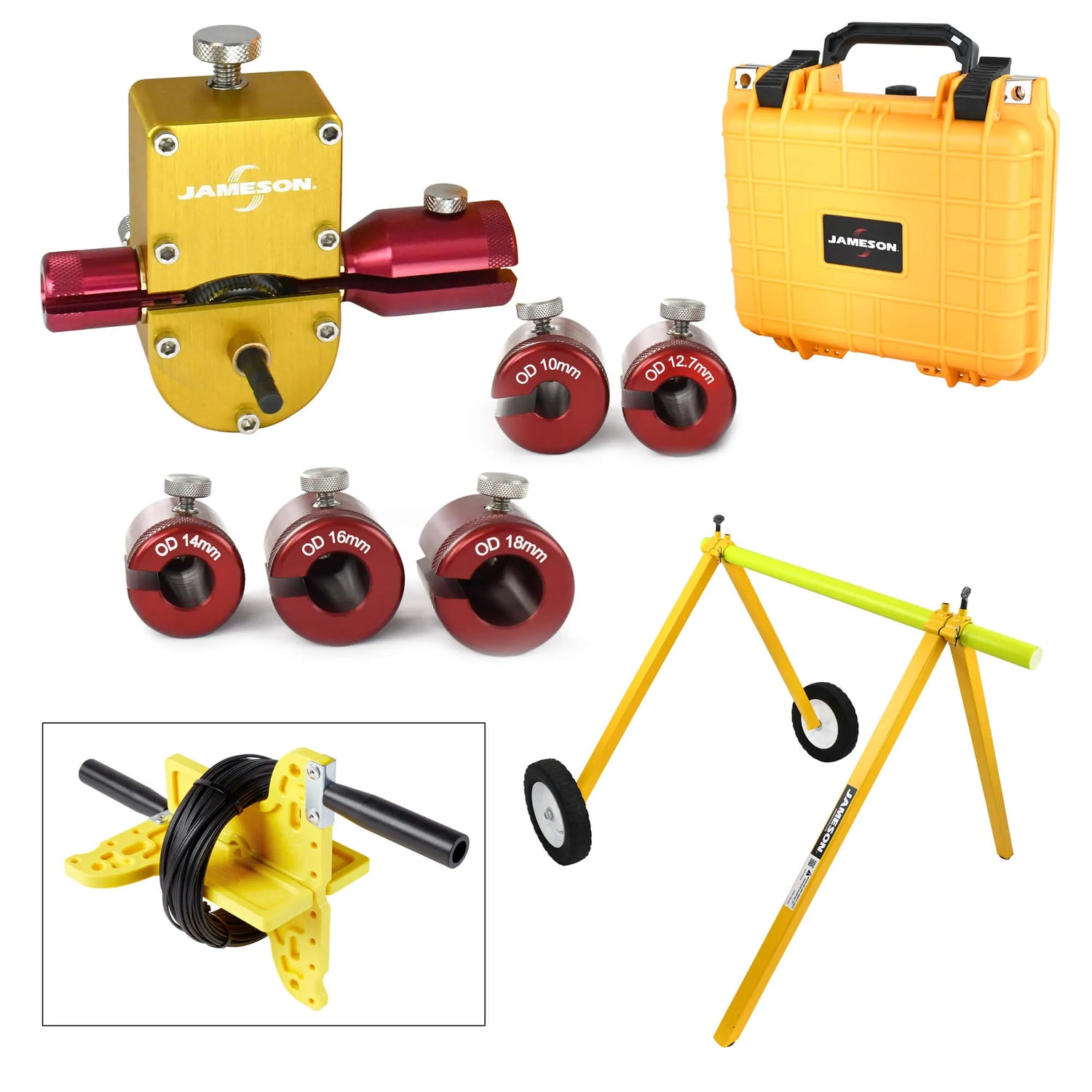

What’s Included

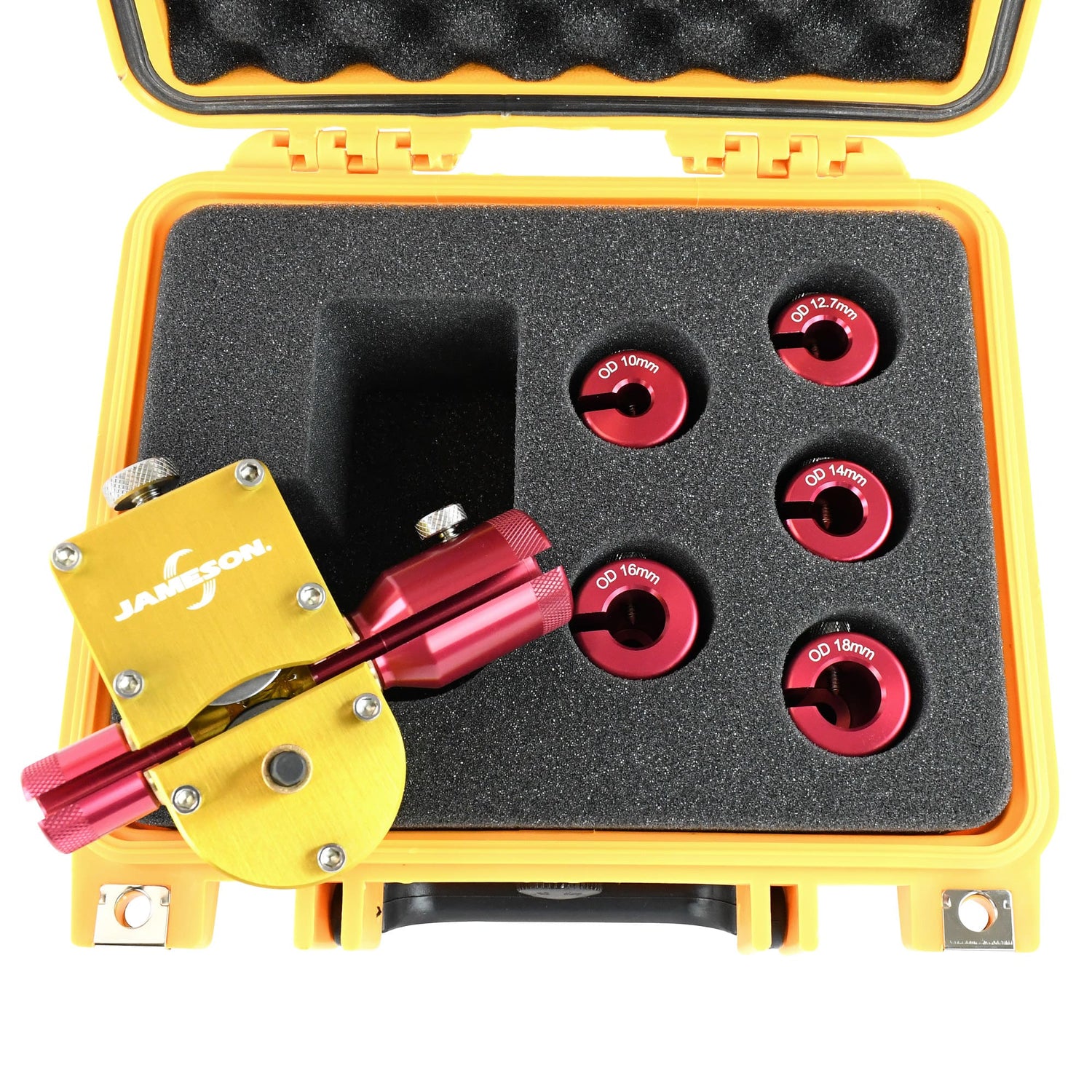

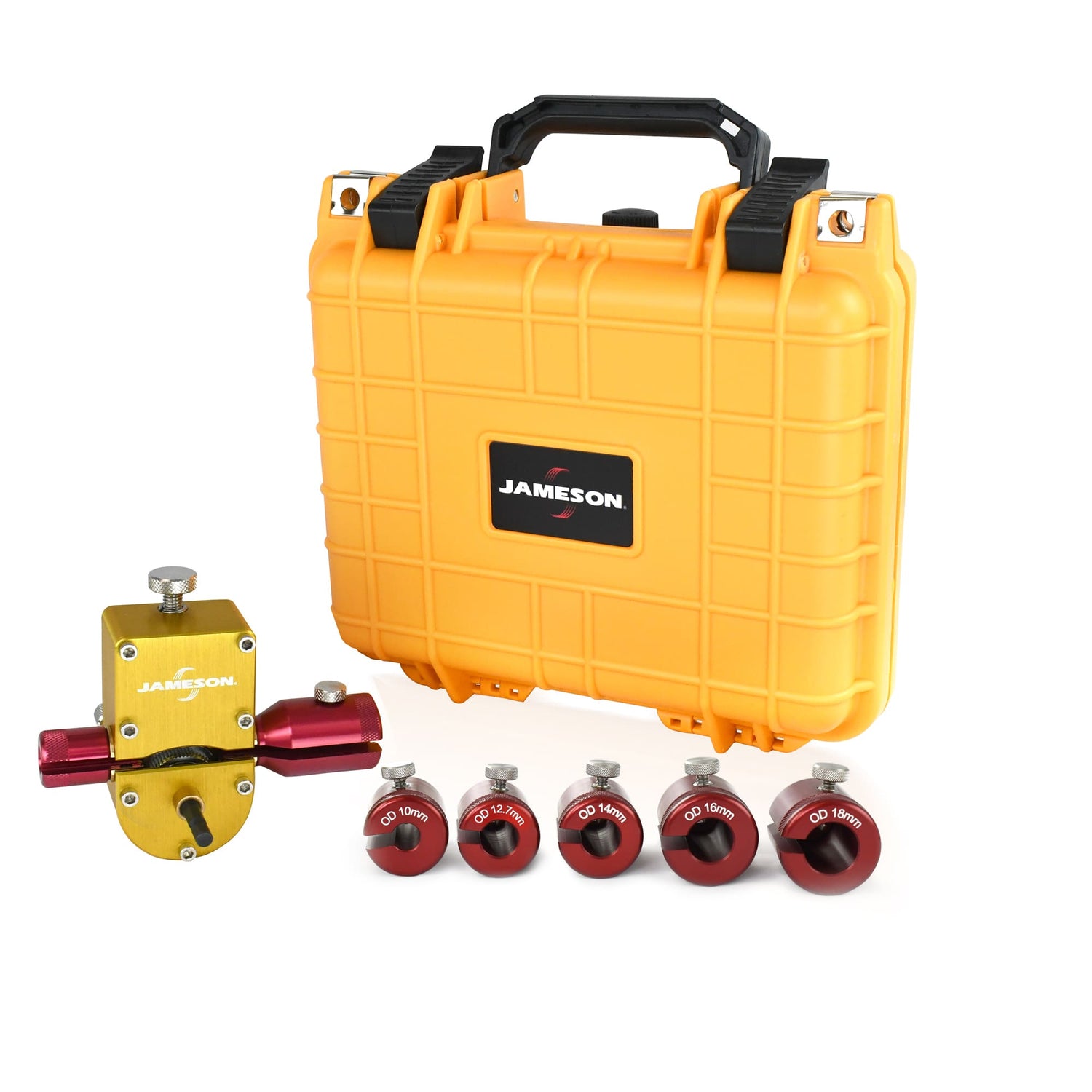

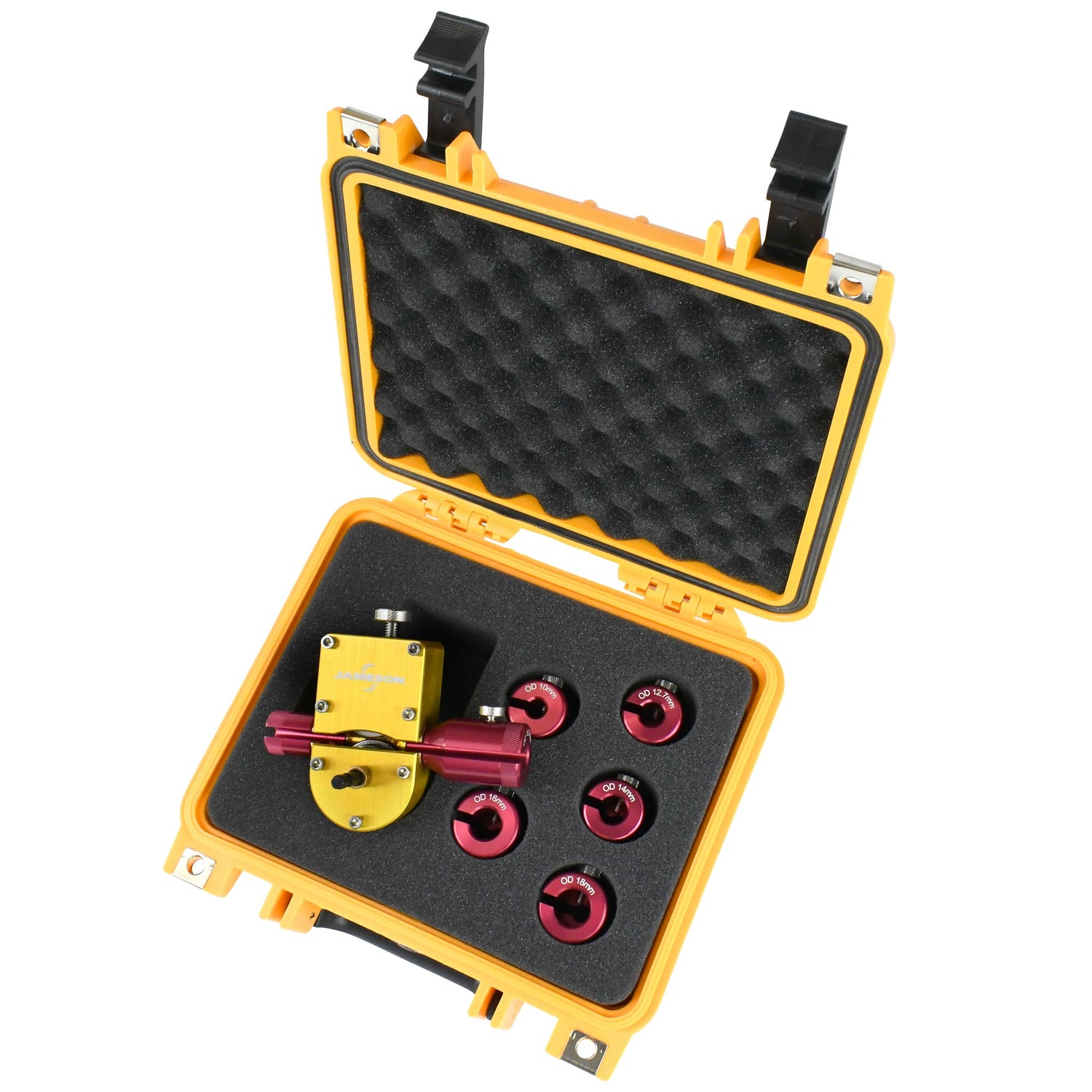

- Fiber Driver Kit (Fiber Driver tool, hard case, and (5) conduit adapters — set varies by system option)

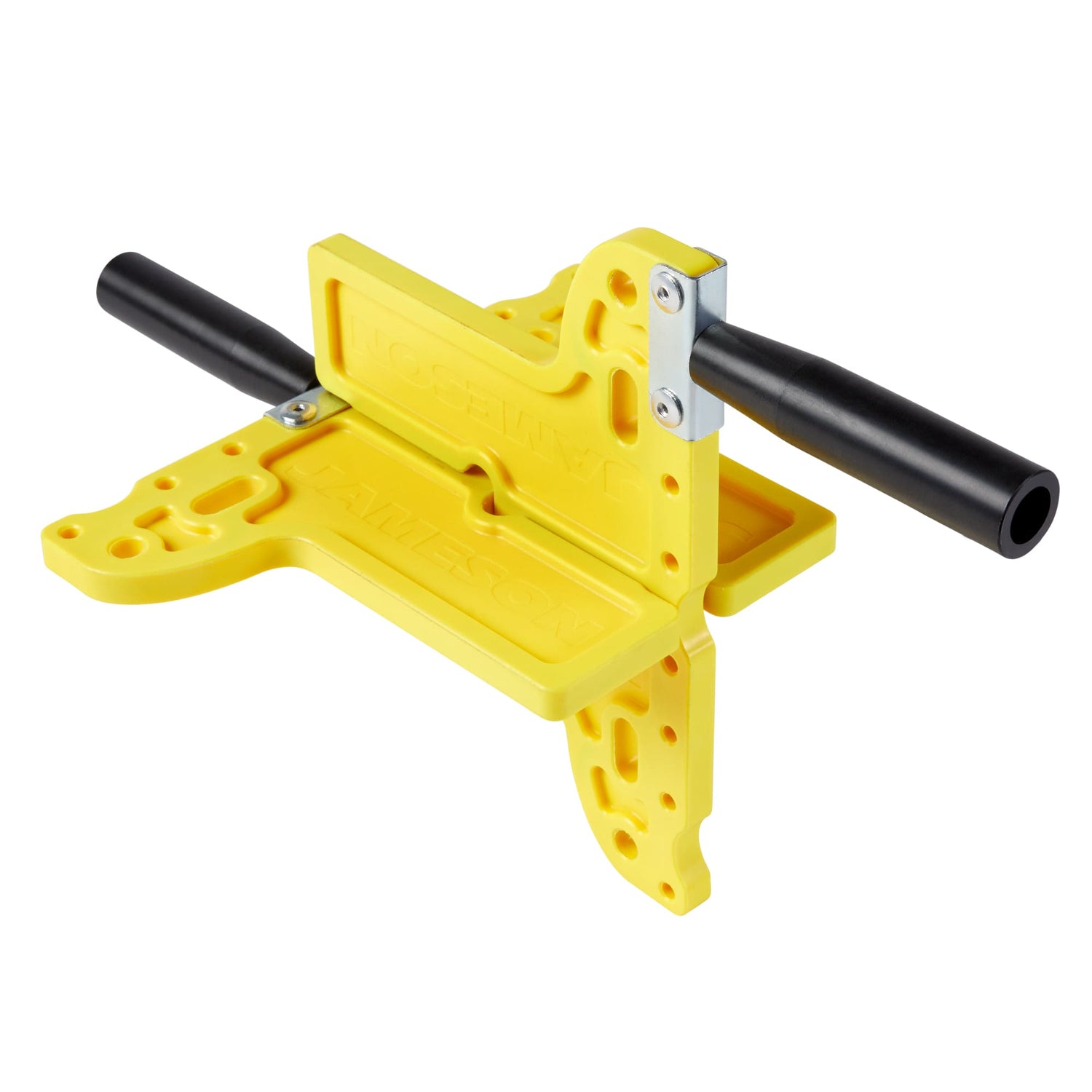

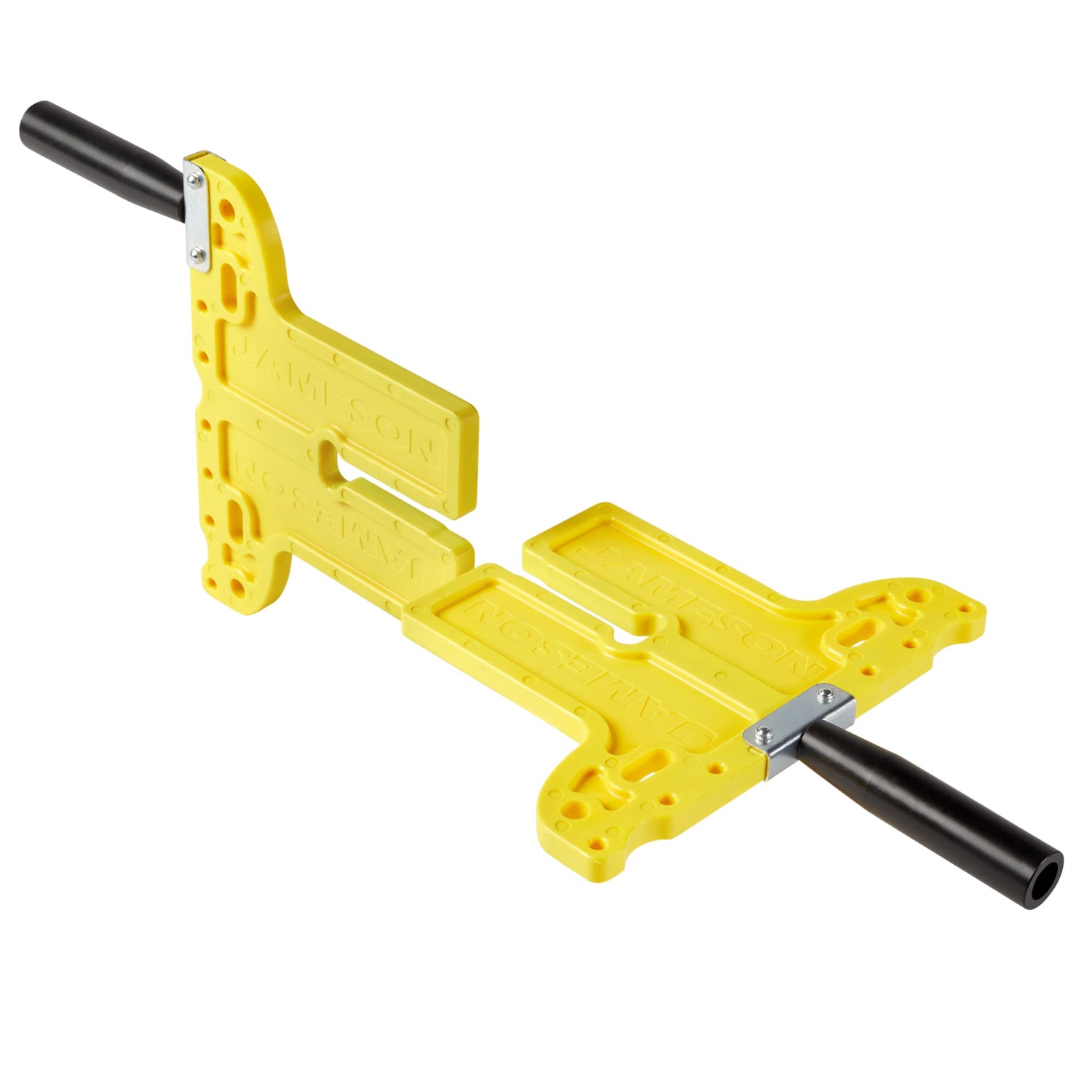

- Fiber Winder (cable spooling device)

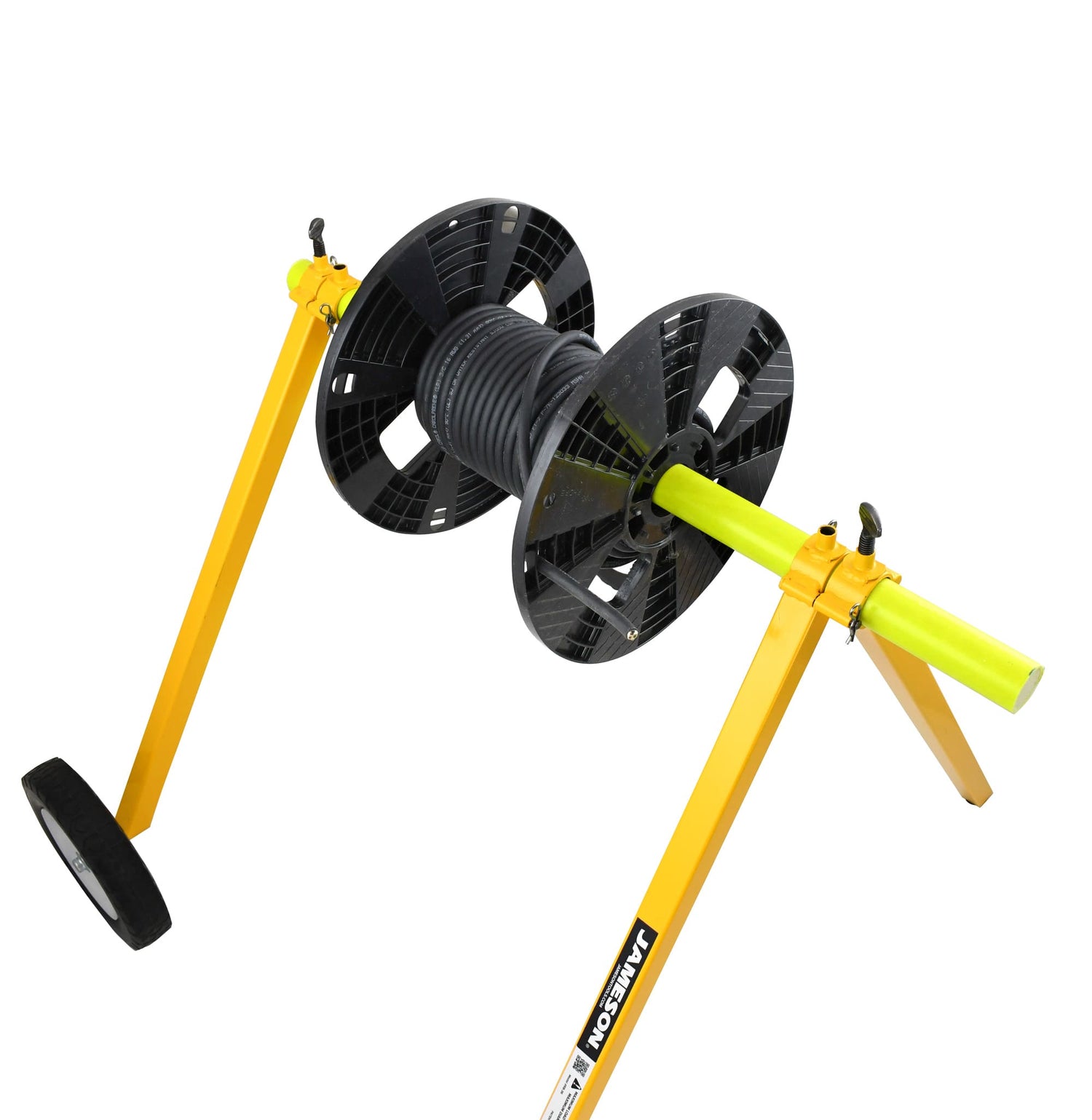

- Spool Mule (collapsible spool stand)
System vs. Tool-Only Kit
This Installation System is the complete end-to-end solution. It includes the Fiber Driver Kit plus reel stand and slack management tools — allowing controlled feed from reel → winder → driver → duct.
Safety Note
Wear eye protection and keep hands clear of pinch points and moving wheels when operating the Fiber Driver with a power drill. Verify the spool stand is stable and the conduit/duct is secured before feeding cable.
```
