Jameson Fiber Driver Kit | Drill-Driven Flat Drop Installer | 300'+ Push
$553.00
Unit price
/
Select Option
Fiber Driver Kit for Final Drop Installs

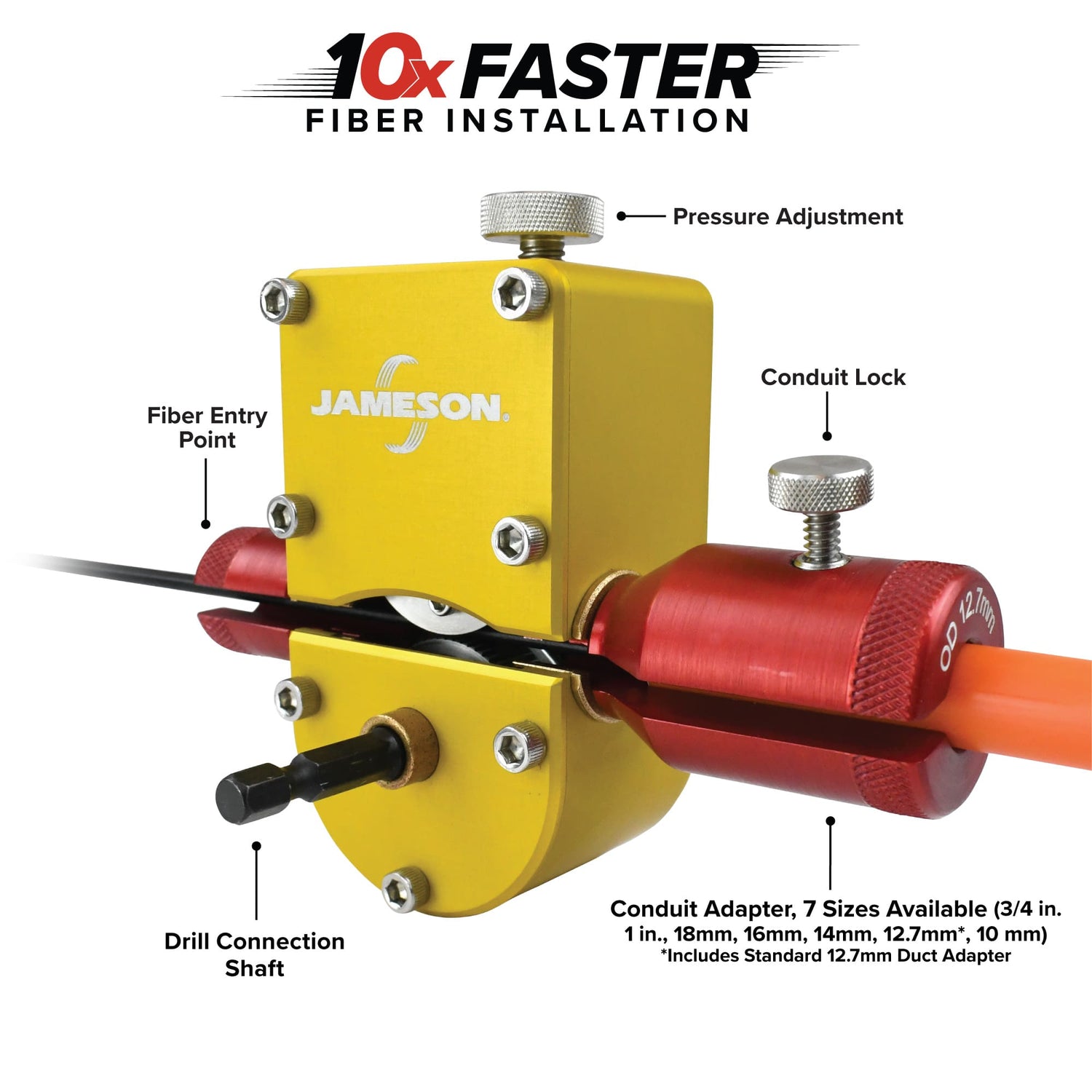

The Jameson Fiber Driver Kit is a drill-driven tool that pushes flat drop fiber into conduit/duct with controlled drive to reduce buckling and eliminate manual feeding. Each kit includes a hard case and a 5-piece conduit adapter set (adapter sizes vary by kit option).

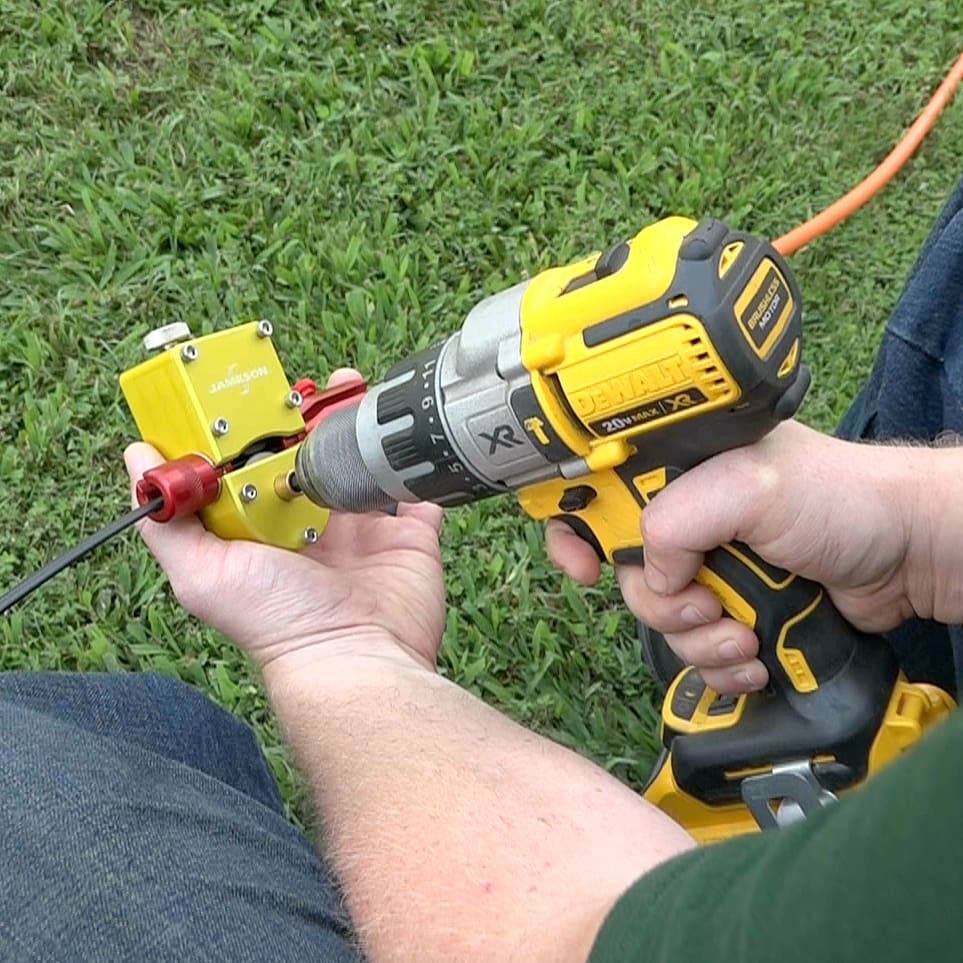

- Drill-Driven Feed – Forward & reverse operation with a standard power drill.
- Built for Final Drops – Optimized for fiberglass reinforced flat drop optical cable (~0.3" wide) and similar sizes.
- 300'+ Fiber Push – Ideal for fast final drops and short-run installs (application dependent).
- Mid-Span Load & Unload – Insert or remove cable without restarting the run.
- Hard Case Included – Protects the tool and adapters during transport and storage.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Jameson Tools |
| Drive Method | Standard power drill (forward and reverse operation) – Drill not included |
| Application | Final drop fiber installation into conduit/duct |
| Cable Type | Optimized for fiberglass reinforced flat drop optical cable (~0.3" wide); accommodates similar sizes |
| Push Distance | Up to 300’+ (application dependent) |
| Operation | Hand-held, single-user operation; indoor/outdoor use |
How to Choose Your Kit
Working mostly microduct sizes? Choose the 10mm–18mm adapter kit (18-FFPC1).
Installing into 3/4"–1" duct? Choose the 14mm–1" adapter kit (18-FFPC2).
Kit Options
| Kit Variant | Included Conduit Adapters (OD) |
|---|---|
| 18-FFPC1 | 10mm, 12.7mm, 14mm, 16mm, 18mm |
| 18-FFPC2 | 14mm, 16mm, 18mm, 3/4", 1" |

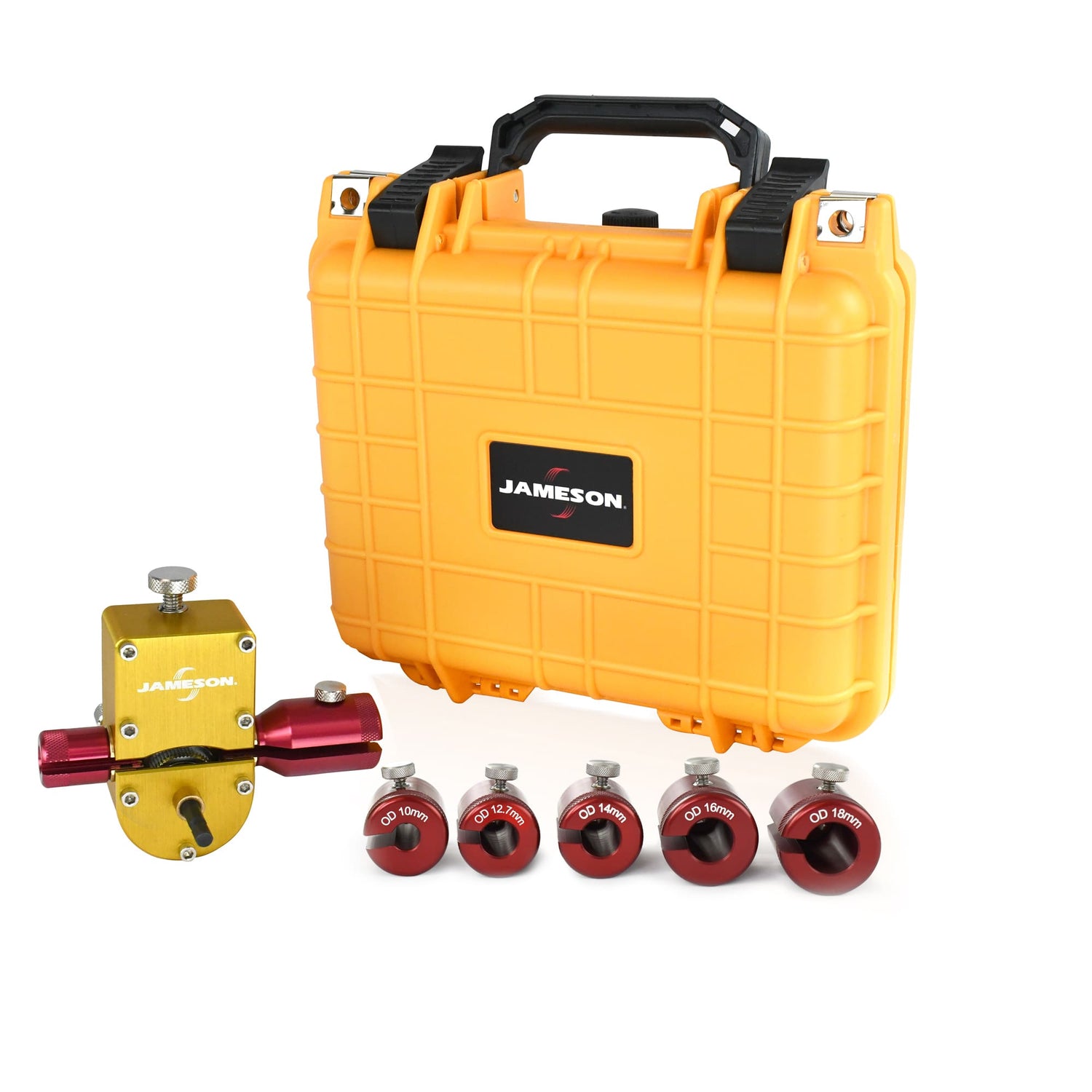

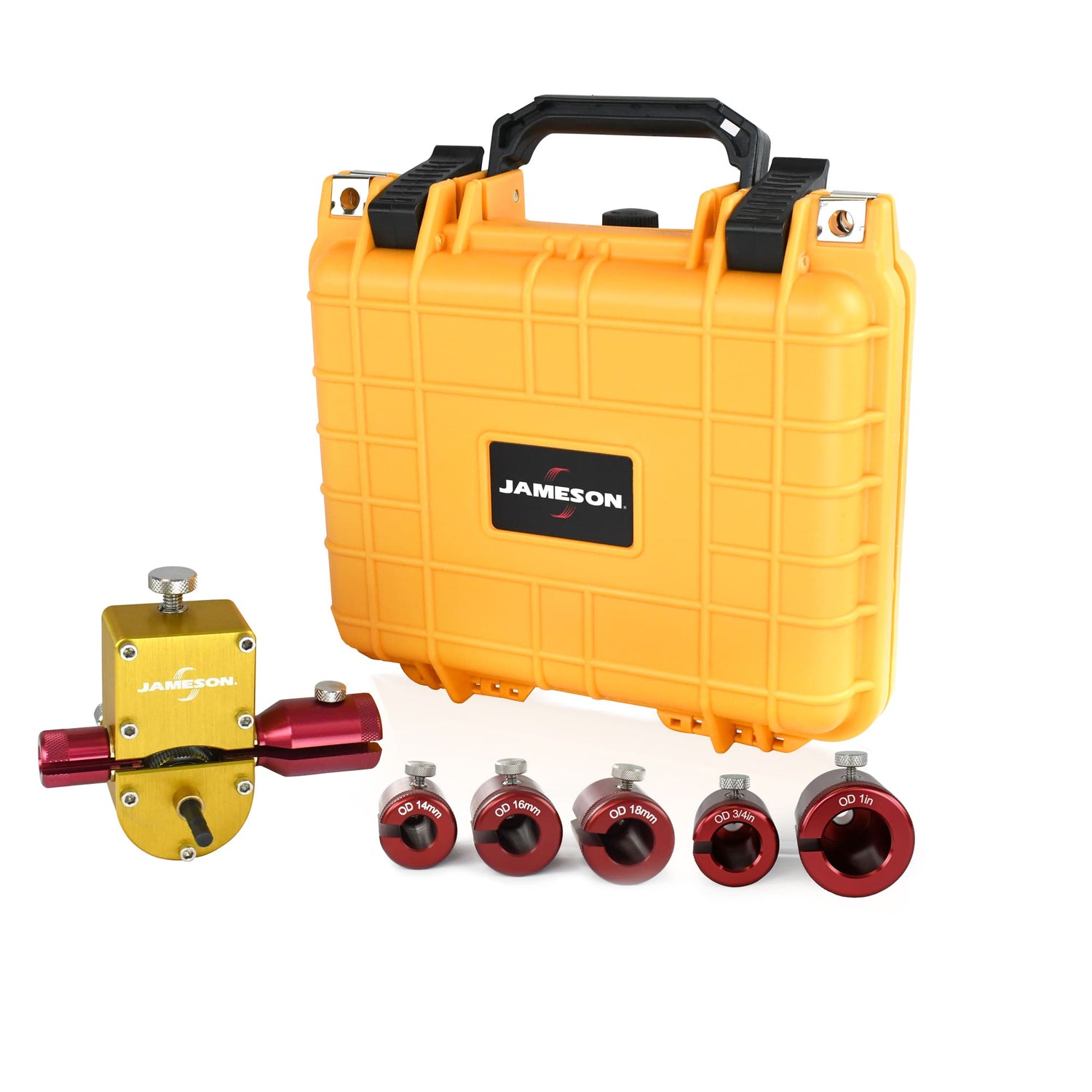

What’s Included
- Fiber Driver tool
- Hard case
- (5) Conduit adapters (set varies by kit option)
Safety Note
Wear eye protection and keep hands clear of pinch points and moving wheels during operation. Confirm the conduit/duct is secured before driving cable.
