Jameson Portable Reel Buck | 54" Reel Capacity | 1,000 lb Load
$383.00
Unit price
/
Select Option
Jameson Portable Reel Buck | 54" Reel Capacity | 1,000 lb Load — Product Overview

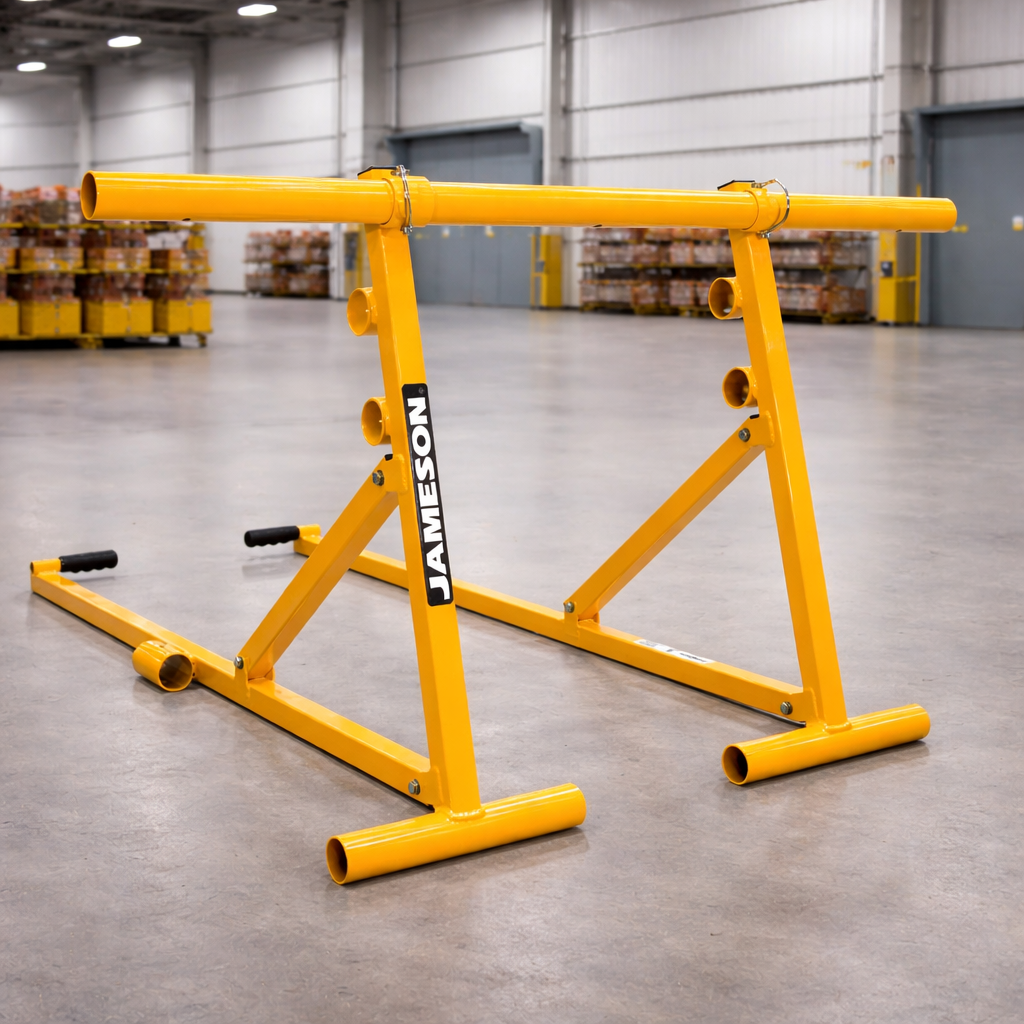

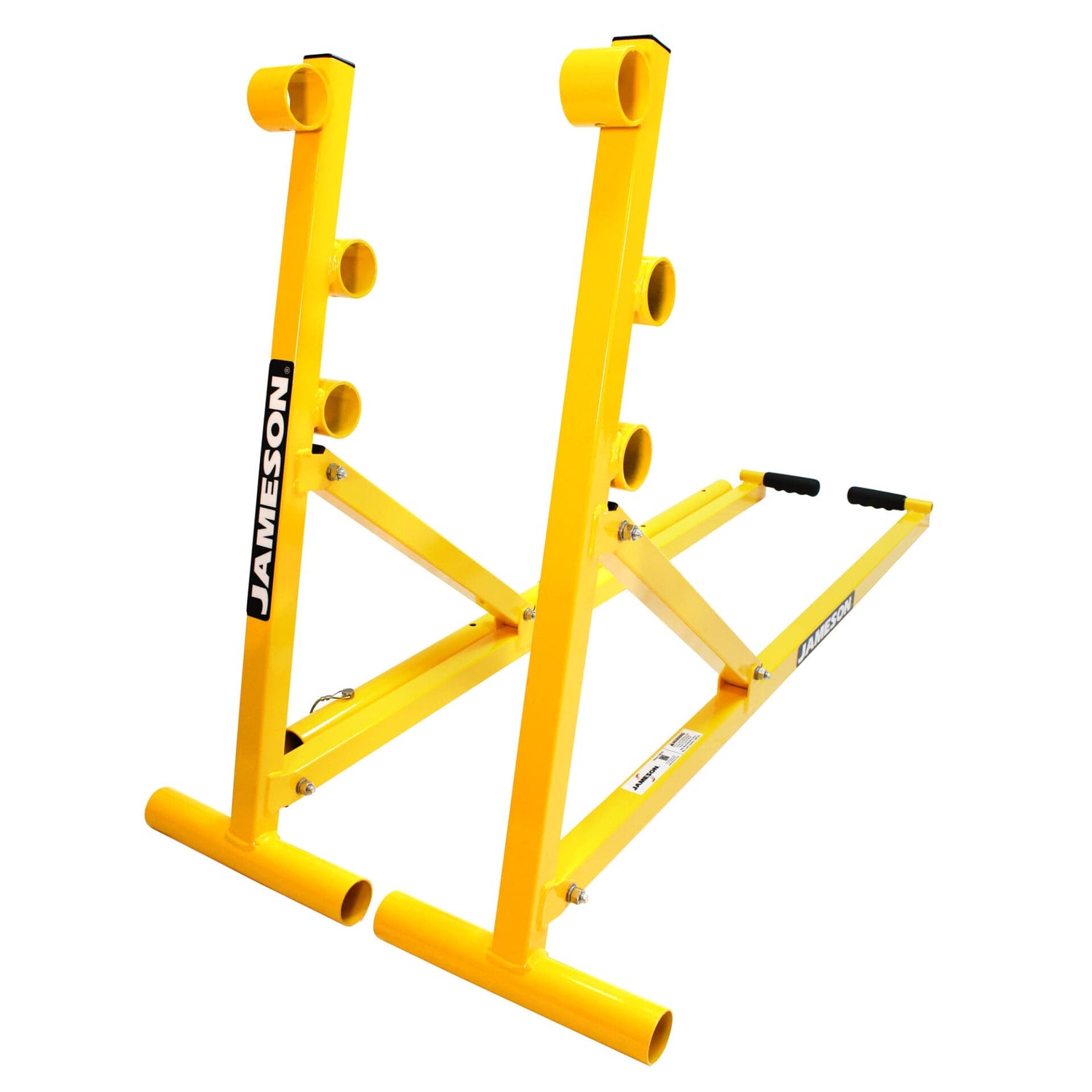

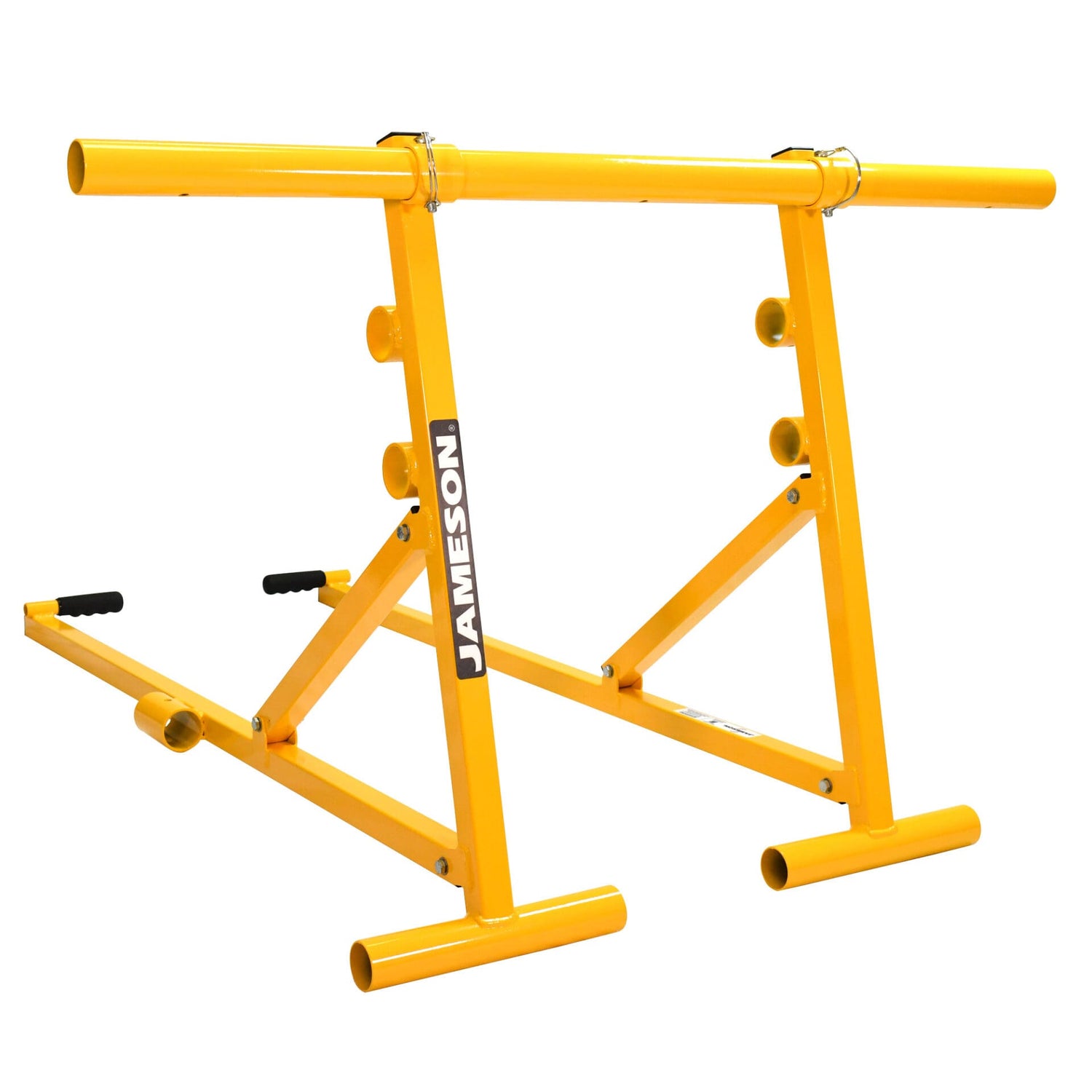

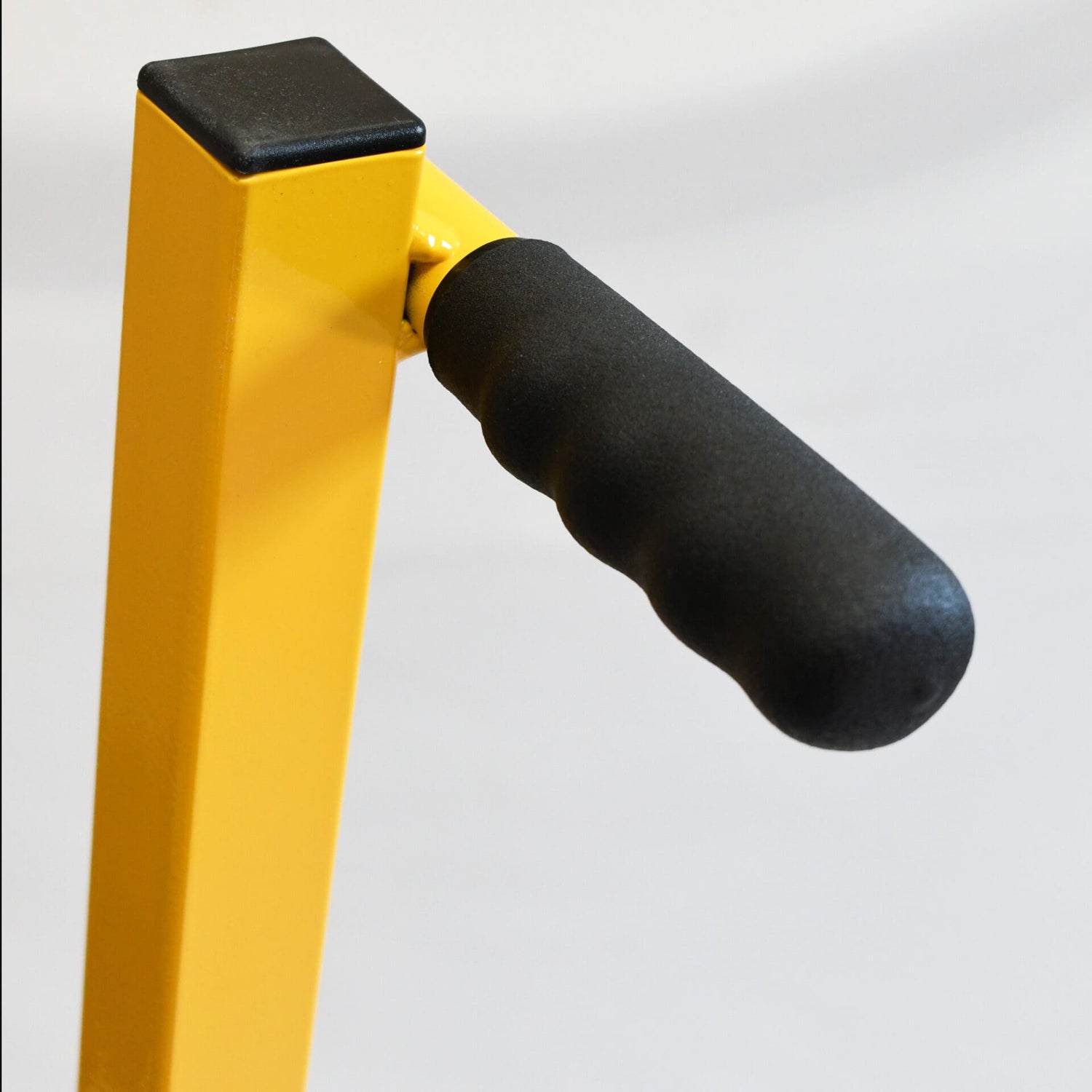

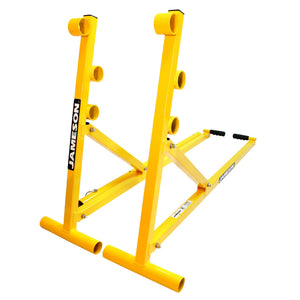

The Jameson® Portable Reel Buck (RB-54) is a fast, jobsite-ready way to set up and support strand and cable reels for payout. The heavy-duty steel tube frame is built to move around the site using the handles on the frame and the spool as a wheel. It also folds down for transport and adjusts to handle different reel sizes for utility, underground, and electrical contractor work.
- 1,000 lb Load Capacity – Heavy-duty reel support built for tough jobsite handling.
- Handles Reels up to 54" Diameter – Adjustable positions for multiple reel diameter ranges.
- Up to 40" Reel Width – Sized for common strand and cable reels used in utility and electrical work.
- Fits Up to 2" Arbor Spindle – Designed to work with an arbor spindle up to 2".
- Collapsible for Transport – Quick setup/breakdown; can ship “small pack” via UPS, FedEx, or DHL.
Key Specifications
| Specification | Details |
|---|---|
| Part Number | RB-54 |
| Load Capacity | 1,000 lbs. |
| Maximum Reel Diameter | 54" (137 cm) |
| Maximum Reel Width | 40" |
| Arbor Spindle Compatibility | Designed to work with arbor spindle up to 2" |
| Country of Origin | Made in USA |
| Status | Patent Pending |

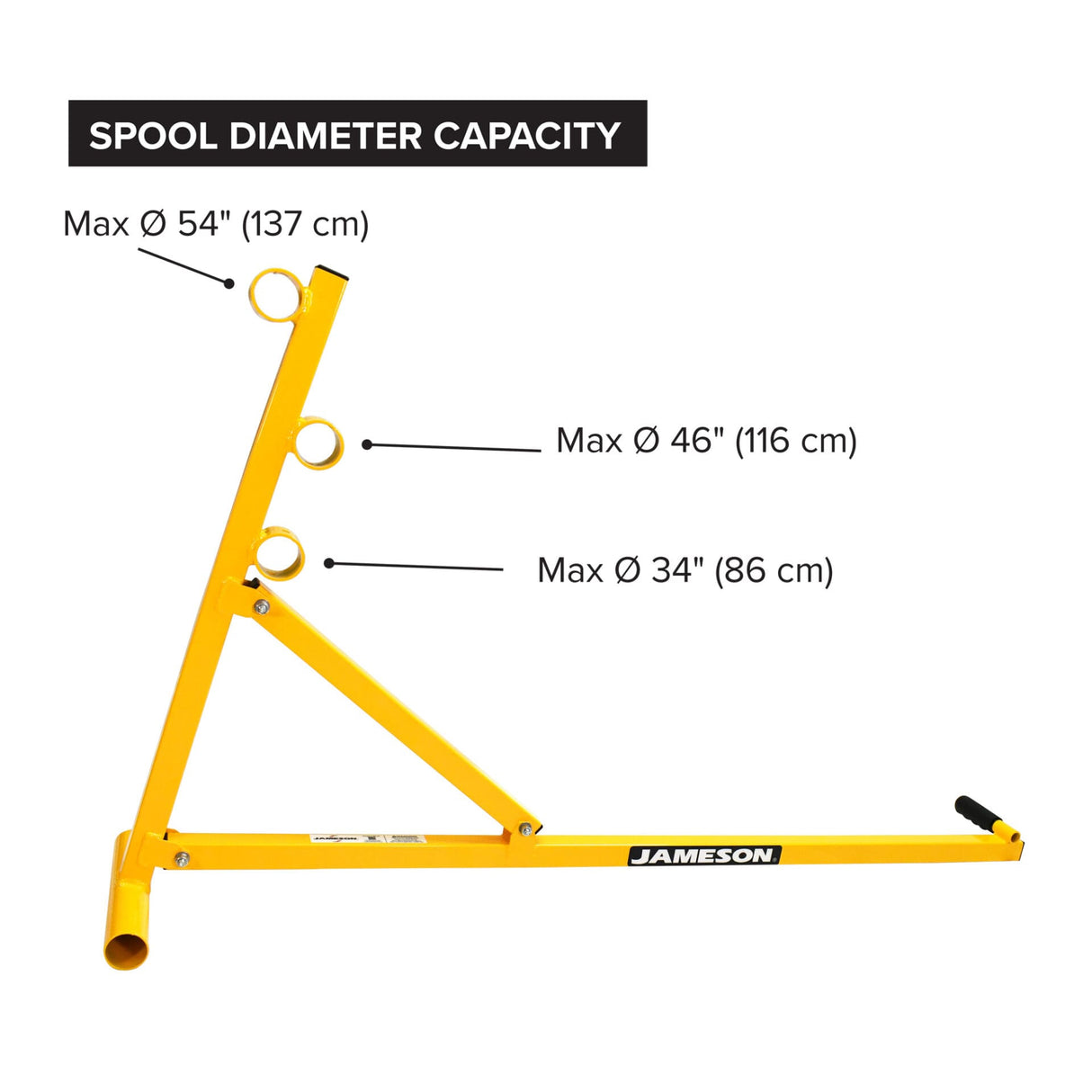

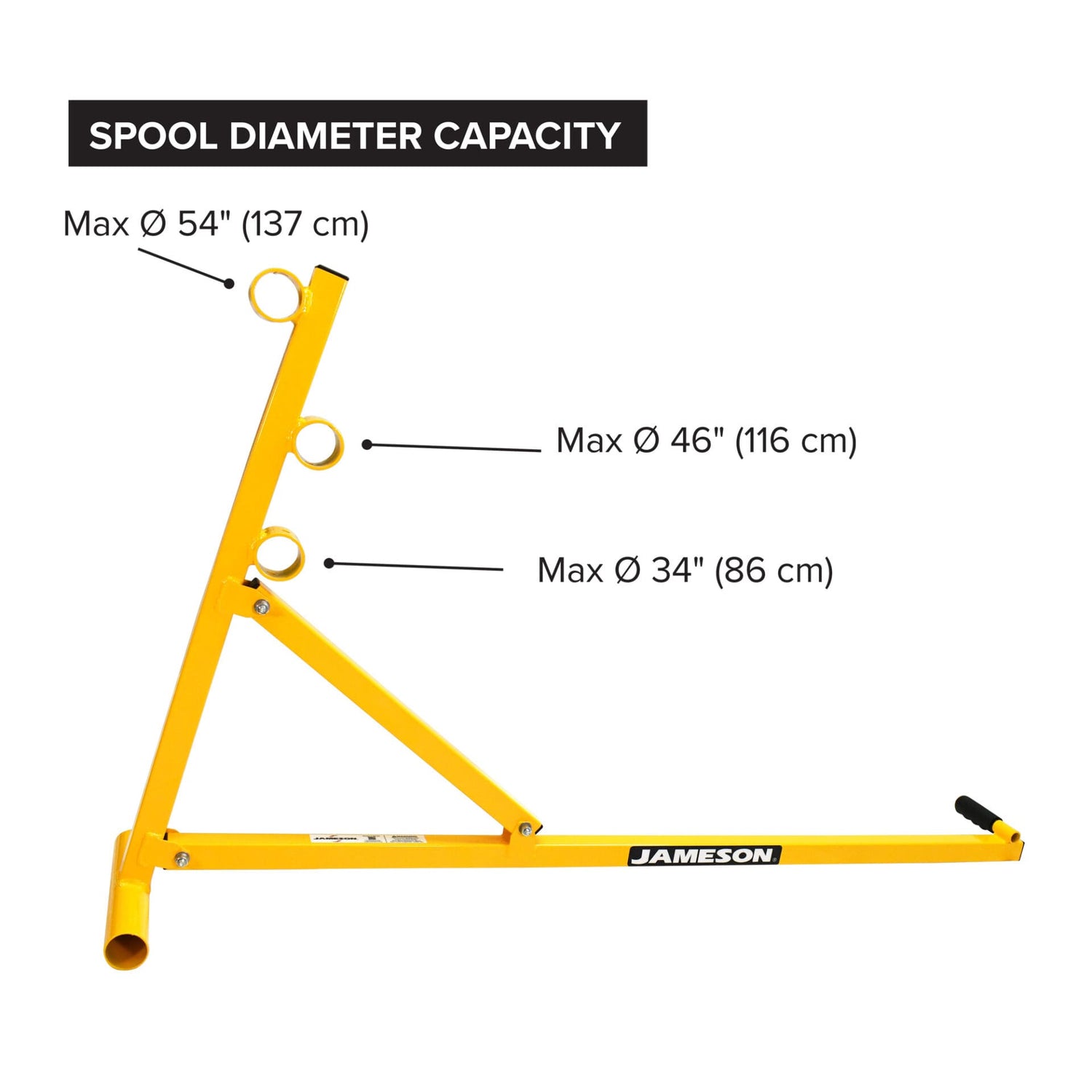

Spool Diameter Capacity
Adjustable positions allow the Reel Buck to accommodate different reel diameters:
| Position | Max Reel Diameter | Notes |
|---|---|---|
| Top | 54" (137 cm) | Largest reel setup |
| Middle | 46" (116 cm) | Mid-size reel setup |
| Lower | 34" (86 cm) | Smaller reel setup |
Common Applications
- Utility and underground cable staging and payout
- Electrical contractor reel setup on the jobsite
- Shop staging for wire and cable dispensing
- Mobile crews needing quick setup and breakdown for transport
Use note: Confirm reel diameter and width are within the supported ranges before setup. Follow site safety procedures and use proper lifting and handling practices when moving reels and equipment.
