Lead-Free Brass Sillcock | RW-252AB Series | FNPT x Hose | 125 CWP
$13.25
Unit price
/
Select Option
Lead-Free Brass Sillcock | RW-252AB Series | FNPT × Hose Thread | 125# CWP

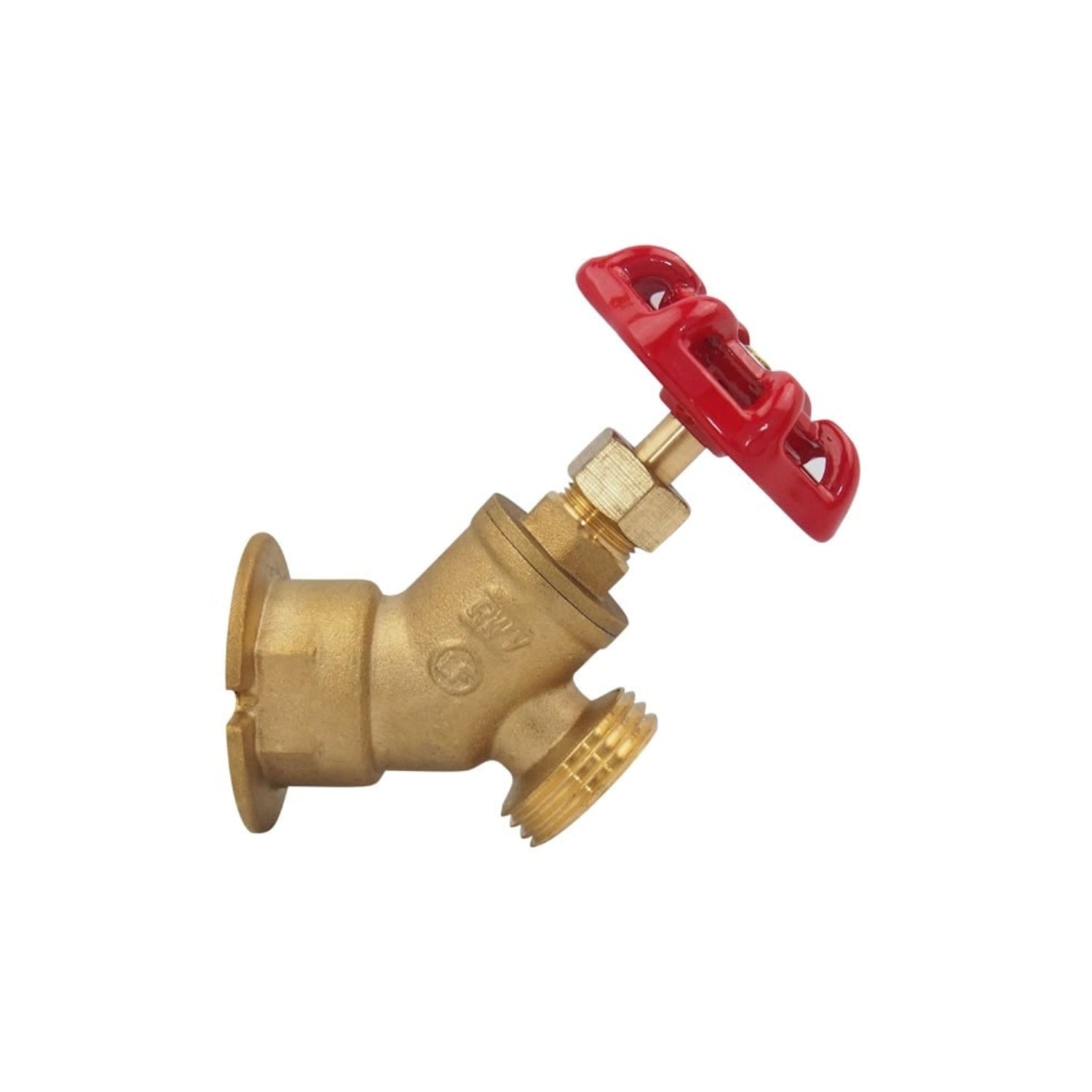

Red-White Valve’s RW-252AB Lead-Free Brass Sillcock provides a durable and compliant solution for outdoor water service. Constructed from ASTM B927 C27450 lead-free brass, this ECO-VALVE model ensures reliable flow, corrosion resistance, and full compliance with NSF/ANSI 61 & 372 and AB1953 lead-free standards for potable water systems.
Key Features
- Lead-Free Brass Construction — Certified under NSF/ANSI 61 & 372 and AB1953, ensuring safe, compliant performance in drinking-water applications.
- No-Kink Spout — Engineered to prevent hose restriction and maintain consistent water flow.
- Heavy-Duty Design — Pressure rated to 125 CWP and temperature rated to 180 °F for reliable service life in any season.
- FNPT × Hose Thread Ends — Precision machined to ASME B1.20.1-NPT for secure fit and easy installation.
- Durable Sealing Components — NBR 70 SH seat gaskets and PTFE bonnet gaskets deliver leak-free operation under pressure.
- Robust Hardware — Includes a steel handwheel and aluminum disc for smooth, long-term operation.
Pressure / Temperature Rating
| Pressure Rating | Max Temperature |
|---|---|
| 125 CWP | 180 °F max |
Dimension / Weight
| Size | T | F | A [in] | C [in] | H [in] | B [in] | P [in] | D [in] | Weight [lb] |
|---|---|---|---|---|---|---|---|---|---|
| ½″ | ½ – 14 NPT | ¾ – 11.5 NH | 3.41 | 0.61 | 3.35 | 2.09 | 0.51 | 0.47 | 0.45 |
| ¾″ | ¾ – 14 NPT | ¾ – 11.5 NH | 3.45 | 0.63 | 3.35 | 2.09 | 0.51 | 0.47 | 0.53 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C27450 |
| 2 | Stem | Lead-Free Brass | ASTM B927 C27450 |
| 3 | Seat Gasket | NBR 70 SH | NSF Approved |
| 4 | Bonnet Gasket | PTFE | — |
| 5 | Bonnet | Lead-Free Brass | ASTM B927 C27450 |
| 6 | Packing Ring | PTFE | — |
| 7 | Packing Nut | Brass | ASTM B124 C37700 |
| 8 | Handwheel | Steel | — |
| 9 | Disc | Aluminum | — |
| 10 | Nut | Steel / Zn Plated | ASTM A36 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
