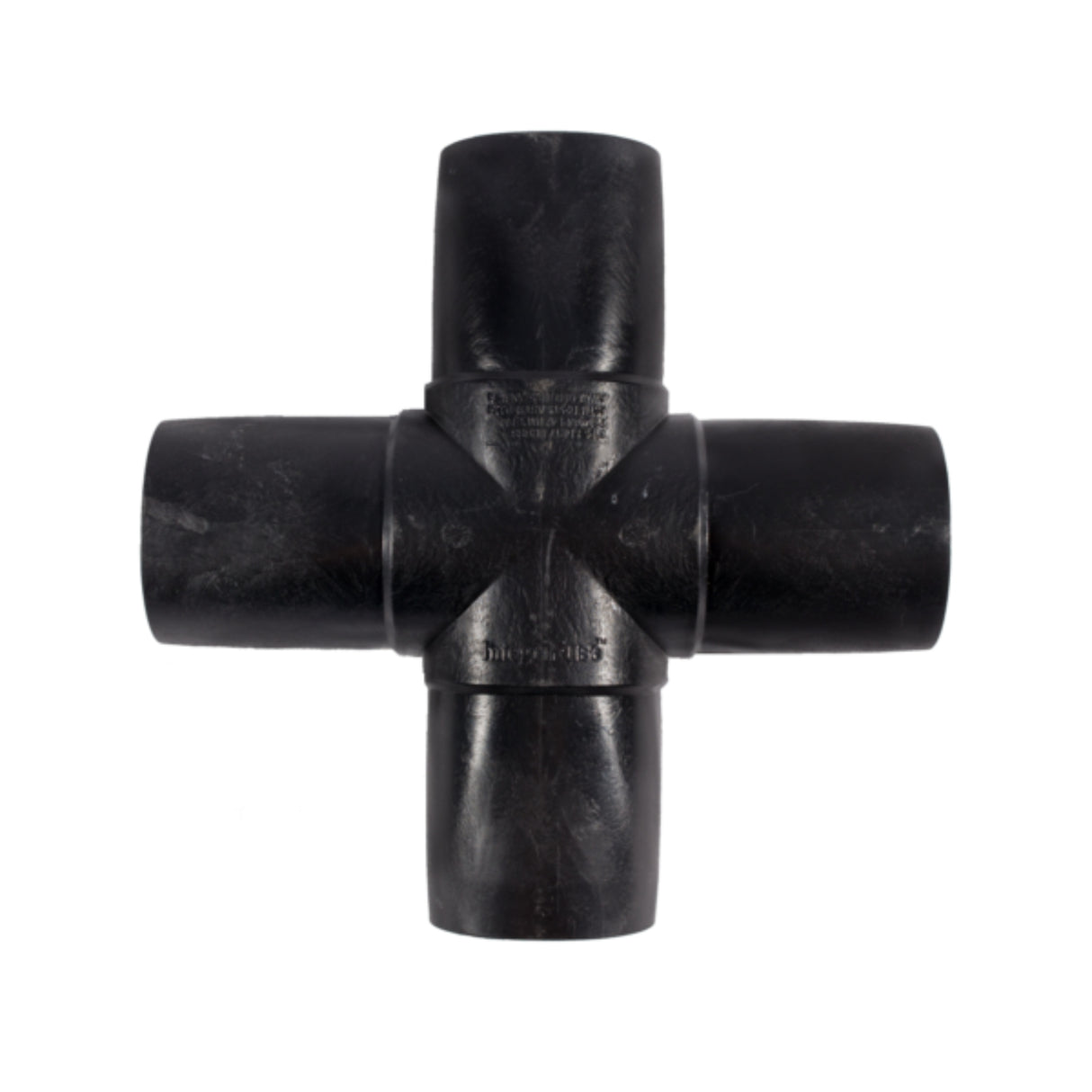

Molded Butt Fusion 4-Way Cross (Equal Cross) | IPS HDPE | SDR 9, 11, 17
Molded Butt Fusion 4-Way Cross (Equal Cross) | IPS HDPE | SDR 9, 11, 17 | 2″–4″
Integrity Fusion Molded 4-Way Cross Fittings provide strong, pressure-rated branch connections for IPS HDPE piping systems. These fully injection-molded crosses are available in SDR 9, SDR 11, and SDR 17 for pipe sizes 2″–4″, offering reliable multi-direction flow distribution in industrial, municipal, and utility applications.
Manufactured from NSF-listed PE3408/PE4710/PE100 bi-modal virgin resin, each cross is precision-molded for dimensional accuracy, consistent wall thickness, and high-performance durability. All fittings meet applicable ASTM, AWWA, FM standards and are suitable for water, gas, sewer, and industrial HDPE systems.
Compatible with all standard IPS SDR pipelines — SDR 9, SDR 11, and SDR 17 can be joined interchangeably via butt fusion.
Key Features & Benefits
- Injection-Molded Construction — Ensures uniform melt-flow characteristics and superior structural strength compared to fabricated fittings.
- PE4710/PE100 Resin — High-performance bi-modal resin delivers long-term reliability, toughness, and pressure capability.
- Multiple SDR Options — Available in SDR 9 (250 PSI), SDR 11 (200 PSI), and SDR 17 (125 PSI) to match standard IPS HDPE systems.
- Precision Geometry — Accurate centerlines and molded dimensions ensure proper fit-up and easy alignment during butt fusion.
- Wide Application Range — Ideal for water distribution, gas distribution, industrial piping, irrigation systems, and utility infrastructure.
- Standards Compliance — Manufactured to ASTM D2513, ASTM D3261, AWWA C901/C906, FM 1613, and NSF/ANSI 61.
Pressure Ratings:
SDR 17: 125 PSI (MAOP @ 73.4°F)
SDR 11: 200 PSI (MAOP @ 73.4°F)
SDR 9: 250 PSI (MAOP @ 73.4°F)

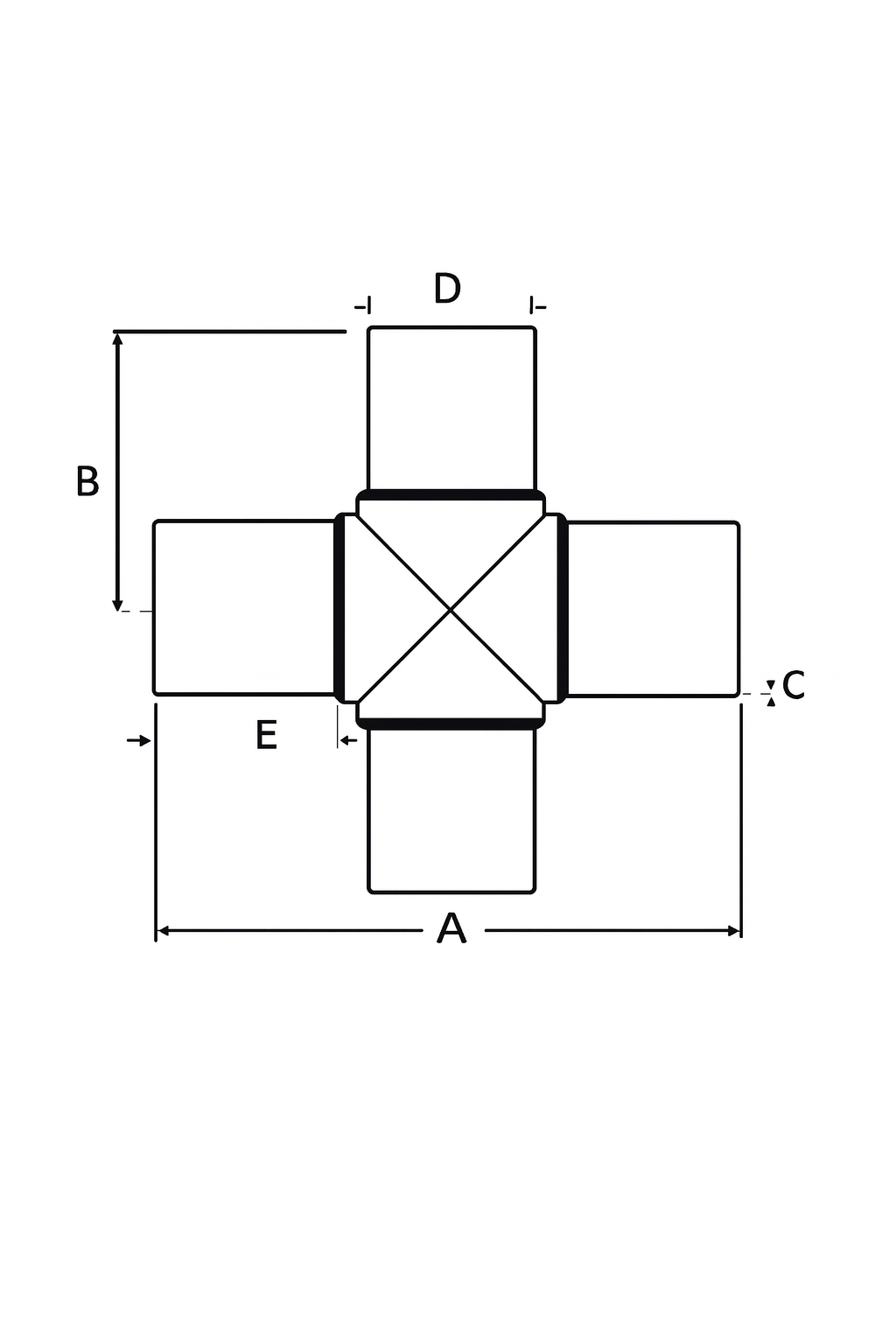

Molded 4-Way Cross Dimensions — IPS SDR 17
| Nominal Size | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Weight (lb) | Item Code |
|---|---|---|---|---|---|---|---|
| 2″ IPS | 8.96 | 4.45 | 0.140 | 2.375 | 2.64 | 0.7 | 100771 |
| 3″ IPS | 11.81 | 5.90 | 0.206 | 3.500 | 3.54 | 1.8 | 100775 |
| 4″ IPS | 13.98 | 6.89 | 0.264 | 4.500 | 3.94 | 3.2 | 100779 |
Molded 4-Way Cross Dimensions — IPS SDR 11
| Nominal Size | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Weight (lb) | Item Code |
|---|---|---|---|---|---|---|---|
| 2″ IPS | 8.96 | 4.45 | 0.216 | 2.375 | 2.64 | 1.0 | 100770 |
| 3″ IPS | 11.81 | 5.90 | 0.318 | 3.500 | 3.54 | 1.9 | 100774 |
| 4″ IPS | 13.98 | 6.89 | 0.409 | 4.500 | 3.94 | 4.4 | 100778 |
Molded 4-Way Cross Dimensions — IPS SDR 9
| Nominal Size | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Weight (lb) | Item Code |
|---|---|---|---|---|---|---|---|
| 2″ IPS | 8.96 | 4.45 | 0.264 | 2.375 | 2.64 | 1.1 | 100773 |
| 3″ IPS | 11.81 | 5.90 | 0.389 | 3.500 | 3.54 | 2.8 | 100777 |
| 4″ IPS | 13.98 | 6.89 | 0.500 | 4.500 | 3.94 | 5.3 | 100781 |
All dimensions in inches. Manufactured from PE3408/PE4710/PE100 resin and compliant with ASTM D2513, ASTM D3261, AWWA C901/C906, FM 1613, and NSF/ANSI 61 standards.
