Cutter 3PT Electric Actuator | For Butterfly Valves | ON-OFF 3-Point Control | 24 VDC & 115-120 VAC
Cutter 3PT Electric Actuator | For Butterfly Valves | ON-OFF 3-Point Control | 24 VDC & 115-120 VAC

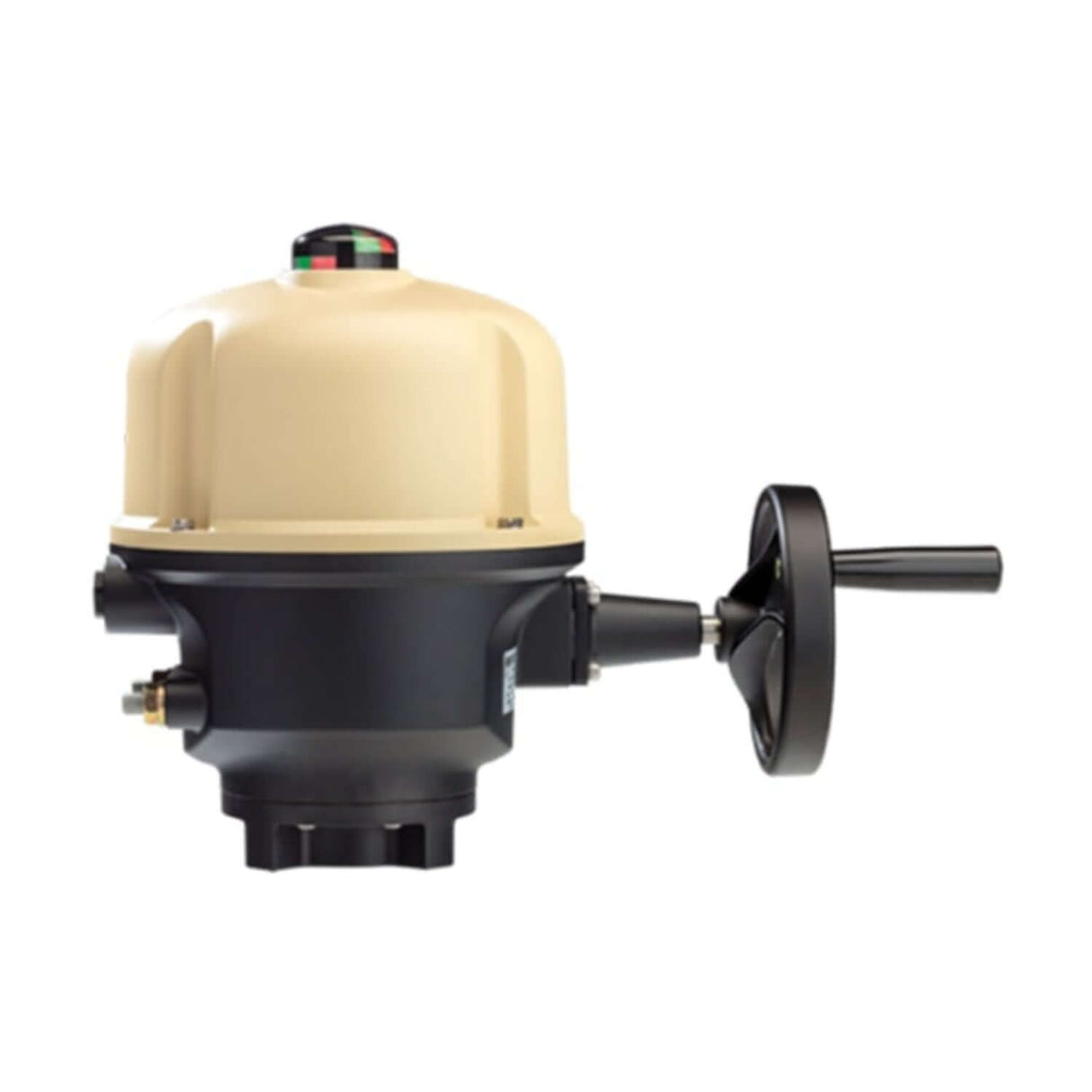

The Red-White Valve Cutter-3PT Electric Actuator provides dependable ON-OFF valve control with a robust 3-point actuation system designed for butterfly valves. Its cast aluminum body with epoxy powder coating ensures long-term corrosion resistance in HVAC, waterworks, and industrial fluid applications. Featuring a self-locking gear mechanism and manual override handwheel, the Cutter-3PT combines precision, strength, and safety for demanding service conditions.
Available in 115–120 VAC and 24 VDC power configurations, it delivers torque outputs from 443 to 4,425 in-lb and travel times from 13 to 60 seconds. The actuator meets CSA certification standards and carries a NEMA 4X weatherproof enclosure rating for indoor and outdoor use.
Key Features
- Torque Range: 443–4,425 in-lb with consistent 90° actuation travel
- Cast Aluminum Body: Epoxy-coated for corrosion and impact resistance
- 3-Point ON-OFF Control: Integrated open/close limit switches with optional auxiliary and torque limit switches
- Manual Override: Built-in handwheel and automatic declutch for safe manual operation
- Self-Locking Gear Mechanism: Maintains position under load without backdriving
- Built-In Torque Limiter: Provided on CUTAQ25 & CUTAQ50 models for overload protection
- ISO 5211 Direct Mount: Fits F05–F12 butterfly valve flanges with included adaptor (where applicable)
- CSA Certified: Compliant with North American electrical and safety standards
- NEMA 4X Enclosure: Dust-tight and water-resistant for reliable operation in outdoor or washdown environments
Electrical & Control Specifications
- Control Type: 3-Point ON-OFF Control with adjustable open/close limit switches
- Power Options: 115/120 VAC (50/60 Hz) or 24 VDC
- Motor Duty Rating: S4-30% (up to 360 starts per hour)
- Electrical Connections: Dual ½″ NPT cable entries
- Operating Temperature: -4°F to +140°F
Technical Data
| Model | Power Supply | Max Torque (in-lb) | Power (W) | Operating Time |
|---|---|---|---|---|
| CUTAQ05 | 115-120 VAC | 443 | 15 | 23 sec |
| CUTAQ10 | 115-120 VAC | 885 | 15 | 36 sec |
| CUTAQ15 | 115-120 VAC | 1328 | 30 | 43 sec |
| CUTAQ25 | 115-120 VAC | 2655 | 40 | 50 sec |
| CUTAQ50 | 115-120 VAC | 4425 | 60 | 50 sec |
| CUTAQ05 | 24 VDC | 443 | 30 | 13 sec |
| CUTAQ10 | 24 VDC | 885 | 30 | 21 sec |
| CUTAQ15 | 24 VDC | 1328 | 30 | 25 sec |
| CUTAQ25 | 24 VDC | 2655 | 50 | 35 sec |
| CUTAQ50 | 24 VDC | 4425 | 50 | 60 sec |
Mounting Dimensions
| Model | Flange ISO 5211 | Double-D Ø (in) | Double-D Width (in) | Weight (lb) |
|---|---|---|---|---|
| CUTAQ05 | F05 / F07 | 0.496 | 0.394 | 22 |
| CUTAQ10 | F05 / F07 | 0.621 | 0.472 | 22 |
| CUTAQ15 | F05 / F07 | 0.744 | 0.551 | 22 |
| CUTAQ25 | F07 / F10 | 0.870 | 0.669 | 33 |
| CUTAQ50 | F07 / F10 / F12* | 1.244 | 0.945 | 33 |
*F12 adaptor included with CUTAQ50 models. Allow 4.0″ clearance above actuator for disassembly and service access.
