Overhead Fiber Optic Cable Sheave | 24" | 1,500 lb

Overhead Fiber Optic Cable Sheave | 24" Aluminum Sheave | 1,500 lb Capacity — Product Overview

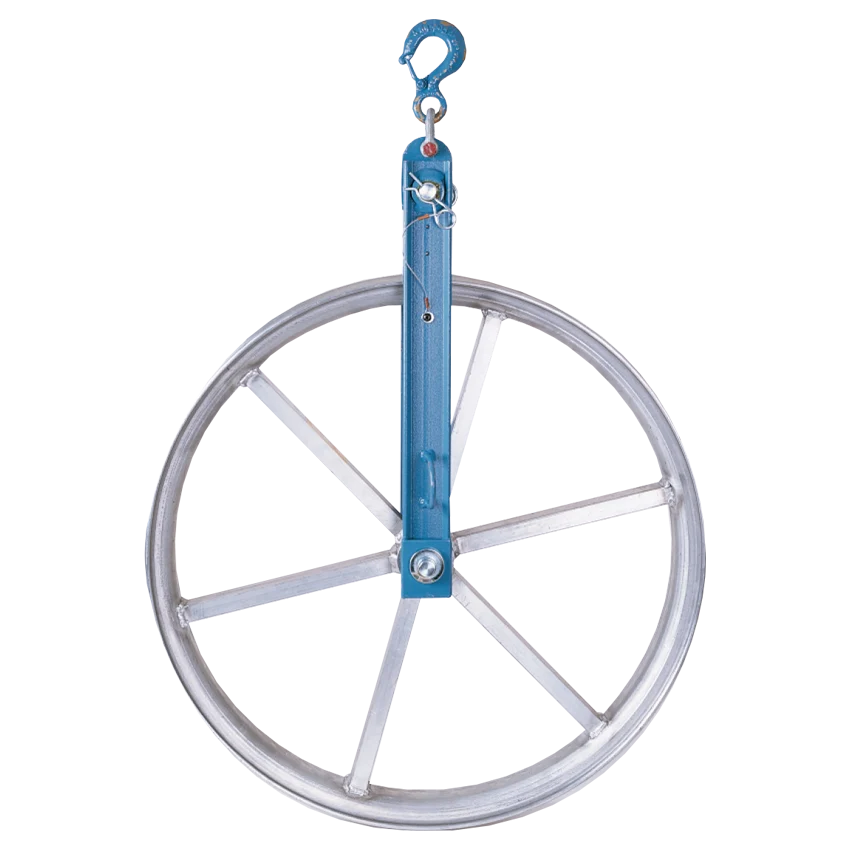

The Overhead Fiber Optic Cable Sheave is designed to guide fiber optic and CATV cables during overhead installation. Its specially designed hanger arm helps prevent cables from coming off the sheave or binding against the support arm during cable placement.

The hanger arm separates when a pin is removed, allowing cables to be inserted at intermediate points. The 24" (610 mm) diameter provides a gentle cable arc, while the aluminum sheave construction offers durability with reduced weight. The manufacturer specifies a maximum capacity of 1,500 lb (6,672 N).

Product Features

• Overhead Cable Guidance: Designed for guiding fiber optic and CATV cables during installation.
• Specially Designed Hanger Arm: Helps prevent cables from leaving the sheave or binding against the support arm.
• Mid-Point Cable Insertion: Removing a pin allows the hanger arm to separate for cable insertion at intermediate points.
• 24" Sheave Diameter: The 610 mm diameter provides a gentle cable arc.
• Aluminum Construction: The aluminum sheave combines durability with reduced weight.
• 1,500 lb Maximum Capacity: Manufacturer-rated maximum capacity of 1,500 lb (6,672 N).
• Replacement Sheave Available: Condux lists replacement sheave part number 08637743 separately.

Replacement Sheave Information

Condux identifies part number 08637743 as the replacement sheave for this overhead cable sheave assembly. Confirm availability and ordering details before purchasing the replacement component.
