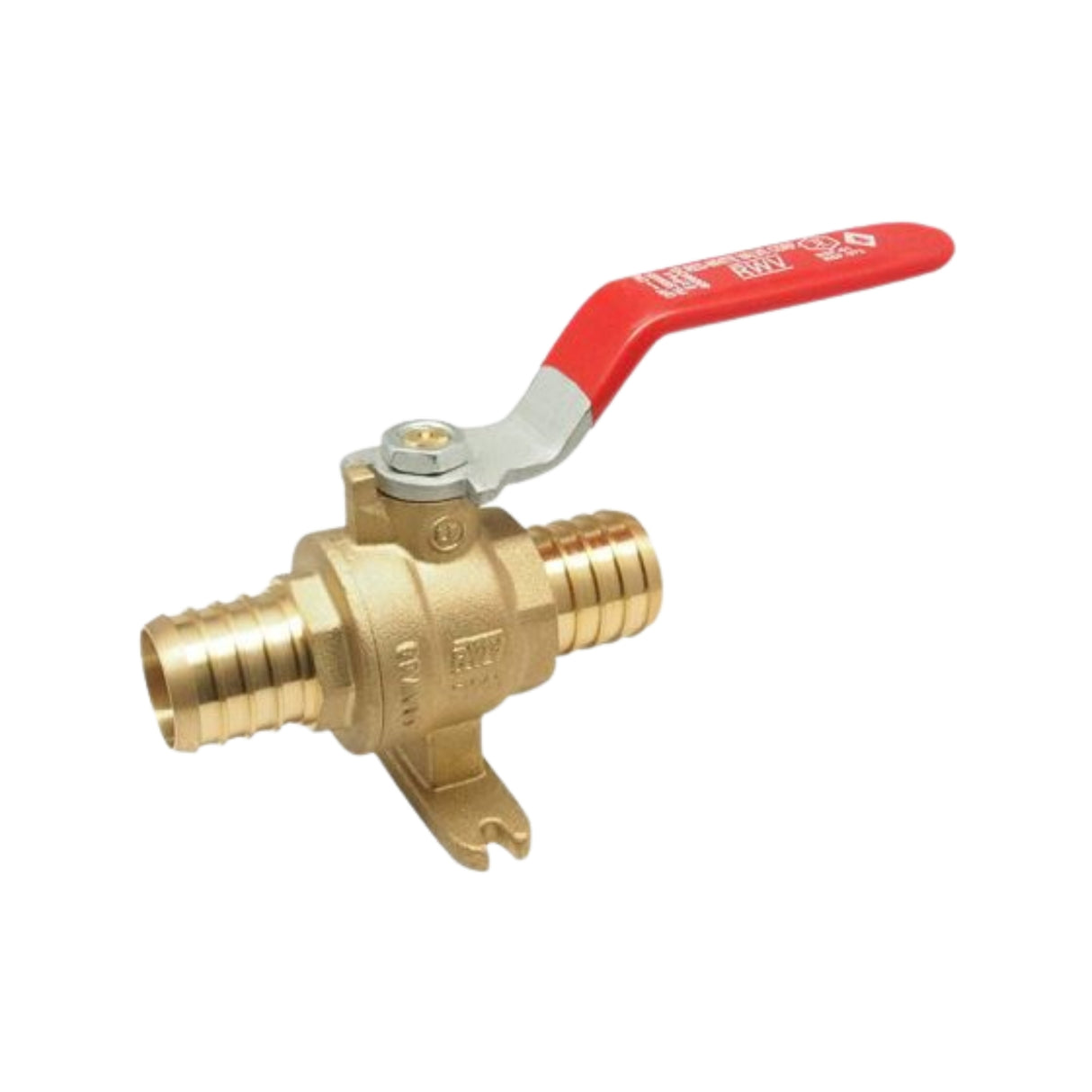

Red-White Valve’s 5009ABF DZR Lead-Free Brass PEX Ball Valve is designed for secure mounting, reliable flow control, and full compliance with today’s potable water standards. Built from DZR (Dezincification-Resistant) Lead-Free Brass, this valve is certified to NSF/ANSI 61 & 372 and AB1953, offering corrosion resistance and long service life for both residential and commercial plumbing systems.
The mounting foot design provides stable installation for mechanical or modular systems, while the full-port F1807 PEX barb ends ensure unrestricted flow. With PTFE seats, double NBR O-rings, and a blow-out-proof stem, the 5009ABF delivers durable, leak-free performance for hydronic and potable water applications.
Key Features
- DZR Lead-Free Brass Body — ASTM B927 C27453 material meets NSF/ANSI 61 & 372 and AB1953 standards.
- Full Port F1807 Flow — Provides maximum flow with minimal pressure drop through standard PEX barb × barb connections.
- Mounting Foot — Integrated base allows for secure and permanent installation in assemblies or fixed systems.
- Double O-Ring Stem Packing — NBR seals ensure long-term, leak-tight operation under pressure cycling.
- Chrome-Plated Brass Ball — Offers smooth actuation and corrosion resistance for extended valve life.
- Pressure Rating — 400 WOG; 300 PSI from 15°F–160°F and 150 PSI max at 200°F.

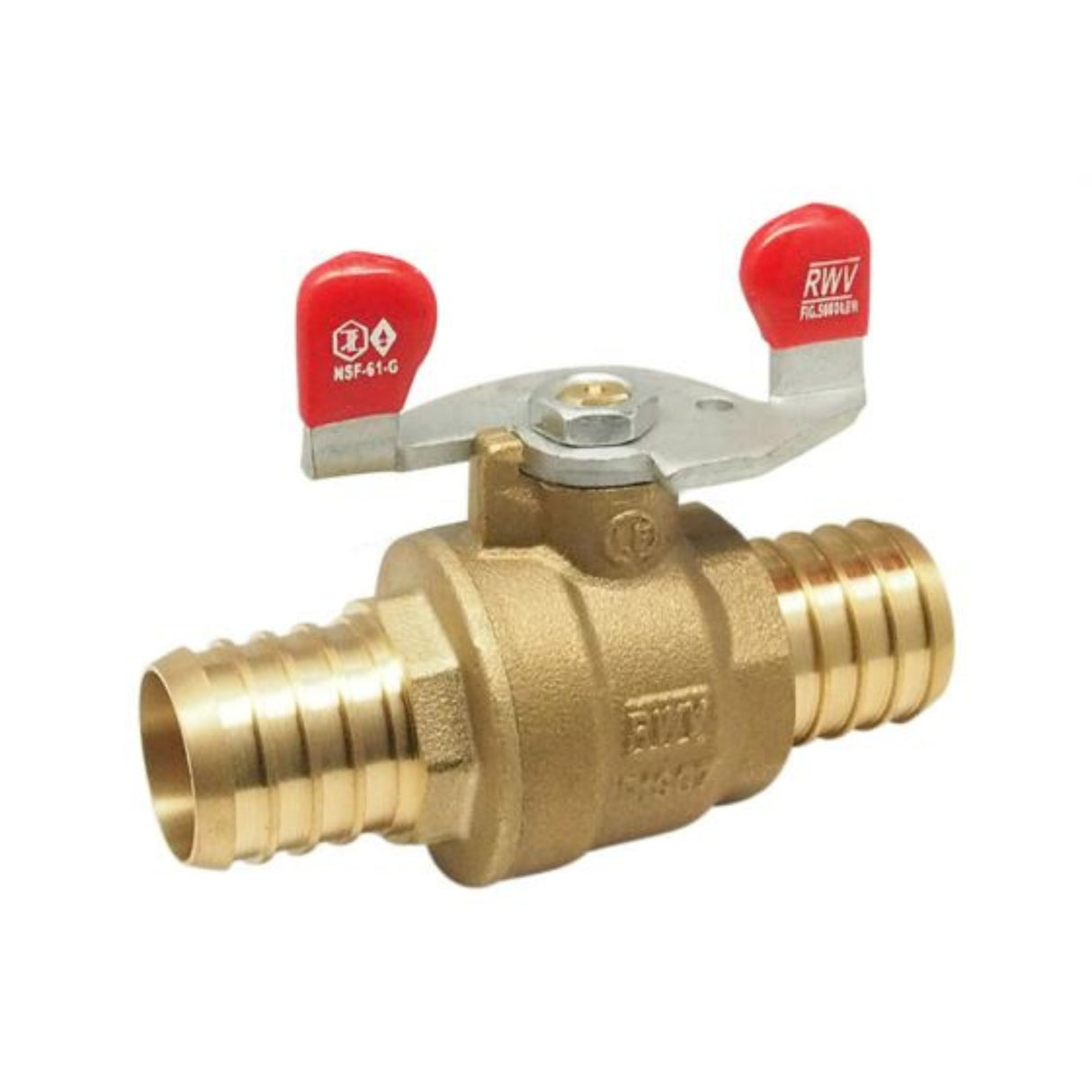

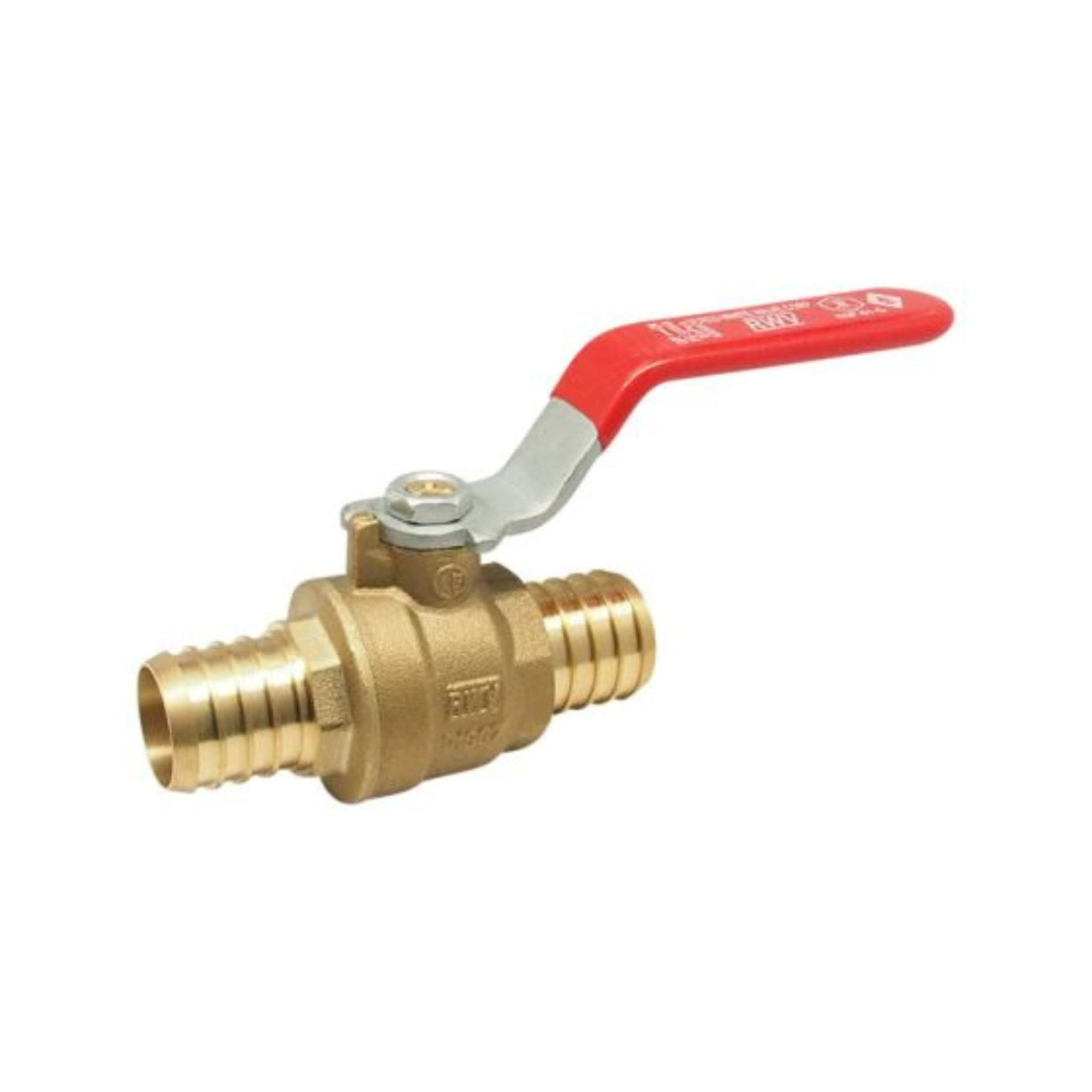

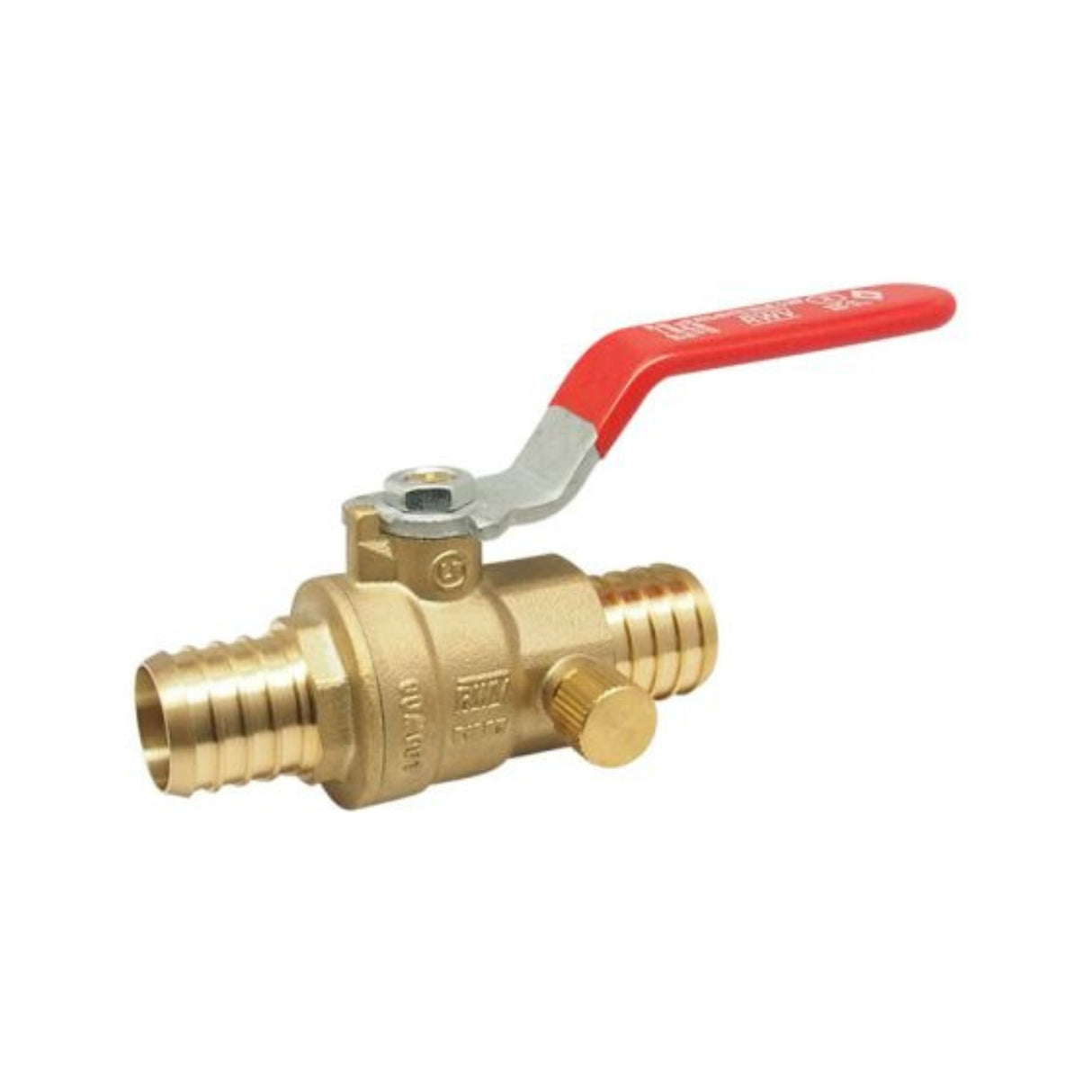

- Optional Configurations — Available as standard (5009AB), with drain (5009ABD), with drain & foot (5009ABDF), or with wing handle (5009ABW).
Pressure & Temperature Ratings
| Pressure / Temperature Rating | |
|---|---|
| 300 PSI from 15°F to 160°F | 150 PSI max at 200°F |
Dimension, Weight
| Size | A [in] | H [in] | L [in] | E [in] | D [in] | P [in] | Wt. [lb] |
|---|---|---|---|---|---|---|---|
| ½″ | 2.31 | 1.36 | 3.20 | 0.93 | 2.07 | 0.39 | 0.32 |
| ¾″ | 2.60 | 1.72 | 3.59 | 1.00 | 2.07 | 0.50 | 0.46 |
| 1″ | 3.15 | 1.85 | 3.59 | 1.16 | 2.07 | 0.71 | 0.60 |
Material Construction
| Part | Material | Specification |
|---|---|---|
| 1. Body | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2. End Piece | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3. Ball | DZR Lead-Free Brass / Chrome Plated | ASTM B927 C27453 |
| 4. Seat | PTFE | PTFE |
| 5. Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6. O-Ring | NBR (Nitrile Rubber) | NSF Approved |
| 7. Handle | Steel / Dacromet® Plated | ASTM A36 |
| 8. Handle Nut | Steel / Zinc Plated | ASTM A36 |
