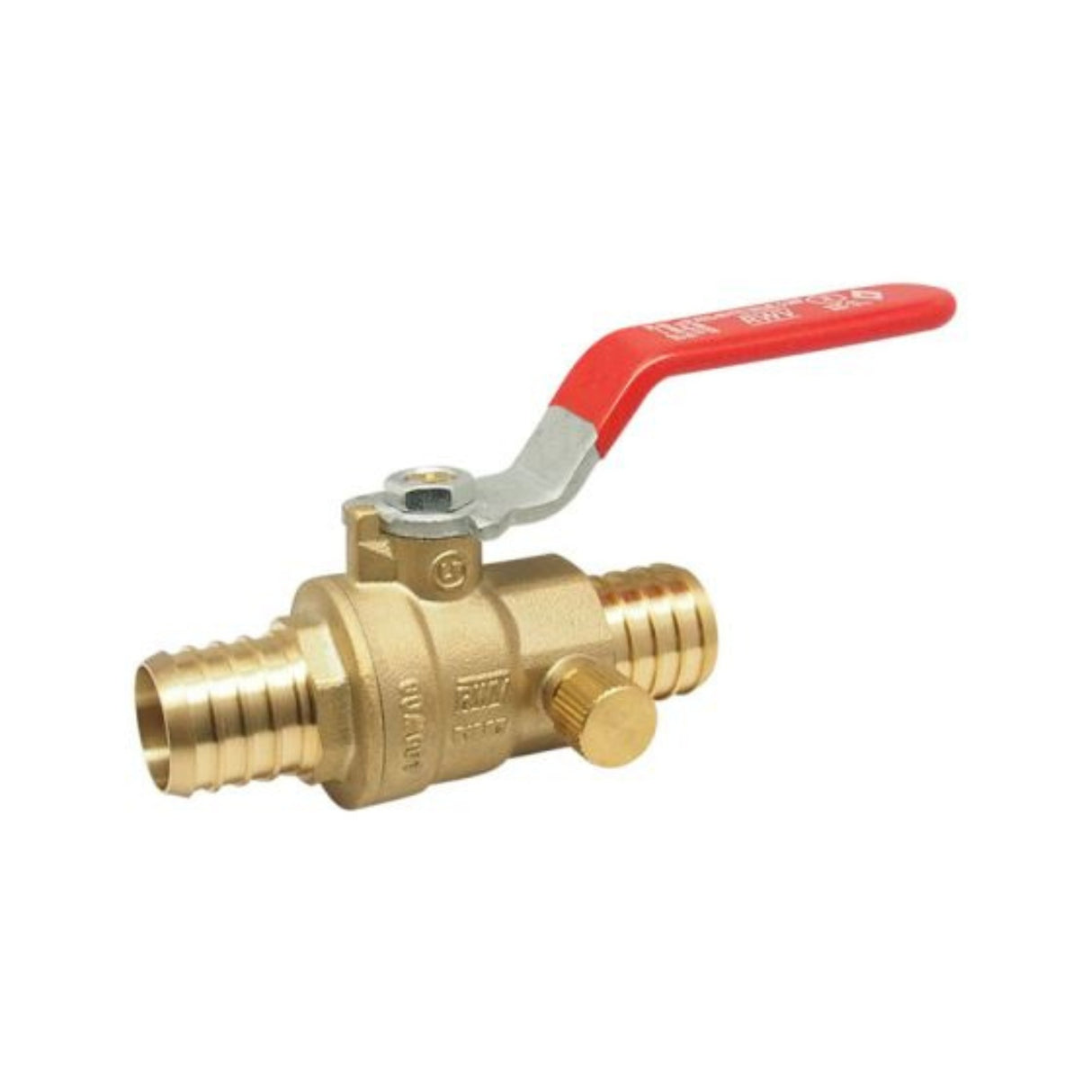

Red-White Valve’s 5009ABD Lead-Free Brass PEX Ball Valve with Drain is engineered for durability, safety, and ease of service in residential or commercial plumbing systems. Designed with DZR (Dezincification Resistant) Lead-Free Brass and compliant with ASTM F1807, this valve ensures reliable, corrosion-resistant performance in potable water applications.
The integrated drain port adds functionality for line draining, maintenance, and system winterization, while the full port design minimizes pressure loss. With NSF/ANSI 61 & 372 certification and compliance with AB1953 and CSA B125.14, the 5009ABD meets modern safety and plumbing standards for lead-free systems.
Key Features
- Built-In Drain Port — Enables line draining and maintenance without system disassembly.
- DZR Lead-Free Brass Body — Meets AB1953 and NSF/ANSI 61 & 372 for potable water safety.
- Barb x Barb PEX Connections — ASTM F1807 ends for reliable crimp or clamp installation.
- Full Port Flow — Allows unrestricted flow and reduces system pressure drop.
- Chrome-Plated Brass Ball — Provides smooth operation and corrosion resistance for long-term reliability.
- Double NBR O-Ring Stem Packing — Offers superior leak protection and long service life.
- Blow-Out Proof Stem — Prevents accidental ejection under pressure for added safety.
- 400 WOG Pressure Rating — Handles up to 300 PSI (15°F–160°F) and 150 PSI at 200°F.

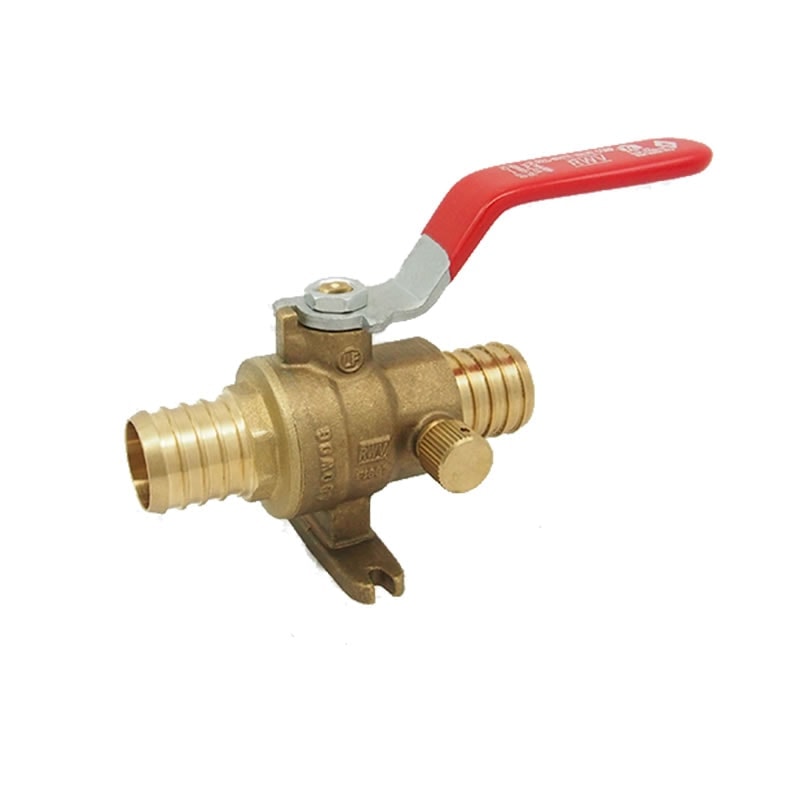

- Optional Configurations — Available with foot mount (5009ABF), drain & foot (5009ABDF), or wing handle (5009ABW).
Pressure & Temperature Ratings
| Pressure / Temperature Rating | |
|---|---|
| 300 PSI from 15°F to 160°F | 150 PSI max at 200°F |
Dimension, Weight
| Size | A [in] | H [in] | L [in] | L1 [in] | P [in] | Wt. [lb] |
|---|---|---|---|---|---|---|
| ½″ | 2.62 | 1.38 | 3.19 | 0.91 | 0.35 | 0.28 |
| ¾″ | 2.93 | 1.73 | 3.58 | 1.04 | 0.53 | 0.42 |
| 1″ | 3.50 | 1.85 | 3.58 | 1.14 | 0.71 | 0.60 |
Material Construction
| Part | Material | Specification |
|---|---|---|
| 1. Body | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2. End Piece | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3. Ball | DZR Lead-Free Brass / Chrome Plated | ASTM B927 C27453 |
| 4. Seat | PTFE | PTFE |
| 5. Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6. O-Ring | NBR (Nitrile Rubber) | NSF Approved |
| 7. Handle | Steel / Dacromet® Plated | ASTM A36 |
| 8. Handle Nut | Steel / Zinc Plated | ASTM A36 |
| 9. Cap Gasket | NBR | NSF Approved |
| 10. Plug | Brass | ASTM B124 C37700 |
