PEX x MNPT Ball Valve | 5006AB Series | Full Port | Lead-Free
PEX x MNPT Ball Valve | 5006AB Series | Full Port Lead-Free
Red-White Valve’s 5006AB PEX x MNPT Ball Valve provides secure, leak-free transitions between PEX systems and threaded fittings. Built with DZR (Dezincification Resistant) Lead-Free Brass, it’s fully compliant with NSF/ANSI 61 & 372, AB1953, and CSA B125.14 standards for safe potable water applications.
Featuring a full-port design with ASTM F1807 Barb and ASME B1.20.1 Male NPT ends, this valve ensures optimal flow with minimal restriction. It’s ideal for residential and commercial plumbing systems that require durability, high pressure tolerance, and quick installation.
Key Features
- Lead-Free Certified — DZR brass body meets NSF/ANSI 61 & 372 and AB1953 lead-free requirements for potable water systems.
- PEX x MNPT Versatility — Combines ASTM F1807 PEX barb with ASME B1.20.1 male NPT thread for flexible, secure installs.
- Full Port Flow — F1807 configuration delivers unrestricted flow and minimal pressure drop for efficient system performance.
- Durable Construction — Chrome-plated brass ball, virgin PTFE seats, and double NBR O-rings ensure long-lasting sealing performance.
- Blow-Out Proof Stem — Engineered for reliability and protection under high-pressure service conditions.
- 300 PSI Rated — Handles 300 PSI from 15°F to 160°F and up to 150 PSI at 200°F for high-performance plumbing systems.

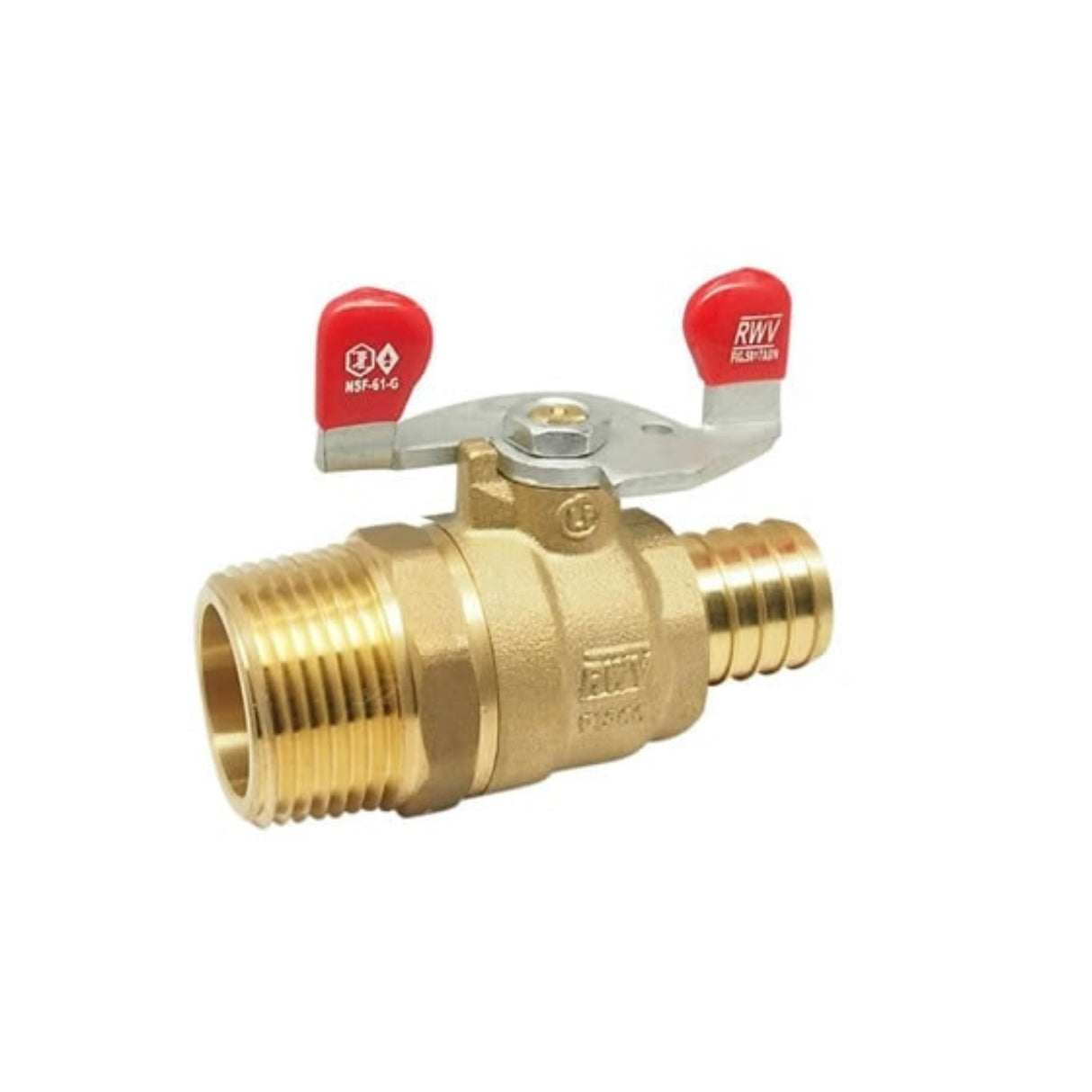

- Optional Wing Handle — Compact 5006ABW model available for tight-space or accessible installations.
Pressure & Temperature Ratings
| Pressure / Temperature Rating | |
|---|---|
| 300 PSI from 15°F to 160°F | 150 PSI max at 200°F |
Dimension, Weight
| Size | Thread (T) | A [in] | H [in] | L [in] | P [in] | C [in] | Wt. [lb] |
|---|---|---|---|---|---|---|---|
| ½″ | ½-14 NPT | 2.39 | 1.38 | 3.19 | 0.35 | 0.61 | 0.28 |
| ¾″ | ¾-14 NPT | 2.63 | 1.73 | 3.58 | 0.53 | 0.62 | 0.42 |
| 1″ | 1-11.5 NPT | 3.19 | 1.85 | 3.58 | 0.71 | 0.77 | 0.64 |
Material Construction
| Part | Material | Specification |
|---|---|---|
| 1. Body | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2. End Piece | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3. Ball | DZR Lead-Free Brass / Cr Plated | ASTM B927 C27453 |
| 4. Seat | PTFE | PTFE |
| 5. Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6. O-Ring | NBR (Nitrile Rubber) | NSF Approved |
| 7. Handle | Steel / Dacromet® Plated | ASTM A36 |
| 8. Handle Nut | Steel / Zinc Plated | ASTM A36 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
