Polypropylene Ball Valve | 5071PP Series | FNPT | 200 WOG
Polypropylene Ball Valve | 5071PP Series | FNPT Threaded | Full Port | 200 WOG

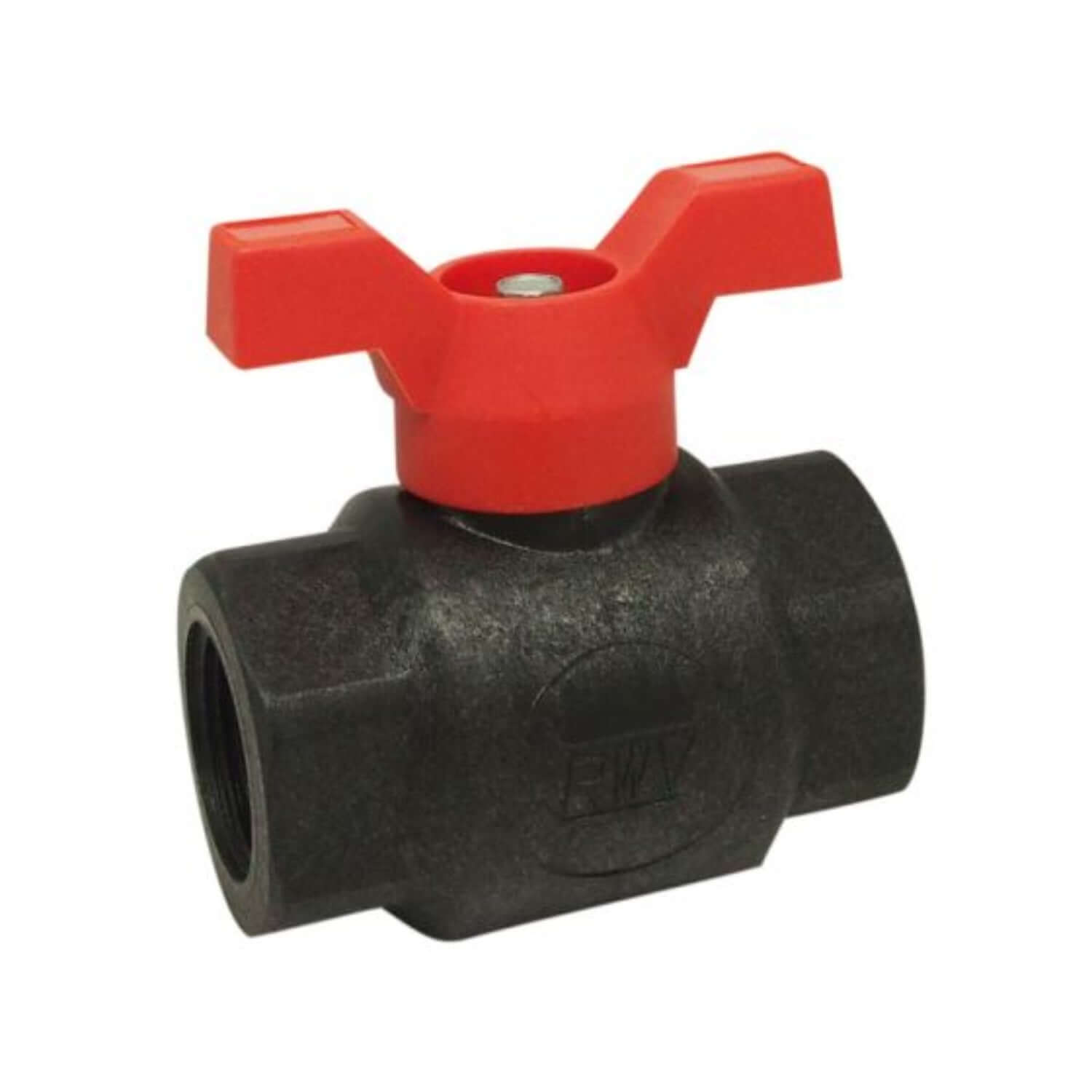

The Red-White Valve 5071PP Polypropylene Ball Valve delivers corrosion resistance, strength, and chemical compatibility in one lightweight design. Built with a single-piece polypropylene body reinforced with 30% glass fiber and UV inhibitors, this valve is engineered for reliable service in outdoor and industrial environments.
Designed with FNPT threaded ends for easy integration into NPT systems, the 5071PP supports a 200 PSI WOG rating and full-port flow path for maximum efficiency. It features PTFE seats for tight sealing and a blow-out proof brass stem for safety under pressure. Compact wing handles come standard on small sizes, while larger models use aluminum lever handles for added leverage.
Key Features
- 200 PSI WOG Rated: Suitable for water, oil, and gas applications.
- Reinforced Polypropylene Body: Single-piece molded construction with 30% glass fiber and UV protection for outdoor use.
- Full Port Design: Delivers unrestricted flow and minimal pressure loss across the valve.
- Virgin PTFE Seats: Ensure leak-tight performance with high chemical resistance.
- Brass Stem & Chrome-Plated Ball: Long-lasting components for reliability under varying pressures.
- FNPT Threaded Ends: Simplify installation into standard NPT piping systems.
- Dual Handle Options: Wing handle (1/2"–1") and aluminum lever handle (1-1/4"–2") provide flexibility in operation.
Dimensions, Cv & Weight (inches-lbs.)
| Size | L | H | E | d | Cv | Weight (lb) |
|---|---|---|---|---|---|---|
| 1/2″ | 2.41 | 2.10 | 3.11 | 0.59 | 15 | 0.26 |
| 3/4″ | 2.84 | 2.25 | 3.11 | 0.77 | 30 | 0.40 |
| 1″ | 3.28 | 2.81 | 3.19 | 1.01 | 60 | 0.66 |
| 1-1/4″ | 3.86 | 2.99 | 4.72 | 1.26 | 110 | 1.08 |
| 1-1/2″ | 4.21 | 3.86 | 5.91 | 1.58 | 130 | 1.65 |
| 2″ | 5.16 | 4.21 | 5.91 | 2.01 | 360 | 2.93 |

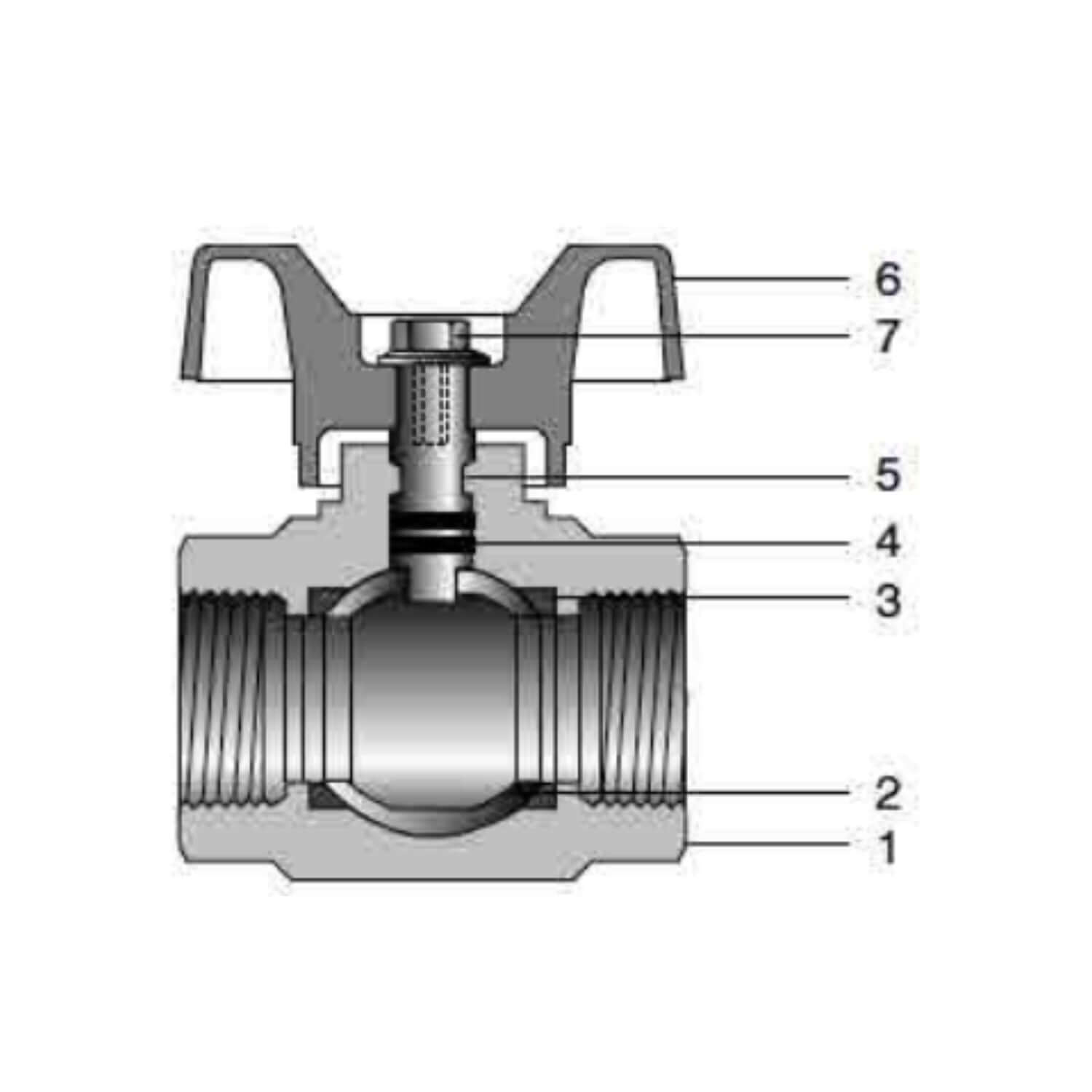

Material & Specifications
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Polypropylene* | With UV inhibitor and 30% glass fiber |
| 2 | Ball | Brass / Chrome Plated | ASTM A283 C37700 |
| 3 | Seat | Virgin PTFE | PTFE |
| 4 | O-Ring | NBR | — |
| 5 | Stem | Brass | ASTM A283 C37700 |
| 6 | Handle (½″–1″) | PA6-30G Wing Handle | — |
| 6 | Handle (1¼″–2″) | Aluminum Lever Handle | — |
| 7 | Bolt | Steel / Dacromet Plated | ASTM A36 |
⚠ California Proposition 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
