RED-WHITE VALVE CORP.  |  SKU: 30076766  |  MPN: 5020ABX 2-1/2

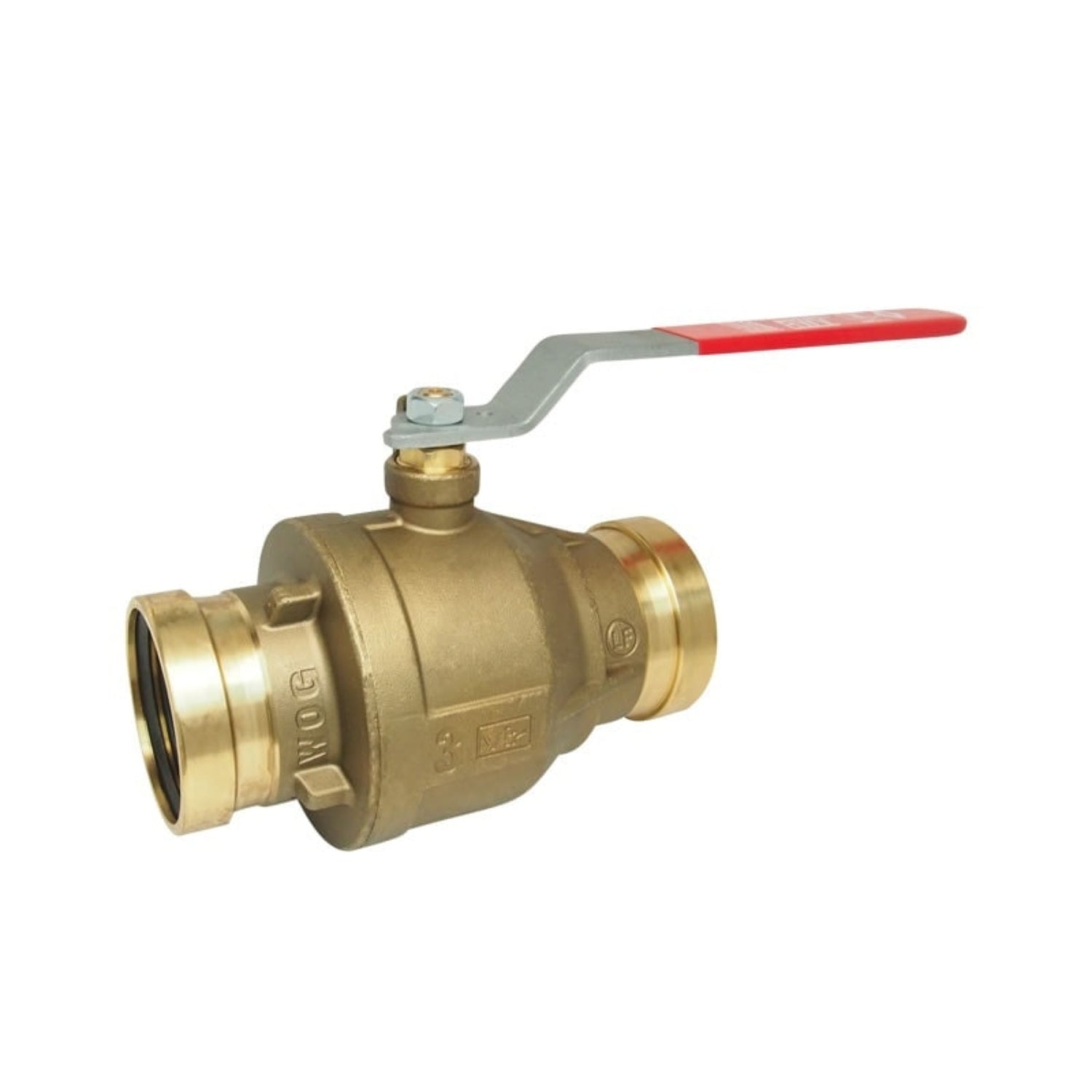

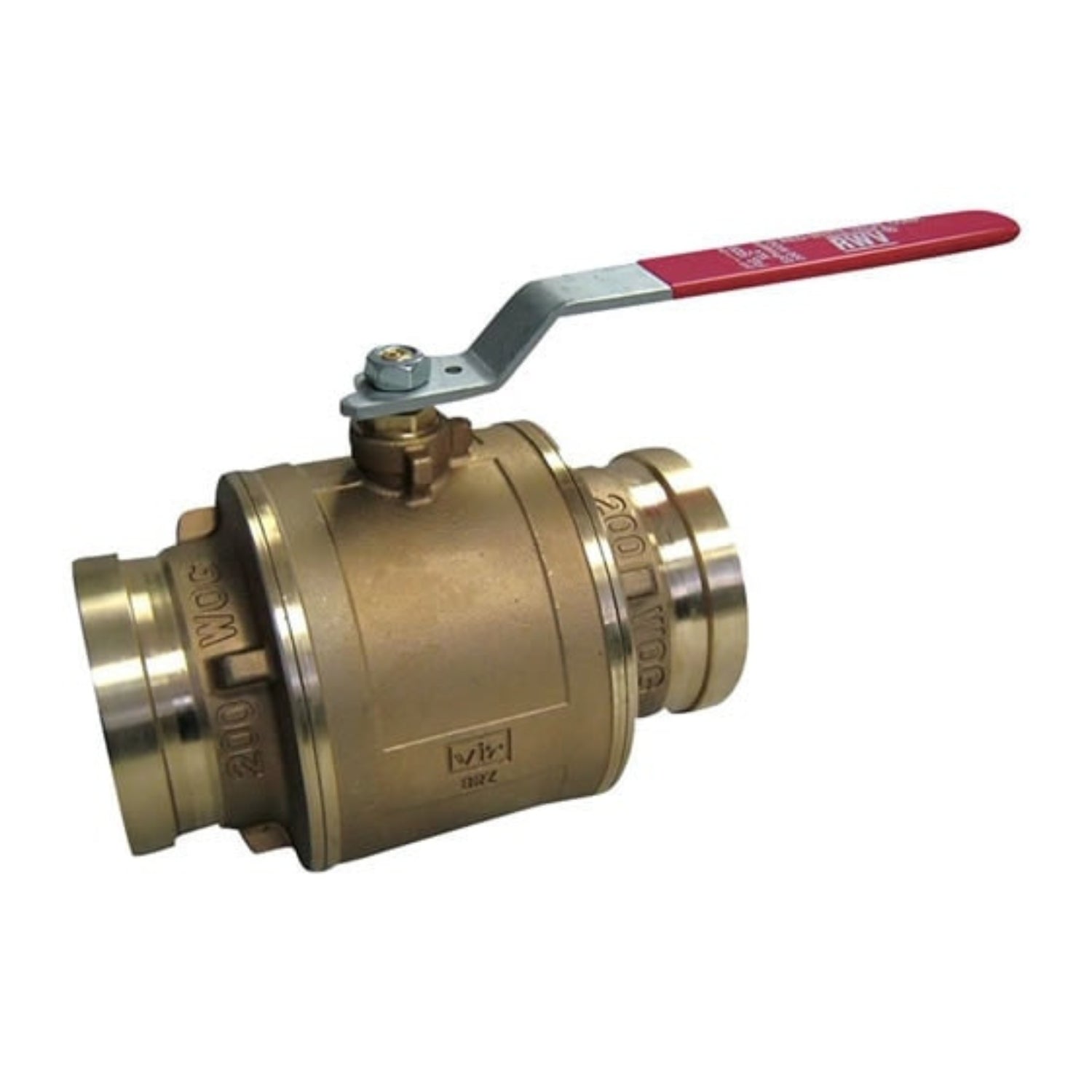

Hydronic Full Port Ball Valve | 5020ABX Series | Press x Press

$391.25
  • Certified Lead-Free DZR Brass Body – Complies with NSF/ANSI 61 & 372 and California AB1953 for safe potable water use.
  • True Full Port Design – Maximizes flow with Cv values up to 1200 on 4" size, reducing pressure loss in hydronic systems.
  • Dual EzPress Ends – Ensures fast, flame-free installation with 200 psi rated press connections.
  • Built for Performance – Chrome plated ball, PTFE seats, and blow-out proof stem deliver smooth operation and long-term reliability.
  • High-Temp Ready – Rated up to 366°F at 100 psi for valve body, making it ideal for demanding hot water applications.
📄 Download Spec Sheet

Hydronic Full Port Ball Valve | 5020ABX Series | Press x Press

Red-White Valve’s 5020ABX Full Port EzPress Ball Valve delivers reliable, leak-free performance with full-port flow and fast press-fit installation. Engineered from DZR (Dezincification-Resistant) Lead-Free Brass, this NSF/ANSI 61 & 372 certified valve meets AB1953 lead-free requirements and BAA compliance for government and commercial projects.

Ideal for potable water, hydronic, and high-performance plumbing systems, the 5020ABX features dual EzPress ends, PTFE seats, and a chrome-plated brass ball for smooth actuation and long service life.

Key Features

  • Certified Lead-Free DZR Brass Body — Complies with NSF/ANSI 61 & 372 and California AB1953 standards for potable water safety.
  • True Full Port Design — Maximizes flow with Cv values up to 1200 on 4″ valves, minimizing pressure loss across hydronic and plumbing systems.
  • Dual EzPress™ Ends — Provides quick, flame-free installation compatible with copper press-fit systems.
  • Built for Performance — Chrome-plated brass ball, PTFE seats, and blow-out proof stem deliver durable, low-maintenance operation.
  • High-Temperature & Pressure Rated — 200 PSI from 15°F–160°F, and 100 PSI max at 366°F for the valve body.
  • Meets MSS-SP-110 & BAA Requirements — Suitable for government, institutional, and commercial plumbing projects.

Pressure & Temperature Ratings

Pressure / Temperature Rating
Valve Body & Stem
200 psi from 15°F to 160°F 100 psi max at 366°F
Press Connections
200 psi from 15°F to 160°F 100 psi max at 250°F

Dimension, Cv, Weight

Size A [in] L [in] H [in] ΦD [in] P [in] C [in] Cv Weight [lb]
2½″ 8.46 11.07 4.69 2.66 2.55 2.24 450 8.62
3″ 9.17 11.07 5.14 3.14 3.07 2.24 620 11.84
4″ 10.00 11.07 5.64 4.17 3.94 2.24 1200 17.58

Material Construction

# Part Material Specification
1 Body DZR Lead-Free Brass ASTM B927 C27453
2 End Piece DZR Lead-Free Brass ASTM B927 C27453
3 Ball Lead-Free Brass / Cr Plated ASTM B927 C28500
4 Seat PTFE PTFE
5 Stem Lead-Free Brass ASTM B927 C28500
6 Packing Ring PTFE PTFE
7 Packing Nut Brass ASTM B124 C37700
8 Handle Steel / Geomet® Plated A36
9 Nut Steel / Zn Plated A36
11 O-Ring EPDM Perox NSF Approved
12 Ring Steel ASTM A295 52100
